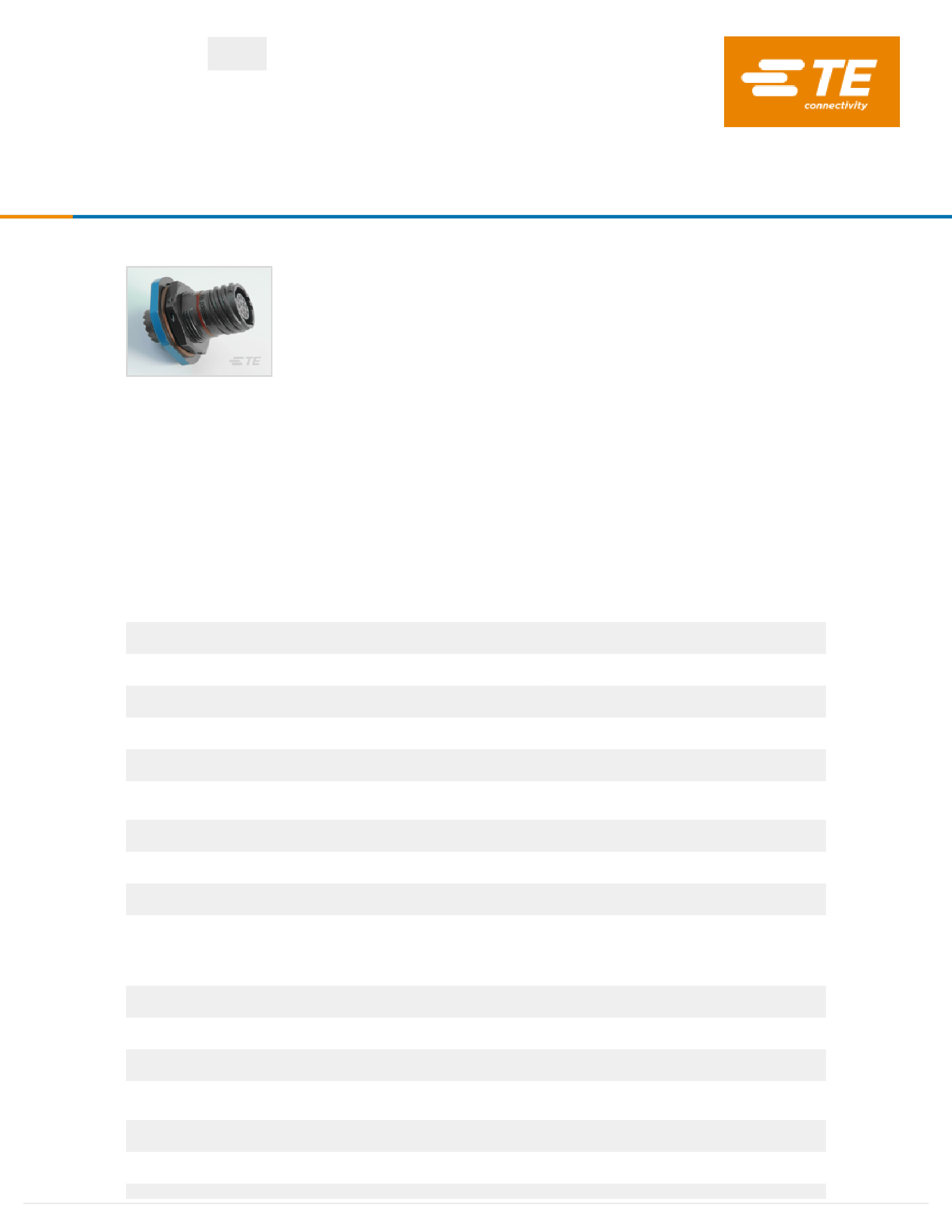

DTS24H21-11XA
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 11 Position,
Sealable, Wire & Cable, 23A Contact Current Rating (Max), Power
DTS24H21-11XA
ACTIVE
DEUTSCH
|
DEUTSCH 38999 Series III
TE Internal #: YDTS24H21-11XA0000
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-
Panel, 11 Position, Sealable, Wire & Cable, 23A Contact Current
Rating (Max), Power
View on TE.com >
Connectors
>
Circular Connectors
>
Standard Circular Connectors
Connector System:
Cable-to-Panel
Number of Positions:
11
Sealable:
Yes
Connector & Contact Terminates To:
Wire & Cable
Contact Current Rating (Max):
23 A
Features
Product Type Features
Product Type
Connector System
Sealable
Connector & Contact Terminates To
Shell Type
Configuration Features
Number of Positions
Number of Power Positions
Number of Signal Positions
Contacts Preloaded
Body Features
Shell Base Material
Circular Connector Insulation Material Type
Hermetically Sealed
Contact Features
Contact Current Rating (Max)
Reverse Gender
Contact Layout Arrangement
23 A
No
21 – 11
04/16/2021 06:05PM | Page 1
Connector
Cable-to-Panel
Yes
Wire & Cable
Jam Nut Receptacle
11
11
0
No
Stainless Steel
Glass
Yes
For support call+1 800 522 6752
DTS24H21-11XA
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 11 Position,
Sealable, Wire & Cable, 23A Contact Current Rating (Max), Power
Contact Layout Arrangement
Circular Connector Contact Type
Mechanical Attachment
Mating Retention Type
Polarization Code
Mating Alignment Type
Housing Features
Circular Connector Shell Size
Alignment Keyed
Dimensions
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
21 – 11
Eyelet Pin
Threaded
A
Keyed
21
0°
12 – 14 AWG
-65 – 200 °C[-85 – 392 °F]
Power
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant with Exemptions
Compliant with Exemptions
Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2021
(211)
Candidate List Declared Against: JUN 2020
(209)
SVHC > Threshold:
Not Yet Reviewed
Not Yet Reviewed for halogen content
Not reviewed for solder process capability
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
For support call+1 800 522 6752
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
04/16/2021 06:05PM | Page 2
DTS24H21-11XA
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 11 Position,
Sealable, Wire & Cable, 23A Contact Current Rating (Max), Power
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

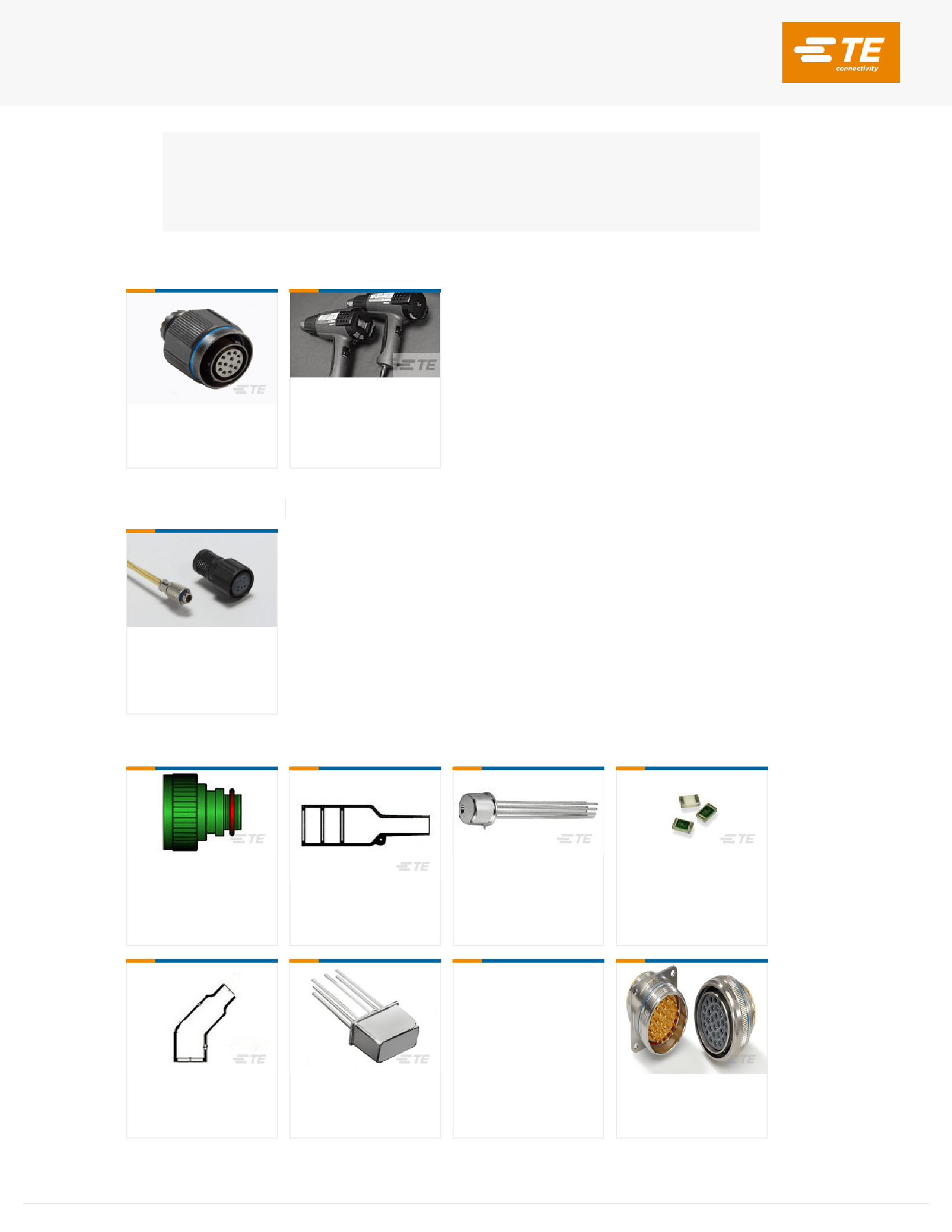

Compatible Parts
