TSXPC860SRVZPU/T50D datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TSXPC860SRVZPU/T50D

TSXPC860SRVZPU/T50D: DescriptionRISC Microprocessor, 32-Bit, 50MHz, CMOS, PBGA357, PLASTIC, BGA-357; CategoryThe embedded processor and controller Microcontrollers and processors; File Size422KB，6 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

TSXPC860SRVZPU/T50D Overview

RISC Microprocessor, 32-Bit, 50MHz, CMOS, PBGA357, PLASTIC, BGA-357

TSXPC860SRVZPU/T50D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	BGA
package instruction	BGA, BGA357,19X19,50
Contacts	357
Reach Compliance Code	compli
ECCN code	3A001.A.3
Address bus width	32
bit size	32
boundary scan	YES
maximum clock frequency	50 MHz
External data bus width	32
Format	FIXED POINT
Integrated cache	YES
JESD-30 code	S-PBGA-B357
JESD-609 code	e0
length	25 mm
low power mode	YES
Number of terminals	357
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA357,19X19,50
Package shape	SQUARE
Package form	GRID ARRAY
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	2.05 mm
speed	50 MHz
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
width	25 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC

Preview

Download Datasheet

View All

PC860FS - Rev.1 – 01/11

PC860 PowerQUICC™ Processor

Fact Sheet

The MPC860 PowerQUICC

is a versatile one-chip integrated microprocessor and peripheral combination that can be

used in a variety of controller applications, excelling particularly in communications and networking products. The

PowerQUICC can be described as a next -generation MC68360 QUICC for network and data communication applications,

providing higher performance in all areas of device operation including flexibility, extensions in capability, and

integration. The MPC860 PowerQUICC, like the MC68360 QUICC integrates two processing blocks. One block is the

Embedded PowerPC Core and the second block is a Communication Processor Module (CPM) that closely resembles the

MC68360 CPM. The CPM supports four serial communications controllers (SCCs ) on the device; however, there are

actually eight serial channels: four SCCs , two serial management controllers (SMCs ), one serial peripheral interface (SPI)

and one I

C interface. This dual-processor architecture provides lower power consumption than traditional architectures

because the CP off-loads peripheral tasks from the Embedded PowerPC Core.

PC860 Main Features

32-bit Embedded PowerPC Core 66 to 80 MHz

System Interface Unit (SIU)

Communication Processor Module (CPM)

- RISC microcontrollerhandling

communication tasks

- 4 SCC’s with serial rate up to 10 Mbps

- Support for many LAN/WAN protocols

- ATM SAR support (SR version only)

Inst.

Cache

Inst.

MMU

Data

Cache

Data

MMU

SIU

Memory Controller

Internal

BIU

External

BIU

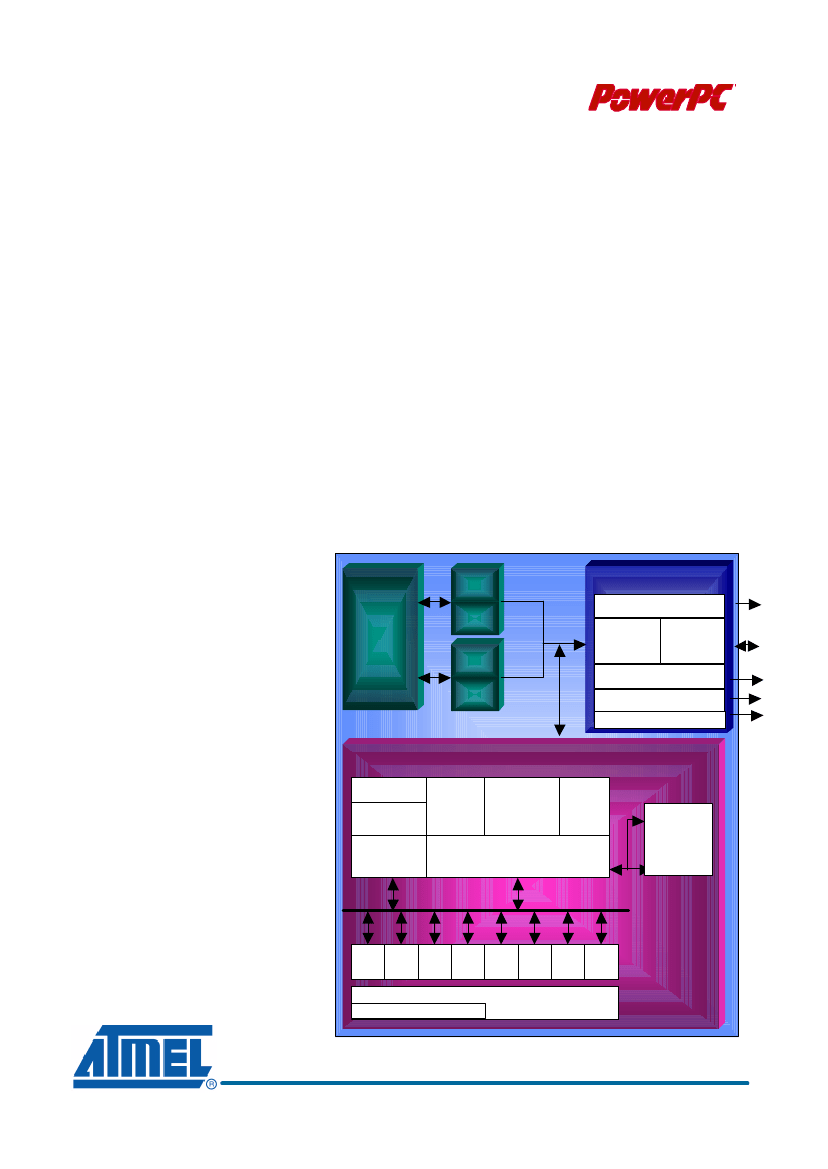

PowerPC

Core

System Functions

Real Time clock

PCMCIA Interface

Communication Processor Module

Parallel I / O

Baud Rate

Generators

Parallel

Interface

Port

Dual -

Port

RAM

Interrupt

Controller

Timers

32-Bit RISC µController

& Program ROM

16 Serial

DMA’s

Virtual

IDMA

SCC SCC SCC SCC SMC SMC SPI

SPI

Time Slot Assigner

Serial Interface
