TFMBJ22 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> TFMBJ22

TFMBJ22: DescriptionGPP TRANSIENT VOLTAGE SUPPRESSOR (600 WATT PEAK POWER 1.0 WATT STEADY STATE); CategoryDiscrete semiconductor diode; File Size1012KB，4 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric View All

TFMBJ22 Overview

GPP TRANSIENT VOLTAGE SUPPRESSOR (600 WATT PEAK POWER 1.0 WATT STEADY STATE)

TFMBJ22 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
Parts packaging code	DO-214AA
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	LOW ZENER IMPEDANCE
Maximum breakdown voltage	29.8 V
Minimum breakdown voltage	24.4 V
Maximum clamping voltage	39.4 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	265
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	22 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

RECTRON

SEMICONDUCTOR

TECHNICAL SPECIFICATION

TVS

TFMBJ

SERIES

GPP TRANSIENT VOLTAGE SUPPRESSOR

600 WATT PEAK POWER 1.0 WATT STEADY STATE

FEATURES

Plastic package has underwriters laboratory

Glass passivated chip construction

600 watt surage capability at 1ms

Excellent clamping capability

Low zener impedance

Fast response time

DO-214AA

Ratings at 25

C ambient temperature unless otherwise specified.

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Dimensions in inches and (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA suffix for types TFMBJ5.0 thru TFMBJ170

Electrical characteristics apply in both direction

MAXIMUM RATINGS

(At T

= 25 C unless otherwise noted)

RATINGS

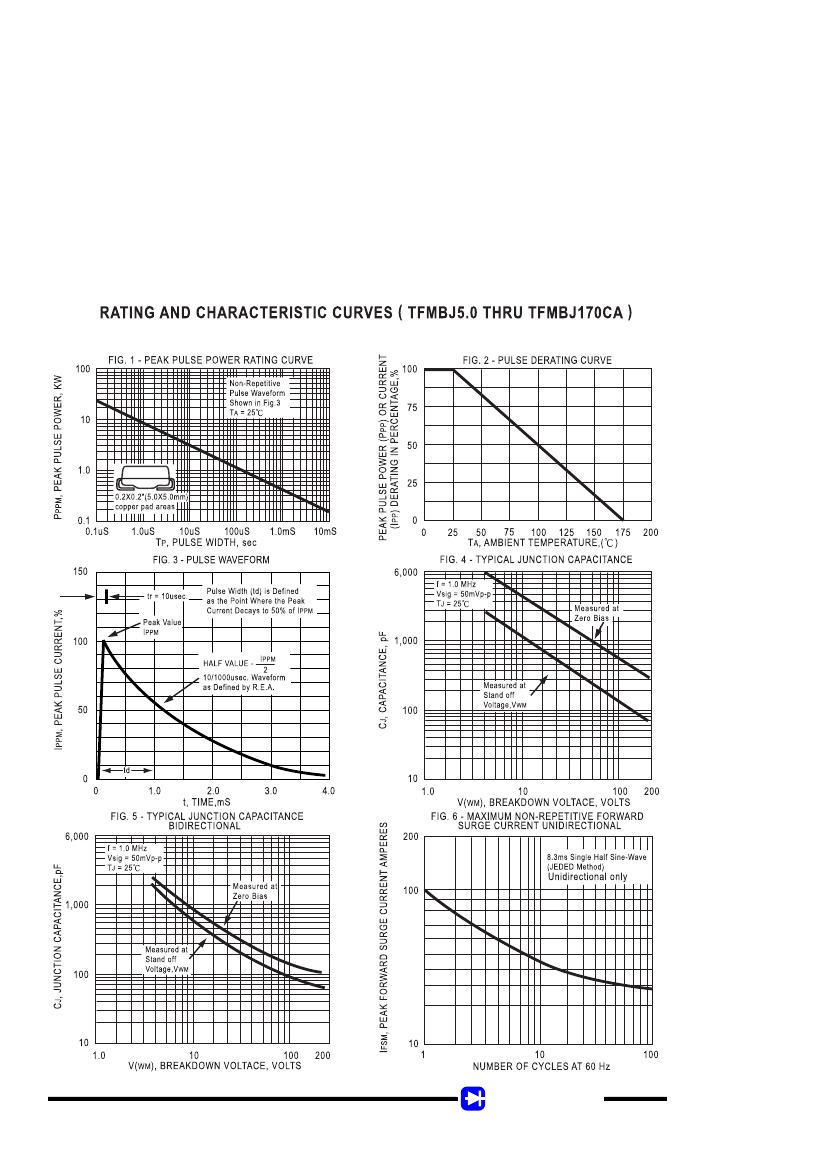

Peak Power Dissipation with a 10/1000uS (Note 1,2, Fig.1)

Peak Pulse Current with a 10/1000uS waveform ( Note 1, Fig.3 )

Steady State Power Dissipation at T

= 75 C (Note 2)

Peak Forward Surge Current 8.3mS single half sine-wave

superimposed on rated load (JEDEC method) (Note 2,3)

unidirectional only

Maximum Instantaneous Forward Voltage at 50A for unidirectional

only (Note 3,4)

Operating and Storage Temperature Range

SYMBOL

PPM

(AV)

FSM

VALUE

Minimum 600

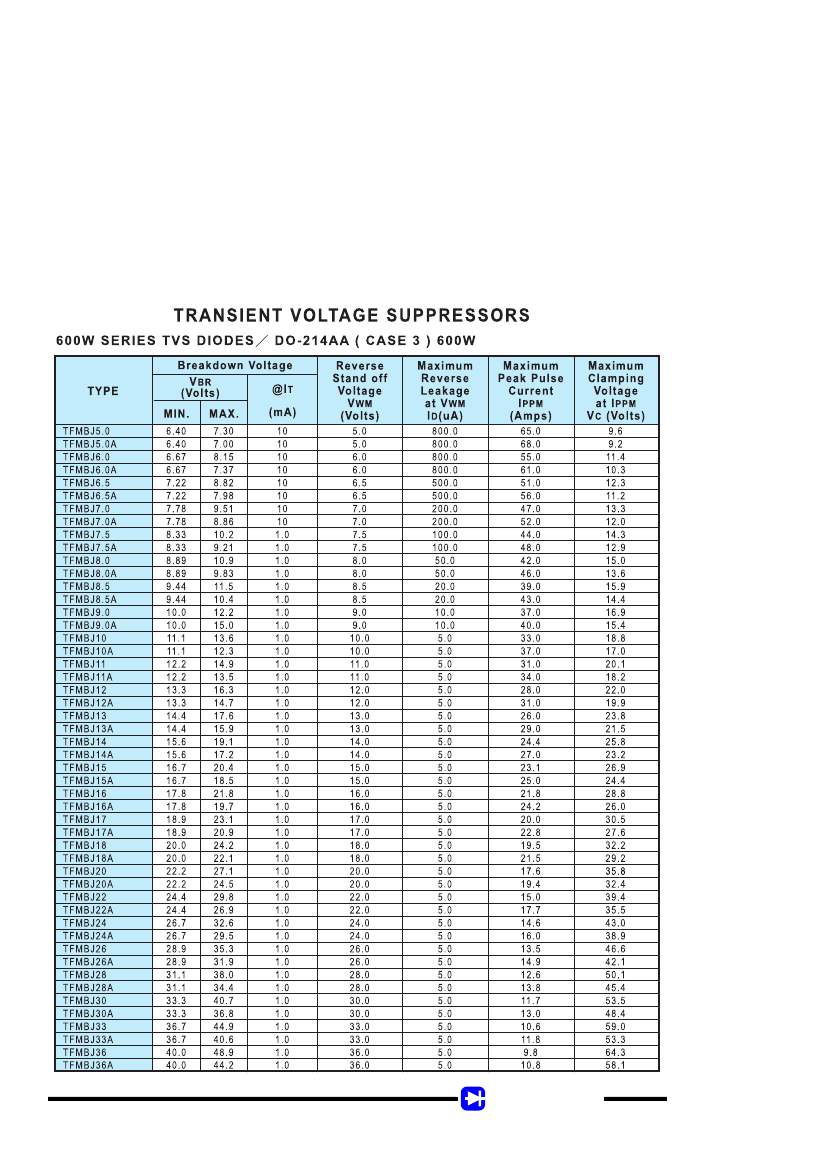

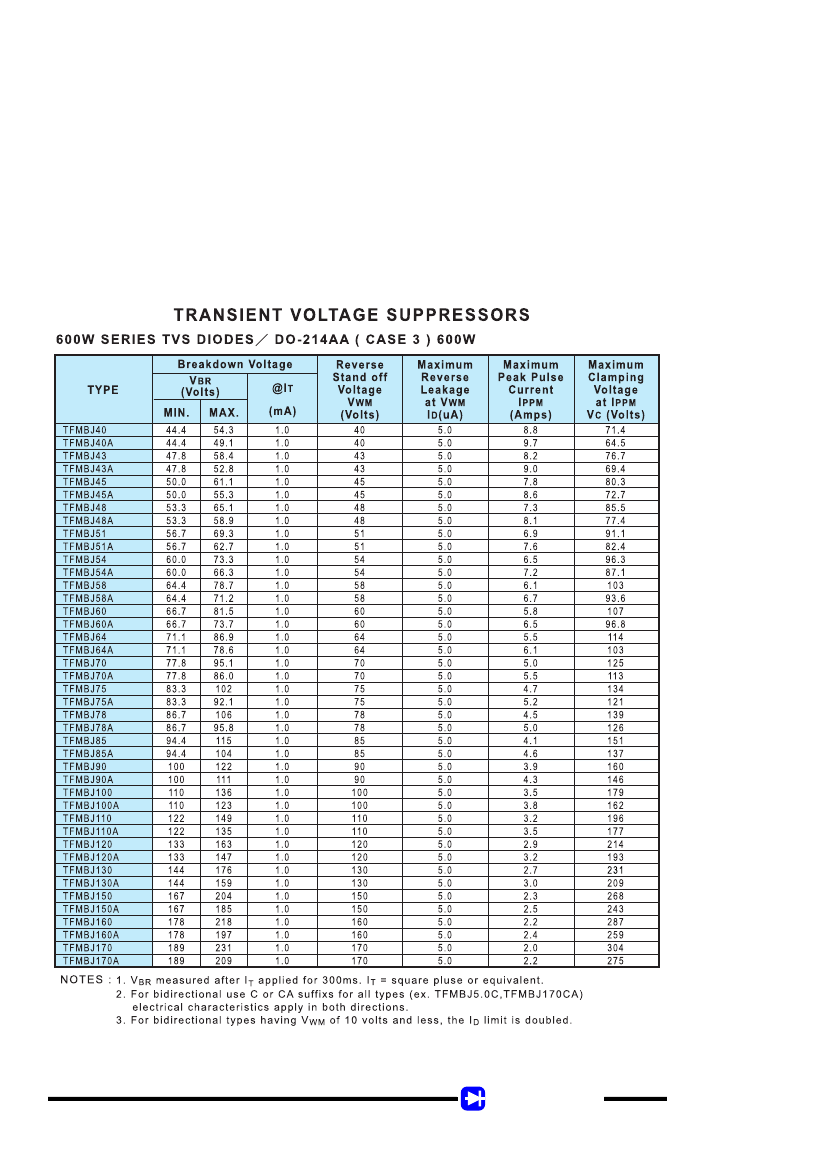

SEE TABLE 1

5.0

100

UNITS

Watts

Amps

Watts

Amps

, T

STG

SEE NOTE 4

-55 to + 150

Volts

1998-8

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T

= 25

C per Fig.2.

2. Mounted on 0.2 X 0.2”( 5.0 X 5.0mm ) copper pad to each terminal.

3. Lead temperature at T

= 25

4. Measured on 8.3mS single half sine-wave duty cycle = 4 pules per minute maximum.

5. V

= 3.5V on TFMBJ-5.0 thru TFMBJ-90 devices and V

= 5.0V on TFMBJ-100 thru TFMBJ-170 devices.
