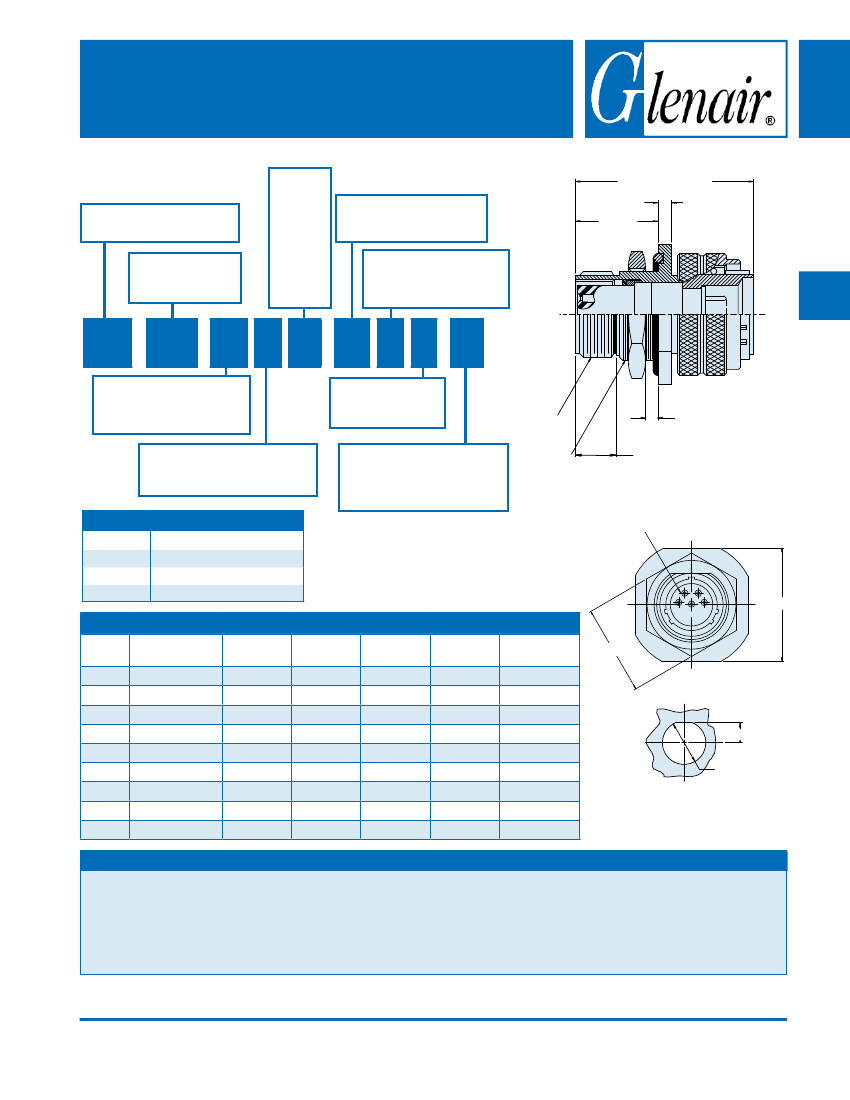

233-103-H9Z115-35SA-01: DescriptionJam Nut Mount Hermetic Plug/Receptacle Bulkhead Feed-Thru; File Size421KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

233-103-H9Z115-35SA-01 Overview

Jam Nut Mount Hermetic Plug/Receptacle Bulkhead Feed-Thru

Preview

Download Datasheet

View All

Plug/Receptacle Bulkhead Feed-Thru

for MIL-DTL-38999 Series III Type

Shell Size

2.000 (50.8) Max

Insert Arrangement

Per MIL-DTL-38999 Series III

MIL-STD-1560

Contact Termination

- Pin on Plug Side

- Socket on Plug Side

Connector Series

233

D38999 Series III Type

Connector Type

103

Hermetic

Bulkhead Feed-Thru

.890

(22.6)

Max

.125

(3.2)

233

103

H9 P 11

35 P N

Shell Style

- Jam Nut Mount Plug/

Receptacle Gender Changer

Connector Material and Finish

- CRES, Passivated

- CRES, Nickel Finish

Alternate Positions:

A, B, C, D, E

(N = Normal)

Panel Accomodation

- .0625″ (Min) .125″ (Max)

- .0625″ (Min) .250″ (Max)

- .0625″ (Min) .500″ (Max)

A Thread

F Thread

Panel

Accomodation

.520/.500 (13.2/12.7)

to rear of red full-mate

indicator band

Insert Arrangements per

MIL-DTL-38999 Series III

MIL-STD-1560

HERMETIC LEAK RATE MOD CODES

Designator

–585A

–585B

–585C

Required Leak Rate

1 x 10

-10

cc’s Helium per second

1 x 10

-9

cc’s Helium per second

1 x 10

-8

cc’s Helium per second

C DIM

MAX

1.090(27.7)

1.280(32.5)

1.400(35.6)

1.530(38.9)

1.660(42.2)

1.840(46.7)

1.970(50.5)

2.090(53.1)

2.210(56.1)

DIA

.698(17.7)

.822(20.9)

1.010(27.6)

1.135(28.8)

1.260(32.0)

1.385(35.2)

1.510(38.4)

1.635(41.5)

1.760(44.7)

DIM

.322(8.9)

.385(9.8)

.479(12.3)

.541(13.7)

.604(15.3)

.635(16.1)

.698(17.7)

.760(19.3)

.822(20.9)

F THREAD

x1-6g-0.100R

M17

M20

M25

M28

M32

M35

M38

M41

M44

D Dia

TABLE I: CONNECTOR DIMENSIONS

SHELL

SIZE

A THREAD

0.1 P-0.3L-TS-2

.6250

.7500

.8750

1.0000

1.1875

1.2500

1.3750

1.5000

1.6250

DIM

.945(24.0)

1.063(27.0)

1.260(32.0)

1.417(36.0)

1.457(37.0)

1.614(41.0)

1.811(46.0)

1.968(50.0)

2.017(51.2)

Recommended

Panel Cut-Out

APPLICATION NOTES

Power to a given contact on one end will result in power to contact directly

opposite, regardless of identification letter.

Hermeticity = less than 1 x 10

-7

cc/sec at one atmosphere. Not for use in liquid

atmosphere.

Material/finish:

Shell, nut – CRES/passivated, carbon steel/fused tin or CRES/nickel per QQ-N-290.

Contacts – Gold Plated. Pin: alloy 52; Skt.: copper alloy

Insulator – fused vitreous glass/N.A.

Seals – fluorosilicone rubber/N.A.

Metric dimensions (mm) are indicated in parentheses.

www.glenair.com

CAGE CODE 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

B-39
