TC5562J-35 datasheet, PDF - EEWORLD Datasheet

TC5562J-35: DescriptionIC 64K X 1 STANDARD SRAM, 35 ns, PDSO24, 0.300 INCH, PLASTIC, SOJ-24, Static RAM; Categorystorage storage; File Size577KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

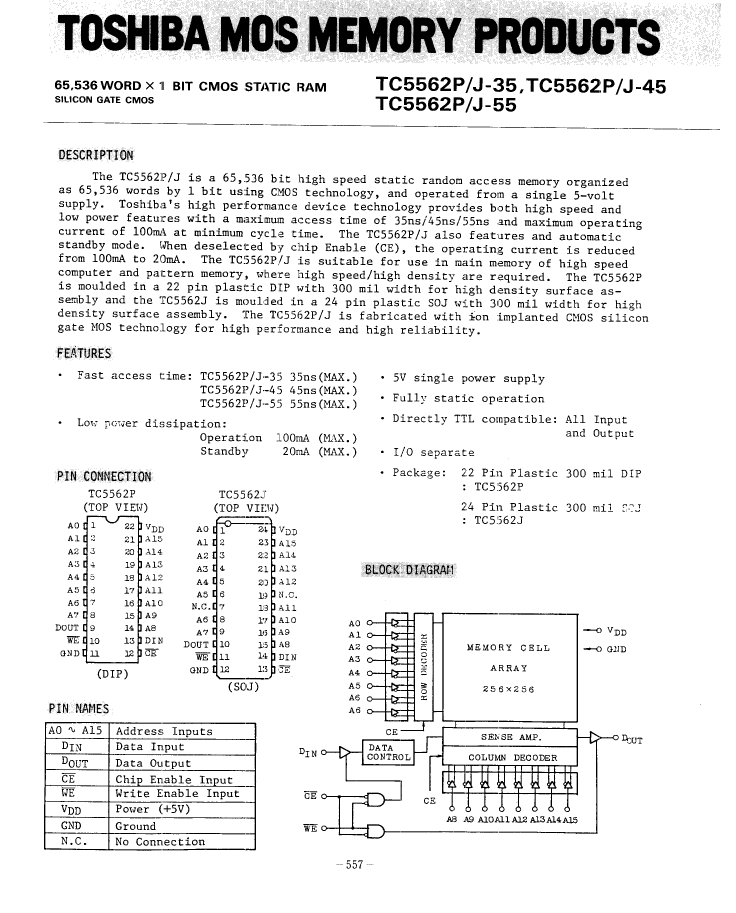

TC5562J-35 Overview

IC 64K X 1 STANDARD SRAM, 35 ns, PDSO24, 0.300 INCH, PLASTIC, SOJ-24, Static RAM

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOJ
package instruction	SOJ, SOJ24,.34
Contacts	24
Reach Compliance Code	unknow
ECCN code	EAR99

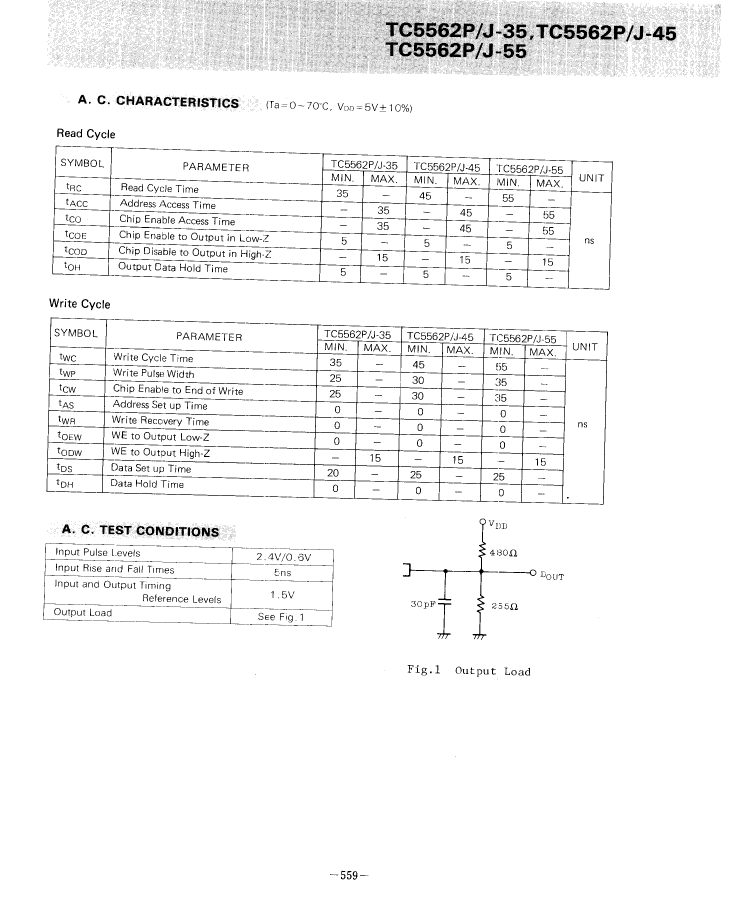

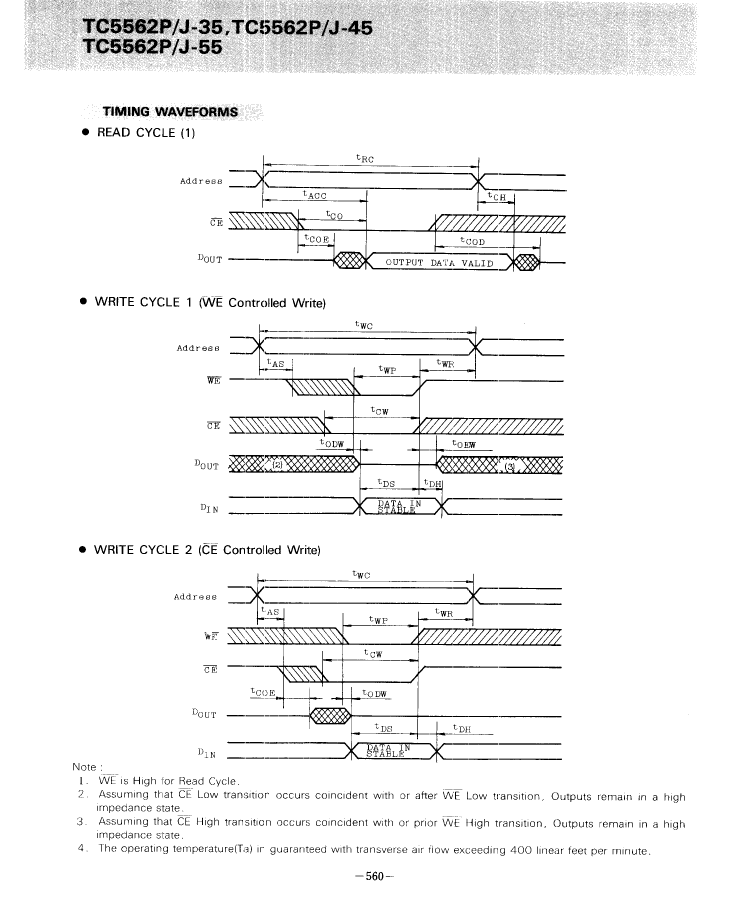

Maximum access time	35 ns
Other features	LOW POWER STANDBY MODE; TTL COMPATIBLE INPUTS/OUTPUTS
I/O type	SEPARATE
JESD-30 code	R-PDSO-J24
JESD-609 code	e0

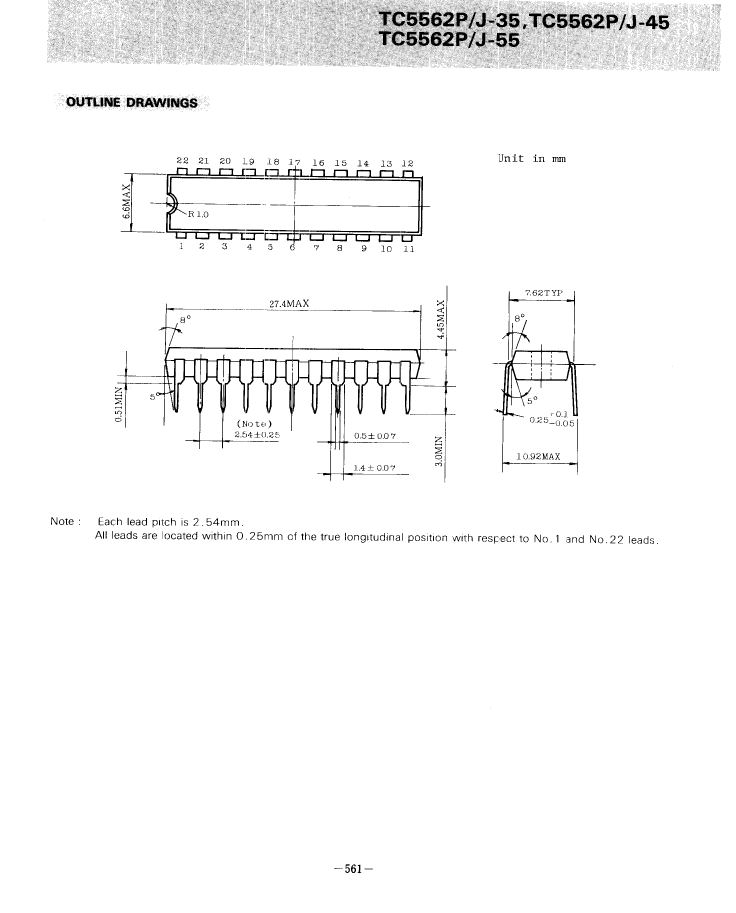

length	15.9 mm
memory density	65536 bi
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	24
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX1
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ24,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240

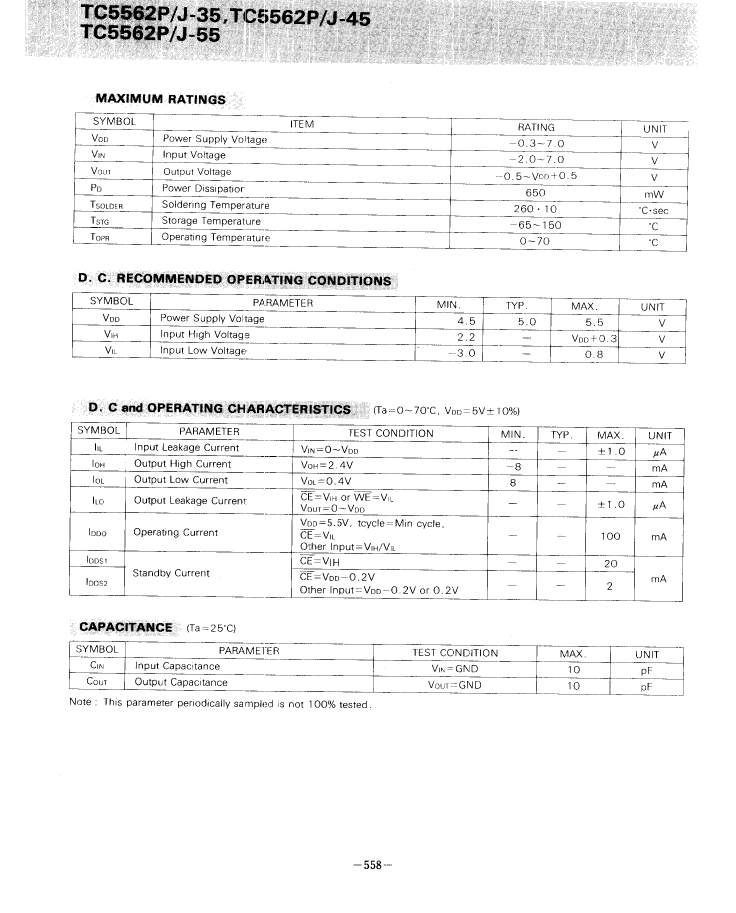

power supply	5 V
Certification status	Not Qualified
Maximum seat height	3.6 mm
Maximum standby current	0.002 A
Minimum standby current	2 V
Maximum slew rate	0.1 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.7 mm
