BJ229-012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BJ229-012

BJ229-012: DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerTrompeter Electronics

Download Datasheet Parametric View All

BJ229-012 Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack

BJ229-012 Parametric

Parameter Name	Attribute value
Maker	Trompeter Electronics
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	CAPTIVE CENTER CONTACT, EMI/RFI SHIELDED TYPE
subject depth	1 inch
Body diameter	0.75 inch
Body/casing type	JACK
Cable type	RG-55
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	220
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	NICKEL
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

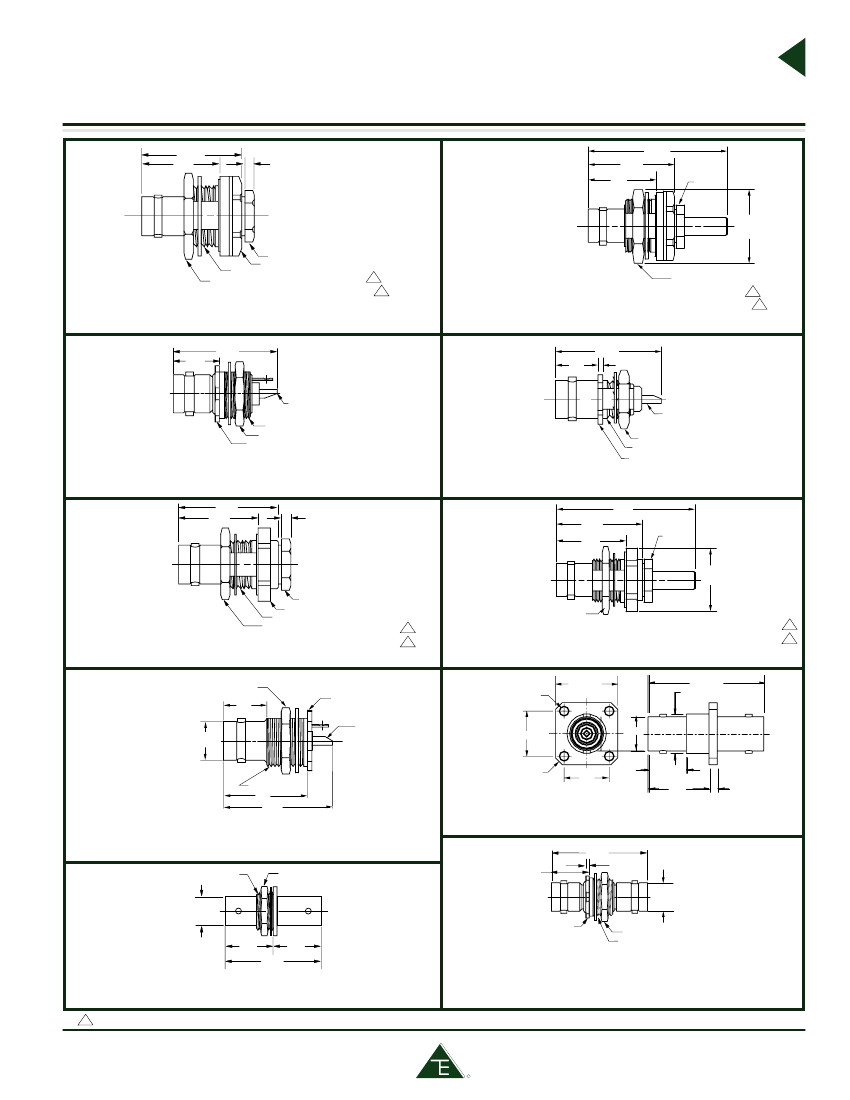

Miniature coax 20/220 series, bnc bulkhead jacks

BJ26-1 Shown

1.000

.790

BJ226-001 Shown

.096

1.626

1.000

.790

.437 HEX

.830

DIA

MAX

Insulated

Bulkhead

Cable Jack

.437 HEX

.830 DIA MAX

.625-24UNEF-2A

50Ω

.750 HEX NUT

Wrench Crimp, Rear mount

Mounting Hole:

D2.187

GF-Ground

filter version page 31.

BJ27 Shown

.471

1.060

75Ω

BJ26-

UBJ26-

Insulated Bulkhead

Cable Jack

.750 HEX NUT

50Ω

BJ226-

Rear Mount, Tool Crimp

75Ω

UBJ226-

Mounting Hole:

D2.187,GF-Ground filter version page 31.

1.058

.425

.046

ACCEPTS

.060 DIA

CONDUCTOR

Insulated

Bulkhead Jack

Front Mount , Solder pot

Mounting Hole:

D3.147

BJ29-1 Shown

1.000

.806

.500-28UNEF-2A

.562 HEX NUT

Bulkhead Jack

Front Mount, Solder pot

ACCEPTS

.060 DIA

CONDUCTOR

.500 HEX

.375-32UNEF-2A

.468 HEX

50Ω

75Ω

BJ20

UBJ20

50Ω

75Ω

BJ27

UBJ27

w/ Solder Lug

Mounting Hole:

D5.125

BJ229-001 Shown

1.000

.806

50Ω

BJ20SL

75Ω

UBJ20SL

1.625

.096

.437 HEX

.750

DIA

Bulkhead

Cable Jack

Rear Mount, Wrench Crimp

.437HEX

.687 HEX

.500-28UNEF-2A

.625 HEX

.625 HEX NUT

50Ω

75Ω

Mounting Holes:

D3.218 (D2.218-Cable Groups 6, 6E,51,52)

BJ23 Shown

BJ29-

UBJ29-

Bulkhead Cable Jack

Rear Mount, Tool Crimp

Mounting Hole:

D3.218

M2.5 X 0.45-6H

4 PLACES

.689 SQ

50Ω

75Ω

BJ229-

UBJ229-

.562 HEX NUT

.414

.562 HEX

1.284

.437

Bulkhead Jack

Non-Insulated

50Ω

BJ23

75Ω

UBJ23

Mounting Hole:

D3.147

.380

DIA

SOLDER POT ACCEPTS

.060 DIA CONDUCTOR

.500

.380

Ø.875

.500-28UNEF-2A

.813

1.060

.425

.500

.675

.093

Insulated

Bulkhead Cable Jack

Rear mount, solder pot

Mounting Hole:

D3.147

.500-28UNEF-2A

BNC Double Jack with

Mounting Flange

BJ21

UBJ21

BJ28 Shown

75Ω

(Comes with Four 6mm Long Pan Head Screws)

1.280

.046

.505

.380 DIA

TYP

UBJ24F

50Ω

75Ω

.562 HEX

.380 DIA

TYP

.562 HEX

Bulkhead Jack

Feed-Through

Non-Insulated

.700

1.284

.584

BJ24

50Ω

75Ω

UBJ24

Mounting Hole:

DD3.100, (Hermetically sealed version available, call factory).

Insulated

Bulkhead Jack

.562 HEX NUT

.500-28UNEF-2A

50Ω

BJ28

Feed-through

75Ω

UBJ28

Mounting Hole:

D3.156 (Hermetically sealed version available, call factory).

GF-Ground

Filter version available page 31.

- Refers to Cable Group Table, see pages 68-88. "D" mounting holes are on page 45.

Trompeter Products Catalog

ISO 9001

Registered

(800) 982-2629

Fax: (818) 706-1040
