25CTQ...PbF Series
Vishay High Power Products
Schottky Rectifier, 2 x 15 A
FEATURES
Base 2
common
cathode
•
•
•
•
•
Anode
TO-220AB
Anode
2
1 Common 3
cathode
150 °C T
J
operation
Pb-free
Center tap TO-220 package
Available
Low forward voltage drop
RoHS*
High frequency operation
COMPLIANT
High purity, high temperature epoxy
encapsulation for enhanced mechanical strength and
moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• Lead (Pb)-free (“PbF” suffix)
• Designed and qualified for industrial level
PRODUCT SUMMARY
I
F(AV)
V
R
2 x 15 A
35 to 45 V
DESCRIPTION
The 25CTQ...PbF center tap Schottky rectifier series has
been optimized for very low forward voltage drop, with
moderate leakage. The proprietary barrier technology allows
for reliable operation up to 150 °C junction temperature.
Typical applications are in switching power supplies,
converters, freewheeling diodes, and reverse battery
protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
T
J
CHARACTERISTICS
Rectangular waveform
Range
t
p
= 5 µs sine
15 Apk, T
J
= 125 °C (per leg)
Range
VALUES
30
35 to 45
990
0.50
- 55 to 150
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
V
RWM
25CTQ035PbF
35
25CTQ040PbF
40
25CTQ045PbF
45
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
See fig. 5
Maximum peak one cycle non-repetitive
surge current per leg
See fig. 7
Non-repetitive avalanche energy per leg
Repetitive avalanche current per leg
SYMBOL
I
F(AV)
TEST CONDITIONS
50 % duty cycle at T
C
= 102 °C, rectangular waveform
5 µs sine or 3 µs rect. pulse
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
Following any rated load
condition and with rated
V
RRM
applied
VALUES
30
990
A
250
20
3
mJ
A
UNITS
A
T
J
= 25 °C, I
AS
= 3.0 A, L = 4.40 mH
Current decaying linearly to zero in 1 µs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 94173
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
1
25CTQ...PbF Series
Vishay High Power Products
Schottky Rectifier, 2 x 15 A
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
15 A
Maximum forward voltage drop per leg
See fig. 1
V
FM (1)
30 A
15 A
30 A
Maximum reverse leakage current per leg
See fig. 2
Maximum junction capacitance per leg
Typical series inductance per leg
Maximum voltage rate of change
Note
(1)
Pulse width < 300 µs, duty cycle < 2 %
I
RM (1)
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
TEST CONDITIONS
T
J
= 25 °C
VALUES
0.56
0.71
0.50
0.64
1.75
70
900
8.0
10 000
mA
pF
nH
V/µs
V
UNITS
T
J
= 125 °C
V
R
= Rated V
R
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated V
R
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and
storage temperature range
Maximum thermal resistance,
junction to case per leg
Maximum thermal resistance,
junction to case per package
Typical thermal resistance,
case to heatsink
Approximate weight
minimum
maximum
Case style TO-220AB
SYMBOL
T
J
, T
Stg
DC operation
See fig. 4
DC operation
R
thCS
Mounting surface, smooth and greased
TEST CONDITIONS
VALUES
- 55 to 150
3.25
1.63
0.50
2.0
0.07
6 (5)
12 (10)
g
oz.
kgf · cm
(lbf · in)
°C/W
UNITS
°C
R
thJC
Mounting torque
Marking device
25CTQ045
www.vishay.com
2
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94173
Revision: 13-Aug-08
25CTQ...PbF Series
Schottky Rectifier, 2 x 15 A
Vishay High Power Products
I
F
- Instantaneous Forward Current (A)
1000
1000
I
R
- Reverse Current (mA)
100
10
T
J
= 150 °C
T
J
= 125 °C
T
J
= 100 °C
100
10
T
J
= 150 °C
T
J
= 125 °C
T
J
= 25 °C
1
0.1
0.01
T
J
= 75 °C
T
J
= 50 °C
1
T
J
= 25 °C
0.1
0
0.2 0.4 0.6
0.8
1.0 1.2 1.4 1.6
1.8 2.0
0.001
0
5
10
15
20
25
30
35
40
45
V
FM
- Forward Voltage Drop (V)

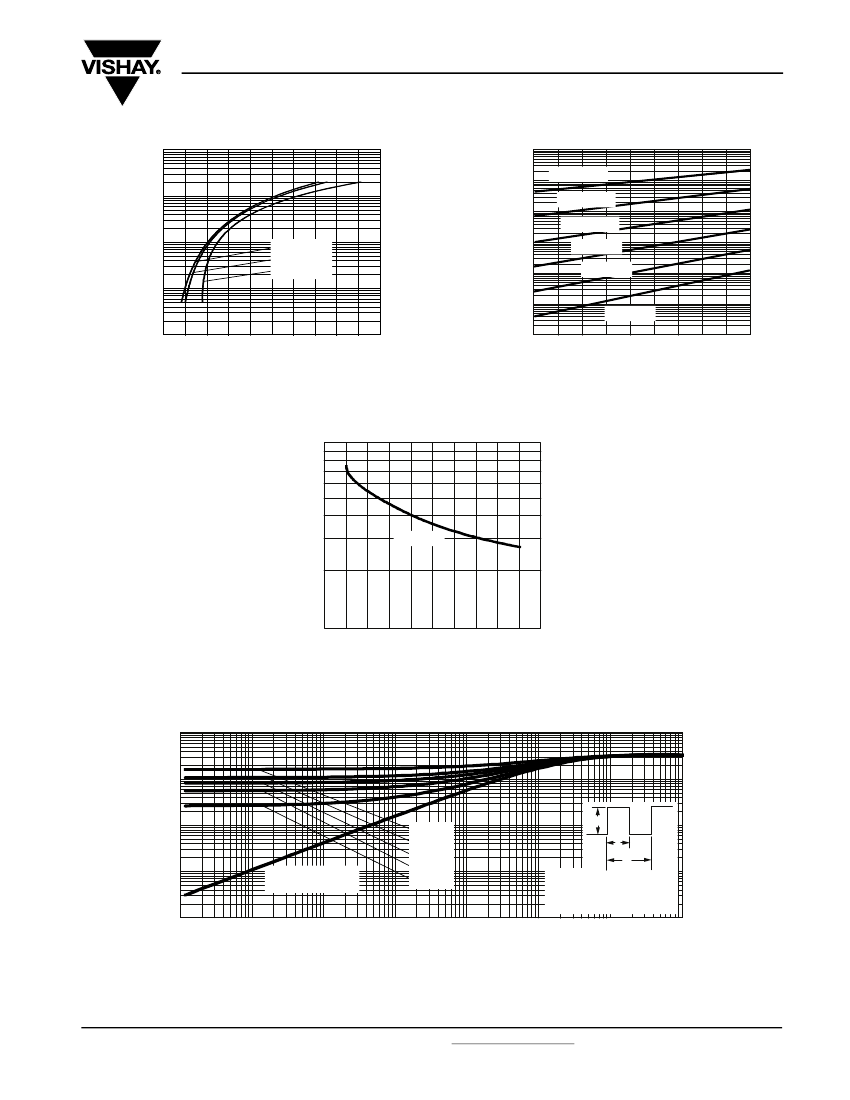

Fig. 1 - Maximum Forward Voltage Drop Characteristics
(Per Leg)
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage (Per Leg)
1000
C
T
- Junction Capacitance (pF)
T
J
= 25 °C
100
0
10
20
30
40
50
V
R
- Reverse Voltage (V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage (Per Leg)
Z
thJC
- Thermal Impedance (°C/W)
10
1
0.1
0.01
Single pulse
(thermal resistance)
D = 0.50
D = 0.33
D = 0.25
D = 0.17
D = 0.08
P
DM
t
1
t
2
Notes:
1. Duty factor D = t
1
/t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.1
1
10
100
0.001
0.00001
0.0001
0.001
0.01
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics (Per Leg)
Document Number: 94173
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
3
25CTQ...PbF Series
Vishay High Power Products
Schottky Rectifier, 2 x 15 A
160
12
Allowable Case Temperature (°C)
140
130
DC
120
110
100
0
5
10
15
20
25
Average Power Loss (W)
150
25CTQ
R
thJC
(DC) = 3.25 °C/W
10
8
6
4
2
0
0
D = 0.08
D = 0.17
D = 0.25
D = 0.33
D = 0.50
RMS limit
DC
2
4
6
8
10 12 14 16 18 20 22
I
F(AV)
- Average Forward Current (A)

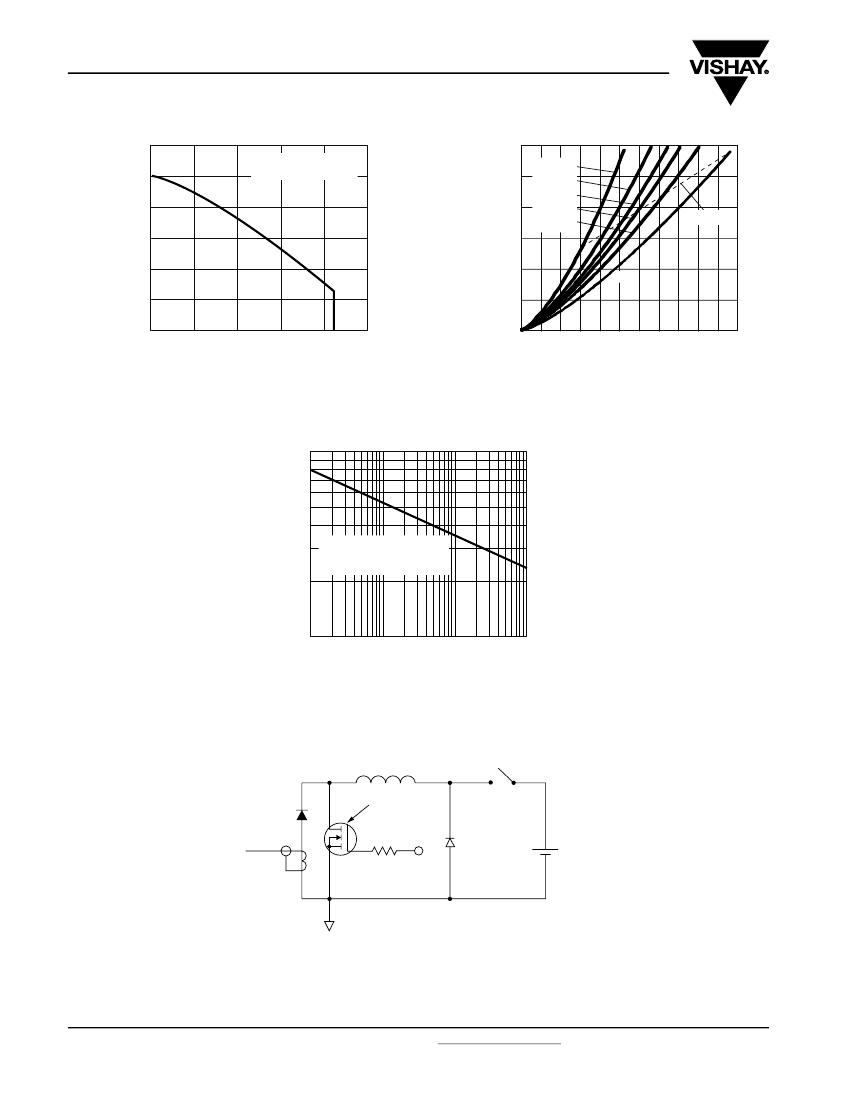

Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current (Per Leg)
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics (Per Leg)
I
FSM
- Non-Repetitive Surge Current (A)
1000
At any rated load condition
and with rated V
RRM
applied
following surge
100
10
100
1000
10000
t
p
- Square Wave Pulse Duration (µs)
Fig. 7 - Maximum Non-Repetitive Surge Current (Per Leg)
L
High-speed
switch
Freewheel
diode
40HFL40S02
+ V
d
= 25 V
D.U.T.
IRFP460
R
g
= 25
Ω
Current
monitor
Fig. 8 - Unclamped Inductive Test Circuit
www.vishay.com
4
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94173
Revision: 13-Aug-08
25CTQ...PbF Series
Schottky Rectifier, 2 x 15 A
Vishay High Power Products
ORDERING INFORMATION TABLE
Device code
25
1
C
2
T
3
Q
4
045 PbF
5
6
1
2
3
4
5
6
-
-
Current rating (25 = 25 A)
Circuit configuration:
C = Common cathode
-
Package:
T = TO-220
-
-
Schottky “Q” series
Voltage ratings
None = Standard production
PbF = Lead (Pb)-free
-
035 = 35 V
040 = 40 V
045 = 45 V
Tube standard pack quantity: 50 pieces
LINKS TO RELATED DOCUMENTS
Dimensions
Part marking information
SPICE model
http://www.vishay.com/doc?95222
http://www.vishay.com/doc?95225
http://www.vishay.com/doc?95285
Document Number: 94173
Revision: 13-Aug-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
5
