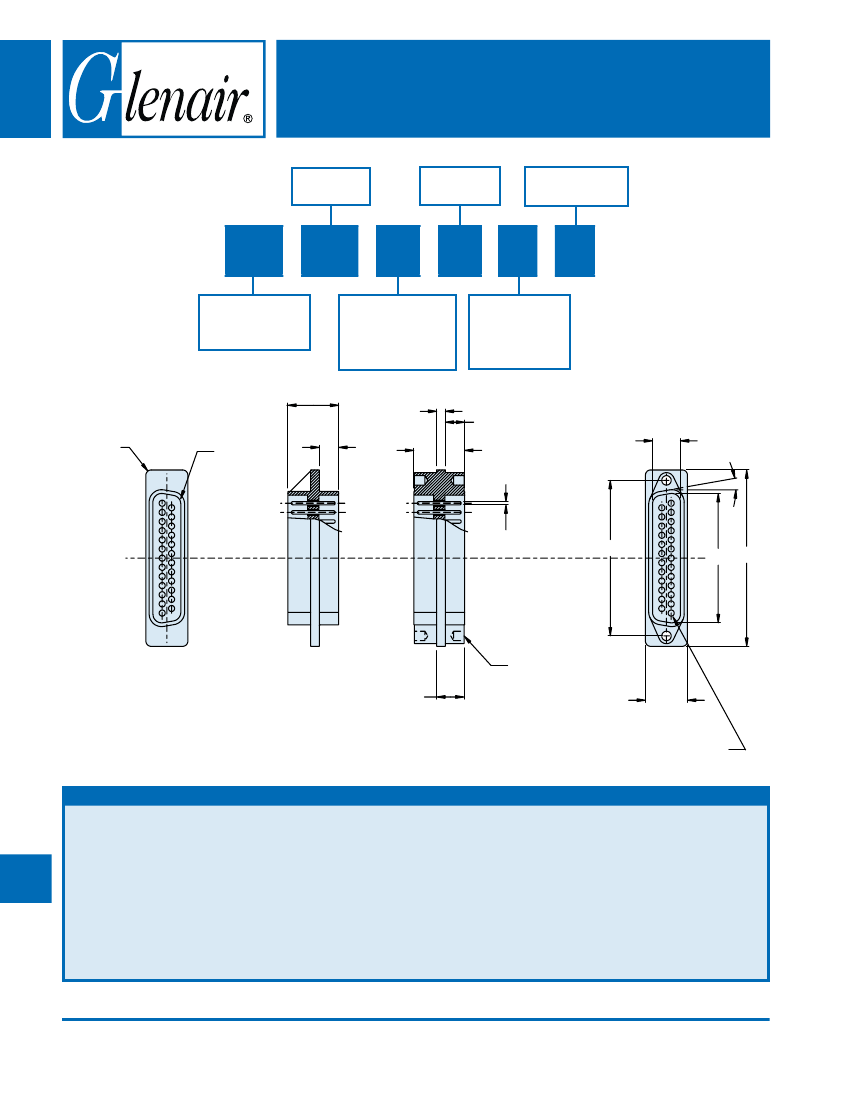

D-Subminiature Pin-to-Pin Feedthrough
280-009
MIL-DTL-24308/9 Type Hermetic
MIL-DTL
24308
Connector
Style
Shell Size
Contact Style
C
= Pin-Pin
280
-
009
MIL-DTL-24308/9
D-Subminiature
Hermetic
P
Class
FT
= Fused Tin
Z1
= Passivated
P
= Nickel Plated
1
A
Flange Type
A
= Solid
B
= Four #4-40
Lockposts
C
R.062
Typ
TERMINATION
vIEW
.605
Ref
R.093
Typ
K
H
K
.605
Ref
ENGAGEMENT
vIEW
D
10°
Typ
ø.040±.001
C
B
A
FLANGE
TYPE
A
.335
.316
#4-40 Unc-2b
X .125 Min
Full Thread
FLANGE
TYPE
B
E
Insert Arrangement Shown
are for Reference Only
APPLICATION NOTES
1.
2.
To be identified with manufacturer’s name, part number and date
code, space permitting.
Contact Style: Pin-to-Pin only (See Part Number Development).
5.
H
3.
4.
All dimensions are typical for flange types “A” and “B.” “C” dim
is not applicable to flange type “A.”
Material/Finish:
Shell: FT =
Carbon steel/tin plated.
Performance:
DWV - 750 VAC Pin-to-Shell
I.R. - 5,000 MegOhms Min @ 500 VDC
Hermeticity - 1 x 10
-7
scc He/sec @1
atmosphere differential
Glenair 280-009 will mate with any QPL MIL-DTL-24308/1, /2
and /23 receptacle of the same size and arrangement.
Metric dimensions (mm) are indicated in parentheses.
6.
7.
Z1 = Stainless steel/passivated.
P = Stainless steel/nickel plated.
Insulators: Glass bead/N.A.
Contacts: Pins, Alloy 52/gold plated
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
H-10

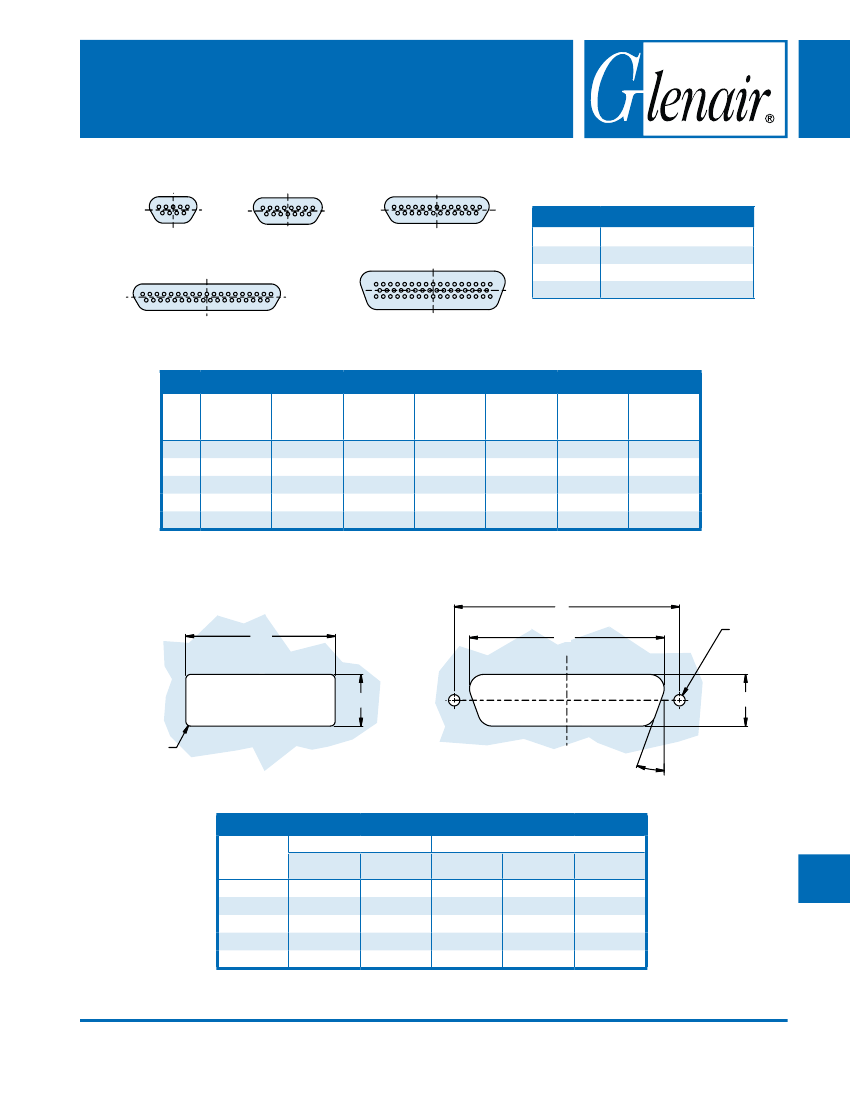

D-Subminiature Pin-to-Pin Feedthrough
MOD CODES
1
1 2 3 4 5
6 7 8 9
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
2
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
3
d Leak Rate
HERMETIC LEAK RATE MOD CODES
Designator
–585A
–585B
–585C
33
Helium per second
9 CONTACTS
15 CONTACTS
25 CONTACTS
Required Leak Rate
1 x 10
-10
cc’s Helium per second
1 x 10
-9
cc’s Helium per second
1 x 10
-8
cc’s Helium per second
Helium per second
4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
5
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
Helium per second
37 CONTACTS
50 CONTACTS
TABLE I: CONNECTOR DIMENSIONS
ION CODES
g Plus Outgassing
essing
Thermal vacuum
Outgassing
24 hrs. 125° C.
Shell
Size
1
2
3
4
5
Dim
Dim
Dim
Dim
Dim
Dim
Dim
A
B
C
D
E
H
K
± .015 (± 0.4) ± .004 (± 0.1) ± .005 (± 0.1) ± .004 (± 0.1) ± .010 (± 0.3) ± .006 (± 0.2) ± .010 (± 0.3)
1.213 (30.8)
1.541 (39.1)
2.088 (53.0)
2.729 (14.7)
2.635 (66.9)
.667 (16.9)
.993 (25.2)
1.535 (39.0)
2.183 (55.4)
2.079 (52.8)
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.441 (11.2)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.610 (15.5)
.094 (2.4)
.094 (2.4)
.103 (2.6)
.103 (2.6)
.103 (2.6)
.235 (6.0)
.235 (6.0)
.230 (5.8)
.230 (5.8)
.230 (5.8)
Mod 429C
Mod 429A
Mod 186M
RECOMMENDED PANEL CUTOUT
SEE TABLE 2
C
Ø.120
XA
Xa
XB
Xb
Ya
YA
R.062 Max
Typ
Yb
YB
REAR MOUNT
FRONT MOUNT
(STYLE B ONLY)
10°
Typ
TABLE II: PANEL CUT-OUT DIMENSIONS
Shell
Sizes
1
2
3
4
5
Style A
Dim
Dim
YA
XA
.745 (18.9)
.385 (9.8)
.950 (24.1)
1.495 (38.0)
2.145 (54.5)
2.015 (51.2)
.385 (9.8)
.385 (9.8)
.385 (9.8)
.520 (13.2)
Dim
XB
.799 (20.3)
1.125 (28.6)
1.690 (42.9)
2.335 (59.3)
2.231 (56.7)
Style B
Dim
YB
.462 (11.7)
.462 (11.7)
.462 (11.7)
.462 (11.7)
.588 (14.9)
Dim
C
.982 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
H-11
MIL-DTL
24308
e
city Mod Code
280-009
MIL-DTL-24308/9 Type Hermetic
H
