BI2-G12-AN6X Overview

Inductive Sensor,

BI2-G12-AN6X Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknow
Other features	IP67; REVERSE POLARITY PROTECTION; SHORT-CIRCUIT PROTECTION
body height	54 mm
Body length or diameter	12 mm
shell	METAL
Installation features	FLUSH MOUNT
Maximum working current	200 mA
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Output interface type	3-WIRE INTERFACE
Output type	NPN
Package Shape/Form	BARREL
Sensor/temperature sensor type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CABLE

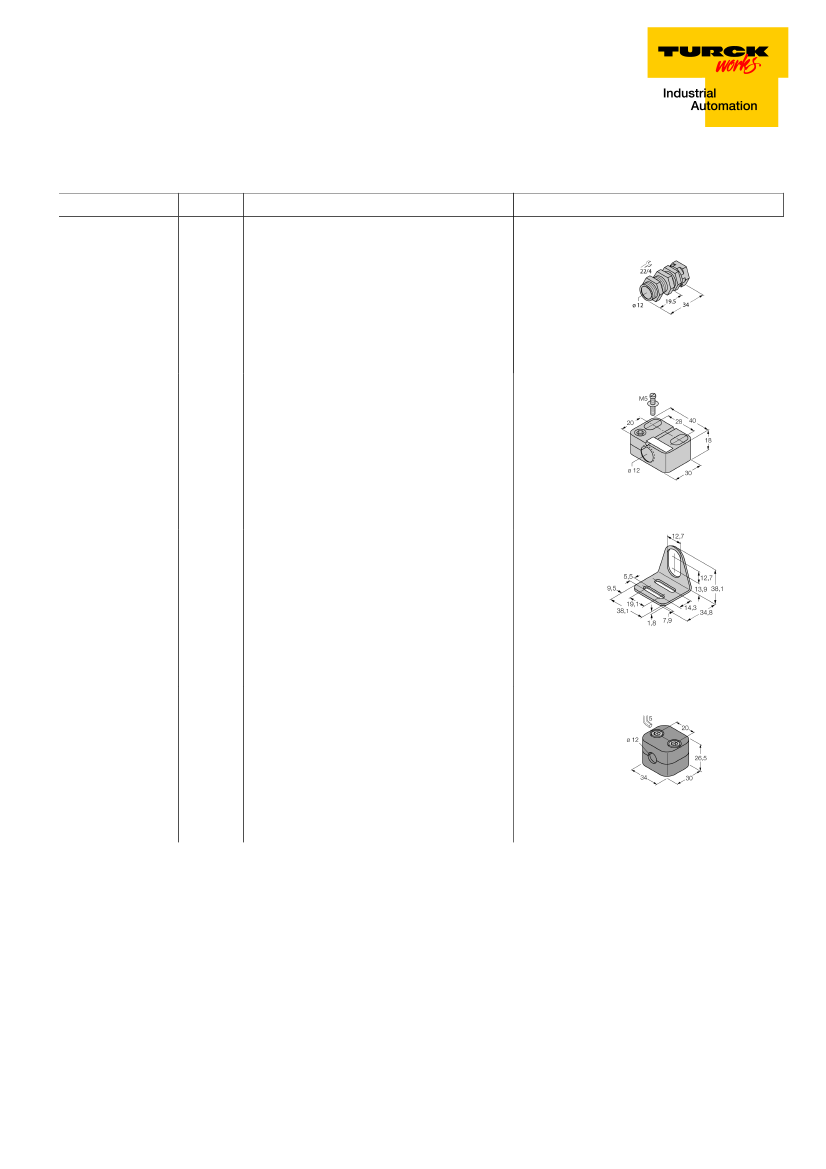

Preview

Download Datasheet

View All

Inductive sensor

BI2-G12-AN6X

■

Threaded barrel, M12 x 1

■

Chrome-plated brass

■

DC 3-wire, 10…30 VDC

■

NO contact, NPN output

■

Cable connection

Wiring Diagram

Type designation

Ident-No.

Ident-No (TUSA)

Rated switching distance Sn

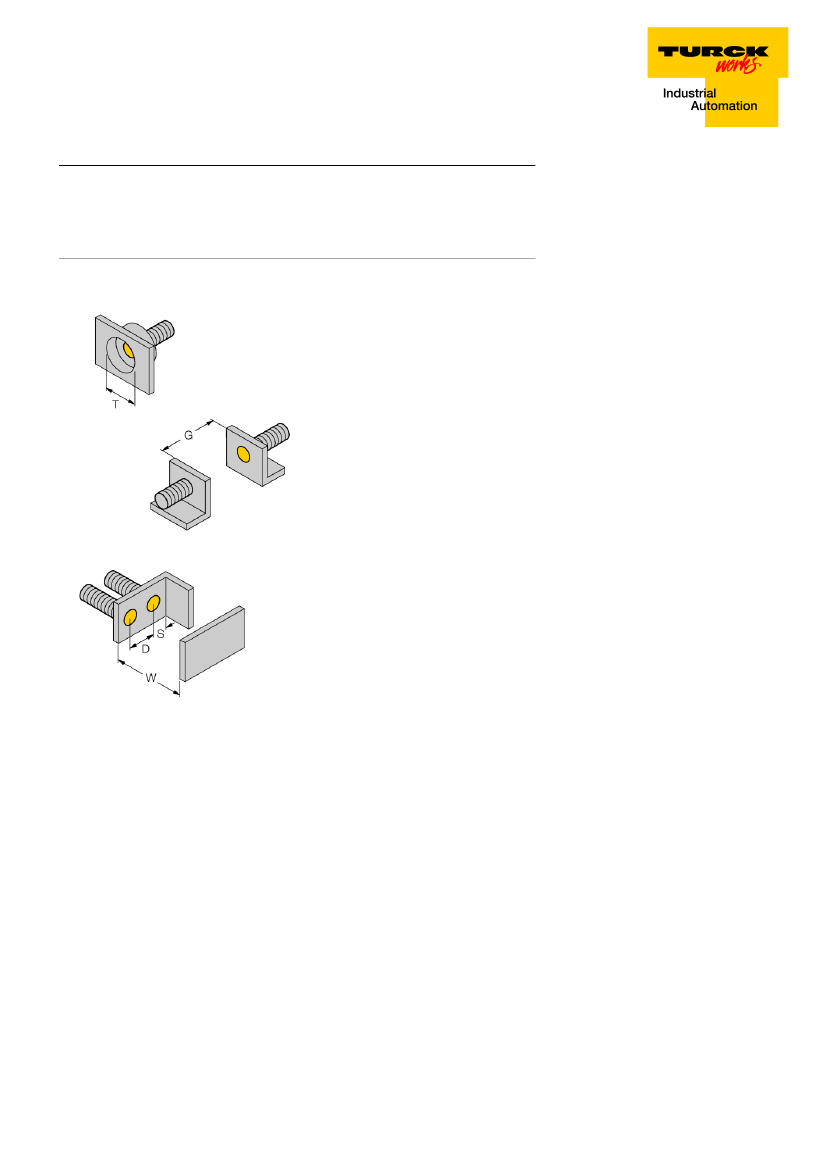

Mounting conditions

Secured operating distance

Correction factors

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current I

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at I

Wire breakage/Reverse polarity protection

Output function

Switching frequency

Design

Dimensions

Housing material

Active area material

End cap

Max. tightening torque housing nut

Electrical connection

Cable quality

Cable cross section

Vibration resistance

Shock resistance

Protection class

MTTF

Switching state

Edition • 2017-09-15T07:13:05+02:00

BI2-G12-AN6X

4635500

T4635500

2 mm

Flush

(0,81 x Sn) mm

St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

2 % of full scale

± 10 %

3…15 %

-25…+70 °C

10…30 VDC

10 % U

200 mA

15 mA

0.1 mA

0.5 kV

yes/ Cyclic

1.8 V

yes/ Complete

3-wire, NO contact, NPN

2 kHz

Threaded barrel, M12 × 1

54 mm

Metal, CuZn, Chrome-plated

Plastic, PA12-GF30

Plastic, EPTR

10 Nm

Cable

5.2mm, LifYY, PVC, 2

3 x 0.34 mm

55 Hz (1 mm)

30 g (11 ms)

IP67

2283 years acc. to SN 29500 (Ed. 99) 40 °C

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free. For this, they use a

high-frequency electromagnetic AC field that

interacts with the target. Inductive sensors

generate this field via an RLC circuit with a

ferrite coil.

LED yellow

1/3

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
