BI2-G12-AP6
Inductive sensor
Features
■
Threaded barrel, M12 x 1
■
Chrome-plated brass
■
DC 3-wire, 10…30 VDC
■
NO contact, PNP output
■
Cable connection
Wiring diagram
Technical data
Type
Ident. no.
Rated switching distance
Mounting conditions
Secured operating distance
Correction factors
Repeat accuracy
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Residual ripple
DC rated operational current
No-load current
Residual current
Isolation test voltage
Short-circuit protection
Voltage drop at
Wire breakage/Reverse polarity protection
Output function
Switching frequency
Design
Dimensions
Housing material
BI2-G12-AP6
46350
2 mm
Flush
≤ (0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
≤ 2 % of full scale
≤ ± 10 %
3…15 %
-25…+70 °C
10…30 VDC
≤ 10 % U
ss
≤ 200 mA
≤ 15 mA
≤ 0.1 mA
≤ 0.5 kV
yes / Cyclic
≤ 1.8 V
yes / Complete
3-wire, NO contact, PNP
2 kHz
Threaded barrel,M12 × 1
54 mm
Metal, CuZn, Chrome-plated
BI2-G12-AP6 | 11/19/2019 16-24 | technical changes reserved
1|3
Functional principle
Inductive sensors detect metal objects contactless
and wear-free. For this, they use a high-frequency
electromagnetic AC field that interacts with the
target. Inductive sensors generate this field via an
RLC circuit with a ferrite coil.
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
Technical data
Active area material
End cap
Max. tightening torque housing nut
Electrical connection
Cable quality
Core cross-section
Vibration resistance
Shock resistance
Protection class
MTTF
Plastic, PA12-GF30
Plastic, EPTR
10 Nm
Cable
Ø 5.2 mm, LifYY, PVC, 2 m
3 x 0.34 mm
2
55 Hz (1 mm)
30 g (11 ms)
IP67
2283 years acc. to SN 29500 (Ed. 99) 40 °C

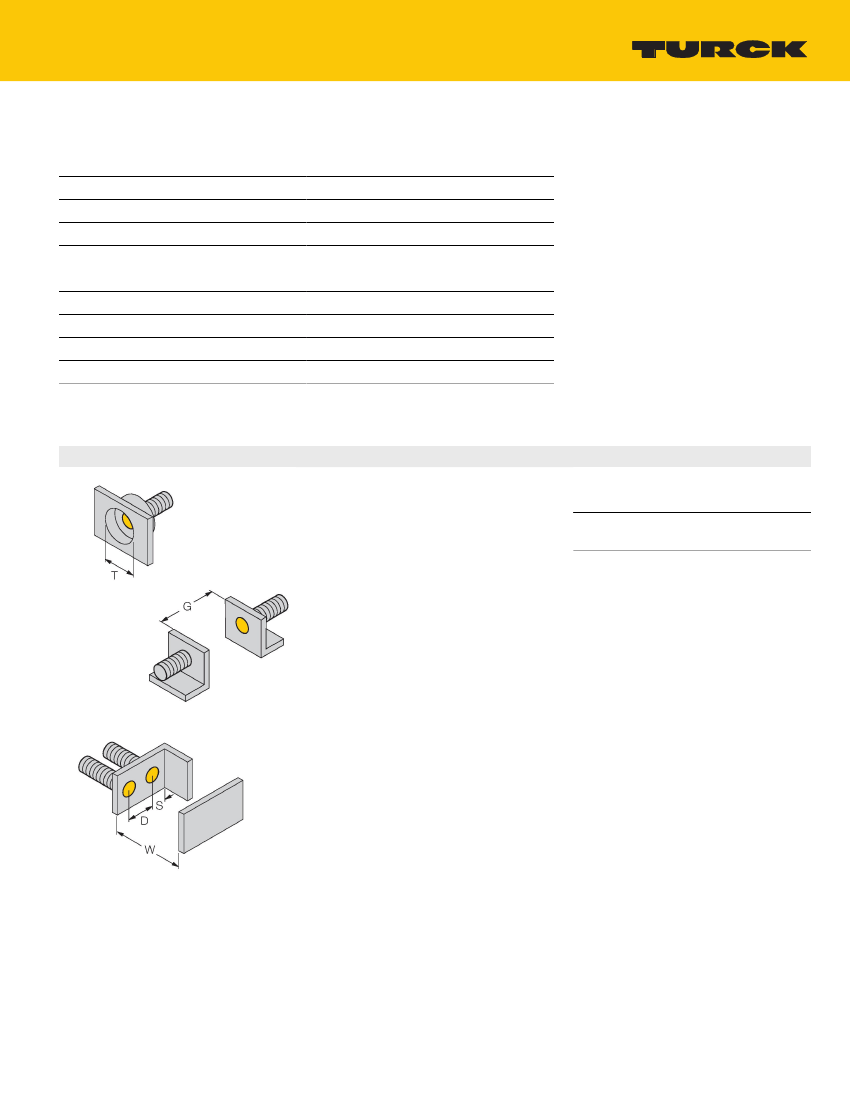

Mounting instructions
Mounting instructions/Description
Distance D
Distance T
2xB
3xB
Diameter active area Ø 12 mm
B
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
2|3
BI2-G12-AP6 | 11/19/2019 16-24 | technical changes reserved

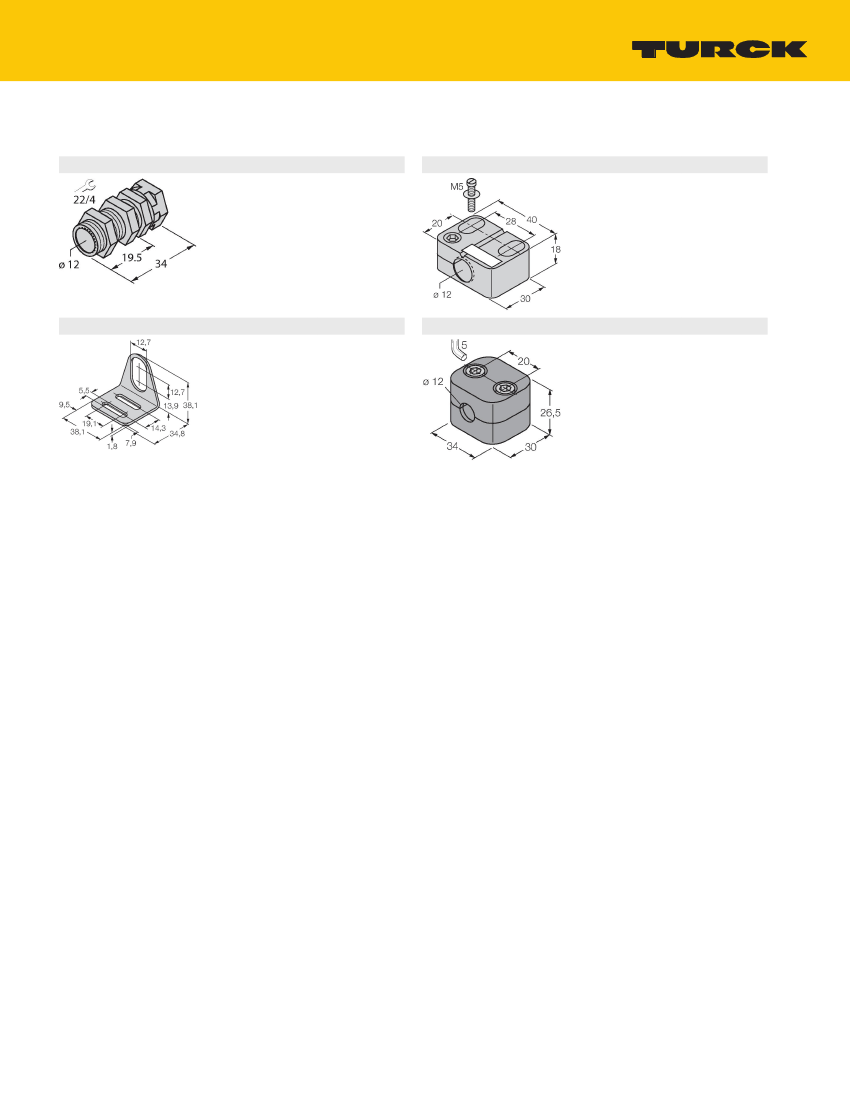

Accessories
QM-12
6945101
Quick-mount bracket with dead-stop;
material: Chrome-plated brass. Male
thread M16 × 1. Note: The switching
distance of the proximity switches
may change when using quick-mount
brackets.
BST-12B
6947212
Mounting clamp for threaded barrel
sensors, with dead-stop; material: PA6
MW12
6945003
Mounting bracket for threaded barrel
sensors; material: Stainless steel A2
1.4301 (AISI 304)
BSS-12
6901321
Mounting clamp for smooth and
threaded barrel sensors; material:
Polypropylene
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com
3|3
BI2-G12-AP6 | 11/19/2019 16-24 | technical changes reserved
