Inductive sensor
BI2-G12-AZ33X-B3131
■
Threaded barrel, M12 x 1
■
Chrome-plated brass
■
AC 2-wire, 20…250 VDC
■
DC 2-wire, 10…300 VDC
■
NO contact
■
1/2" male connector
Wiring Diagram
Type designation
Ident-No.
Ident-No (TUSA)
Rated switching distance Sn
Mounting conditions
Secured operating distance
Correction factors
Repeat accuracy
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Operating voltage
AC rated operational current
DC rated operational current
Frequency
Residual current
Isolation test voltage
Surge current
Voltage drop at I
e
Output function
Smallest operating current I
m
Switching frequency
Design
Dimensions
Housing material
Active area material
Max. tightening torque housing nut
Electrical connection
Vibration resistance
Shock resistance
Protection class
MTTF
Switching state
Edition • Rev. D • 2017-09-15T03:42:47+02:00
BI2-G12-AZ33X-B3131
1304032
T1304032
2 mm
Flush
ð
(0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
ð
2 % of full scale
ð
± 10 %
3…15 %
-25…+70 °C
20…250VAC
10…300 VDC
ð
100 mA
ð
100 mA
ï
50…ð 60 Hz
ð
1.7 mA
ð
1.5 kV
ð
1 A (ð 10 ms max. 5 Hz)
ð
6V
2-wire, NO contact
ï
3 mA
0.02 kHz
Threaded barrel, M12 × 1
71 mm
Metal, CuZn, Chrome-plated
Plastic, PA12-GF30
10 Nm
Connector, 1/2"
55 Hz (1 mm)
30 g (11 ms)
IP67
2283 years acc. to SN 29500 (Ed. 99) 40 °C
LED red
Functional principle
Inductive sensors detect metal objects con-
tactless and wear-free. For this, they use a
high-frequency electromagnetic AC field that
interacts with the target. Inductive sensors
generate this field via an RLC circuit with a
ferrite coil.
1/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
Inductive sensor
BI2-G12-AZ33X-B3131

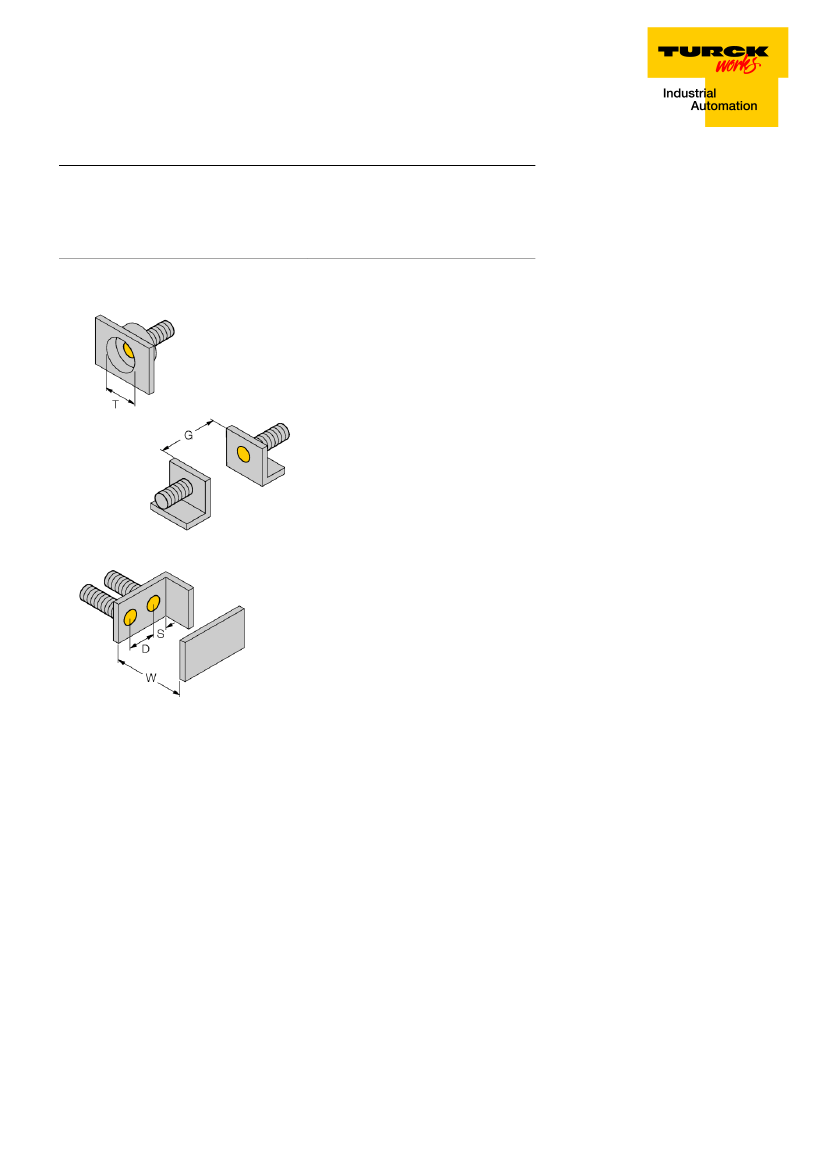

Distance D
Distance W
Distance T
Distance S
Distance G
Diameter active area B
2xB
3 x Sn
3xB
1.5 x B
6 x Sn
Ø 12 mm
Edition • Rev. D • 2017-09-15T03:42:47+02:00
2/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
Inductive sensor
BI2-G12-AZ33X-B3131

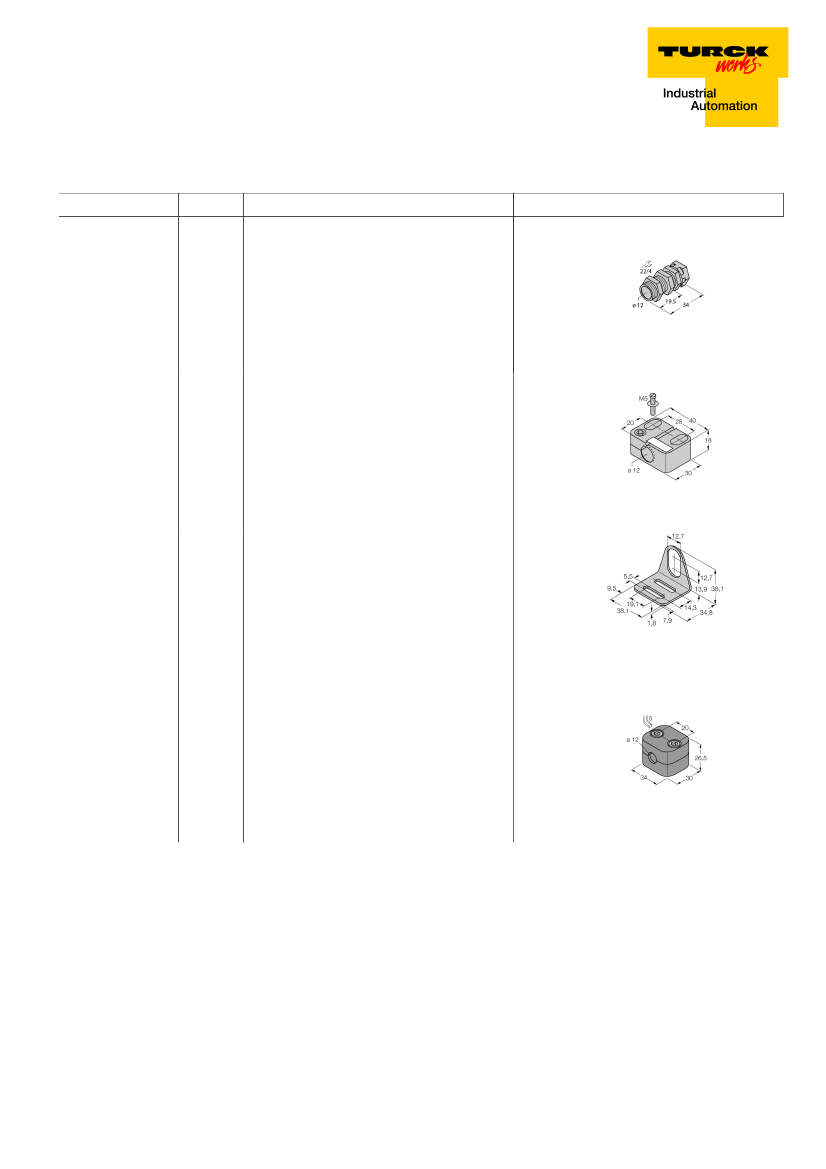

Accessories
Type code
QM-12
Ident-No.
6945101
Description
Quick-mount bracket with dead-stop; material: Chrome-plat-
ed brass Male thread M16 x 1. Note: The switching distance
of proximity switches can be reduced by the use of quick-
mount brackets.
BST-12B
6947212
Fixing clamp for threaded barrel devices, with dead-stop; ma-
terial: PA6
MW-12
6945003
Mounting bracket for threaded barrel devices; material: Stain-
less steel A2 1.4301 (AISI 304)
BSS-12
6901321
Mounting bracket for smooth and threaded barrel devices;
material: Polypropylene
Edition • Rev. D • 2017-09-15T03:42:47+02:00
3/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
