883/23C256MD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 883/23C256MD

883/23C256MD: DescriptionMASK ROM, 32KX8, 150ns, CMOS, CDIP28; Categorystorage storage; File Size219KB，2 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

883/23C256MD Overview

MASK ROM, 32KX8, 150ns, CMOS, CDIP28

883/23C256MD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknow
Maximum access time	150 ns
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
memory density	262144 bi
Memory IC Type	MASK ROM
memory width	8
Number of terminals	28
word count	32768 words
character code	32000
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	32KX8
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum standby current	0.001 A
Maximum slew rate	0.025 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

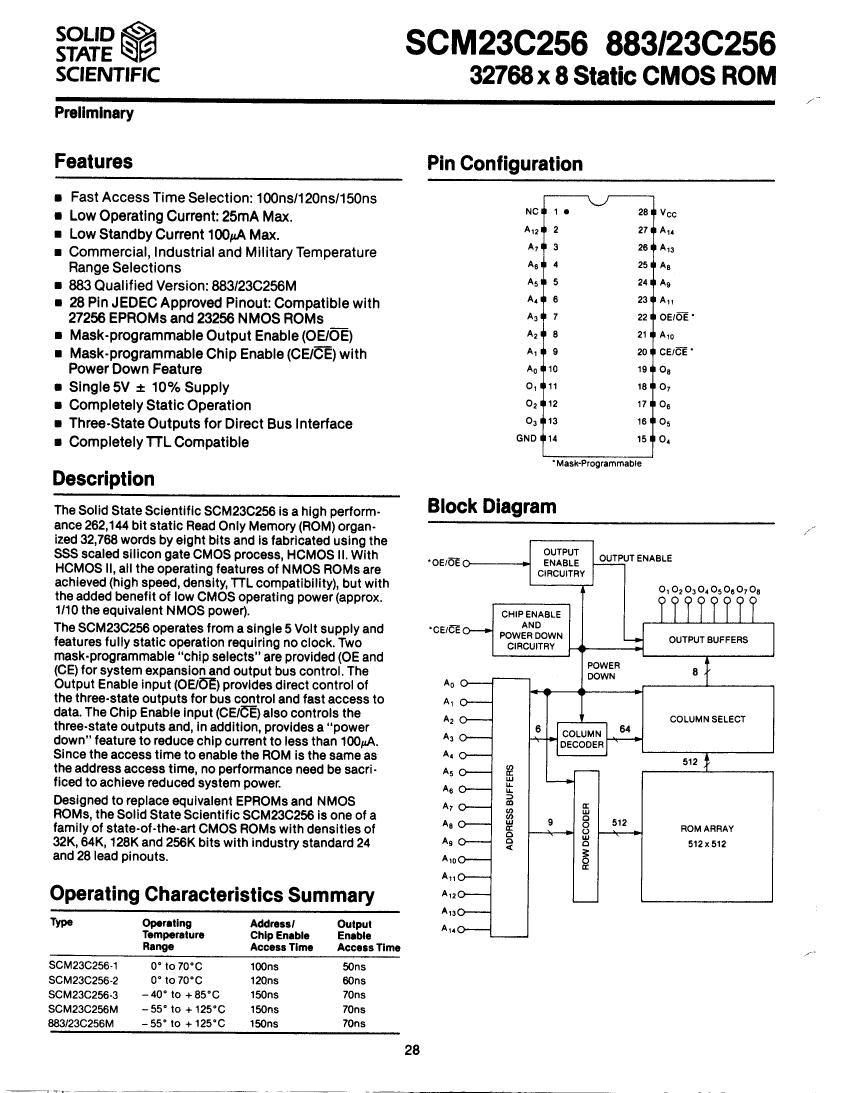

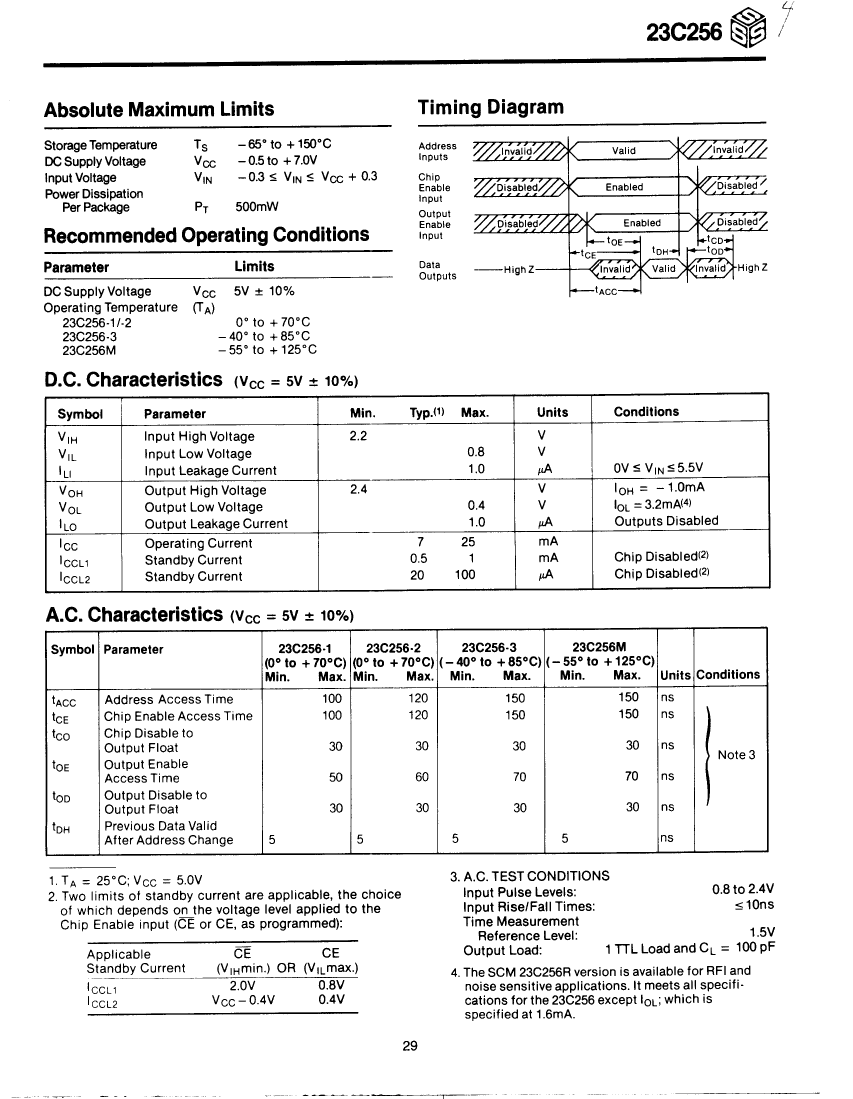

Preview

Download Datasheet

View All

883/23C256MD Related Products

	883/23C256MD	SCM23C256E-2	SCM23C256E-3	883/23C256MC	SCM23C256C-1	SCM23C256C-2	SCM23C256C-3	SCM23C256E-1	SCM23C256MC
Description	MASK ROM, 32KX8, 150ns, CMOS, CDIP28	Memory IC	Memory IC	MASK ROM, 32KX8, 150ns, CMOS, CDIP28	MASK ROM, 32KX8, 100ns, CMOS, CDIP28	MASK ROM, 32KX8, 120ns, CMOS, CDIP28	MASK ROM, 32KX8, 150ns, CMOS, CDIP28	MASK ROM, 32KX8, 100ns, CMOS, PDIP28	MASK ROM, 32KX8, 150ns, CMOS, CDIP28
package instruction	DIP, DIP28,.6	,	,	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP28,.6
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Vishay	-	-	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
Maximum access time	150 ns	-	-	150 ns	100 ns	120 ns	150 ns	100 ns	150 ns
JESD-30 code	R-XDIP-T28	-	-	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-XDIP-T28	R-PDIP-T28	R-XDIP-T28
JESD-609 code	e0	-	-	e0	e0	e0	e0	e0	e0
memory density	262144 bi	-	-	262144 bi	262144 bi	262144 bi	262144 bi	262144 bi	262144 bi
Memory IC Type	MASK ROM	-	-	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	-	-	8	8	8	8	8	8
Number of terminals	28	-	-	28	28	28	28	28	28
word count	32768 words	-	-	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	-	-	32000	32000	32000	32000	32000	32000
Maximum operating temperature	125 °C	-	-	125 °C	70 °C	70 °C	85 °C	70 °C	125 °C
organize	32KX8	-	-	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8
Package body material	CERAMIC	-	-	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	-	-	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	-	-	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	-	-	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.001 A	-	-	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.025 mA	-	-	0.025 mA	0.025 mA	0.025 mA	0.025 mA	0.025 mA	0.025 mA
Nominal supply voltage (Vsup)	5 V	-	-	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	-	-	NO	NO	NO	NO	NO	NO
technology	CMOS	-	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	-	-	MILITARY	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
