Model 109
Surface Mount OCXO
CRYSTALS
Features:
• Frequency Range: 5 to 50 MHz
• Micro Package Size
• Low Cost Options Available
• Able to Withstand 240°C Reflow
• Electronic Frequency Adjust Standard
CLOCKS
VCXOs

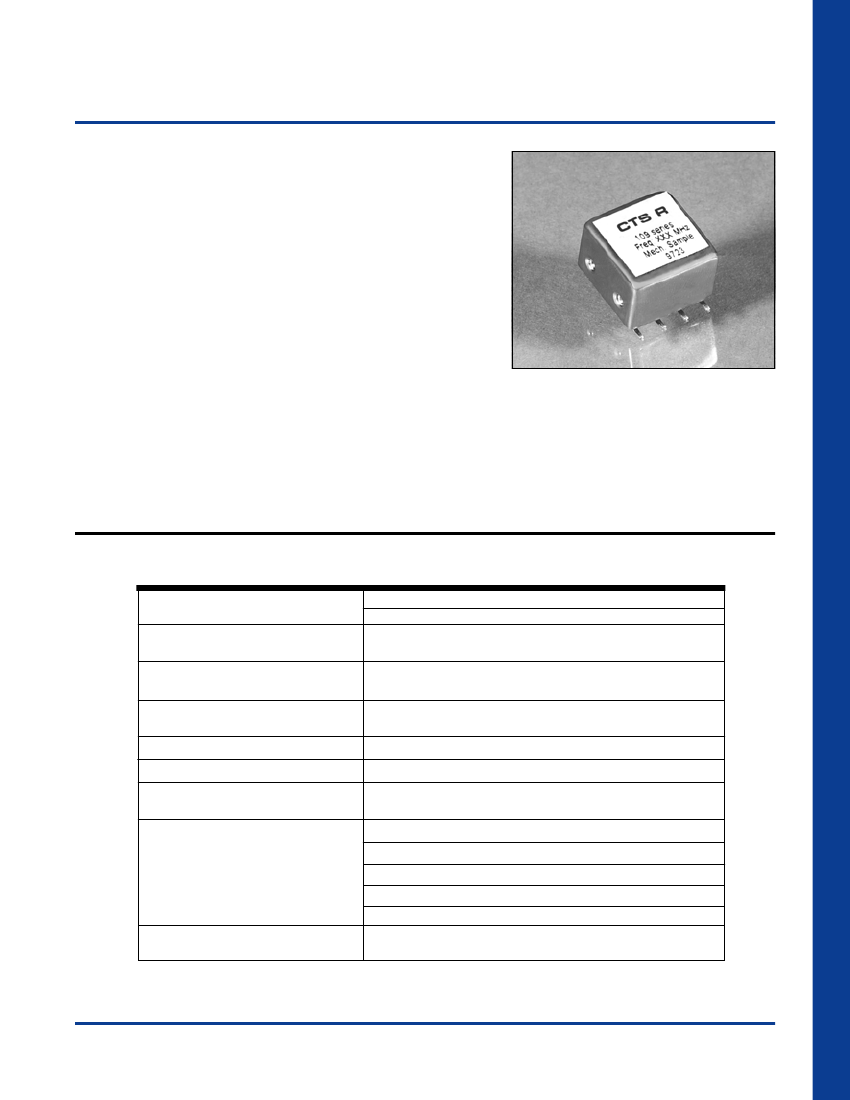

The Model 109 is a micro size OCXO with big performance. Less than .5 cubic inches, it is
capable of covering a wide range of performance through the use of precision AT crystals and
newer SC cut crystals. The 109 series is able to meet the requirements of GSM systems,
Private Branch Exchange (PBX), SONET and SDH applications. Its size and performance also
make it ideal for Microwave and Synthesizer applications that require more economy while
maintaining a high level of performance.
Electrical Specifications:
Parameter
Supply Voltage
(Vdd)
Maximum
Operating
Frequency Range (MHz)
5 to 50 MHz
12 Vdc
±5%
(+5 Vdc Optional)
TCXOs
Supply Current (@ 25°C) Warm-up
Steady State
Output Type
Logic 1 - Voh
Logic 0 - Vol
Warm-up (@ 25°C)
Ref. to Freq. at 1 hr.
Offset
Phase Noise (1 Hz Bandwidth)
(Typical @ 10 MHz)
350 ma. Max.
120 ma. Typ.
HCMOS Compatible
(Sinewave Optional)
4.5V Min.
.5V Min.
±1
x 10
-7
/ 5 Min.
±1
x 10
-8
/ 30 Min.
Level (dBc)
10 Hz
-100
100 Hz
-120
1 kHz
-140
10 kHz
-155
Sufficient for 10 years Aging (Range is Option Dependent)
0 to 5 Vdc
OCXOs
Electrical freq. adjust
(negative slope)
400 REIMANN AVE.
•
SANDWICH, IL 60548
Phone: 815-786-8411
•
Fax: 815-786-3600
•
E-Mail: www.ctsreeves.com
105
CTS
Reeves
CRYSTALS
FREQUENCY PRODUCTS
Model 109
Surface Mount OCXO
Outline Drawing and
Pin Connections:
17.0 MIN
15.0
1
7
6
0.1
5
3
20.0
4
CLOCKS
1.0
0.1
22.6
0.6
MIN 3.0
MAX 5.0
Mechanical Specifications:
VCXOs
TCXOs
Case:
CRS, Hot Tin Dipped
FR-4 Base
Leads:
Nickel plated with solder coating
Seal:
Solder seal
Leak Test:
Leak rate less than 5x10
-5
atmosphere-cc/sec of helium
Solderability:
95% solder coverage, using RMA flux 63
SN / 37 Pb solder at +245°C
±5°C
Temperature:
Operating: See chart
Storage: -55° to 85°C
Reflow: 240°C, 10 Sec
Vibration:
10 G's rms, 20 to 500 Hz
Mechanical Shock:
100 G's 5ms pulse (3 shock/plane)
Ordering Information:
Model Type 109 ___ ___ ___ ___ ___ ___ ___
Temp. Range
Temp Stability
±5
x 10
-9
Temp Range Code
A
0° to 50°C A
X
0° to 70°C B
-30° to 70°C C
-40° to +85°C D
Stability
±1
x 10
-8
B
X
X
Aging
±2
x 10
-8
C
X
X
±5
x 10
-8
D
X
X
X
Freq. in MHz
±1
x 10
-7
E
X
X
X
X
1
st
Year Aging Code
±0.5
ppm
A
±0.3
ppm
B
±0.1
ppm
C
±0.05
ppm
D
OCXOs
Note: Not all Options are Available at all Frequencies. Consult Factory for Details.
106
400 REIMANN AVE.
•
SANDWICH, IL 60548
Phone: 815-786-8411
•
Fax: 815-786-3600
•
E-Mail: www.ctsreeves.com
