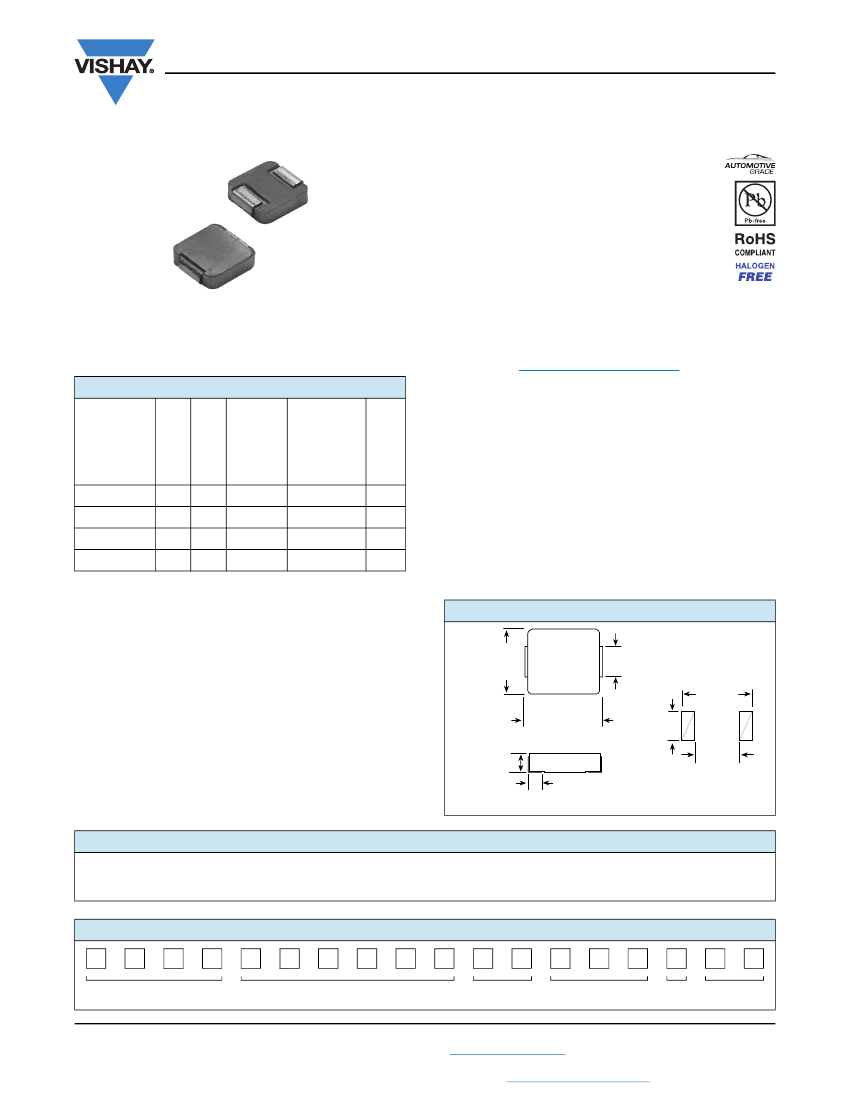

IHLP-1616AB-1A
www.vishay.com
Vishay Dale
Low Profile, High Current IHLP
®
Inductors
FEATURES
• Shielded construction
• Lowest DCR/μH, in this package size
• Handles high transient current spikes without
saturation
• Ultra low buzz noise, due to composite
construction
• Excellent DC/DC energy storage up to
1.0 MHz to 2.0 MHz. Filter inductor applications up to SFR
(see “Standard Electrical Specifications” table)
• AEC-Q200 qualified
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
Manufactured under one or more of the following:
US Patents; 6,198,375/6,204,744/6,449,829/6,460,244.
Several foreign patents, and other patents pending.
STANDARD ELECTRICAL SPECIFICATIONS
L
0
INDUCTANCE
± 20 %
AT 100 kHz,
0.25 V, 0 A
(μH)
0.10
0.22
0.47
1.0
DCR
TYP.
25 °C
(mΩ)
5.0
9.5
19
43
DCR
MAX.
25 °C
(mΩ)
5.5
10.5
21
47
HEAT
RATING SATURATION
CURRENT CURRENT
SRF
DC TYP.
DC TYP.
TYP.
(A)
(3)
(A)
(4)
(MHz)
12.0
9.5
6.0
4.2
12.0
9.5
6.0
4.5
288
214
117
71
APPLICATIONS
•
•
•
•
Engine and transmission control units
Diesel injection drivers
DC/DC converters for entertainment/navigation systems
Noise suppression for motors
- Windshield wipers
- Power seats
- Power mirrors
- Heating and ventilation blowers
- HID lighting
• LED drivers
Notes
(1)
All test data is referenced to 25 °C ambient
(2)
Operating temperature range - 55 °C to + 125 °C
(3)
DC current (A) that will cause an approximate
ΔT
of 40 °C
(4)
DC current (A) that will cause L to drop approximately 20 %
0
(5)
The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
DIMENSIONS
in inches [millimeters]
0.160 ± 0.010
[4.06 ± 0.254]
0.080 ± 0.002
[2.0 ± 0.05] Typical Pad Layout
0.222
[5.639]
0.175 ± 0.010
[4.45 ± 0.254]
0.047
[1.20]
Max.
0.030 ± 0.012
[0.76 ± 0.30]
0.090
[2.286]
0.076
[1.930]
DESCRIPTION
IHLP-1616AB-1A
MODEL
1.0 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
H
L
P
1
6
1
SIZE
6
A
B
E
R
1
R
0
M
TOL.
1
A
PRODUCT FAMILY
PACKAGE
CODE
INDUCTANCE
VALUE
SERIES
Revision: 13-Sep-12
Document Number: 34236
1
