287-035
MIL-DTL-24308/9 Type Hermetic High Density
Glass-Sealed D-Subminiature Connector
MIL-DTL
24308
Basic
Number
Shell Size
Shell Type
A
= Straight Flange
B
= Integral Jackpost
287-035
FT
1
P
A
Class
FT
= Fused Tin
Z1
= Passivated
ZL
= Nickel Plated
Contact Style
(Pin Only)
P
= Solder Cup
X
= Eyelet
H
R.062
TYP

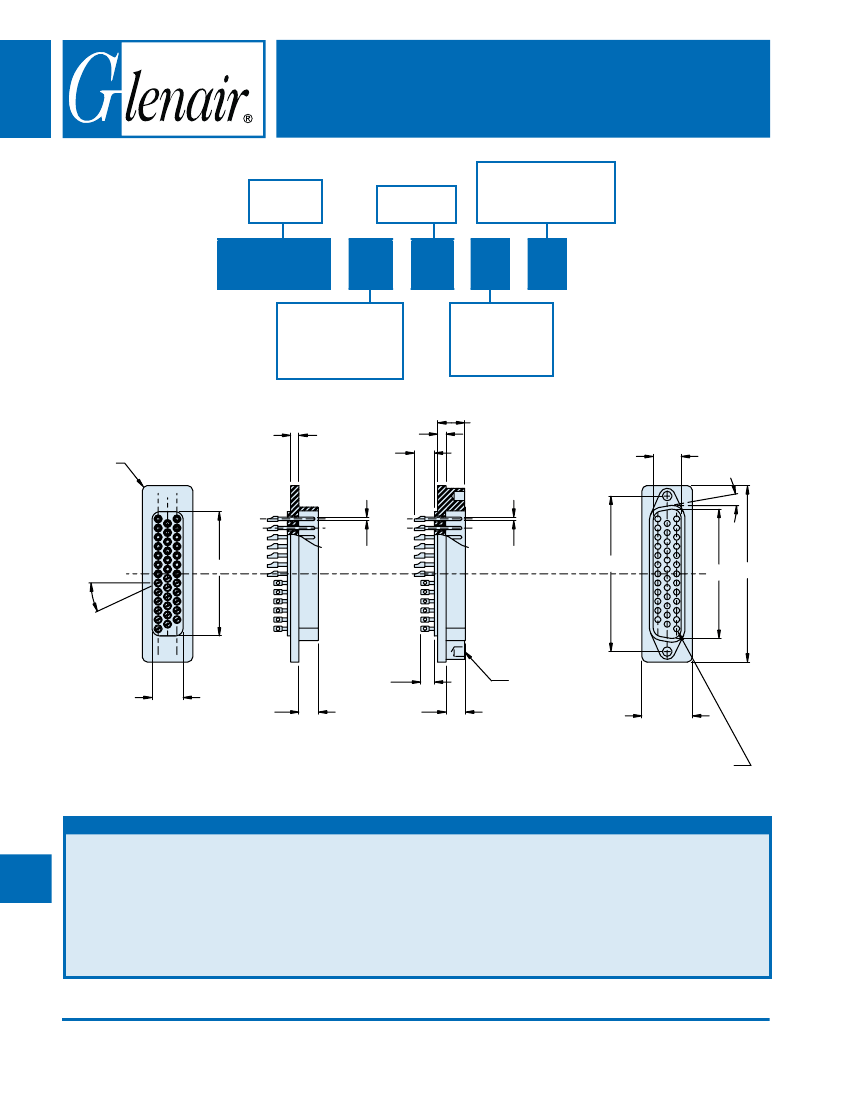

.238
MAX
H
.335
.316
ENGAGEMENT
VIEW
D
10°
TYP
F
25° TYP
EYELETS
ø.030 ±.0005
ø.030 ±.0005
C
B
A
G
TERMINATION
VIEW
.161
MAX
K
SHELL
STYLE "A"
K
SHELL
STYLE "B"
#4-40 UNC-2B
x .125 MIN
FULL THREAD
E
INSERT ARRANGEMENT SHOWN
ARE FOR REFERENCE ONLY
APPLICATION NOTES
1.
H
To be identified with manufacturer’s name, part number and
date code, space permitting.
Contact Style: Eyelet or solder cup (see part development).
Material/Finish:
Shell: FT = Carbon Steel / Fused Tin
Z1 = CRES / Passivated
ZL = CRES / Nickel Plated
Insulators: Glass bead/N.A.
Contacts: Nickel-Iron Alloy / Gold Plated
4.
5.
Metric dimensions (mm) are indicated in parentheses.
Performance:
DWV - 500 VAC Pin-to-Shell
I.R. - 5,000 Megohms Min @ 500 VDC
Hermeticity - <1 x 10
-5
scc He/sec @ 1
atmosphere differential.
Glenair 287-035 will mate with any QPL MIL-DTL-24308/, /6 and
/23 receptacle of the same size and arrangement.
2.
3.
6.
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
H-20
Glass-Sealed D-Subminiature Connector

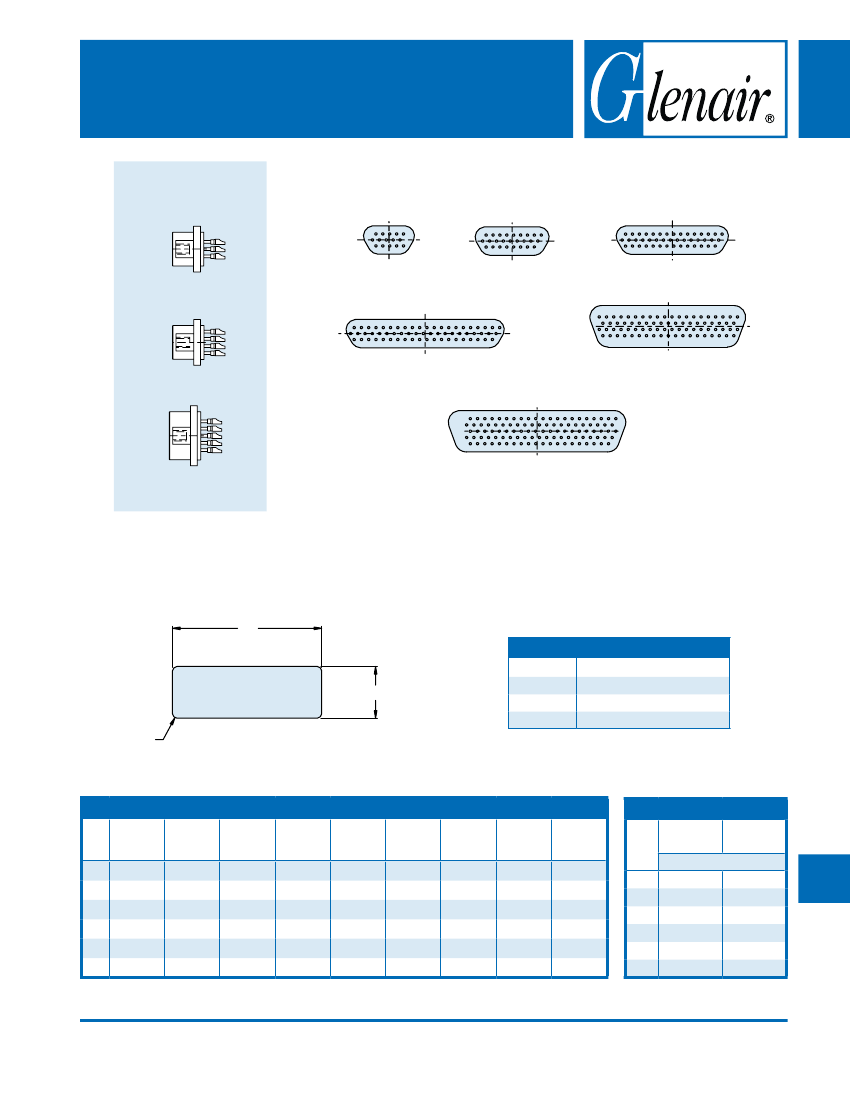

CONTACT ARRANGEMENT
SOLDER CUP
ORIENTATION
1
6
11
1
5
10
15
1
10
19
2
26
9
18
1
16
31
3
15
30
44
SIZES 1-4
15 CONTACTS
26 CONTACTS
21
42
44 CONTACTS
4
SIZE 5
1
22
43
62
5
1
21
40
60
20
39
59
78
62 CONTACTS
78 CONTACTS
21
42
63
84
6
SIZE 6
1
22
43
64
85
104
104 CONTACTS
RECOMMENDED PANEL CUTOUT
SEE TABLE II
XA
HERMETIC LEAK RATE MOD CODES
Designator
Required Leak Rate
1 x 10
-10
cc’s Helium per second
1 x 10
-9
cc’s Helium per second
1 x 10
-8
cc’s Helium per second
YA
R.062 MAX
TYP
–585A
–585B
–585C
REAR MOUNT
TABLE I: CONNECTOR DIMENSIONS
Shell
Size
1
2
3
4
5
6
Dim
Dim
Dim
Dim
Dim
Dim
Dim
Dim
Dim
A
B
C
D
E
F
G
H
K
± .015 (± 0.4) ± .005 (± 0.1) ± .005 (± 0.1) ± .004 (± 0.1) ± .010 (± 0.3) ± .010 (± 0.3) ± .005 (± 0.1) ± .010 (± 0.3) ± .010 (± 0.3)
1.213 (30.8)
1.541 (39.1)
2.088 (53.0)
2.729 (69.3)
2.635 (66.9)
2.729 (69.3)
.667 (16.9)
.993 (25.2)
1.535 (39.0)
2.183 (55.4)
2.079 (52.8)
2.212 (56.2)
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
2.500 (63.5)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.441 (11.2)
.503 (12.8)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.610 (15.5)
.668 (17.0)
.759 (19.3)
1.083 (27.5)
1.625 (41.3)
2.272 (57.7)
2.178 (55.3)
2.302 (58.5)
.422 (10.7)
.422 (10.7)
.422 (10.7)
.422 (10.7)
.534 (13.6)
.596 (15.1)
.094 (2.4)
.094 (2.4)
.103 (2.6)
.103 (2.6)
.103 (2.6)
.103 (2.6)
.235 (6.0)
.235 (6.0)
.230 (5.8)
.230 (5.8)
.230 (5.8)
.230 (5.8)
TABLE II: PANEL CUT-OUT
Shell
Size
1
2
3
4
5
6
Dim.
XA
.775 (19.7)
1.099 (27.9)
1.642 (41.7)
2.288 (58.1)
2.194 (55.7)
2.318 (58.9)
Dim.
YA
.438 (11.1)
.438 (11.1)
.438 (11.1)
.438 (11.1)
.550 (14.0)
.612 (15.5)
± .005 (.13)
© 2009 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
H-21
MIL-DTL
24308
287-035
MIL-DTL-24308/9 Type Hermetic High Density
