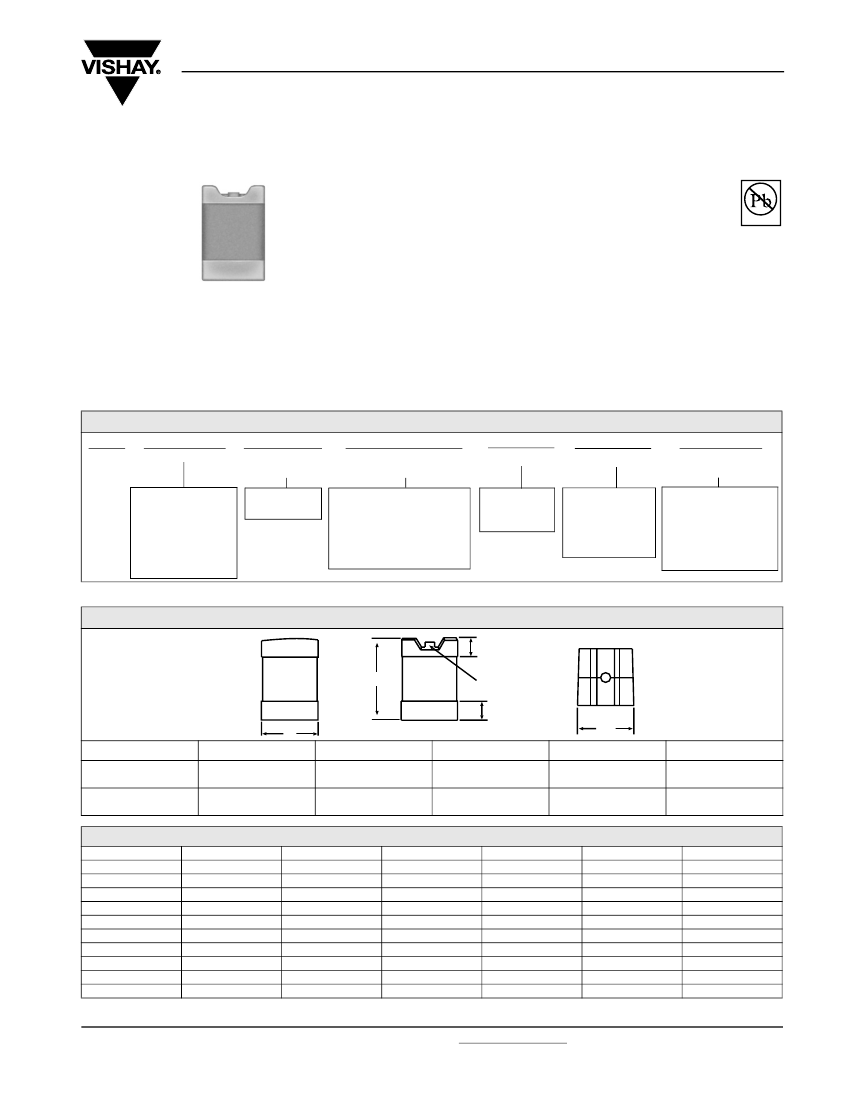

292D
Vishay Sprague
Solid Tantalum Chip Capacitors,
T
ANTAMOUNT
®
Lead Frameless Molded
FEATURES
•
0805 Footprint
•
Wraparound lead (Pb)-free terminations:
P and R Cases
•

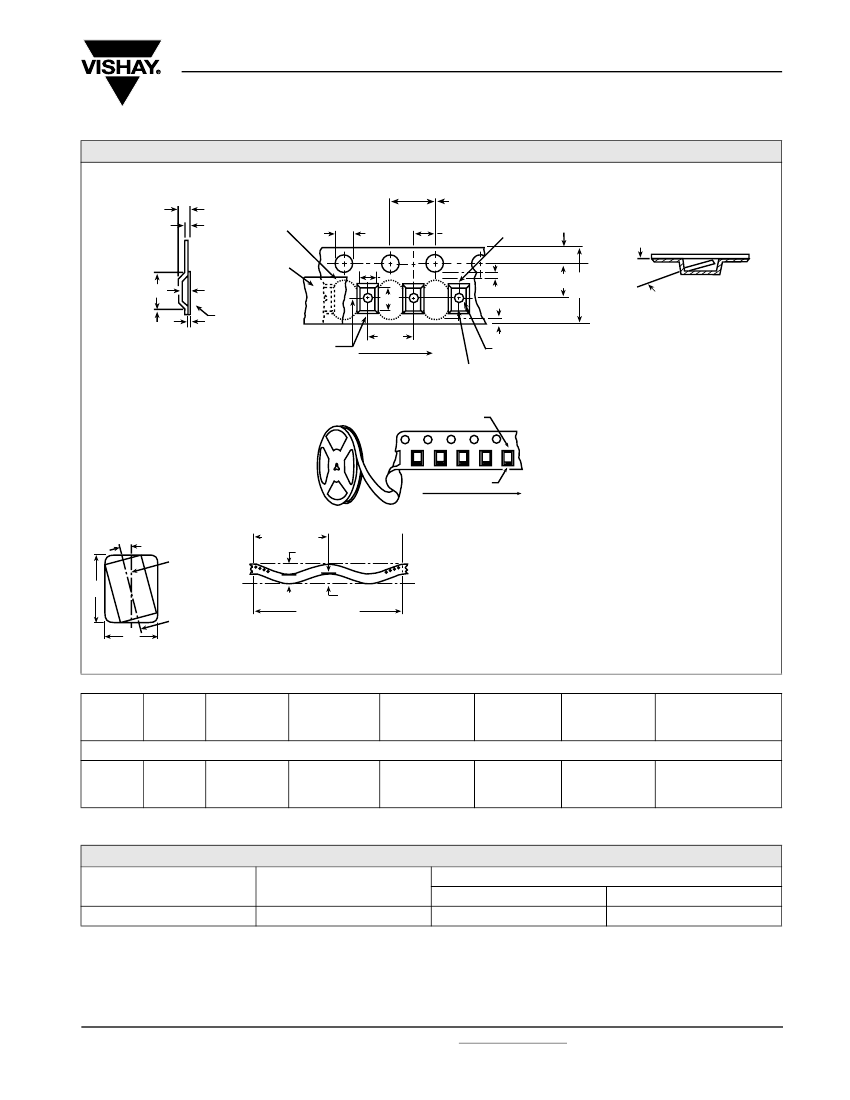

8 mm, 12 mm, 16 mm tape and reel packaging
available per EIA-481-1 and reeling per IEC
286-3, 7" [178 mm] standard
13" [330 mm] available
Pb-free
Available
RoHS*
COMPLIANT
P and R cases
Image is not to scale
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Note:
Refer to Doc. 40088
Capacitance Range:
1.0 µF to 47 µF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
3 WVDC to 20 WVDC
ORDERING INFORMATION
292D
TYPE
106
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
010
DC VOLTAGE RATING
AT + 85 °C
This is expressed in volts.
To complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an “R”
(6R3 = 6.3 volts).
P
CASE CODE
2
TERMINATION
T
REEL SIZE AND
PACKAGING
T = Tape and reel*
7" [178 mm] reel
W = 13" [330 mm] reel
*Cathode nearest
sprocket hole
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the
number of zeros to
follow.
See Ratings
and Case
Codes Table
2 = 100 % Tin
4 = Gold Plated
8 = Solder Plated
(60/40)
Special Order
Note:
Preferred Tolerance and reel sizes are in bold
DIMENSIONS
in inches [millimeters]
P
L
Tantalum Wire Nib
Identifies Anode (+)
Terminal
P
W
H
CASE
R
P
EIA
0805
[2012]
0805
[2012]
L
0.079 ± 0.008
[2.0 ± 0.2]
0.079 ± 0.010
[2.0 ± 0.25]
W
0.051 ± 0.008
[1.3 ± 0.2]
0.053 ± 0.008
[1.35 ± 0.2]
H
0.047 (Max.)
[1.2 Max.]
0.053 ± 0.008
[1.35 ± 0.2]
P
0.020 ± 0.012
[0.5 ± 0.3]
0.020 ± 0.012
[0.5 ± 0.3]
RATINGS AND CASE CODES
µF
1.0
2.2
3.3
4.7
6.8
10
15
22
33
47
3V
4V
R
R
R
R
R
R
P/R
P/R
P
6.3 V
R
R
R
P/R
R
P/R
P
10 V
R
R
P/R
P/R
P/R
P/R
P
16 V
R
R
R
R
P
20 V
R
R
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 40042
Revision: 05-Mar-08
For technical questions, contact: tantalum@vishay.com
www.vishay.com
35
292D
Vishay Sprague
Solid Tantalum Chip Capacitors,
T
ANTAMOUNT
®
Lead Frameless Molded
STANDARD RATINGS
CAPACITANCE
(µF)
47
2.2
3.3
4.7
6.8
10
15
22
22
33
33
33
2.2
4.7
4.7
6.8
6.8
10
10
15
15
22
22
22
33
1.0
2.2
3.3
3.3
3.3
4.7
4.7
4.7
6.8
6.8
10
10
15
15
1.0
2.2
3.3
3.3
4.7
10
1.0
2.2
CASE
CODE
P
R
R
R
R
R
R
P
R
P
P
R
R
R
R
R
R
P
R
R
R
P
P
R
P
R
R
R
R
P
P
R
R
P
R
P
R
P
P
R
R
R
R
R
P
R
R
MAX DCL
MAX DF
MAX ESR
AT + 25 °C
AT + 25 °C
at 100 kHz
(µA)
(%)
(Ω)
3 WVDC AT + 85 °C, SURGE = 3.9 V. . .1.9 WVDC AT + 125 °C, SURGE = 2.9 V
292D476X_003P2T
1.5
12
6.0
4 WVDC AT + 85 °C, SURGE = 5.2 V. . .2.7 WVDC AT + 125 °C, SURGE = 3.4 V
292D225X_004R2T
0.5
6
7.6
292D335X_004R2T
0.5
6
7.6
292D475X_004R2T
0.5
6
6.3
292D685X_004R2T
0.5
6
5.5
292D106X_004R2T
0.5
6
5.1
292D156X_004R27
0.8
8
3.5
292D226X_004P2T
0.9
8
3.5
292D226X_004R2T
0.9
10
3.5
292D336X_004P2T
1.3
10
3.5
292D336X_004P2T_035
1.3
10
1.1
292D336X_004R2T
1.3
12
3.5
6.3 WVDC AT + 85 °C, SURGE = 8 V. . .4 WVDC AT + 125 °C, SURGE = 5 V
292D225X_6R3R2T
0.5
10
7.6
292D475X_6R3R2T_035
0.6
6
2.0
292D475X_6R3R2T
0.6
6
3.4
292D685X_6R3R2T
0.5
6
5.0
292D685X_6R3R2T_035
0.5
6
2.0
292D106X_6R3P2T
0.6
6
3.5
292D106X_6R3R2T
0.6
6
1.2
292D156X_6R3R2T_035
0.9
10
3.5
292D15X_6R3R2_035
0.9
10
1.8
292D226X_6R3P2T
1.3
10
3.5
292D226X_6R3P2_035
0.9
10
1.1
292D226X_6R3R2T
1.4
10
3.5
292D336X_6R3P2T
2.1
12
3.5
10 WVDC AT+ 85 °C, SURGE = 13 V. . .7 WVDC AT + 125 °C, SURGE = 8 V
292D105X_010R2
0.5
4
9.6
292D225X_010R2T
0.5
6
6.3
292D335X_010R2T
0.5
8
2.0
292D335X_010R2_035
0.5
8
1.0
292D335X_010P2T
0.5
8
2.0
292D475X_010P2T
0.5
8
5.0
292D475X_010R2T
0.5
8
5.0
292D475X_010R2T_035
0.5
8
2.0
292D685X_010P2T
0.7
8
2.0
292D685X_010R2T
0.7
8
2.0
292D106X_010P2T
1.0
8
2.0
292D106X_010R2T
1.0
8
2.0
292D156X_010P2T
1.5
8
3.5
292D156X_010P2_035
1.5
8
1.1
16 WVDC AT + 85 °C, SURGE = 20 V. . .10 WVDC AT + 125 °C, SURGE = 12 V
292D105X_016R2
0.5
4
9.3
292D225X_016R2T
0.35
8
6.0
292D335X_016R2T
0.53
8
6.0
292D335X_016R2_035
0.53
8
3.0
292D475X_016R2T
0.75
8
6.0
292D106X_016P2T
1.6
8
6.0
20 WVDC AT + 85 °C, SURGE = 26 V. . .13 WVDC AT + 125 °C, SURGE = 16 V
292D105X_020R2T
0.2
8
5.0
292D225X_020R2T
0.5
8
6.0
PART
NUMBER
MAX RIPPLE
100 kHz I
rms
(A)
0.21
0.057
0.057
0.063
0.067
0.070
0.085
0.085
0.085
0.085
0.151
0.085
0.057
0.086
0.086
0.071
0.067
0.085
0.144
0.085
0.118
0.118
0.151
0.085
0.085
0.051
0.063
0.112
0.158
0.112
0.071
0.071
0.112
0.112
0.112
0.112
0.112
0.085
0.151
0.052
0.065
0.065
0.091
0.065
0.065
0.071
0.140
www.vishay.com
36
For technical questions, contact: tantalum@vishay.com
Document Number: 40042
Revision: 05-Mar-08
292D
Solid Tantalum Chip Capacitors,
T
ANTAMOUNT
®
Lead Frameless Molded
CAPACITORS PERFORMANCE CHARACTERISTICS
ELECTRICAL PERFORMANCE CHARACTERISTICS
ITEM
Category Temperature Range
Capacitance Tolerance
Dissipation Factor (at 120 Hz)
ESR (100 kHz)
PERFORMANCE CHARACTERISTICS
- 55 °C to + 85 °C (to + 125 °C with voltage derating)
± 20 %, ± 10 % (at 120 Hz) 2 V
rms
at + 25 °C using a capacitance bridge
Limits per Standard Ratings Table. Tested via bridge method, at 25 °C, 120 Hz.
Limits per Standard Ratings Table. Tested via bridge method, at 25 °C, 100 kHz.
After application of rated voltage applied to capacitors for 5 minutes using a steady source of power with
Leakage Current
1 kΩ resistor in series with the capacitor under test, leakage current at 25 °C is not more than described in.
See graph below for the appropriate adjustment factor.
Reverse Voltage
Capacitors are capable of withstanding peak voltages in the reverse direction equal to: 10 % of the DC
5 % of the DC rating at + 85 °C
Vishay does not recommended intentional or repetitive application of reverse voltage
Temperature Derating
If capacitors are to be used at temperatures above + 25 °C, the permissible rms ripple current or voltage
1.0 at + 25 °C
0.9 at + 85 °C
0.4 at + 125 °C
Maximum Permissible Power
Dissipation at 25 °C
(W) in free air
Operating Temperature
P- + R-case: 0.025
+ 85
°C
RATING
WORKING VOLTAGE
SURGE VOLTAGE
4
5.2
6.3
8
10
13
16
20
20
26
25
32
35
46
50
65
+ 125
°C
RATING
WORKING VOLTAGE
SURGE VOLTAGE
2.7
3.4
4
5
7
8
10
12
13
16
17
20
23
28
33
40
Vishay Sprague
TYPICAL LEAKAGE CURRENT FACTOR RANGE
LEAKAGE CURRENT FACTOR
100
10
1.0
0.1
- 55 °C
0.01
+ 125 °C
+
85
°C
+ 55 °C
+ 25 °C
0 °C
0.001
0
10
20 30 40 50 60 70
80
90 100
PERCENT OF RATED VOLTAGE
Notes:
•
At + 25
°C, the leakage current shall not exceed the value listed in the Standard Ratings Table
•
At + 85
°C, the leakage current shall not exceed 10 times the value listed in the Standard Ratings Table
•
At + 125
°C, the leakage current shall not exceed 12 times the value listed in the Standard Ratings Table
Document Number: 40042
Revision: 05-Mar-08
For technical questions, contact: tantalum@vishay.com
www.vishay.com
37
292D
Vishay Sprague
Solid Tantalum Chip Capacitors,
T
ANTAMOUNT
®
Lead Frameless Molded
ENVIRONMENTAL PERFORMANCE CHARACTERISTICS
ITEM
Life Test at + 85 °C
CONDITION
1000 h application of rated voltage at
85 °C with a 3
Ω
series resistance,
MIL-STD 202G Method 108A
At 40 °C/90 % RH 500 h, no voltage
applied. MIL-STD 202G Method 103B
POST TEST PERFORMANCE
Capacitance Change
Dissipation Factor
Leakage Current
Capacitance Change
Dissipation Factor
Leakage Current
Capacitance Change
Dissipation Factor
Leakage Current
Refer to Standard Ratings Table
Not to exceed 150 % of initial
Not to exceed 200 % of initial
Refer to Standard Ratings Table
Not to exceed 150 % of initial
Not to exceed 200 % of initial
Refer to Standard Ratings Table
Not to exceed 150 % of initial
Not to exceed 200 % of initial
Humidity Tests
Thermal Shock
At - 55 °C/+ 125 °C, 30 min. each,
for 5 cycles. MIL-STD 202G Method 107G
MECHANICAL PERFORMANCE CHARACTERISTICS
TEST CONDITION
Terminal Strength
CONDITION
Apply a pressure load of 5 N for 10 ± 1 s
horizontally to the center of capacitor side body.
AECQ-200 rev. C Method 006
POST TEST PERFORMANCE
Capacitance Change
Dissipation Factor
Leakage Current
Refer to Standard Ratings Table
Initial specified value or less
Initial specified value or less
There shall be no mechanical or visual damage to capacitors
post-conditioning.
Substrate Bending
(Board flex)
Vibration
With parts soldered onto substrate test board,
apply force to the test board for a deflection
of 1 mm. AECQ-200 rev. C Method 005
MIL-STD-202G, Method 204D,
10 Hz to 2000 Hz, 20 G Peak
Capacitance Change
Dissipation Factor
Leakage Current
Capacitance Change
Dissipation Factor
Leakage Current
Refer to Standard Ratings Table
Initial specified value or less
Initial specified value or less
Refer to Standard Ratings Table
Initial specified value or less
Initial specified value or less
There shall be no mechanical or visual damage to capacitors
post-conditioning.
Shock
Mil-Std-202G, Method 213B, Condition I,
100G Peak
Capacitance Change
Dissipation Factor
Leakage Current
Refer to Standard Ratings Table
Initial specified value or less
Initial specified value or less
There shall be no mechanical or visual damage to capacitors
post-conditioning.
Resistance to Solder
Heat
At 260 °C, for 10 s, reflow
Capacitance Change
Dissipation Factor
Leakage Current
Refer to Standard Ratings Table
Not to exceed 150 % of initial
Not to exceed 200 % of initial
There shall be no mechanical or visual damage to capacitors
post-conditioning.
Solderability
MIL-STD-202G, Method 208H, ANSI/J-Std-002,
Test B. Applies only to Solder and tin plated
terminations. Does not apply to gold terminations.
MIL-STD-202, Method 215D
Encapsulation materials meet UL94 VO with an
oxygen index of 32 %.
There shall be no mechanical or visual damage to capacitors
post-conditioning.
There shall be no mechanical or visual damage to capacitors
post-conditioning.
Resistance to
Solvents
Flammability
www.vishay.com
38
For technical questions, contact: tantalum@vishay.com
Document Number: 40042
Revision: 05-Mar-08
292D
Solid Tantalum Chip Capacitors,
T
ANTAMOUNT
®
Lead Frameless Molded
PLASTIC TAPE AND REEL PACKAGING
in inches [millimeters]
0.157 ± 0.004
[4.0 ± 0.10]
Deformation
Between
Embossments
0.059 + 0.004 - 0.0
[1.5 + 0.10 - 0.0]
10 Pitches Cumulative
Toler ance on T ape
± 0.008 [0.200]
Embossment
0.069 ± 0.004
0.079 ± 0.002
[1.75 ± 0.10]
[2.0 ± 0.05]
Vishay Sprague
Tape Thickness
0.014
[0.35]
MAX.
Top
Cover
Tape
B
1
MAX.
(Note 6)
K0
Top
Cover
Tape
0.004 [0.1]
MAX.
For Tape Feeder
Reference only
including draft.
Concentric around B0
(Note 5)
Center Lines
of Ca vity
A0
B0
0.030 [0.75]
MIN.(Note 3)
0.030 [0.75]
MIN.(Note 4)
20°
F
W
Maximum
Component
Rotation
(Side or Front Sectional Vie w )
P1
D1 MIN. For Components
0.079 x 0.047 [2.0 x 1.2] and Larger
.
(Note 5)
USER DIRECTION OF FEED
Maximum
Cavity Siz e
(Note 1)
Cathode (-)
Anode (+)
Direction of Feet
20° Maximum
Component Rotation
Typical
Component
Cavity
Center Line
3.937 [100.0]
0.039 [1.0]
MAX.
Tape
0.039 [1.0]
MAX.
0.9843 [250.0]
Camber
(Top Vie w)
Allo wable Camber to be 0.039/3.937 [1/100]
Non-Cumulative Ov er 9.843 [250.0]
B
0
Tape and Reel Specifications:
All case sizes are available on
plastic embossed tape per EIA-481-1. Tape reeling per IEC 286-3
is also available. Standard reel diameter is 7" [178 mm],
13" [330 mm] reels are available and recommended as the most
cost effective packaging method.
The most efficient packaging quantities are full reel increments on
a given reel diameter. The quantities shown allow for the sealed
empty pockets required to be in conformance with EIA-481-1. Reel
size and packaging orientation must be specified in the Vishay
Sprague part number.
A
0
(Top View)
Typical
Component
Center Line
CASE
CODE
292D
P
R
TAPE
SIZE
B
1
(MAX.)
D
1
(MIN.)
F
K
0
(MAX.)
P
1
W
8 mm
0.092 ± 0.0039 0.0394 + 0.0098
[2.34 ± 0.100]
[1.5 + 0.100]
0.1378 ± 0.0098
[3.5 ± 0.05]
0.053 ± 0.0039
[1.35 ± 0.100]
0.157 ± 0.0039
[4.0 ± 0.2]
0.315 + 0.0118/- 0.0039
[8.0 + 0.30/- 0.10]
Note:
Metric dimensions will govern. Dimensions in inches are rounded and for reference only
STANDARD PACKAGING QUANTITY
SERIES
292D
CASE CODE
P, R
QTY (PCS/REEL)
7" REEL
2500
13" REEL
10 000
Document Number: 40042
Revision: 05-Mar-08
For technical questions, contact: tantalum@vishay.com
www.vishay.com
39
Embedded System
京公网安备 11010802033920号
EEWORLD
