PTN2208Y2710BST1

Description
Fixed Resistor, Thin Film, 0.75W, 271ohm, 150V, 0.1% +/-Tol, -10,10ppm/Cel, 2307,
CategoryPassive components    The resistor
File Size93KB，4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

PTN2208Y2710BST1 Overview

Fixed Resistor, Thin Film, 0.75W, 271ohm, 150V, 0.1% +/-Tol, -10,10ppm/Cel, 2307,

PTN2208Y2710BST1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVishay
Reach Compliance Codecompli
Other featuresANTI-SULFUR
structureChi
JESD-609 codee3
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height0.609 mm
Package length5.842 mm
Package formSMT
Package width1.905 mm
method of packingTR
Rated power dissipation(P)0.75 W
resistance271 Ω
Resistor typeFIXED RESISTOR
seriesPTN
size code2307
technologyTHIN FILM
Temperature Coefficient-10,10 ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrie
Tolerance0.1%
Operating Voltage150 V

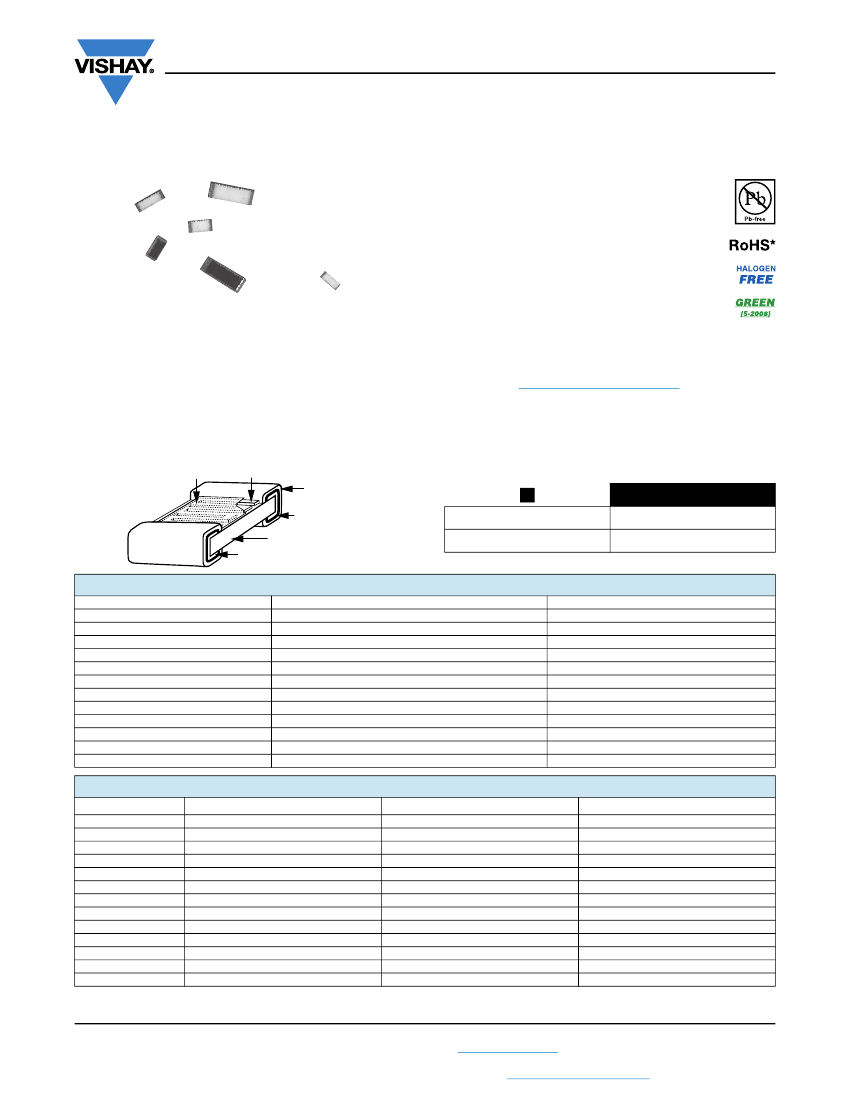

PTN2208Y2710BST1 Preview

PTN
www.vishay.com
Vishay Dale Thin Film
Commercial Thin Film Chip Resistor,
Surface Mount Chip
FEATURES
•
•
•
•
Actual Size
1505
These chip resistors are available in both “top side” and
“wraparound” termination styles in a variety of sizes. They
incorporate self passivated, enhanced Tantalum Nitride
films, to give superior performance on moisture resistance,
voltage coefficient, power handling and resistance stability.
The terminations consist of an adhesion layer, a leach
resistant nickel barrier, and solder coating. This product will
out-perform all requirements of characteristic E of
MIL-PRF-55342.
•
•
•
•
•
•
•
•
Moisture resistant
High purity alumina substrate
Non-standard values available
Available
Will pass + 85 °C, 85 % relative humidity and
Available
10 % rated power
100 % visual inspected per MIL-PRF-55342
Non-inductive
Available
Very low noise and voltage coefficient (< - 30 dB)
Laser-trimmed tolerances to ± 0.05 %
Available
Wraparound resistance less than 10 m
Epoxy bondable termination available
Sulfur resistant (per ASTM B809-95 humid vapor test)
Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
CONSTRUCTION
Passivation
Tantalum Nitride
Resistive Film
Solder
Coating
Nickel Barrier
High Purity
Alumina Substrate
Adhesion Layer
Note
*
This datasheet provides information about parts that are
RoHS-compliant and/or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information/tables in this datasheet for details.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
10
0.05
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Resistance Range
TCR: Absolute
Tolerance: Absolute
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Shelf Life Stability: Absolute
SPECIFICATIONS
Tantalum nitride
10
to 3 M
± 10 ppm/°C to ± 100 ppm/°C
± 0.05 % to ± 5 %
R
± 0.03 %
-
0.1 ppm/V
75 V to 200 V
- 55 °C to + 150 °C
- 55 °C to + 150 °C
< - 30 dB
-
CONDITIONS
-
-
- 55 °C to + 125 °C
+ 25 °C
2000 h at 70 °C
-
-
-
-
-
-
-
COMPONENT RATINGS
CASE SIZE
(1)
POWER RATING (mW)
0402
50
0502
100
0505
150
0603
150
0705
200
0805
200
1005
250
1010
500
1206
400
1505
400
2208
750
2010
800
2512
2000
Note
(1)
0705 and 0805 are the same (only use 0805 when ordering)
Revision: 08-Jul-14
WORKING VOLTAGE (V)
75
75
75
75
100
100
100
150
200
150
150
200
200
RESISTANCE RANGE ()
20 to 51.1K
20 to 65K
20 to 130K
10 to 130K
10 to 301K
10 to 301K
10 to 360K
50 to 600K
10 to 1M
10 to 1M
10 to 1.75M
10 to 2M
10 to 3M
Document Number: 60026
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PTN
www.vishay.com
Vishay Dale Thin Film
DIMENSIONS
in inches
D
T
E
L
W
CASE SIZE
0402
0502
0505
0603
0705, 0805
(1)
1005
1010
1206
1505
2010
2208
2512
L
0.042 ± 0.008
0.055 ± 0.006
0.055 ± 0.006
0.064 ± 0.006
0.080 ± 0.006
0.105 ± 0.007
0.105 ± 0.007
0.126 ± 0.008
0.155 ± 0.007
0.209 ± 0.009
0.230 ± 0.007
0.259 ± 0.009
W
0.022 ± 0.005
0.025 ± 0.005
0.050 ± 0.005
0.032 ± 0.005
0.050 ± 0.005
0.050 ± 0.005
0.100 ± 0.005
0.063 ± 0.005
0.050 ± 0.005
0.098 ± 0.005
0.075 ± 0.005
0.124 ± 0.005
T
0.012 to 0.033
0.012 to 0.033
0.012 to 0.033
0.020 max.
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
0.015 to 0.033
D
0.010 ± 0.005
0.010 ± 0.005
0.010 ± 0.005
0.012 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
E
0.010 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.020 + 0.005/ - 0.010 0.020 + 0.005/ - 0.010
0.015 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.015 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
Note
(1)
0705 and 0805 are the same (only use 0805 when ordering)
ENVIRONMENTAL TESTS
(Vishay Performance vs. MIL-PRF-55342 Requirements)
ENVIRONMENTAL TEST
Resistance Temperature Characteristic
Max. Ambient Temp. at Rated Wattage
Max. Ambient Temp. at Power Derating
Thermal Shock
Low Temperature Operation
Short Time Overload
(2)
High Temperature Exposure
Resistance to Soldering Heat
Moisture Resistance
Life + 70 °C at 1000 h
Insulation Resistance
(2)
LIMITS MIL-PRF-55342
CHARACTERISTIC “E”
± 25 ppm/°C
+ 70 °C
+ 150 °C
R
R
R
R
R
R
R
± 0.1 %
± 0.1 %
± 0.10 %
± 0.1 %
± 0.2 %
± 0.2 %
± 0.50 %
10 000
minimum
TYPICAL VISHAY
PERFORMANCE
± 15 ppm/°C
+ 70 °C
+ 150 °C
± 0.040 %
± 0.001 %
± 0.002 %
± 0.04 %
± 0.008 %
± 0.004 %
± 0.02 %
> 100 000 M
Note
2512 short time overload test is based on 1 W power level below critical value of 20 k.
Revision: 08-Jul-14
Document Number: 60026
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PTN
www.vishay.com
Vishay Dale Thin Film
DERATING CURVE
100
Maximum
Absolute
Change
FILM LOAD LIFE STABILITY
(at + 125 °C)
0.1 %
0.06 %
0.05 %
0.04 %
0.03 %
0.02 %
0.01 %
0.006 %
0.005 %
0.004 %
0.003 %
0.002 %
0.001 %
200
400
600
800 1000 1200 1400 1600 1800 2000
Percent of Rated Power
80
60
40
20
0
0
70
125
150
Time in h at + 125 °C
Ambient Temperature °C
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: PTN1206E1002BBT1
P
GLOBAL
MODEL
PTN
T
CASE
SIZE
0402
0502
0505
0603
0805
1005
1010
1206
1505
2208
2010
2512
N
1
2
0
6
E
1
0
0
2
B
B
T
1
TCR
CHARACTERISTIC
E
= ± 25 ppm/°C
H
= ± 50 ppm/°C
K
= ± 100 ppm/°C
Y
= ± 10 ppm/°C
(1)
RESISTANCE
The first 3 digits
are
significant
figures and the
last digit specifies
the number of
zeros to follow.
“R” designates
the decimal point.
Example:
10R0 = 10

1000 = 100

1001 = 1 k
TOLERANCE
A
= ± 0.05 %
(2)
B
= ± 0.1 %
D
= ± 0.5 %
F
= ± 1 %
G
= ± 2 %
J
=±5%
TERMINATION
B
= Wraparound
Sn/Pb solder
Sn63
w/nickel barrier
G
= Wraparound Au
over Ni (gold)
termination
epoxy bondable
RoHS compliant - e4
S
= Wraparound
electroplated 100 %
pure matte tin
RoHS-compliant - e3
PACKAGING
BS
= BULK
100 min., 1 mult
W0
= WAFFLE
100 min., 100 mult
WS
= WAFFLE
100 min., 1 mult
W1
= 100 min., 1 mult
(item single lot date code)
WP
= 100 min., 1 mult
(package unit single lot
date code)
TAPE AND REEL
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
(3)
T3
= 300 min., 300 mult
T5
= 500 min., 500 mult
TF
= Full reel
TS
= 100 min., 1 mult
TI
= 100 min., 1 mult
(item single lot date code)
TP
= 100 min., 1 mult
(package unit single lot
date code)
Historical Part Number example: PTN0805H8801BBT (for reference purposes only)
PTN
STYLE
0805
CASE SIZE
H
TCR
CHARACTERISTIC
8801
OHMIC VALUE
B
TOLERANCE
B
TERMINATION
T
PACKAGING
Notes
(1)
> 100
(2)
> 1 k
(3)
Preferred packaging code.
Revision: 08-Jul-14
Document Number: 60026
3
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Temperature, humidity and liquid level multi-purpose automatic controller circuit diagram

50W pure class A ground push-pull amplifier 02

CMOS integrated circuit level indication circuit

Eight levels of optional DC stabilized power supply circuit

Simple Schmitt trigger circuit using LM3900

Bridge power amplifier circuit for DC motor speed regulation

There is a text flickering problem, please have a look.
When I update the text, the text sometimes flickers. Why? The text shows the time and is constantly updating. GetLocalTime(&time0); CString str; str.Format(_T("Year Month Day:%04d:%02d:%02dTime:%02d:%...
SDFSADFSAD Embedded System
Byte type problem
I recently saw a definition where several different variables were defined as byte data types, but the number of bytes they occupied was 1, 8, or 16. However, I checked the standard C and found no suc...
青城山下 Linux and Android
Find an overcurrent protection circuit
I designed a power supply and need an overcurrent protection circuit. Requirements: When the load is short-circuited, cut off the load. Output current <2A. Output voltage 0～９.９Ｖ [[i] This post was las...
qy08301 Power technology
Voltage regulator chip
What voltage regulator chips are generally used to obtain the reference voltage of a high-precision AD converter? The reference voltage I want is 2.5V...
小马 Embedded System
Q: LM3S9B92 ADC module
SysCtlADCSpeedSet(SYSCTL_ADCSPEED_125KSPS);Should the sampling rates of ADC0 and ADC1 be set to 125KSPS? If the two modules use different sampling frequencies, how should they be written? . .If the vo...
喜鹊王子 TI Technology Forum
Illustrated description of the 10 working processes of zero voltage switching power supply (ZVS)
Zero voltage switching power supply (ZVS) is a relatively advanced and mature technology in the current switching power supply technology. Because it is in a soft switching state, it can achieve highe...
凤舞天 Power technology
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. W25X10A_09
  2. 240-0321-15PPF6J2-18K
  3. TW-12-02-L-S-196-SM
  4. BZV55C4V7/TR
  5. M55342M09B42W2PBS
  6. NANO538SB2AN
  7. MEPA-11MB-F/Q
  8. FP20116128870DXBCW
  9. AME8500AEETDF26
  10. SMF110A
  11. 15KP54C
  12. SMD-3225_4P13.56MHZ20PF10PPM-40~+85℃

Popular Articles

  1. Analysis of the causes of unreliable radar level meter measurement
  2. Puretech's net profit in the first half of this year increased nearly fourfold, with new orders of 1.72 billion yuan for the overall business
  3. Toyota announces 1.5 trillion yen investment in battery research and development by 2030
  4. STC51 MCU serial communication program
  5. What is the applicable scope of the breathing valve air tightness tester
  6. Chapter 18: Android LCD (IV): LCD driver debugging
  7. Samsung Galaxy S22 series HD wallpapers leaked in advance
  8. Zhezhong Shares: Guojing Semiconductor produces 12-inch silicon wafer automatic production line for integrated circuits
  9. Mini2440 bare metal programming---network card
  10. High power density built-in power supply

Technical ResourceMore

  1. \"Circuit Fundamentals\" edited by Wang Huiling
  2. CCD camera technical parameters
  3. Base station power supply maintenance
  4. JC17W41 display circuit diagram
  5. Research on signal filtering and denoising based on wavelet transform
  6. Power factor issues in lighting design
  7. Bit Error Rate and Constellation Diagram Simulation of QPSK System
  8. Controlling AC Signal Offset and Amplitude Using a Dual-Channel Multiplying DAC and a Single IV Converter
  9. Chapter 5_VHDL_State Machine
  10. ZTE Corporation\'s zxj10 data recovery method

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 157  229  1242  2780  771  4  5  26  56  16
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
