2BHR50HTA

Description
10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector
File Size123KB,1 Pages
ManufacturerAdam Tech
Download Datasheet Parametric View All

2BHR50HTA Overview

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

2BHR50HTA Parametric

Parameter NameAttribute value
Connector typeBOARD CONNECTOR
Contact materialsBRASS
Terminal spacing2 mm
Total number of contacts10
Processing package descriptionROHS COMPLIANT
each_compliYes
EU RoHS regulationsYes
stateContact Mfr
Contact surface matchingGOLD OVER NICKEL
Contact coated terminalsTIN OVER COPPER
Connector male and femaleMALE
According to DINNO
Filter characteristicsNO
Comply with IECNO
jesd_609_codee3
Manufacturer Series2BHR
Meet MILNO
hybrid connectionNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of load rows2
OptionsGENERAL PURPOSE
Terminal typeSOLDER
UL flammability code94V-0
dditional_featureSHROUDED

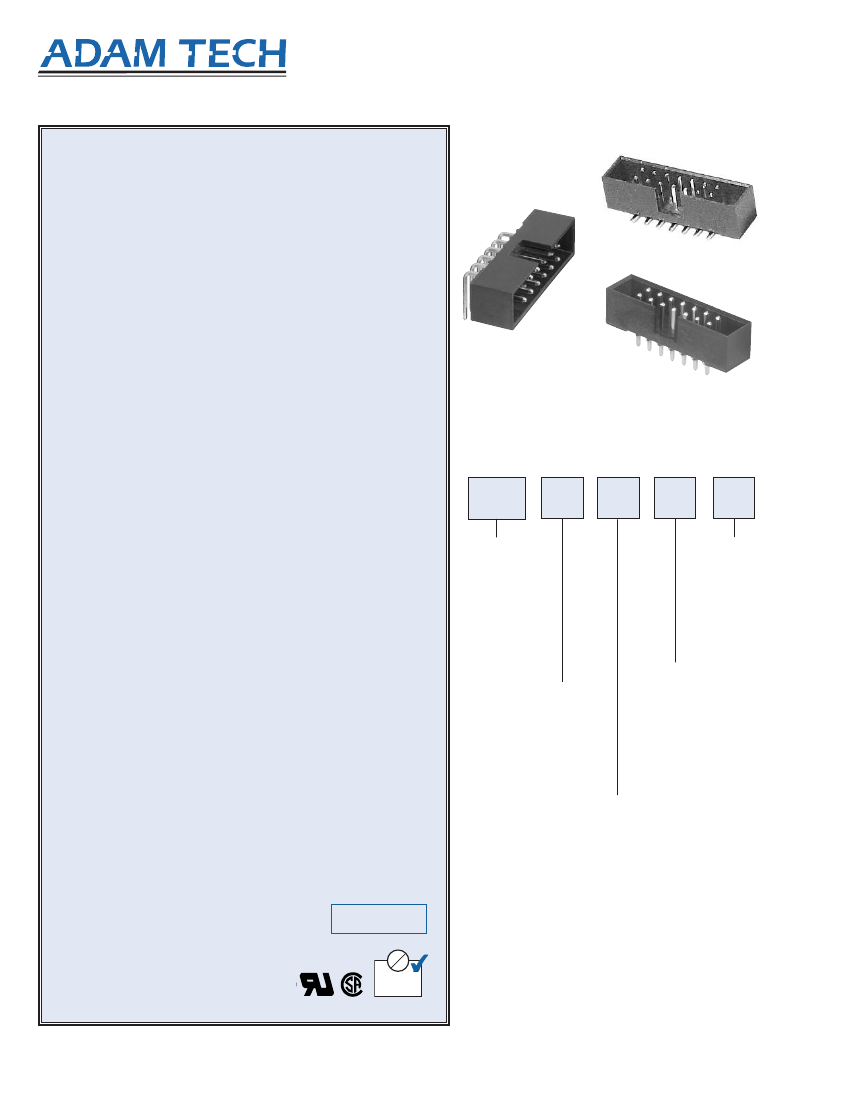

2.00mm BOX HEADERS
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech 2BHR Series 2.0mm Box Headers are dual row
shrouded headers for use with dual row IDC female socket
connectors. Our low profile, space saving design has a center slot for
the socket’s polarization bump. Adam Tech’s Box Headers are
available in Straight PCB Mount, Right Angle PCB Mount and SMT
Mounting. Plating options include choice of Gold, Tin or Selective
Gold. SMT versions are manufactured with a Hi-Temp insulator.
Additional options include latches and custom pin lengths.
FEATURES:
Shrouded, insulated connection
Superior low profile design
Slot for IDC socket Polarization bump
Straight PCB, Right Angle PCB and SMT versions
Gold, Tin or Selective Gold plating
Options include Elevated types and integral latches
Hi-Temp insulator available
MATING SOCKETS:
Adam Tech .079" [2.0mm] X .079” [2.0mm] dual row IDC sockets
SPECIFICATIONS:
Material:
Standard insulator: PBT, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black
Contacts: Brass
Plating:
U = Gold flash (30u” optional) over nickel underplate
SG = Gold flash (30u” optional) over nickel underplate on
contact area, tin over copper underplate on tails.
T = Tin over copper underplate overall
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Mating durability: 500 cycles min.
Temperature Rating:
Operating temperature: -55°C to +105°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
UL
®
.079" [2.00] CENTERLINE
2BHR SERIES
ORDERING INFORMATION
2BHR
20
V
U
A
PIN LENGTH
A
= Standard
solder tail
B
= Special length,
customer
specified
SMT=
Surface
Mount
CONTACT PLATING
U
= Gold Plated
T
= Tin Plated
SG
= Gold Plating in contact
area, tin plated tails
SERIES
INDICATOR
2BHR
=
2mm Box Header
NO. OF
POSITIONS
08, 10, 14, 16, 20,
24, 26, 30, 34, 40,
44, 50, 60, 64
MOUNTING ORIENTATION
V
= Straight Mount
H
= Right Angle Mount
HI-TEMP
INSULATOR
AVA I L A B L E
This series is available in an
elevated version similar to
our BHRE Series as shown
on pgs. 260-261
Pb
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
OPTIONS:
Add designator(s) to end of part number
30
= 30 µin gold plating in contact area
GY
= Gray color insulator
HT
= Hi-Temp insulator for Hi-Temp soldering processes up to
260°C
(Add this option for thru-hole products only. All SMT
products are manufactured with Hi-Temp insulators)
264
909 Rahway Avenue
Union, New Jersey 07083
RoHS
T: 908-687-5000
F: 908-687-5710
WWW.ADAM-TECH.COM
COMPLIANT
