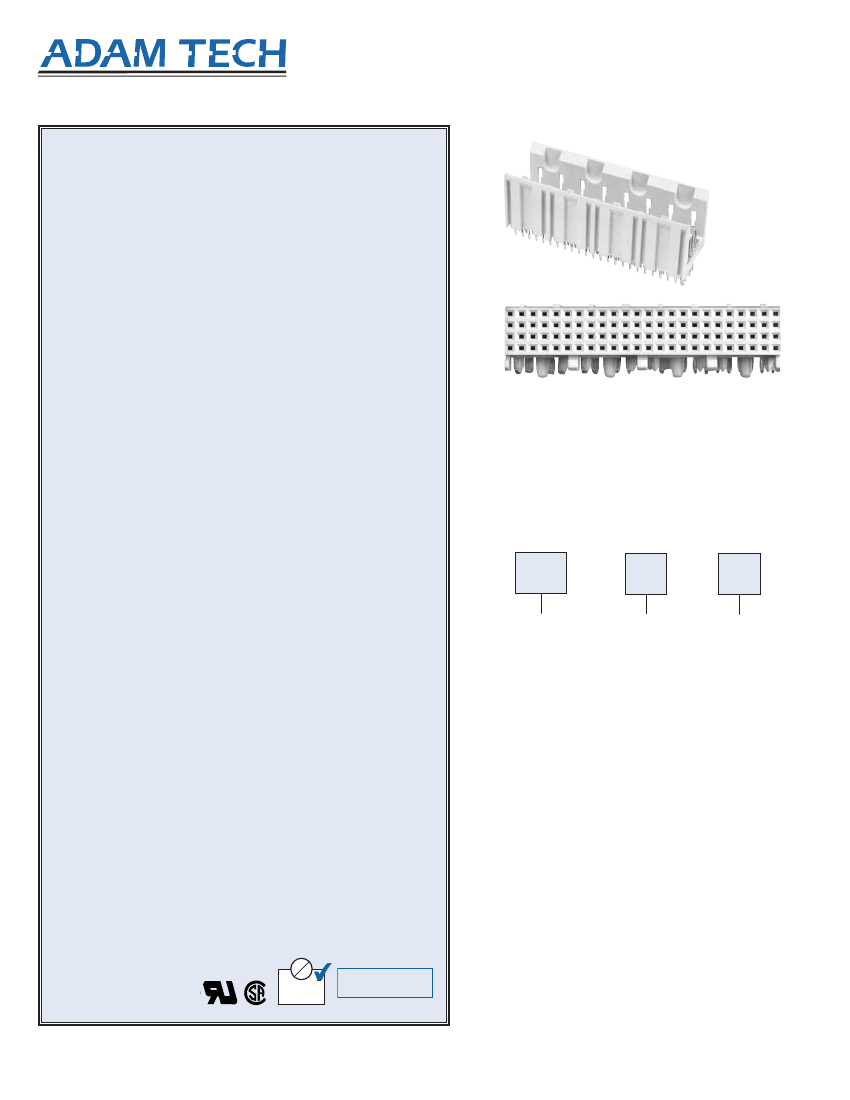

FUTURE BUS
Adam Technologies, Inc.
2.00mm CENTERLINE EIA STANDARD
2FB SERIES
INTRODUCTION:
Adam Tech 2FB Series 2.00mm Futurebus Backpanel connectors
are a two piece connector system comprised of vertical male headers
and right angle receptacles. This high density, high speed signal
connector set connects PC boards to backplanes. They are widely
used in networking, telecom and high speed computing applications.
Adam Tech’s specially designed Press-Fit tails offer fast, solderless
attachment to printed circuit boards. Our connector bodies are
manufactured from high-temp, glass filled LCP thermoplastic and our
contacts are specially designed for improved signal performance.
These headers and sockets offer the convenience of end to end
stacking. They are industry compatible, and intermateable with other
connectors manufactured to Future Bus standards.
FEATURES:
Industry standard 2.00 Backplane system
Two piece mated design
High density & end to end stackable
High Speed, improved signal performance
Superior grounding and Shielding
MATING CONNECTORS:
Adam Tech 2FB series and All industry standard 2.0mm
Future Bus Connectors.
ORDERING INFORMATION
SPECIFICATIONS:
Material:
Standard Hi-Temp insulator: LCP, glass filled, rated UL94V-0
Insulator Color: Gray
Contacts: Brass or Phosphor Bronze
Contact Plating:
Gold over Nickel on contact area, Tin over Copper underplate
on tails
Electrical:
Operating voltage: 500V AC max.
Current rating: 1 Amp max
Contact resistance: 30 mΩ max. initial
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: 0.101 lbs / contact max.
Withdrawal force: 0.045 lbs / contact min
Temperature Rating:
Operating temperature: -65°C to +125°C
Soldering process temperature: 260°C
PACKAGING:
Anti-static plastic tubes
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
2FB
SERIES INDICATOR
2FB
= 2.0mm
Future Bus
Connector
24
POSITIONS
Power:
8 & 10
Signal:
24, 30, 48,
60, 96, 120,
192, 240
M
CONTACT TYPE
M
= Male straight
F
= Female
right angle
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
OPTIONS:
Add designator(s) to end of part number
30
= 30 µin gold plating in contact area
Custom pin lengths available
230
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
