2FCS-40: Description2.00mm IDC SOCKET & TRANSITION PLUG; File Size99KB，1 Pages; ManufacturerAdam Tech

Download Datasheet View All

2FCS-40 Overview

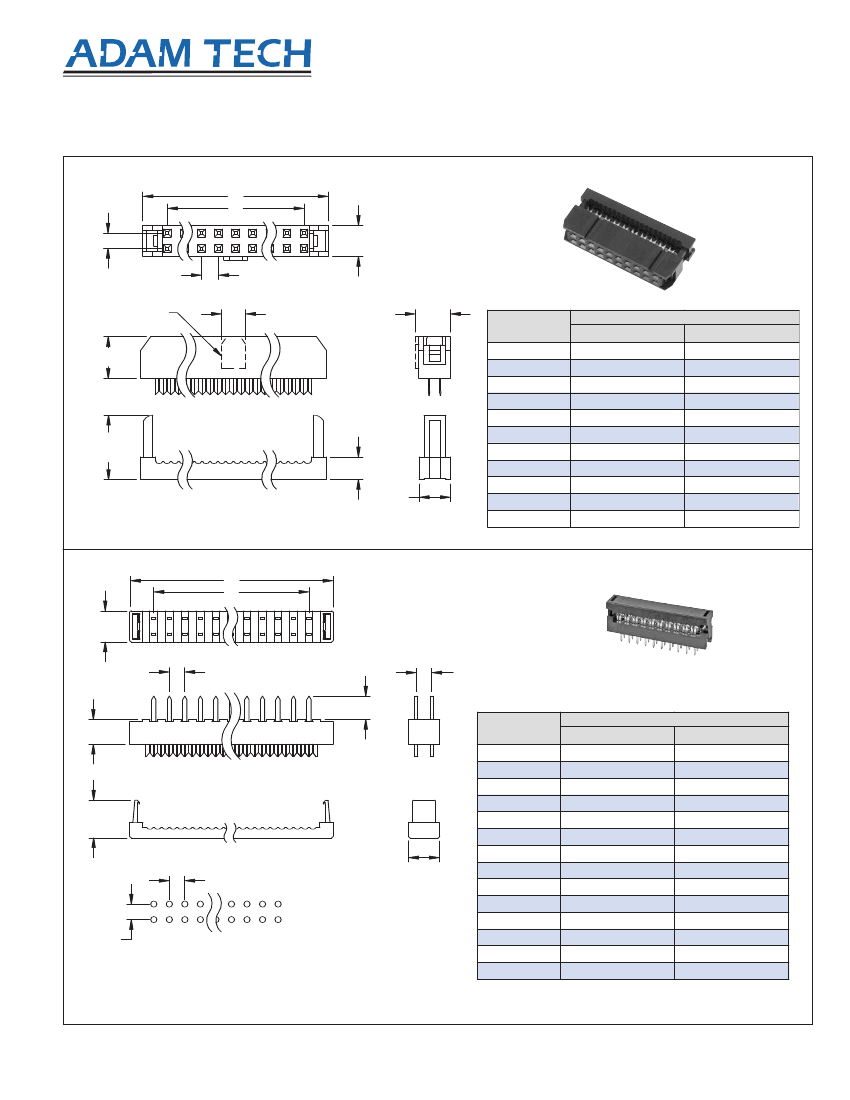

2.00mm IDC SOCKET & TRANSITION PLUG

Preview

Download Datasheet

View All

Adam Technologies, Inc.

2.00mm IDC SOCKET &

TRANSITION PLUG

.079" [2.00 X 2.00] CENTERLINE

2FCS & 2FTR SERIES

2FCS

A

B

.079 [2.00]

.165 [4.20]

.079 [2.00]

2FCS-20-SG

OPTIONAL

POLARIZING

BUMP

.118

[3.00]

.185

[4.70]

PART No. &

POSITIONS

2FCS-20

2FCS-22

2FCS-24

2FCS-26

2FCS-34

.335

[8.50]

.130 [3.30]

.165

[4.20]

2FCS-36

2FCS-40

2FCS-44

2FCS-50

2FCS-60

2FCS-68

.992

1.071

1.150

1.228

1.543

1.622

1.780

1.937

2.773

2.567

2.882

A

[25.10]

[27.20]

[29.20]

[31.00]

[39.20]

[41.20]

[45.10]

[49.20]

[55.10]

[65.20]

[73.20]

.709

.787

.866

.945

1.260

1.339

1.496

1.654

1.890

2.283

2.598

DIMENSIONS

B

[18.00]

[20.00]

[22.00]

[24.00]

[32.00]

[34.00]

[38.00]

[42.00]

[48.00]

[58.00]

[66.00]

.205 [5.20]

2FTR

A

B

.157

[4.00]

.079

[2.00]

.079 [2.00]

2FTR-20-T

.118 [3.00]

PART No. &

.126 [3.20]

POSITIONS

2FTR-08

2FTR-10

2FTR-12

.193

[4.90]

2FTR-14

2FTR-16

2FTR-20

2FTR-22

.079 [2.00]

.157

[4.00]

2FTR-24

2FTR-26

2FTR-34

2FTR-40

.079

[2.00]

2FTR-44

2FTR-50

A

.480 [12.20]

.559 [14.20]

.637 [16.20]

.716 [18.20]

.795 [20.20]

.952 [24.20]

1.031 [26.20]

1.110 [28.20]

1.189 [30.20]

1.503 [38.20]

1.740 [44.20]

1.897 [48.20]

2.133 [54.20]

2.842 [72.20]

DIMENSIONS

B

.236 [6.00]

.315 [8.00]

.3937 [10.00]

.472 [12.00]

.551 [14.00]

.629 [16.00]

.708 [18.00]

.866 [22.00]

.945 [24.00]

1.260 [32.00]

1.496 [38.00]

1.654 [42.00]

1.890 [48.00]

2.598 [66.00]

Recommended PCB Layout

2FTR-68

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM
