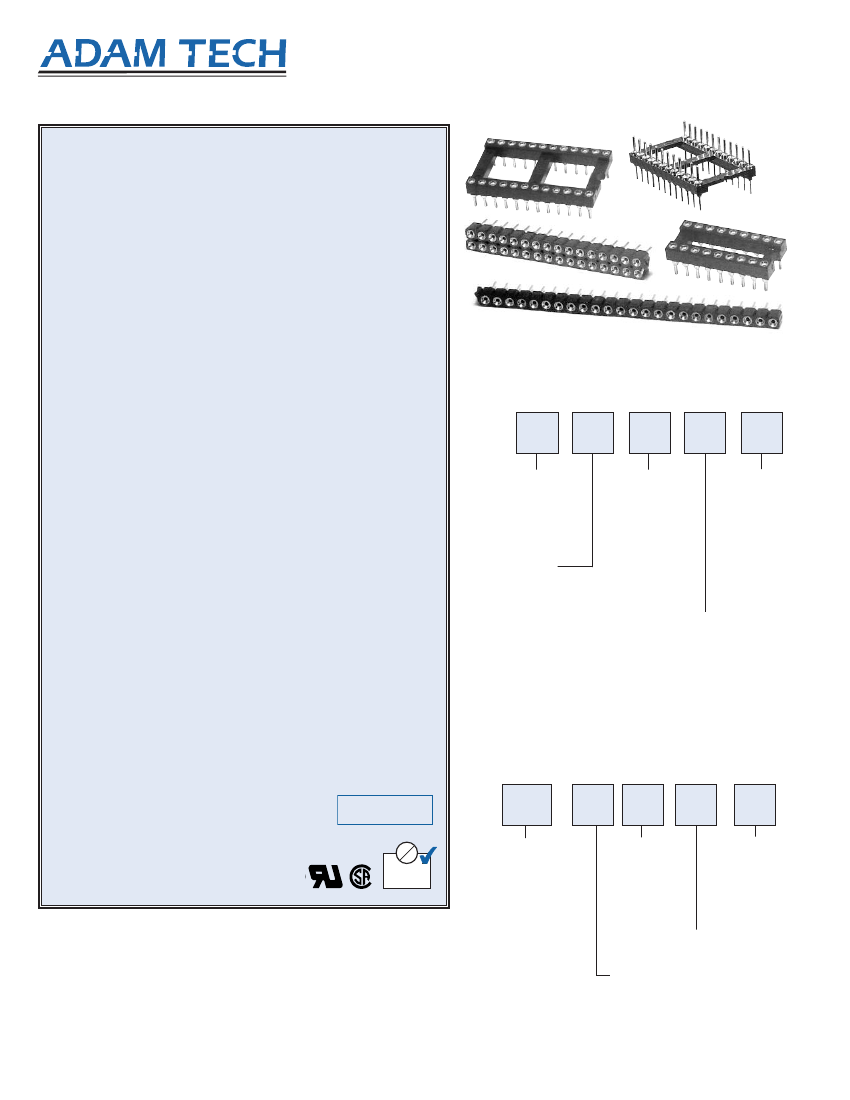

Adam Technologies, Inc.
SCREW MACHINE SOCKETS
& TERMINAL STRIPS
ICM SERIES
INTRODUCTION:
Adam Tech ICM Series Machine Pin Sockets and Terminal Strips
offer a full range of exceptional quality, high reliability DIP and SIP
package Sockets and Terminal Strips. Our sockets feature solid,
precision turned sleeves with a closed bottom design to eliminate flux
intrusion and solder wicking during soldering. Adam Tech’s stamped
spring copper insert provides an excellent connection and allows
repeated insertion and withdrawals. Plating options include choice of
gold, tin or selective gold plating. Our insulators are molded of
UL94V-0 thermoplastic and both Sockets and Terminal Strips are XY
stackable.
FEATURES:
High Pressure Contacts
Precision Stamped Internal Spring Contact
Anti-Solder Wicking design
Machine Insertable
Single or Dual Row
Low Profile
MATING COMPONENTS:
Any industry standard components with SIP or DIP leads
SPECIFICATIONS:
Material:
Standard insulator: PBT, Glass reinforced, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0
Insulator Color: Black
Contacts: Phosphor Bronze
Contact Plating:
Gold over Nickel underplate and Tin over copper underplate
Electrical:
Operating voltage: 250V AC max.
Current rating: 1 Amp max.
Contact resistance: 30 mΩ max. initial
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 500V AC for 1 minute
Mechanical:
Insertion force: 400 grams initial max with .025 dia. leads
Withdrawal force: 90 grams initial min with .025 dia. leads
Temperature Rating:
Operating temperature: -55°C to +105°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic tubes
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
UL
®
ORDERING INFORMATION
OPEN FRAME SCREW MACHINE
SOCKETS & TERMINALS
ICM
SERIES INDICATOR
ICM
= Screw Machine
IC Socket
TMC
= Screw Machine
DIP Terminals
6
28
POSITIONS
06 Thru 52
1
GT
PLATING
GT
= Gold plated
inner contact
Tin plated
outer sleeve
TT
= Tin plated
inner contact
Tin plated
outer sleeve
ROW SPACING
3
= .300" Row Spacing
Positions: 06, 08, 10, 14,
16, 18, 20, 24, 28
4
= .400" Row Spacing
Positions: 20, 22, 24, 28, 32,
6
= .600" Row Spacing
Positions: 20, 22, 24, 28,
32, 36, 40, 42, 48, 50, 52
9
= .900" Row Spacing
Positions: 50 & 52

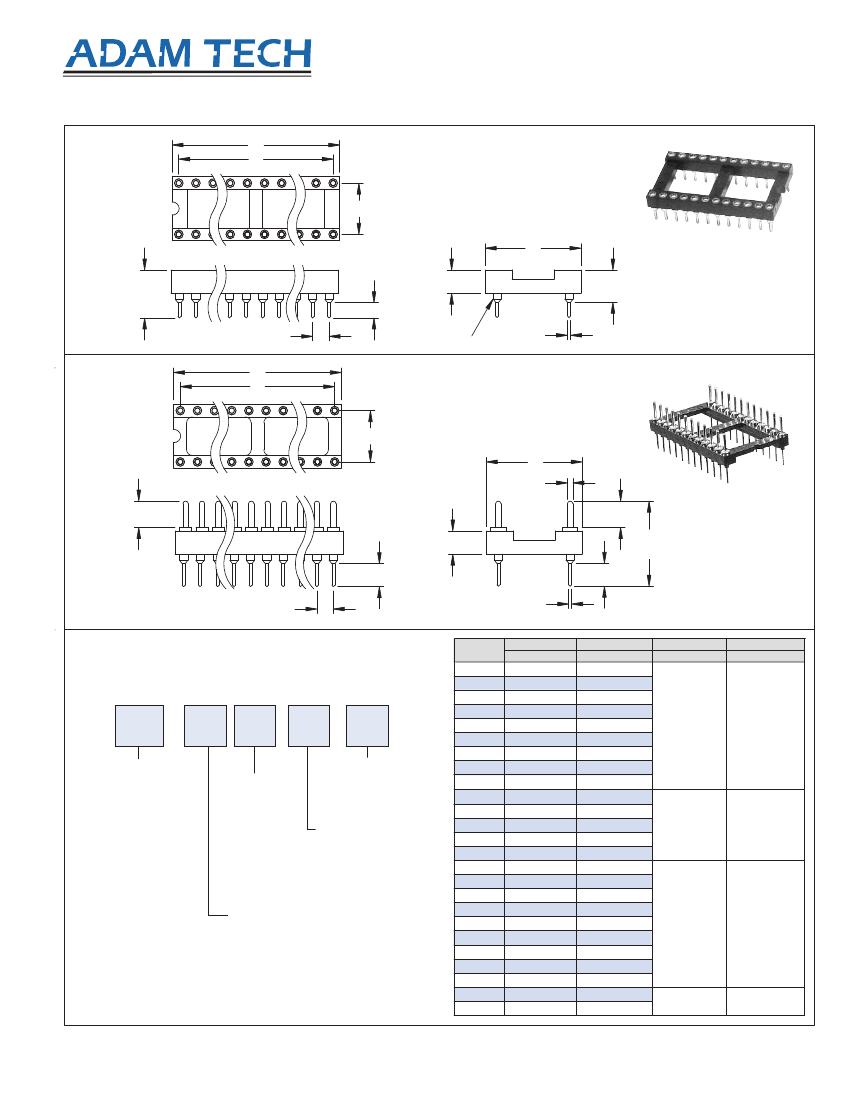

SEE PHOTOS &
DRAWINGS
PGS.184-185
TAIL LENGTH
1
= Standard
DIP Length
2
= Wire wrap
tails
ORDERING INFORMATION
SCREW MACHINE SOCKETS
1
04
POSITIONS
Single Row:
01 thru 40
Dual Row:
02 thru 80
HI-TEMP
INSULATOR
AVA I L A B L E
SMC
SERIES INDICATOR
1SMC
= .039 (1.00mm)
Screw machine
contact socket
HSMC
= .050 (1.27mm)
Screw machine
contact socket
2SMC
= .078 (2.00mm)
Screw machine
contact socket
SMC
= .100 (2.54mm)
Screw machine
contact socket
1
GT
Pb
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
OPTIONS: (MCT series on pg. 183)
Add designator(s) to end of part number
SMT
= Surface mount leads Dual Row
SMT-A
= Surface mount leads Type A
SMT-B
= Surface mount leads Type B
HT
= Hi-Temp insulator for Hi-Temp
soldering processes up to 260°C
RoHS
COMPLIANT
PLATING
GT
= Gold plated
inner contact
Tin plated
outer sleeve
TT
= Tin plated
inner contact
TAIL LENGTH
Tin plated
1
= Standard Lengh outer sleeve
BODY STYLE
1
= Single Row Straight
1R
= Single Row Right Angle
2
= Dual Row Straight
2R
= Dual Row Right Angle
182
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
