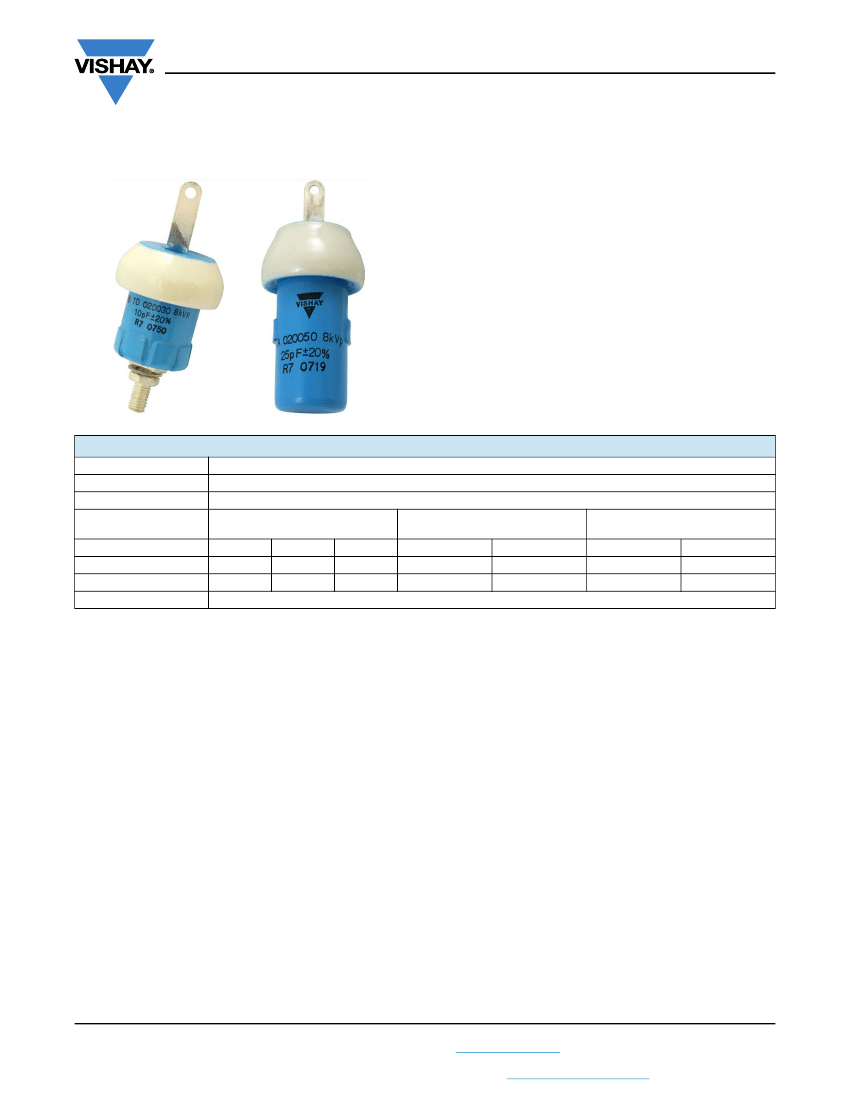

T. 020030, T. 020050, T. 020080
www.vishay.com
Vishay Draloric
RF Power Pot Capacitors
with Mounting Tags, Class 1 Ceramic
FEATURES
• Small size
• High reliability
• Wide range of capacitance values
APPLICATIONS
• Induction and dielectric heating
• Antenna units
• Filter, bypass, and coupling circuits
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
TA 020030, TB 020030, TC 020030,
TD 020030, TE 020030
6000
100
400
7000
80
250
8000
10
160
VALUE
1
R7, R16, R42, R85
TA 020050, TB 020050, TC 020050,
TD 020050, TE 020050,
7000
200
600
Screw terminal
8000
20
500
TA 020080, TB 020080, TC 020080,
TD 020080, TE 020080
7000
1200
1200
8000
40
1000
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals made from copper / brass, silver
plated.
CERAMIC DIELECTRICS
•
•
•
•
R7 (TCC + 100 ppm/K)
R16 (TCC + 100 ppm/K)
R42 (TCC - 250 ppm/K)
R85 (TCC - 750 ppm/K)
FINISH
Capacitor body completely protective laquered.
The contoured insulating rim is additionally glazed.
RATED VOLTAGE
• 6.0 kV
p
• 7.0 kV
p
• 8.0 kV
p
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo.
DISSIPATION FACTOR
R7:
max. 0.07 %
R16:
max. 0.04 %
R42, R85:
max. 0.05 %
Measuring frequencies:
1 MHz (< 1 nF); 300 kHz or 100 kHz ( 1 nF)
CAPACITANCE RANGE
10 pF to 1.2 nF
CAPACITANCE TOLERANCE
± 20 %; ± 10 %; ± 5 %
INSULATION RESISTANCE
Min. 100 000 M (at 25 °C)
DIELECTRIC STRENGTH TEST
200 % of rated AC voltage (50 Hz, 5 minutes)
OPERATING TEMPERATURE RANGE
-55 °C to +100 °C
Revision: 03-Sep-14
Document Number: 22093
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T. 020030, T. 020050, T. 020080
www.vishay.com
Vishay Draloric
CAP.
VALUES
(pF)
10
16
20
25
40
50
60
80
100
120
160
200
250
300
400
20
25
40
50
60
80
100
160
200
250
300
400
500
600
40
60
80
100
120
160
200
250
300
400
500
600
1000
1200
RATED
VOLTAGE
(kV
p
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
TYPE T. 020030
T#020030BP100##BF1
T#020030BP160##BF1
T#020030BP200##BF1
T#020030BP250##BG1
T#020030BP400##BG1
T#020030BP500##BH1
T#020030BP600##BH1
T#020030VY800##BH1
T#020030BF101##BH1
T#020030BP121##BJ1
T#020030BP161##BJ1
T#020030VY201##BJ1
T#020030VY251##BJ1
T#020030BF301##BJ1
T#020030BF401##BJ1
TYPE T. 020050
T#020050BP200##BF1
T#020050BP250##BF1
T#020050BP400##BG1
T#020050BP500##BG1
T#020050BP600##BG1
T#020050BP800##BG1
T#020050BP101##BH1
T#020050BP161##BH1
T#020050VY201##BH1
T#020050BP251##BJ1
T#020050BP301##BJ1
T#020050BP401##BJ1
T#020050BP501##BJ1
T#020050VY601##BJ1
TYPE T. 020080
T#020080BP400##BF1
T#020080BP600##BF1
T#020080BP800##BG1
T#020080BP101##BG1
T#020080BP121##BG1
T#020080BP161##BG1
T#020080BP201##BH1
T#020080BP251##BH1
T#020080BP301##BH1
T#020080BP401##BJ1
T#020080BP501##BJ1
T#020080BP601##BJ1
T#020080BP102##BJ1
T#020080VY122##BJ1
CERAMIC
R7
3.5
8.0
R16
R42
7.0
6.0
8.0
7.0
6.0
4.2
6.0
R85
R7
5.6
8.0
R16
R42
6.0
7.0
7.0
8.0
R85
7.0
R7
8.5
R16
8.0
R42
7.0
10.5
R85
7.0
Notes
• # 2
nd
digit: code letter of the terminal version A, B, C, D, E
• ## 14
th
to 15
th
digit: capacitance tolerance code ± 20 % = 38, ± 10 % = 36, ± 5 % = 33
(1)
The surface temperature during operation must not exceed +100 °C
Revision: 03-Sep-14
Document Number: 22093
2
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T. 020030, T. 020050, T. 020080
www.vishay.com
Vishay Draloric

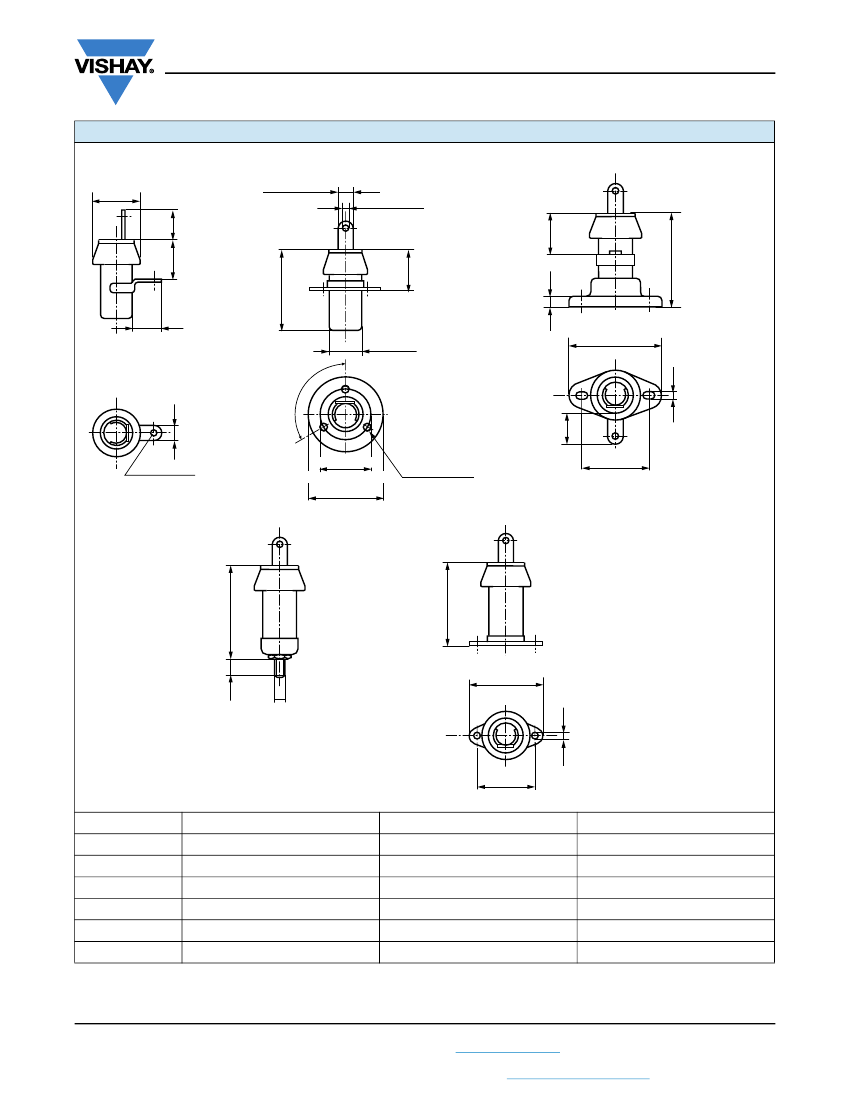

DIMENSIONS
in millimeters (inches)
TA
Ø 30
(1.18 Dia.)
18 + 1
(0.71 + 0.04)
L
2
TB
6.0 x 0.4
(0.236 x 0.016)
Ø 3.0 ± 0.2
(0.118 ± 0.008 Dia.)
TC
L
2
L
3
L
1
6.0
(0.236)
Insulating base
Ø 20
(0.79 Dia.)
54
(2.13)
L
4
19 + 1
(0.75 + 0.04)
120°
Ø 4.3 + 0.2
(0.169 + 0.008 Dia.)
6.0 x 0.4
(0.236 x 0.016)
Ø 30.0 ± 0.2
(1.181 ± 0.008 Dia.)
Ø 45
(1.77 Dia.)
19 + 1
(0.75 + 0.04)
40.0 ± 0.8
(1.575 ± 0.031)
Ø 3.0 ± 0.2
(0.118 x 0.008 Dia.)
Ø 5.3 + 0.2
(0.209 + 0.008 Dia.)
TD
TE
L
6
L
5
10
(0.39)
40
(1.57)
M5 Thread
Ø 4.3 + 0.2
(0.169 + 0.008 Dia.)
32.0 ± 0.3
(1.260 ± 0.012)
TYPE
Length L
1
Length L
2
Length L
3
Length L
4
Length L
5
Length L
6
T. 020030
30 (1.18)
15.0 ± 1.5 (0.591 ± 0.059)
20.0 ± 1.5 (0.787 ± 0.059)
46.0 ± 2.0 (1.811 ± 0.079)
31.0 ± 2.0 (1.220 ± 0.079)
36 (1.42)
T. 020050
50 (1.97)
25.0 ± 2.0 (0.984 ± 0.079)
25.0 ± 2.0 (0.984 ± 0.079)
55.0 ± 2.0 (2.165 ± 0.079)
51.0 ± 2.0 (2.008 ± 0.079)
56 (2.20)
T. 020080
80 (3.15)
40.0 ± 2.0 (1.575 ± 0.079)
40.0 ± 2.0 (1.575 ± 0.079)
85.0 ± 2.0 (3.346 ± 0.079)
81.0 ± 2.0 (3.189 ± 0.079)
86 (3.39)
Revision: 03-Sep-14
Document Number: 22093
3
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T. 020030, T. 020050, T. 020080
www.vishay.com
Vishay Draloric
T#020030BP160##BF1
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
1.09 MHz
102.2 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100

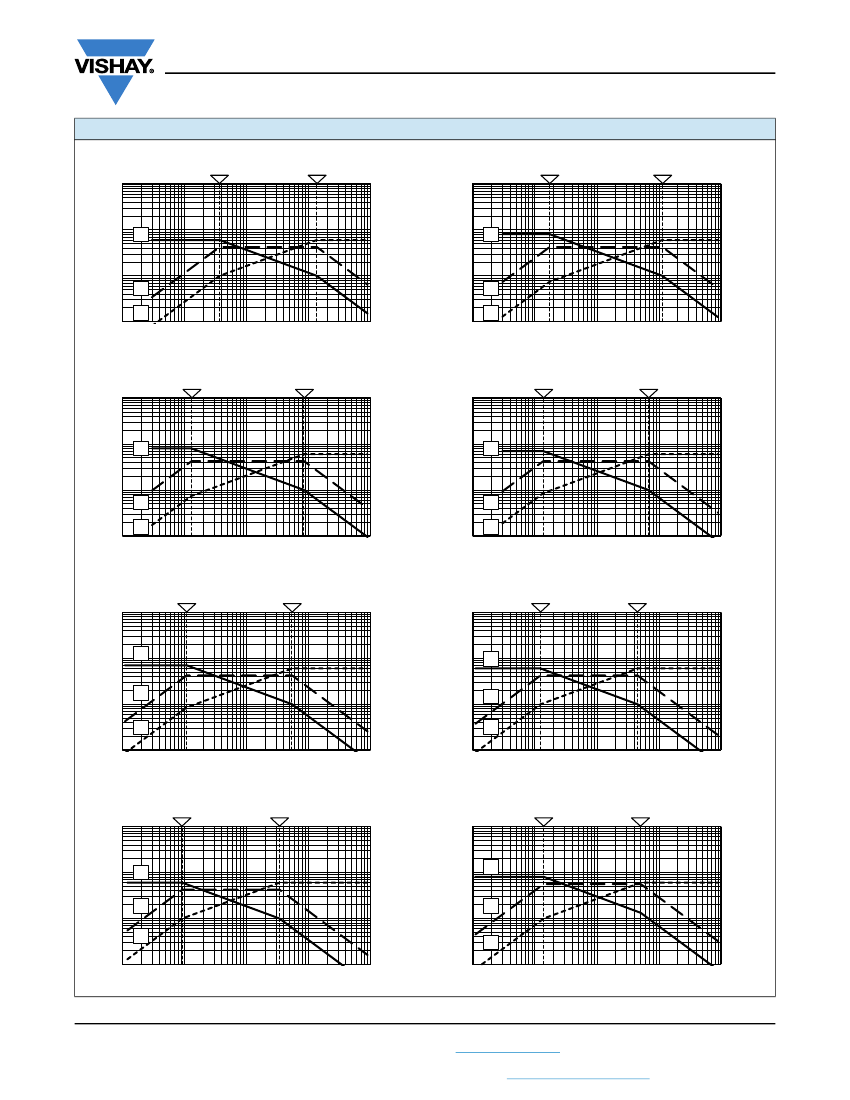

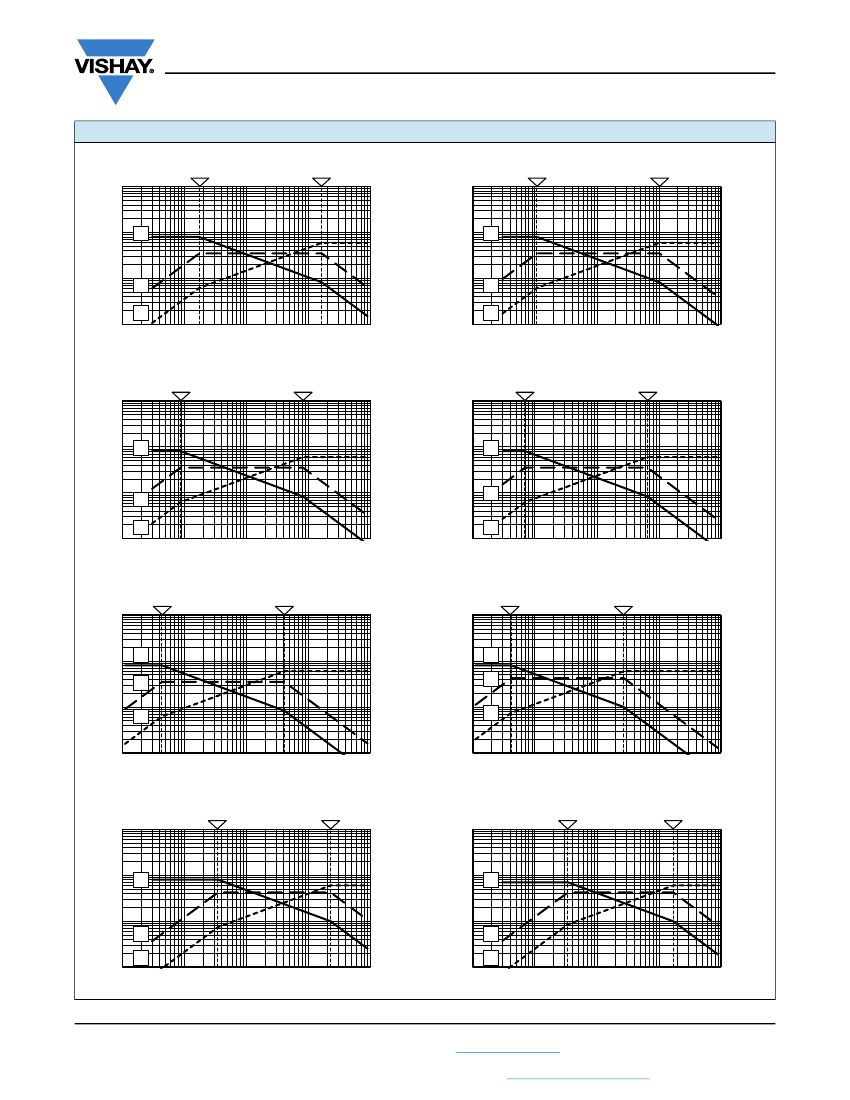

DERATING DIAGRAMS
T#020030BP100##BF1
U
g
(kV
p
)
100
1.74 MHz
163.5 MHz
10
U
g
10
10
U
g
10
1
Q
g
I
g
1
1
Q
g
I
g
1
0.1
0.1
1
10
100
0.1
1000
0.1
0.1
1
10
100
0.1
1000
Frequency (MHz)
T#020030BP200##BF1
U
g
(kV
p
)
100
0.87 MHz
81.8 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
Frequency (MHz)
T#020030BP250##BG1
0.70 MHz
65.4 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
10
U
g
10
10
U
g
10
1
Q
g
I
g
1
1
Q
g
I
g
1
0.1
0.1
1
10
100
0.1
1000
0.1
0.1
1
10
100
0.1
1000
Frequency (MHz)
T#020030BP400##BG1
U
g
(kV
p
)
100
0.43 MHz
40.9 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
) 0.42 MHz
100
Frequency (MHz)
T#020030BP500##BH1
27.3 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
10
U
g
Q
g
10
10
U
g
Q
g
10
1
I
g
1
1
I
g
1
0.1
0.1
1
10
100
0.1
1000
0.1
0.1
1
10
100
0.1
1000
Frequency (MHz)
T#020030BP600##BH1
U
g
(kV
p
)
100
0.35 MHz
22.7 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
Frequency (MHz)
T#020030VY800##BH1
0.34 MHz
17.04 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
10
U
g
10
10
U
g
10
1
Q
g
0.1
0.01
I
g
0.1
1
10
100
1
1
Q
g
1
0.1
0.1
0.01
I
g
0.1
1
10
100
0.1
Frequency (MHz)
Frequency (MHz)
Revision: 03-Sep-14
Document Number: 22093
4
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T. 020030, T. 020050, T. 020080
www.vishay.com
Vishay Draloric
T#020030BP121##BJ1
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
0.17 MHz
11.36 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
DERATING DIAGRAMS
T#020030BF101##BH1
U
g
(kV
p
)
100
0.37 MHz
13.63 MHz
10
U
g
10
10
U
g
10
1
Q
g
0.1
0.01
I
g
0.1
1
10
100
1
1
Q
g
1
0.1
0.1
0.01
I
g
0.1
1
10
100
0.1
Frequency (MHz)
T#020030BP161##BJ1
U
g
(kV
p
)
100
0.13 MHz
8.52 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
Frequency (MHz)
T#020030VY201##BJ1
0.14 MHz
6.81 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
10
U
g
10
10
U
g
10
1
Q
g
0.1
0.01
I
g
0.1
1
10
100
1
1
Q
g
1
0.1
0.1
0.01
I
g
0.1
1
10
100
0.1
Frequency (MHz)
T#020030VY251##BJ1
U
g
(kV
p
)
100
0.11 MHz
5.45 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
Frequency (MHz)
T#020030BF301##BJ1
0.12 MHz
4.54 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
10
U
g
10
10
U
g
10
Q
g
1
I
g
0.1
0.01
0.1
0.1
1
10
100
0.1
0.01
1
1
Q
g
I
g
1
0.1
0.1
1
10
100
Frequency (MHz)
T#020030BF401##BJ1
U
g
(kV
p
)
100
0.09 MHz
3.41 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
Frequency (MHz)
T#020050BP200##BF1
1.39 MHz
51.1 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
10
U
g
Q
g
10
10
U
g
10
Q
g
1
1
I
g
0.1
0.1
1
10
100
0.1
0.1
1
10
100
0.1
1000
1
1
I
g
0.1
0.01
Frequency (MHz)
Frequency (MHz)
Revision: 03-Sep-14
Document Number: 22093
5
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
