30058: Description8000 MHz - 12400 MHz RF/MICROWAVE 180 DEGREE HYBRID COUPLER, 1.3 dB INSERTION LOSS-MAX; CategoryTopical application Wireless rf/communication; File Size54KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

30058 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	30058	-	-	View	Buy Now

30058 Overview

8000 MHz - 12400 MHz RF/MICROWAVE 180 DEGREE HYBRID COUPLER, 1.3 dB INSERTION LOSS-MAX

30058 Parametric

Parameter Name	Attribute value
Maximum input power	70 W
Maximum operating frequency	12400 MHz
Minimum operating frequency	8000 MHz
state	ACTIVE
Maximum voltage standing wave ratio	2
structure	COAXIAL
Impedance characteristics	50 ohm
Maximum insertion loss	1.3 dB
Microwave RF Type	180 DEGREE HYBRID COUPLER

Preview

Download Datasheet

View All

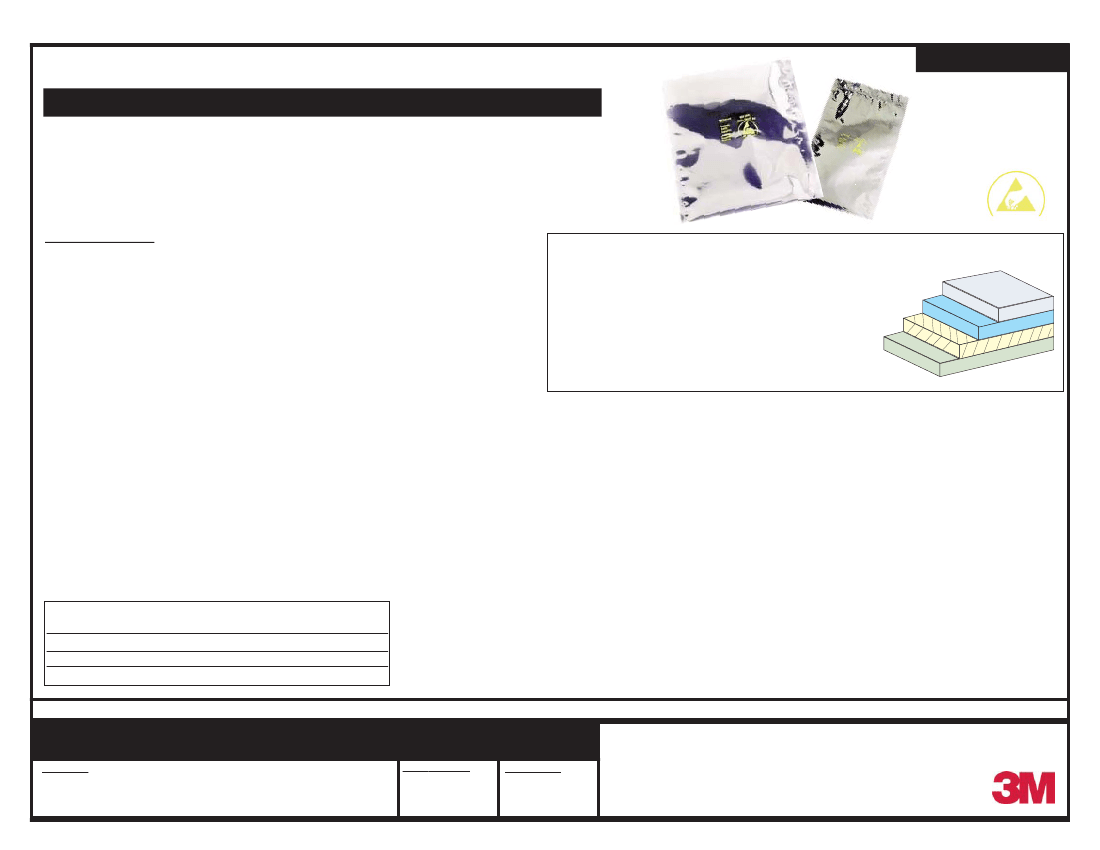

3M Static Shielding Bag SCC 1000

Static Shielding Bag ~ Metal-In

This transparent, metallized static shield bag helps provide a static safe environment for

sensitive electronic devices. Four layer construction. Polyester dielectric and metal layer

provide Faraday effect shielding of ESD and fields. Tribocharging is minimized by the spe-

cially processed polyethylene. Flat and zipper closure styles. Coded for QC traceability.

These bags are tested to meet or exceed certain electrical and physical requirements of

ANSI/ESD S541, EIA 625, and to be ANSI/ESD S20.20 program compliant.

Open Top

Sizes on Page 2

ZipTop

Specifications

Electrical Properties:

Surface Resistivity / Resistance

Interior

Exterior

Metal

Static Shielding

Static Decay

Charge Generation

PTFE

Quartz

Physical Properties:

Tensile Strength

Seam Strength

Light Transmission

Heat Sealing Conditions

Temperature

Time

Pressure

Thickness

Silicone or Amine Content

Typical Values

Test

ASTM D257

or ANSI/ESD STM11.11

12 ohms/square or <1011 ohms

<10

<1012 ohms/square or <1011 ohms

100 ohms

< 30 volts

< 10 nJ

< 2 seconds

0.09 nC/sq.in.

0.01 nC/sq.in.

4700 PSI

> 10 lbs

40 %

250

F - 375

0.5 - 3.5 seconds

30 - 70 PSI

3 mils

Not detected

** tolerance +/-15%

Material Structure

Method

STATIC DISSIPATIVE

EIA 541

ANSI/ESD STM11.31

MIL-STD-3010 4046

Modified Inclined Plane

SCC 1000 open top and ZipTop static shielding

COATING

bags are manufactured from industry approved

POLYESTER

Polyester/Metal/Polyethylene laminates. The

polyester dielectric in concert with the metal

ALUMINUM SHIELD

layer provide Faraday Effect shielding of an

Electrostatic Discharge (ESD). The metal layer

STATIC

prevents the penetration of damaging electro-

static fields. Tribocharging is minimized by the

DISSIPATIVE

POLYETHYLENE

specially processed polyethylene.

Important Notice

All statements, technical information, and recommendations related to

3M’s products are based on information believed to be reliable, but the

accuracy or completeness is not guaranteed. Before using this prod-

uct, you must evaluate it and determine if it is suitable for your intend-

ed application. You assume all risks and liability associated with such

use. Any statements related to the product which are not contained in

3M’s current publications, or any contrary statements contained on

your purchase order shall have no force or effect unless expressly

agreed upon, in writing, by an authorized officer of 3M.

Warranty; Limited Remedy; Limited Liability.

This product will be free from defects in material and manufacture

for one year from the time of purchase.

3M MAKES NO OTHER WAR-

RANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WAR-

RANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE.

If this product is defective within the warranty period stat-

ed above, your exclusive remedy shall be, at 3M’s option, to replace or

repair the 3M product or refund the purchase price of the 3M product.

Except where prohibited by law, 3M will not be liable for any indi-

rect, special, incidental or consequential loss or damage arising

from this 3M product, regardless of the legal theory asserted.

*This product is not on the Qualified Product Listing under the

Defense Standardization Program.

ASTM D 882

Tobias

MIL-STD-3010 1003 +/-20%

FTIR

See 3M Data Sheets for these related items:

Static Warning Labels

Heat Sealer

SCC 1000

PRODUCT

Static Shielding Bag

METAL

ITEM NUMBER

DATASHEET

STATIC SHIELDING BAG, OPEN TOP AND ZIPTOP

100(W”)(L”)

1100-

98-0799-1068-7

3M is a trademark of 3M Company.

3M Electronic Solutions Division

All other trademarks herein are the property

6801 River Place Blvd

of their respective owners.

Austin, TX 78726-9000

US and Canada: 866-722-3736

Fax: 866-722-3735

Intl: 919-718-0000; Fax: 919-774-8174
