301R273U6R3HT2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 301R273U6R3HT2

301R273U6R3HT2: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63 V, 1200 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size482KB，11 Pages; ManufacturerETC2

Download Datasheet Parametric View All

301R273U6R3HT2 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63 V, 1200 uF, THROUGH HOLE MOUNT

301R273U6R3HT2 Parametric

Parameter Name	Attribute value
Maximum operating temperature	105 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	75 %
Rated DC voltage urdc	63 V
Processing package description	CAN, RADIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	Tin OVER Copper
Installation features	Through hole mounting
Manufacturer Series	301R
capacitance	1200 uF
packaging shape	Cylindrical PACKAGE
Capacitor type	non-solid
Terminal shape	Wire
equivalent series resistance	82.5mohm
polarity	polarization
ripple current	1.12mA
leakage current	4mA

Preview

Download Datasheet

View All

Type 300/301

–55

ºC to 105 ºC Long-Life, Switching Power Grade Radial

High Capacitance and

Ultra-Low ESR

The Types 300 and 301 are the wide-temperature, low-ESR capaci-

tors for power-supply outputs and UPS battery stiffening. The ex-

ceptionally low ESRs enable high ripple-current capability. With

series inductance of 12 to 16 n Hand ripple currents to 16 amps one

of these capacitors can save by replacing three or four of the 12.5

mm diameter capacitors routinely at the output of switching power

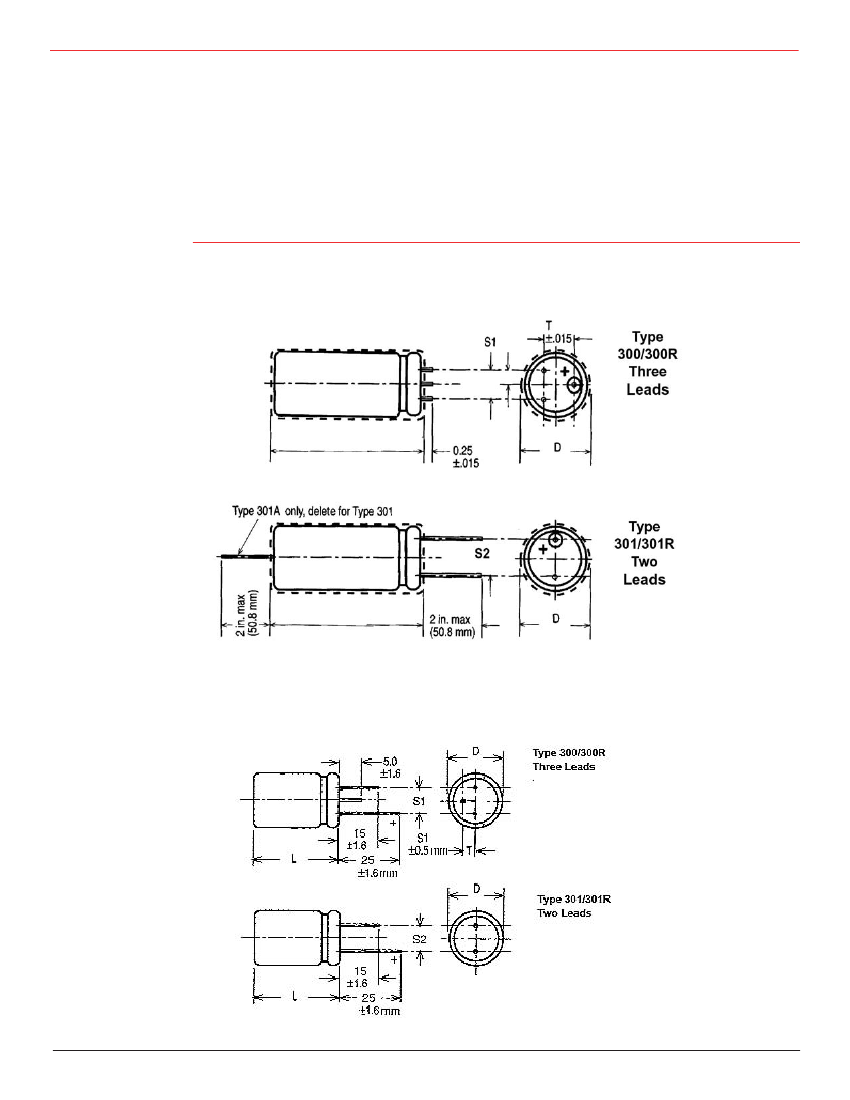

supplies. Type 300 has three leads for rugged, reverse-proof mount-

ing, and Type 301 has two leads. Types 300R and 301R deliver even

lower ESR and higher ripple.

Highlights

•

4000 hour load life

Ripple Current to 16 amps

ESRs to 6 m

Ω

> 90% capacitance at –40 °C

Replaces multiple capacitors

Speciﬁcations

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Cold Impedance:

Ripple Current Multipliers:

–55 °C to +105 °C

6.3 to 250 Vdc

8.2 µF to 33,000 µF

6.3 to 100 Vdc; –10 + 75%, 160 to 250 Vdc; –10 +50%

≤0.5 √CV µA, 4 mA max, 5 minutes

–55 °C multiple of 25 °C Z ≤4 for 6.3 & 7.5 V,

3 for 10 to 50 V, 2 for > 50 V

Ambient Temperature

45ºC

1.66

55ºC

1.52

65ºC

1.37

50 Hz

Less than .77” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

.77” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

.895” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

1.02” Diameter

6.3 & 7.5 V

10 to 40 V

50V

63 & 75 V

100 to 250 V

0.84

0.81

0.76

0.77

0.76

0.88

0.86

0.81

1.00

1.12

1.15

1.23

1.24

1.17

1.22

1.35

1.37

1.19

1.25

1.42

1.44

1.20

1.26

1.44

1.46

0.82

0.80

0.75

0.76

0.86

0.84

0.80

0.81

1.00

1.14

1.17

1.27

1.26

1.25

1.20

1.25

1.42

1.40

1.38

1.23

1.29

1.50

1.48

1.46

1.24

1.30

1.52

1.50

1.48

0.82

0.78

0.76

0.74

0.76

0.86

0.83

0.81

0.80

0.81

1.00

1.15

1.20

1.25

1.28

1.24

1.21

1.30

1.38

1.43

1.37

1.24

1.35

1.45

1.52

1.44

1.25

1.36

1.47

1.54

1.46

0.76

0.74

0.72

0.71

0.68

0.81

0.79

0.78

0.76

0.74

1.00

1.23

1.29

1.33

1.38

1.51

1.35

1.46

1.54

1.64

2.00

1.41

1.55

1.67

1.82

2.51

1.43

1.57

1.69

1.86

2.67

75ºC

1.20

85ºC

1.00

95ºC

0.75

105ºC

0.36

5 kHz 10 kHz & up

Frequency

60 Hz 120 Hz 360 Hz 1 kHz

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com
