32, 35, L32 Series
Pressfit Indicator Light for
1/2” Diameter Mounting Hole
NEON, LED & INCANDESCENT
2 TO 600 DESIGN VOLTS
6” WIRE LEADS & 3/16”TAB TERMINALS
VARIETY OF LENS COLORS
cULus CERTIFIED (UL FILE E20356)
QUICK DISCONNECT TERMINAL CE CERTIFIED
15/16” TYP.
1/2” DIA.
15/16” TYP.

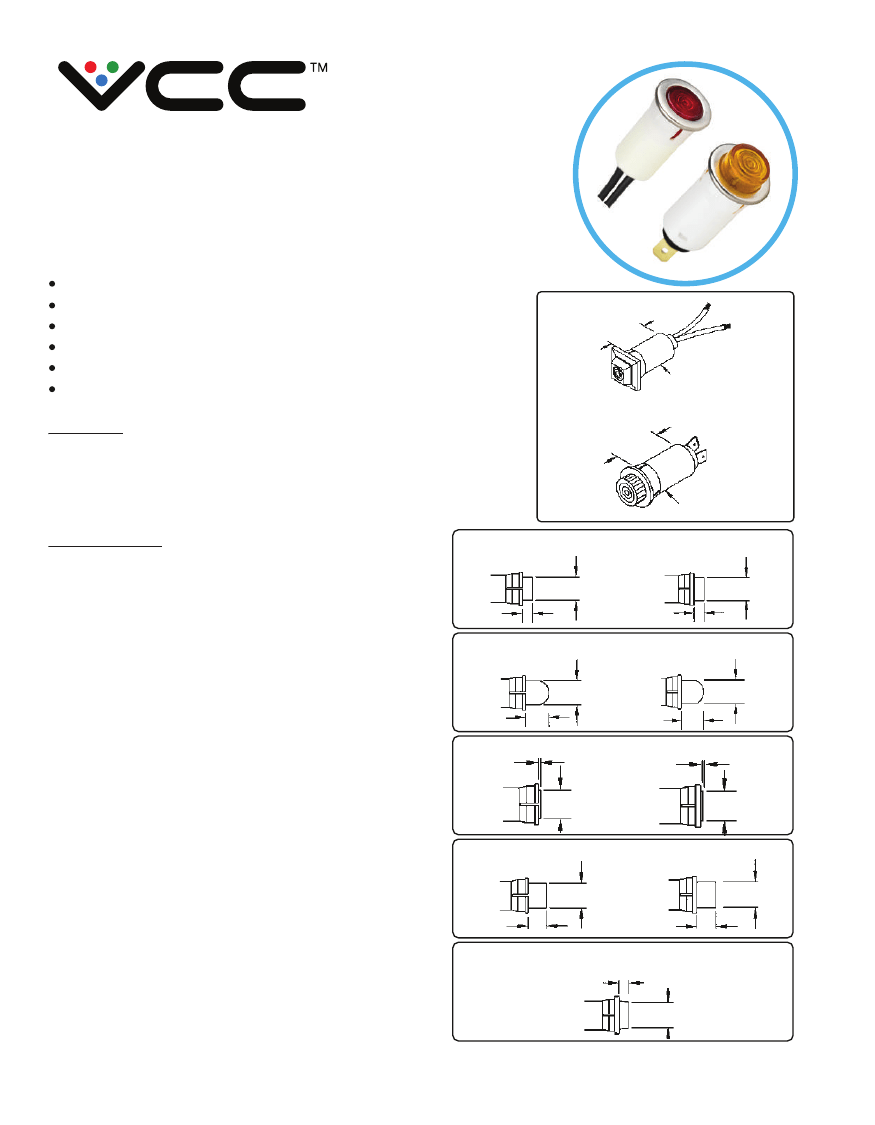

Overview
The 32/35 Series Indicators feature a wide variety of lenses,
colors, voltage & bezel variations. Indicators quickly pressfit into
a 0.500” to 0.510” mounting hole with recommended panel thick-
ness range of 0.020” min. to 0.090” max.
Housing:
White nylon. A black housing is available.
Bezel:
Nickel plated brass. A black anodized bezel is avail-
able.
Lens:
polycarbonate.
Incandescent AC or DC voltage options:
6, 14 and 28 volts.
Neon AC or DC voltage options:
125 and 250 and 600 volts.
Note:
high brightness green and blue neon lamps supplied in
green and blue neon applications.
Led DC voltage options:
2, 6, 12, 24 volts.
Led AC voltage options:
125 volts.
Note:
125 volts AC units contain a bi-polar LED.
LED versions are not CE Certified.

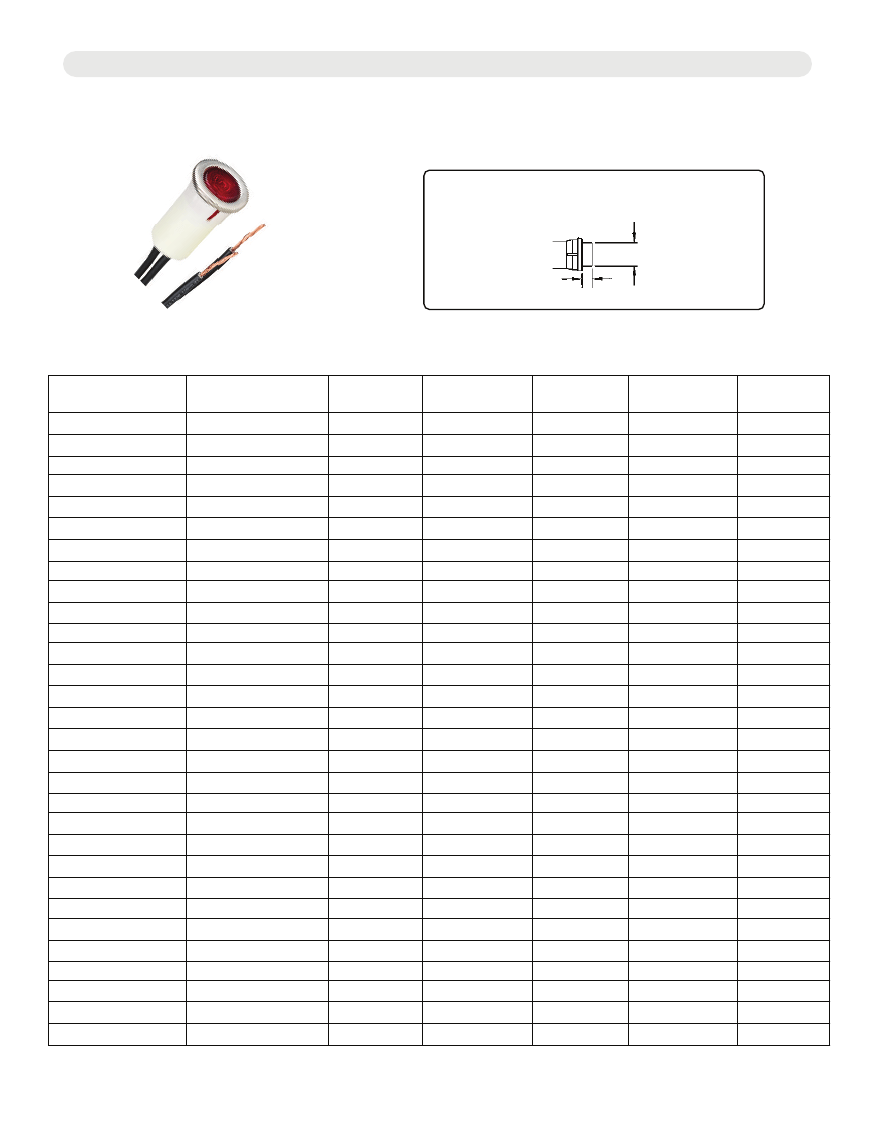

Two 6” wire leads:
#20 AWG, black, bare copper, PVC
insulated, UL/CSA rated 105 °C, 600 V, UL style 1015,
stripped 1/2”. For DC LED units, wire leads are color-coded
red and black; the red wire lead denotes the anode (+) while
a black wire lead identifies the cathode (-). For AC LED units,
wire leads are white. Custome wire lengths, stripping, termi-
nation and wire type are avilable.

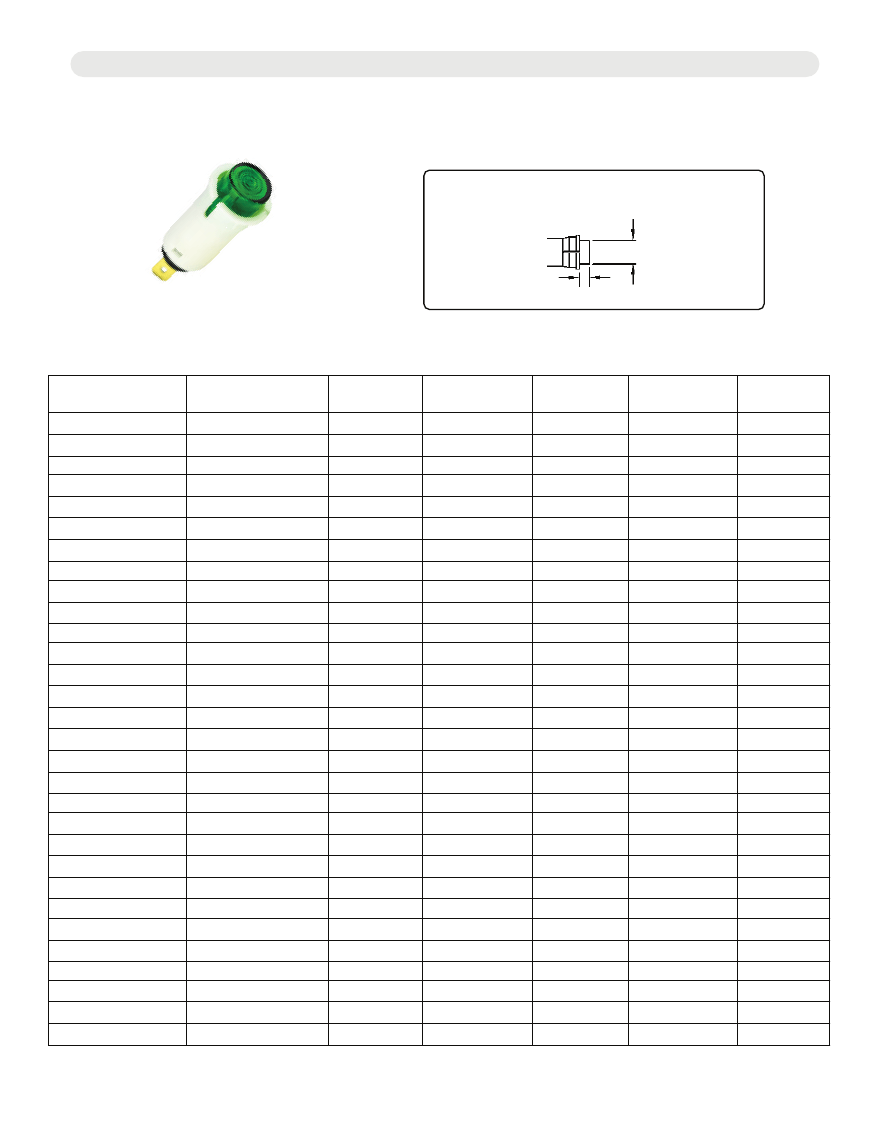

Terminals:
3/16 tabs:
Brass, (0.187” length x 0.020” thick). For LED
units, a tin plated terminal denotes the anode (+). 1/4” or 1/8”
brass tab terminals are available.
the first call for illuminated components
1/2” DIA.
Without bezel.
3/16”
Specifications
Flat Cylindrical Lens Style
With bezel.
27/64”
27/64”
11/64”
Without bezel.
13/32”
Dome Lens Style
27/64”
27/64”
With bezel.
27/64”
Without bezel.
Flush Lens Style
With bezel.
3/64”
1/32”
27/64”
Without bezel.
21/64”
27/64”
Hi-Hat Lens Style
27/64”
5/16”
With bezel.
27/64”
Square Lens Style
Square lens
style must
have bezel.
15/64”
With bezel.
7/16” SQ.
1.800.522.5546
02/17 Rev 1
www.vcclite.com
1
