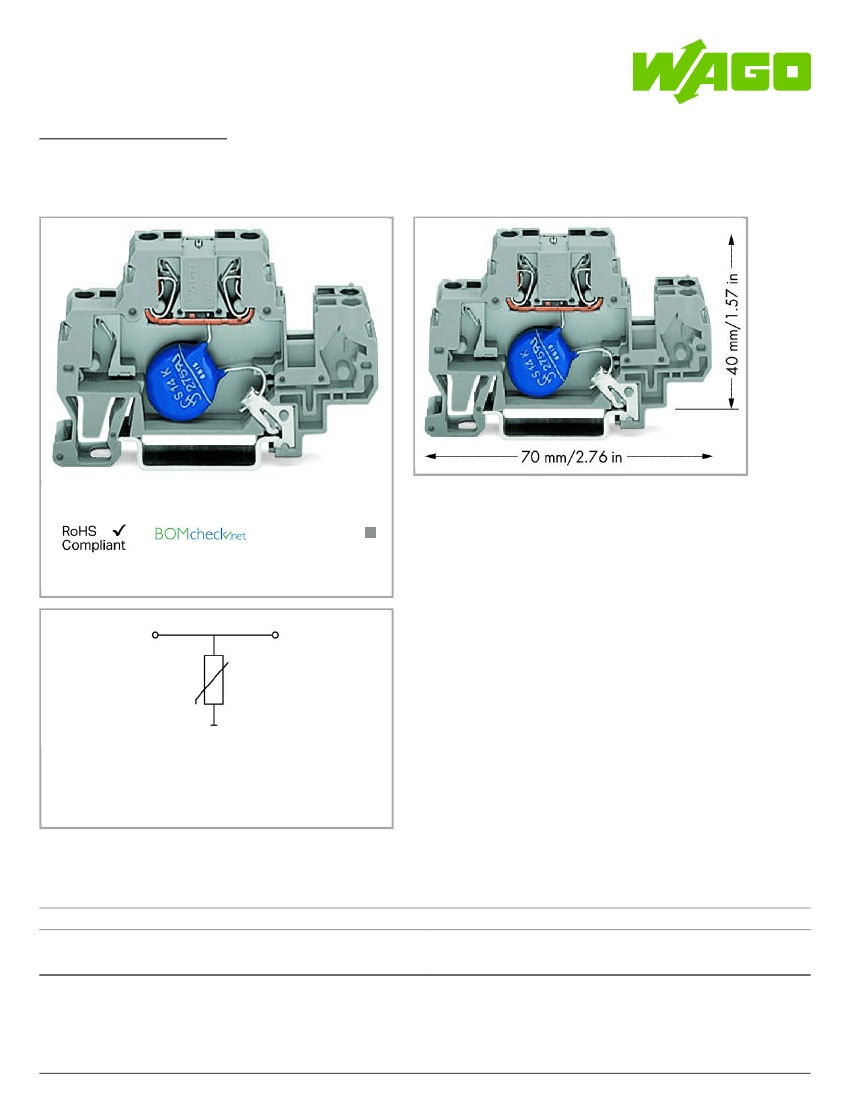

Data sheet | Item number: 870-523/281-586
Component terminal block; double-deck; with varistor; for DIN-rail 35 x 15
and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
www.wago.com/870-523_281-586
Color:
Data
Electrical data
Nominal operating voltage
Continuous operating voltage (max.)
AC 24 V
AC 30 V
Rated continuous current
20
A
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 1/5
Data sheet | Item number: 870-523/281-586
www.wago.com/870-523_281-586
Rated continuous current
Nominal discharge current (8/20 µs), line
Discharge current (max.)
Protection level (8/20 μs)
Capacitance
20
A
300 A
1
kA
≤ AC 93 V
≤ 3.5 nF
Connection data
Connection points (number)
Connection technology
Solid conductor
Fine-stranded conductor
Strip length
2
CAGE CLAMP
®
0.08 … 2.5 mm² / 28 … 14 AWG
0.08 … 4 mm² / 28 … 12 AWG
6 … 7 mm / 0.24 … 0.28 inch
Geometrical Data
Width
Height from upper-edge of DIN-rail
Depth
10 mm / 0.394 inch
40 mm / 1.575 inch
70 mm / 2.756 inch
Mechanical data
Mounting type
DIN-35 rail
Material Data
Color
Weight
gray
12.1
g
Commercial data
Product Group
Packaging type
Country of origin
GTIN
Customs tariff number
16 (Rail Mounted Terminal Block with CCC)
BOX
DE
4050821868378
85369010000
Counterpart
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 2/5
Data sheet | Item number: 870-523/281-586
www.wago.com/870-523_281-586
Compatible products
Marking accessories
Item no.: 2009-145
www.wago.com/2009-145
Mini-WSB Inline; for Smart Printer; 1700 pieces on roll; stretchable 5 - 5.2 mm; plain; snap-on type; white
Item no.: 2009-145/000-002
Mini-WSB Inline; for Smart Printer; 1700 pieces on roll; stretchable 5 - 5.2 mm; plain; snap-on type;
yellow
Item no.: 2009-145/000-005
Mini-WSB Inline; for Smart Printer; 1700 pieces on roll; stretchable 5 - 5.2 mm; plain; snap-on type; red
www.wago.com/2009-145
/000-002
www.wago.com/2009-145
/000-005
Item no.: 2009-145/000-006
www.wago.com/2009-145
Mini-WSB Inline; for Smart Printer; 1700 pieces on roll; stretchable 5 - 5.2 mm; plain; snap-on type; blue /000-006
Item no.: 2009-145/000-007
www.wago.com/2009-145
Mini-WSB Inline; for Smart Printer; 1700 pieces on roll; stretchable 5 - 5.2 mm; plain; snap-on type; gray /000-007
Item no.: 2009-145/000-012
Mini-WSB Inline; for Smart Printer; 1700 pieces on roll; stretchable 5 - 5.2 mm; plain; snap-on type;
orange
Item no.: 2009-145/000-023
Mini-WSB Inline; for Smart Printer; 1700 pieces on roll; stretchable 5 - 5.2 mm; plain; snap-on type;
green
Item no.: 2009-145/000-024
Mini-WSB Inline; for Smart Printer; 1700 pieces on roll; stretchable 5 - 5.2 mm; plain; snap-on type;
violet
Item no.: 248-501
Miniature WSB Quick marking system; plain; Marker width 5 mm; 10 strips with 10 markers per card
Item no.: 248-501/000-002
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; yellow
www.wago.com/2009-145
/000-012
www.wago.com/2009-145
/000-023
www.wago.com/2009-145
/000-024
www.wago.com/248-501
www.wago.com/248-501
/000-002
Item no.: 248-501/000-005
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; red
www.wago.com/248-501
/000-005
Item no.: 248-501/000-006
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 3/5
Data sheet | Item number: 870-523/281-586
www.wago.com/870-523_281-586

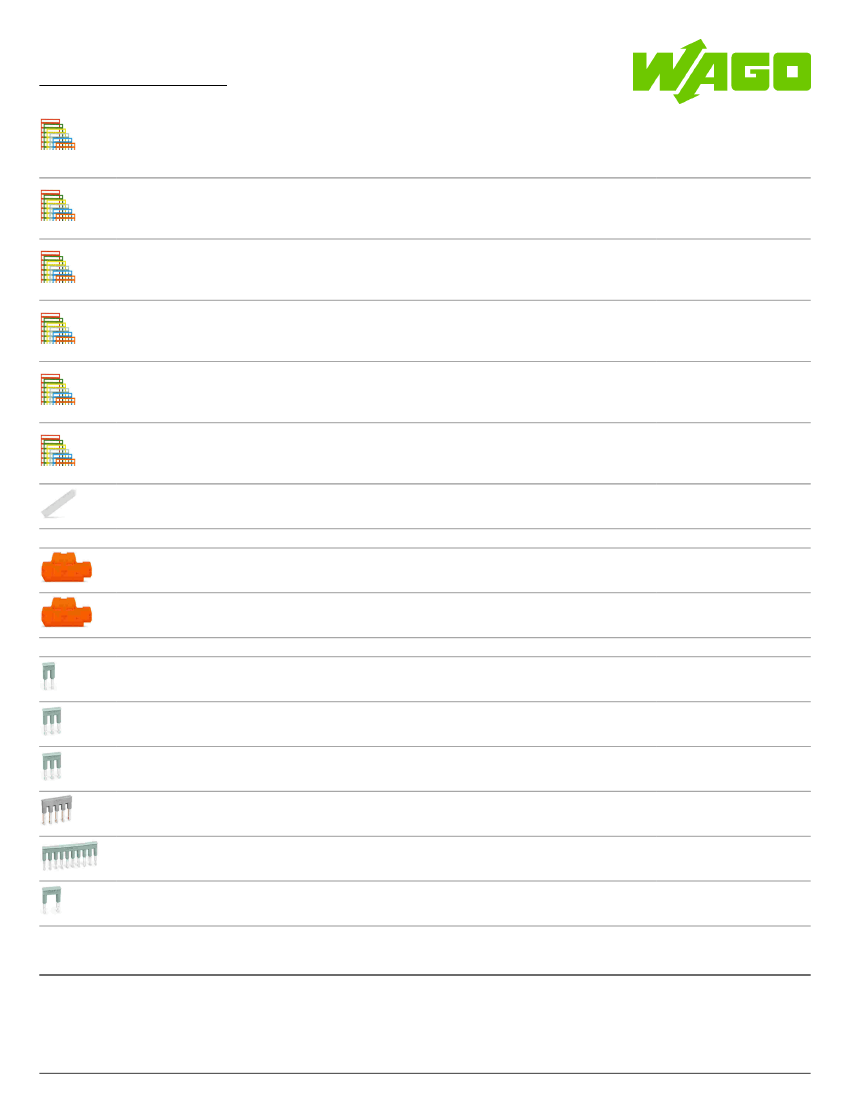

Item no.: 248-501/000-006
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; blue
www.wago.com/248-501
/000-006
Item no.: 248-501/000-007
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; gray
www.wago.com/248-501
/000-007
Item no.: 248-501/000-012
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; orange
www.wago.com/248-501
/000-012
Item no.: 248-501/000-017
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; light green
www.wago.com/248-501
/000-017
Item no.: 248-501/000-023
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; green
www.wago.com/248-501
/000-023
Item no.: 248-501/000-024
Mini-WSB marking card; as card; not stretchable; plain; snap-on type; violet
Item no.: 709-198
Marking strips; white
End plate
Item no.: 870-518
End and intermediate plate; 2 mm thick; gray
Item no.: 870-519
End and intermediate plate; 2 mm thick; orange
Jumper
Item no.: 280-482
Comb-style jumper bar; insulated; 2-way; IN = IN terminal block; gray
Item no.: 280-483
Comb-style jumper bar; insulated; 3-way; IN = IN terminal block; gray
Item no.: 280-484
Comb-style jumper bar; insulated; 4-way; IN = IN terminal block; gray
Item no.: 280-485
Comb-style jumper bar; insulated; 5-way; IN = IN terminal block; gray
Item no.: 280-490
Comb-style jumper bar; insulated; 10-way; IN = IN terminal block; gray
Item no.: 280-492
Alternate comb-style jumper bar; insulated; 2-way; IN = IN terminal block; gray
tools
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
www.wago.com/248-501
/000-024
www.wago.com/709-198
www.wago.com/870-518
www.wago.com/870-519
www.wago.com/280-482
www.wago.com/280-483
www.wago.com/280-484
www.wago.com/280-485
www.wago.com/280-490
www.wago.com/280-492
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 4/5
Data sheet | Item number: 870-523/281-586
www.wago.com/870-523_281-586
tools
Item no.: 210-720
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft
Insulation stop
Item no.: 280-470
Insulation stop; 0.08 - 0.2 mm² "s" (0.14 mm² "f-st"); 5 pieces/strip; white
Item no.: 280-471
Insulation stop; 0.25 - 0.5 mm²; 5 pieces/strip; light gray
Item no.: 280-472
Insulation stop; 0.75 - 1 mm²; 5 pieces/strip
www.wago.com/280-470
www.wago.com/210-720
www.wago.com/280-471
www.wago.com/280-472
Downloads
Documentation
Bid Text
870-523/281-586
GAEB X81 - Datei
870-523/281-586
doc - Datei
Additional Information
Feb 19, 2019
xml
3.5 kB
doc
26.6 kB
Download
Feb 11, 2015
Download
Disposal; Electrical and electronic equipment, Packaging
V 1.0.0
pdf
265.8 kB
Download
CAD/CAE-Data
CAD data
2D/3D Models 870-523/281-586
CAE data
URL
Download
EPLAN Data Portal 870-523/281-586
WSCAD Universe 870-523/281-586
URL
URL
Download
Download
Handling Instructions
