RJW SERIES

Single/Dual Output DC/DC Converter

2” x 1” x 0.4” - up to 12 Watts Output

•

Single/Dual Out DC/DC Converter, up to 12 Watts

Ideal for Telecom and Networking Applications

4:1 Input Range, High Efficiency

Industry Compatible Pin Out, 2” x 1” Form Factor

Six Side Shielded, Low Profile 0.4” Height

No external Input or Output Filtering required

Regulated Output

Over Voltage Protection

Continuous Short Circuit Protection

>1500VDC I/O Isolation

Remote on/off control (with or without)

Designed to meet UL, CSA, VDE, CE

TO 12 WATTS

OVERVIEW

The RJW Series of high efficiency DC/DC convert-

ers are available as single and dual output versions,

3.3VDC up to 15VDC, with up to 12 Watts of output

power. The product is ideal for Telecom and

Networking applications. The converter is designed

for a 4:1 input range, either nominal 24 Volt (9VDC

-36VDC) or nominal 48VDC (18VDC-75VDC). The

converter is PCB mountable, the package has a

formfactor of 2”x1”x.04”. The standard specifica-

tions include the Pi-input filter, excellent load regula-

tion and short circuit protection. The isolation volt-

age meets the >1500VDC telecom requirements.

TYPICAL APPLICATIONS:

• 9V-36V or 18-75VDC Telecom Input

• On-Board Distributed Power

• Low Profile & Height PCB

Model

Number

Input Output

Voltage Volts /mA

VDC

Effic.

Single Output

RJW24S33-2400

RJW24S5-2000

RJW24S12-1000

RJW24S15-800

RJW48S3.3-2400

RJW48S5-2000

RJW48S12-1000

RJW48S15-800

9-36

18-75

3.3 //2400

5 // 2000

12 // 1000

15//800

3.3 // 2400

5 // 2000

12 // 1000

15//800

SPECIFICATIONS:

Nominal Input:

24VDC (9-36 VDC)

48VDC (18-75VDC)

Output Voltage:

Single / Dual, see Table 1

Output Power:

up to 12 W

Isolation Voltage:

>1500VDC (60 seconds)

Operating Temperature: -40C to +71C (ambient)

no derating

Storage Temp.:

-40ºC to +125ºC

Max. Case Temp.:

100C

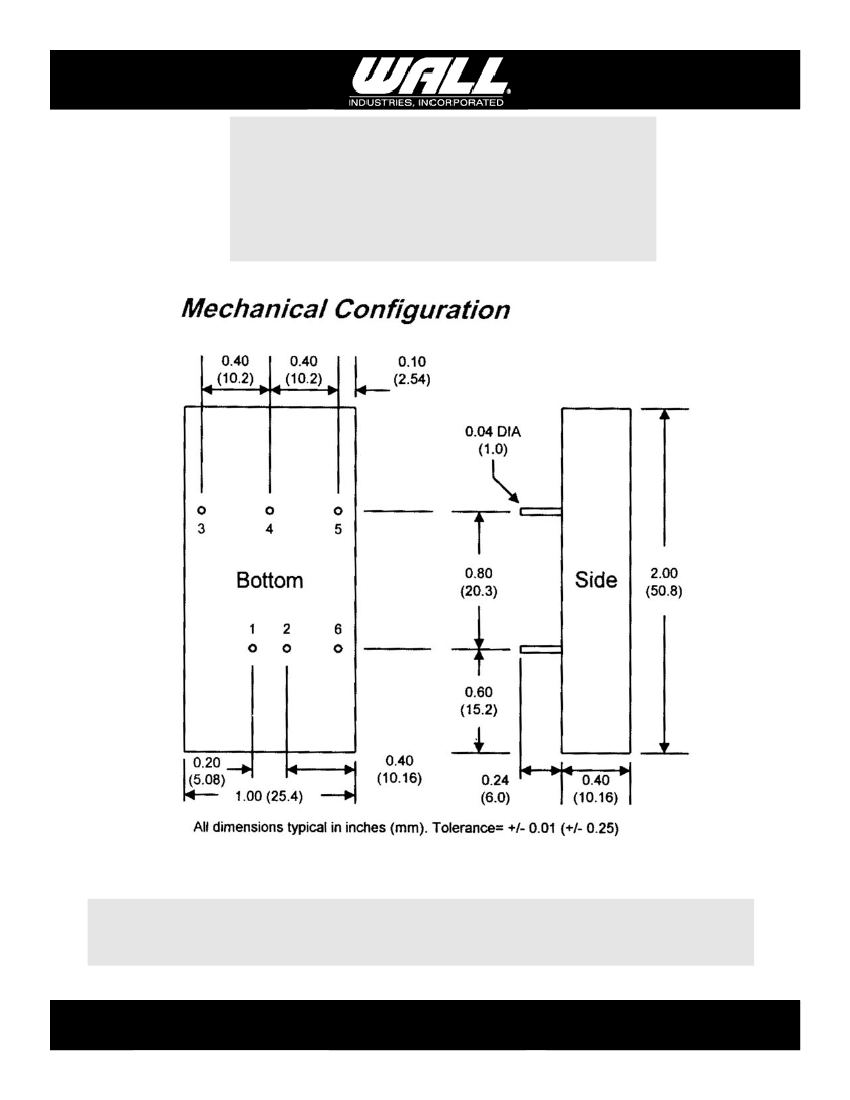

Dimensions:

2” x 1” x 0.4”

Dual Output

RJW24D5-1000

RJW24D12-500

RJW24D15-400

RJW48D5-1000

RJW48D12-500

RJW48D15-400

9-36

18-75

±5 // 1000

±12 // 500

±15 // 400

±5 // 1000

±12 // 500

±15 // 400

NOTES:

1) For negative logic remote on/off, add suffix “R” to

part number.

2) To remove remote option and pin, add suffix

“NRP”.

for further information on these and other options,

please contact our factory directly.

5/10/04

(888) 597-9255

WWW

WALLINDUSTRIES

COM
