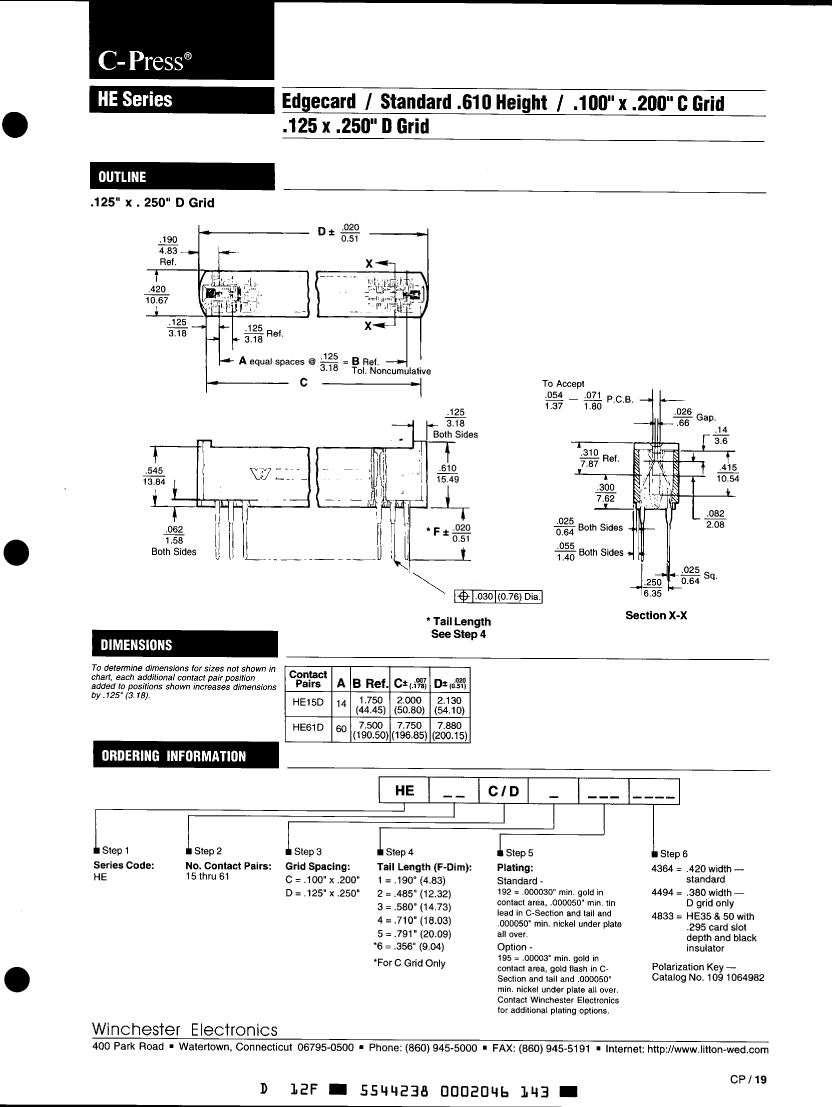

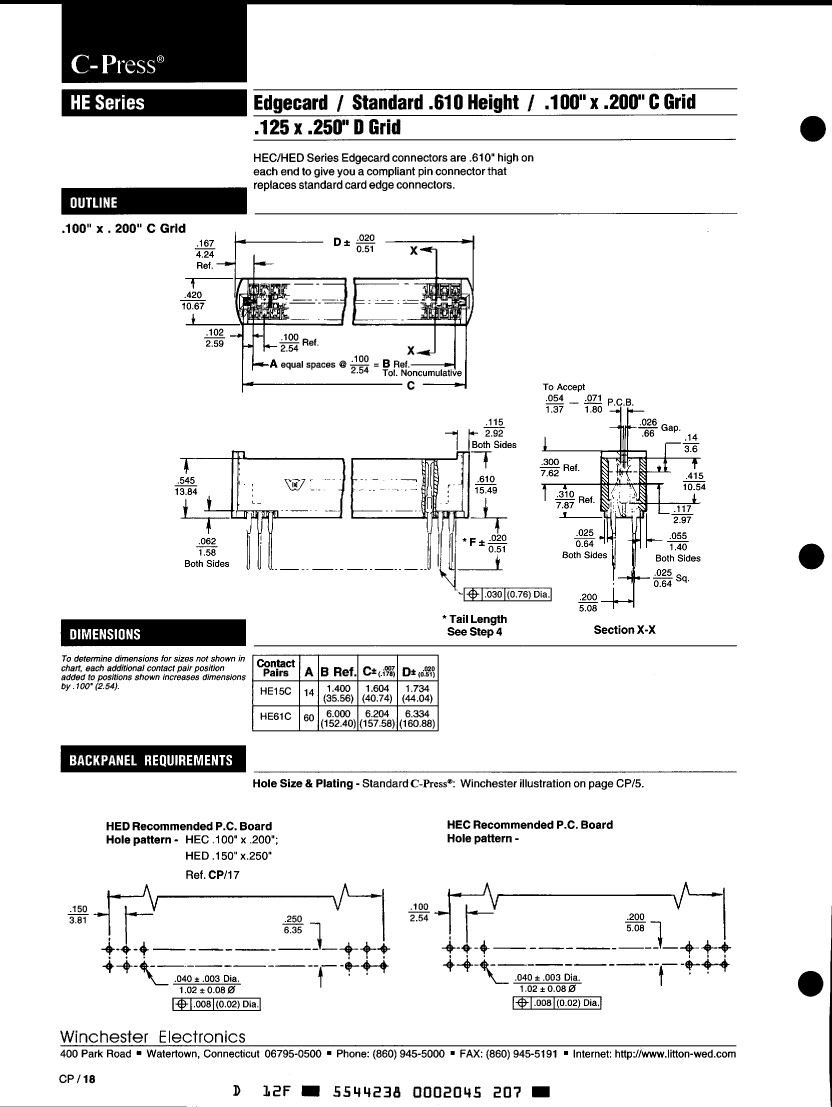

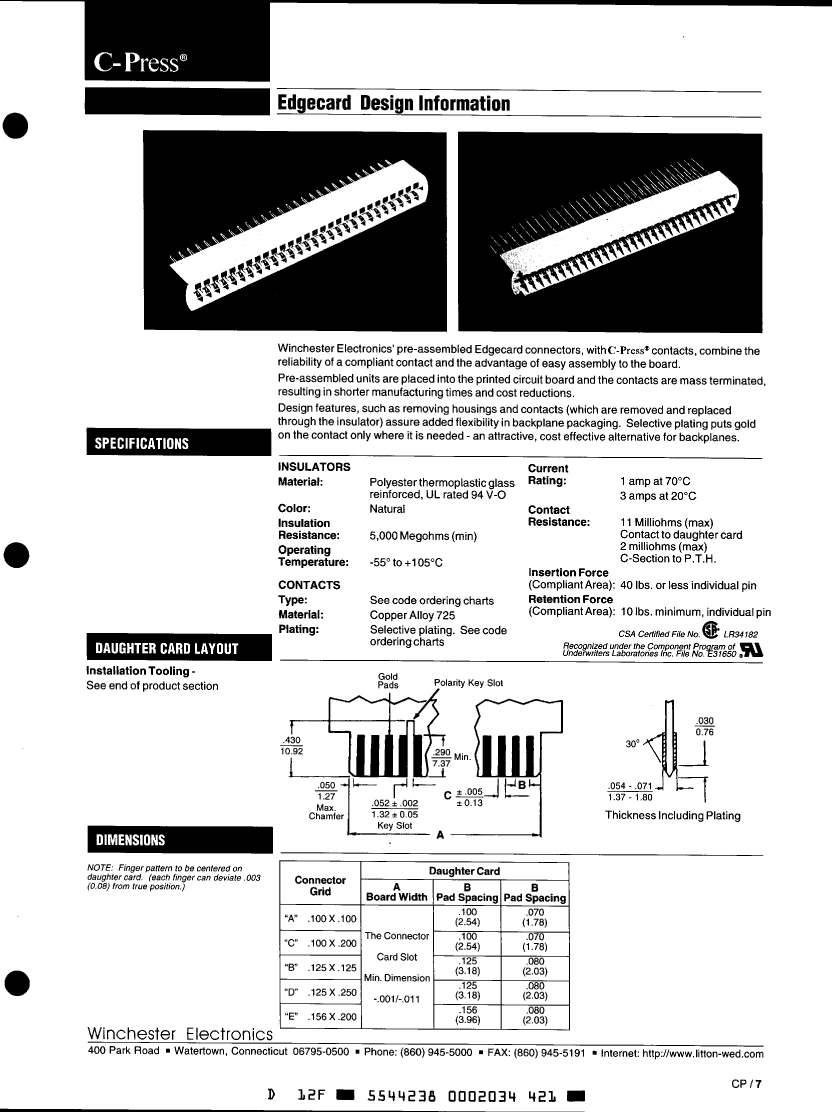

Card Edge Connector, 106 Contact(s), 2 Row(s), Straight, 0.125 inch Pitch, Wire Wrap Terminal, Natural Insulator, Receptacle
| Parameter Name | Attribute value |
| Maker | Winchester Interconnect |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | COMPLIANT FIT TERMINALS |
| body width | 0.42 inch |
| subject depth | 0.61 inch |
| body length | 6.88 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SINGLE PRONG |
| Insulation resistance | 5000000000 Ω |
| Insulator color | NATURAL |
| insulator material | GLASS FILLED THERMOPLASTIC |
| Manufacturer's serial number | HE |
| Plug contact pitch | 0.125 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 6.35 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.485 inch |
| Terminal pitch | 3.175 mm |
| Termination type | WIRE WRAP |
| Total number of contacts | 106 |
