CC0805KKX7R9BB472 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CC0805KKX7R9BB472

CC0805KKX7R9BB472: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size215KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CC0805KKX7R9BB472 Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 0805, CHIP

CC0805KKX7R9BB472 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	, 0805
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.0047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
JESD-609 code	e3
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, BLISTER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	1.25 mm

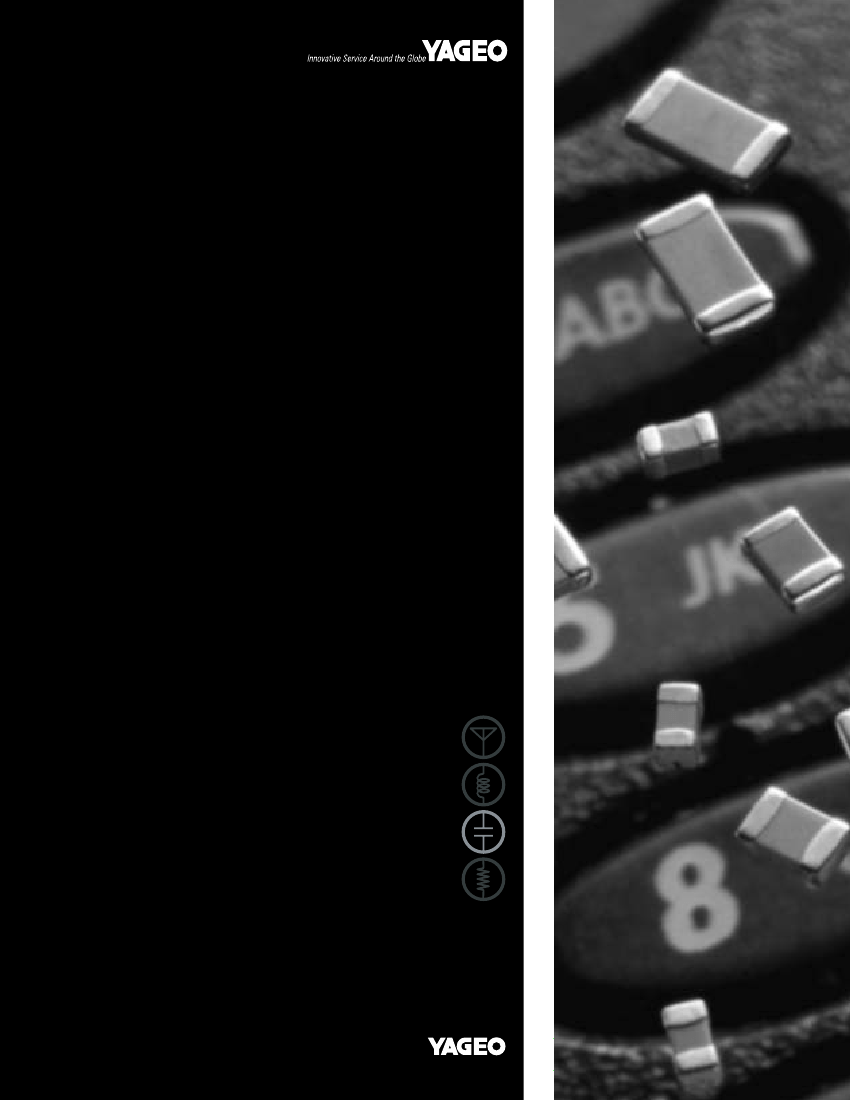

Preview

Download Datasheet

View All

MULTILAYER CERAMIC CAPACITORS

CC Series

X7R

16V TO 100V

DATA SHEET

Product specification – Aug. 13, 2003 V.06

Supersedes Date of Jun. 19, 2003

CC0805KKX7R9BB472 Related Products

	CC0805KKX7R9BB472	CC0603KFX7R8BB103	CC0805KKX7R9BB102	CC1206KKX7R9BB682	CC0603KKX7R8BB223	CC0805KKX7R9BB223	CC0603JKX7R8BB153
Description	Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 0805, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 0805, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% -Tol, X7R, 15% TC, 0.0068uF, Surface Mount, 1206, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% -Tol, X7R, 15% TC, 0.022uF, Surface Mount, 0603, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% -Tol, X7R, 15% TC, 0.022uF, Surface Mount, 0805, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 25V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.015uF, 0603,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
package instruction	, 0805	, 0603	, 0805	, 1206	, 0603	, 0805	, 0603
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.0047 µF	0.01 µF	0.001 µF	0.0068 µF	0.022 µF	0.022 µF	0.015 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
high	0.6 mm	0.8 mm	0.6 mm	0.85 mm	0.8 mm	0.6 mm	0.8 mm
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
length	2 mm	1.6 mm	2 mm	3.2 mm	1.6 mm	2 mm	1.6 mm
multi-layer	Yes	Yes	Yes	Yes	Yes	Yes	Yes
negative tolerance	10%	10%	10%	10%	10%	10%	5%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT
method of packing	TR, BLISTER, 7 INCH	TR, BLISTER, 13 INCH	TR, BLISTER, 7 INCH	TR, BLISTER, 7 INCH	TR, BLISTER, 7 INCH	TR, BLISTER, 7 INCH	TR, Blister, 7 Inch
positive tolerance	10%	10%	10%	10%	10%	10%	5%
Rated (DC) voltage (URdc)	50 V	25 V	50 V	50 V	25 V	50 V	25 V
size code	0805	0603	0805	1206	0603	0805	0603
Temperature characteristic code	X7R	X7R	X7R	X7R	X7R	X7R	X7R
Temperature Coefficient	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	-/+15ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie
width	1.25 mm	0.8 mm	1.25 mm	1.6 mm	0.8 mm	1.25 mm	0.8 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-
surface mount	YES	YES	YES	YES	YES	YES	-
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	-
Is it lead-free?	-	-	Lead free	Lead free	Lead free	Lead free	-
