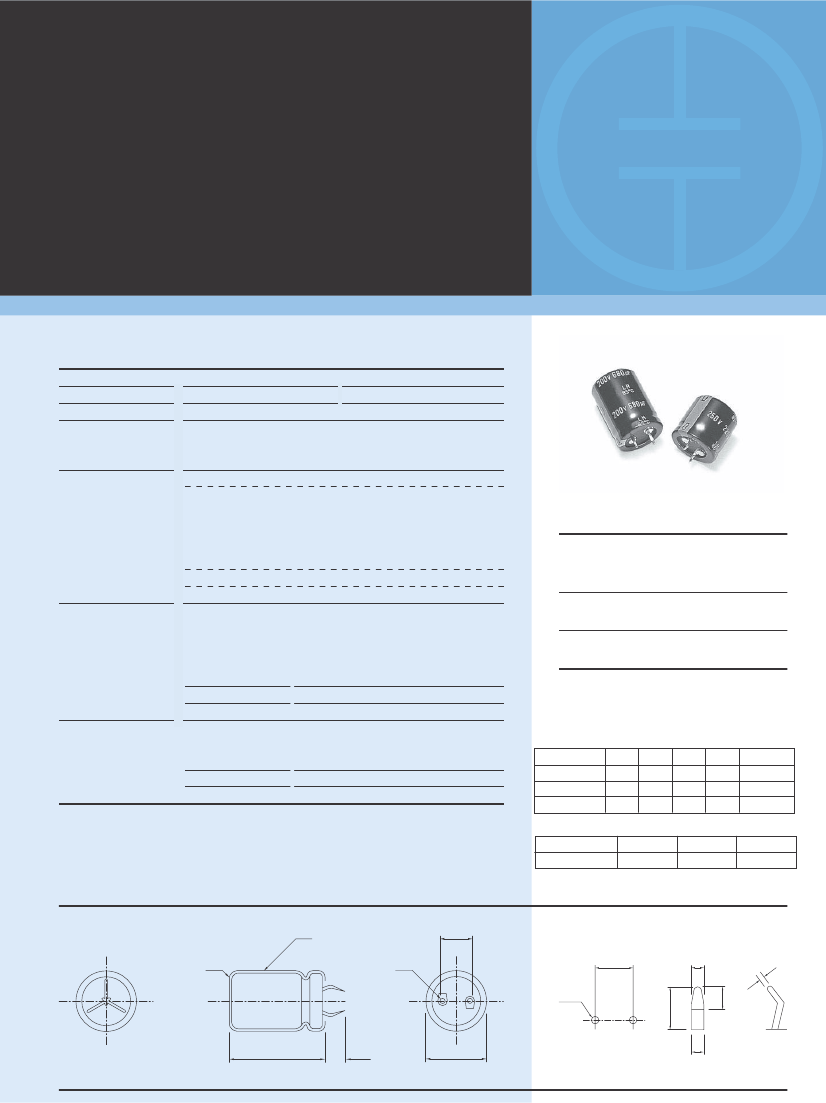

YAGEO CORPORATION
ALUMINUM ELECTROLYTIC CAPACITORS
LH
[For 85ºC, 2000 Hours Miniature ]
For Printed Circuit Board High-Performance Aluminum Electrolytic Power
Supply Input and Output Filter Capacitors
Miniature Size Aluminum
Electrolytic Capacitors
ELECTRICAL CHARACTERISTICS
Operating Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
-40 to+85ºC
6.3 to 100VDC
20% (at 25ºC,120Hz)
I = 0.02CV or 3mA Whichever is smaller. (At 25ºC, After 5 Minutes Application of
DC Working Voltage at 25 C)
Where, I; Leakage Current ( A) C: Nominal Capacitance ( F) V; Rated Voltage (V)
Dissipation Factor
Rate Voltage (V) 6.3
D.F (%)
60
10
50
16
40
25
25
35 50~80 100 160~250 315~450
25
20
15
10 *
15
-25 to+85ºC
160 to 450VDC
Note: * (15%) For Case Size D = 35m/m or L = 20m/m (At 120Hz, 25ºC)
(W V = 6.3 ~ 100V For Capacitor Whose Capacitance Exceeds 1000 F
The value of D.F(%) is increased by 2% for every addition of 1000 F.
Rated Voltage(v)
Z(-25ºC) / Z(20ºC)
Z(-40ºC) / Z(20ºC)
Load Life
6.3~16
3
12
25
3
10
35
3
8
50~63
2
6
80~100
2
5
160~400
4
–
450
8
–
DESCRIPTION
LH type capacitiors, size are combined with
snap-lock terminals for easy to mount on P.C.
Board.
They are ideally suitable to be used in
switching.
Power Supplies and Orther Industrial or
Commercial Applications
After the capacitors are subjected to DC with the full rated ripple current applied at
85ºC for 2000 hours. The following specifications shall be satisfied when the
capacitors are restored to 25ºC the sum of DC voltage and peak AC voltage must
not exceed their full rated voltage.
Capacitance Change
D.F (tan )
Leakage Current
20% of the Inital Value
200% of the Initial Specified Value
the Initial Specified Value
Shelf Life
The following specifications shall be satisfied when the capacitor are restored to 25ºC
after exposing them for 1000 hours at 85ºC without voltage applied.
Capacitance Change
D.F (%)
Leakage Current
20% of the Inital Value
150% of the Intial Specitied Value
150% of the Initial Speciffied Value
Multiplier for Ripple Current
Frequency coefficient
Frequency(Hz) 50
60 120
1K
6.3~100V
0.88 0.90 1.00 1.15
160~250V
0.75 0.78 1.00 1.16
350~450V
0.74 0.76 1.00 1.10
Temperature coefficient
Temperature( C)
60
Factor
1.42
70
1.30
10K~00K
1.16
1.23
1.15
85
1.00
Unit : mm
DIAGRAM OF DIMENSIONS
Location of P.C.B. Holes
Vinyl Sleeve
10 0.5
Botton Plate
Negative
0.8
10 0.5
0.9
3.0
2m/m x 2
5.8 1.0
1.5
Safety Device
L+2 Max.
5.8 1
D 1
