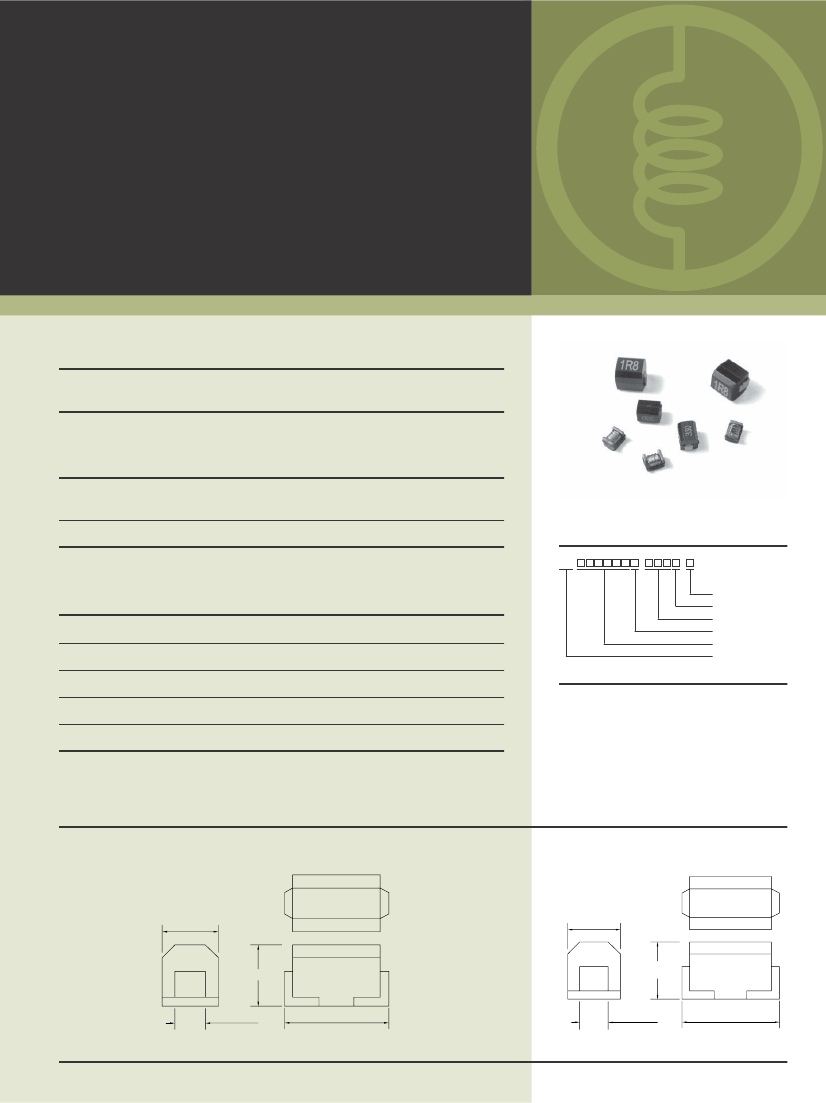

YAGEO CORPORATION
SMD INDUCTOR / BEADS
NL Series
APPLICATIONS
Microtelevisions, liquid crystal televisions, video cameras, portable VCRs, car radios, car stereos, thin
tape radios, television tuners, mobile telephones, radio and other electronic devices.
Wound Chip Inductors
OUTLINE
These revolutionary, highly reliable wound chip inductors for automatic mounting have been
developed in response to the trend toward high density in electronic equipment.
With metal terminals and a body of heat resistant resin, these inductors offer many superior features.
PRODUCT IDENTIFICATION
NL
-
-
Internal No.
Tolerance
Inductance
FEATURES
Very strong solderability by flow soldering, soldering iron or wave soldering.
Highly accurate dimensions; can be mounted automatically.
* T : Tape and Reel ; B : Bulk
Terminals are highly resistant to pull forces.
Highly resistant to mechanical shocks and pressure.
Highly reliable in environments of sudden temperature change and humidity. Super Q characteristics.
Packaging Style (*)
Dimensions (A, B, C)
Product Symbol
SHAPES AND DIMENSIONS
Dimensions : mm
NL322522
NL453232
2.5 0.2
3.2 0.2
2.2 0.2
3.2 0.2
1.2 0.2
3.2 0.2
1.4 0.2
4.5 0.3
ELECTRICAL CHARACTERISTICS
NL322522 SERIES
PART NO.
INDUCTANCE
( H)
NL322522T-4R7K-S
NL322522T-5R6K-S
NL322522T-6R8K-S
NL322522T-8R2K-S
NL322522T-100K-S
NL322522T-120K-S
NL322522T-150K-S
NL322522T-180K-S
NL322522T-220K-S
NL322522T-270K-S
NL322522T-330K-S
NL322522T-390K-S
NL322522T-470K-S
NL322522T-560K-S
NL322522T-680K-S
NL322522T-820K-S
NL322522T-101K-S
NL322522T-121K-S
NL322522T-151K-S
NL322522T-181K-S
NL322522T-221K-S
NL322522T-271K-S
NL322522T-331K-S
Test Instruments :
4.70
5.60
6.80
8.20
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
TOLERANCE
( %)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Q
Min.
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
20
20
20
20
20
20
20
TEST FREQUENCY
(MHz)
7.960
7.960
7.960
7.960
2.520
2.520
2.520
2.520
2.520
2.520
2.520
2.520
2.520
2.520
2.520
2.520
0.796
0.796
0.796
0.796
0.796
0.796
0.796
SRF
(MHz) Min.
50
45
40
35
30
20
20
20
20
20
17
16
15
13
12
11
10
10
8
7
7
6
5
DC RESISTANCE IDC
( ) Max.
1.50
1.60
1.80
2.00
2.10
2.50
2.80
3.30
3.70
5.00
5.60
6.40
7.00
8.00
9.00
10.0
10.0
11.0
15.0
17.0
21.0
28.0
34.0
(mA) Max.
220
200
180
170
150
140
130
120
110
80
70
65
60
55
50
45
40
70
65
60
50
45
40
HP4286A RF Impedance Analyzer for L, Q, SRF
Digital Multimeter SC-7401 for RDC
HP4285A LF Impedance Analyzer for L, Q
Chen-Hwa 1061+Chen-Wha 301A for IDC
SHAPES AND DIMENSIONS
NL565050 SERIES
Dimensions : mm
Shapes and Dimensions / Recommended PC Board Patterns
Inductor
5.0 0.2
Pattern
5.0 0.2
4.5
2.1 0.2
5.6 0.3
2
4
2
ELECTRICAL CHARACTERISTICS
Dimensions : mm
PART NO.
INDUCTANCE TOLERANCE
(mH)
( %)
Q
Min.
TEST
FREQUENCY
(MHz)
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.252
0.0796
SRF
(MHz) Min.
DC
RESISTANCE
( ) Max.
17
20
30
35
55
60
70
78
85
110
125
150
IDC
(mA) Max.
NL565050T-122 J-S
NL565050T-152 J-S
NL565050T-182 J-S
NL565050T-222 J-S
NL565050T-272 J-S
NL565050T-332 J-S
NL565050T-392 J-S
NL565050T-472 J-S
NL565050T-562 J-S
NL565050T-682 J-S
NL565050T-822 J-S
NL565050T-103 J-S
Test Instruments :
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
30
30
30
30
30
30
30
30
30
30
30
20
1.5
1.4
1.3
1.2
1.1
1
1
0.9
0.8
0.7
0.6
0.5
75
70
60
55
45
40
38
36
33
30
28
25
HP4286A RF Impedance Analyzer for L, Q, SRF
HP4285A Pecision LCR Meter for L, Q
Digital Multimeter SC-7401 for RDC
Chen-Hwa 1061+Chen-Wha 301A for IDC
