LFM

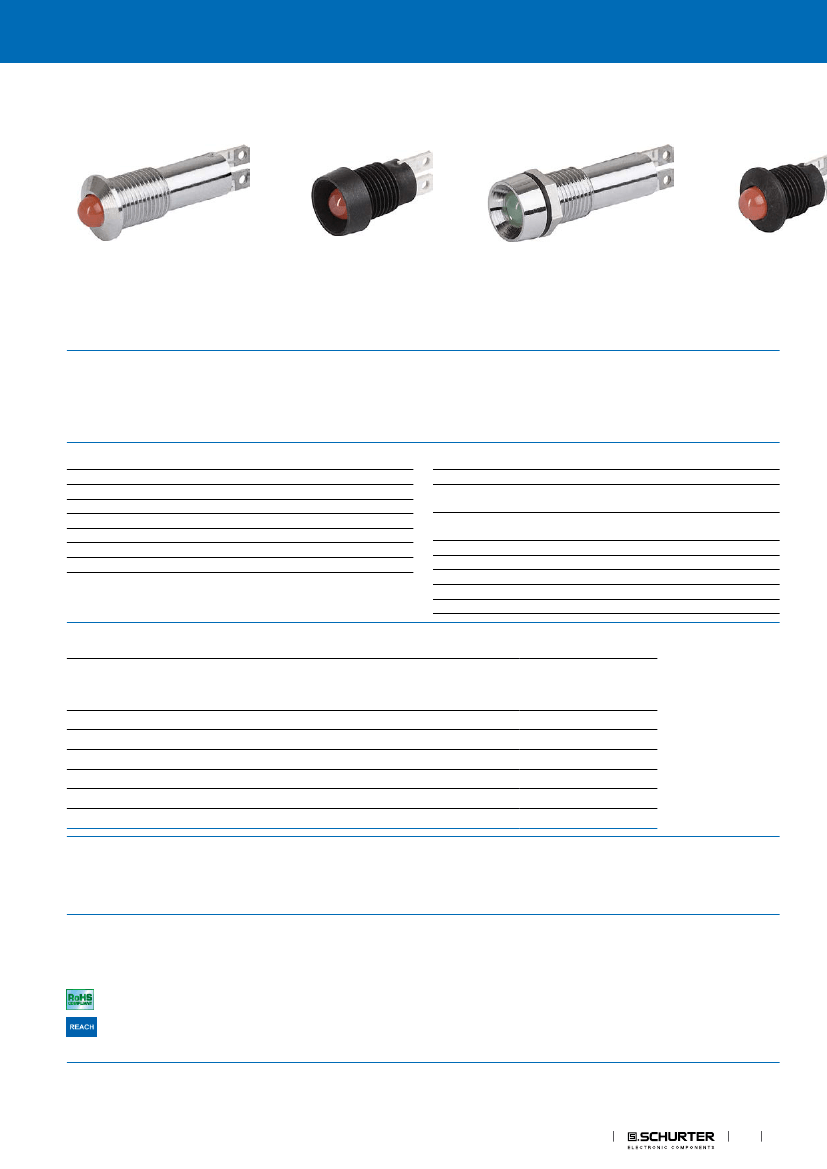

LED Reflector Holder round with 5 mm LED
Approvals and Compliances
Description
-
-
-
-
-
Panel Mounting
Illumination with 5 mm LED
available with or without series resistor
Housing chrome plated or black dull
Solder terminals
Weblinks
html-datasheet, CAD-Drawings, Detailed request for product
Technical Data
Electrical Data
Current consumption
LED
Climatical Data
Ambient temperature
Storage Temperature
Protection Class
10 mA with Built-in Multiplier
Technical data LED see separate table
-25 to 55 °C
-55 to 100 °C
IP 67
Soldering Data
Solderability
Resistance to Soldering Heat
Material
Housings
Solder terminals
Nut
Sealing
235 °C / 2 sec acc. to IEC 60068-2-
20 , Test Ta, method 1
350 °C / 5 sec acc. to IEC 60068-2-
20 , Test Tb, method 1B
Brass chrome-plated
Tin-Plated Copper
Nickel-Plated Brass
Nitril rubber
Technical Data LED
LED red
Let-through courrent DC I
F
max.
Power Loss P
V
max.
Forward voltage
Luminous intensity
Viewing angle
Peak wave lenght
Reverse voltage
30 mA
100 mW
typ. 2.0 V; max. 3.0 V
min. 6.3 mcd; typ. 10 mcd
60°
typ. 635 nm
typ. 15 V
LED green
30 mA
100 mW
typ. 2.4 V; max. 3.0 V
min. 6.3 mcd; typ. 10 mcd
60°
typ. 565 nm
typ. 15 V
LED yellow
30 mA
100 mW
typ. 2.4 V; max. 3.0 V
min. 6.3 mcd; typ. 12 mcd
60°
typ. 585 nm
typ. 15 V
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Compliances
The product complies with following Guide Lines
Identification
Details
RoHS
REACH
Initiator
SCHURTER AG
SCHURTER AG
Description
EU Directive RoHS 2011/65/EU
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Switches
1
LFM

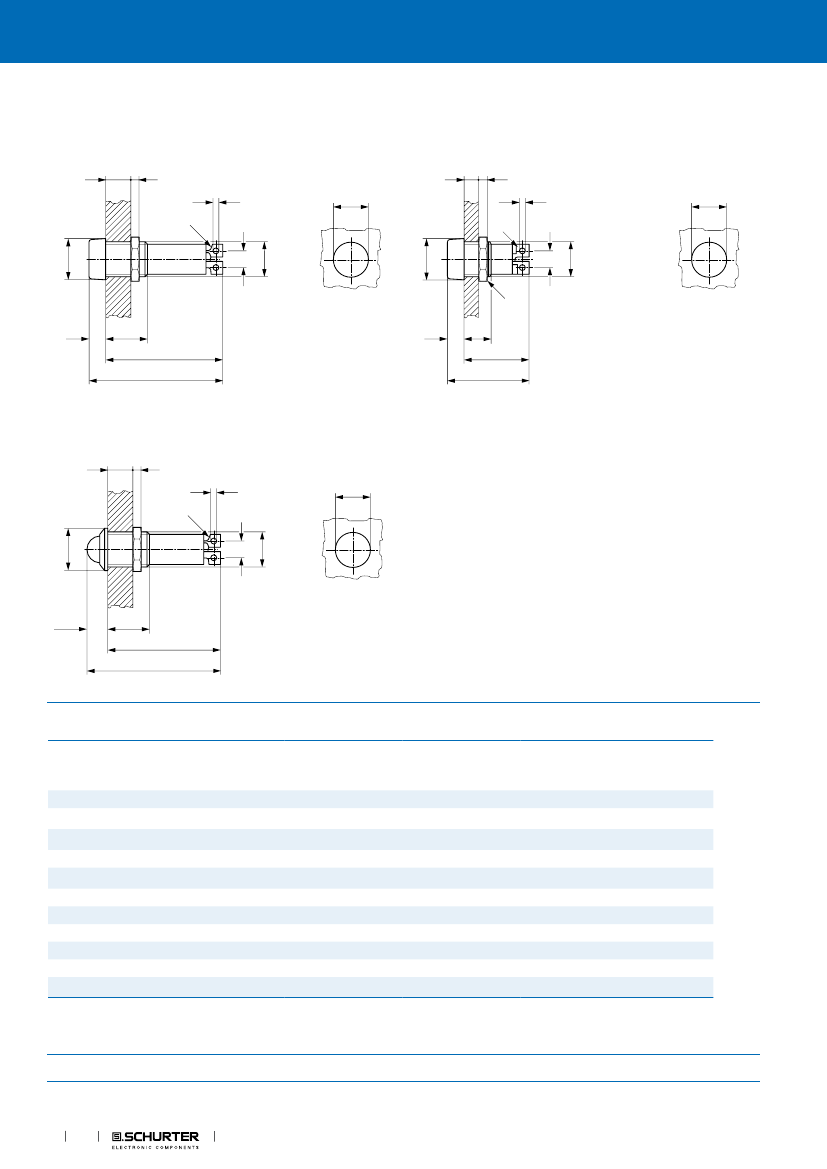

Dimension [mm]
LFM with resistor and internal reflector
max.6
2
1.4
- Pol
M8x0.75
8.4
- Pol
M8x0.75
ø 10
https://www.schurter.com /PG10
Indicators
LFM without resistor with internal reflector
max.4
2
1.4
8.4
ø 10
4
SW 9
4
10
28
max. 32
4
6.5
15.5
max. 19.5
LFM with exposed LED and resistor and external reflector
max.6
2
1.4
- Pol
M8x0.75
8.4
ø 10
max.5
10
27
max. 32
All Variants
Type
Internal Reflector
Internal Reflector
Internal Reflector
Outside Reflector
Outside Reflector
Outside Reflector
Outside Reflector
Outside Reflector
Outside Reflector
Internal Reflector
Internal Reflector
Internal Reflector
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Multiplier
with
with
with
with
with
with
with
with
with
without
without
without
Housings
chrome-plated
chrome-plated
chrome-plated
black dull
black dull
black dull
black dull
black dull
black dull
black dull
black dull
black dull
Supply Voltage
24VDC
24VDC
24VDC
12VDC
12VDC
12VDC
24VDC
24VDC
24VDC
-
-
-
Color LED
red
green
yellow
red
green
yellow
red
green
yellow
red
green
yellow
Order Number
0035.0607
0035.0608
0035.0609
0035.0664
0035.0665
0035.0666
0035.0667
0035.0668
0035.0669
0035.0726
0035.0727
0035.0728
█
█
█
█
█
█
█
█
50 pcs
2
Switches
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
03.12.2017
Packaging unit
4
4
