Part Number

Search

35.135-ND

Description
T-1 SINGLE COLOR LED, YELLOW, 3 mm
CategoryLED optoelectronic/LED
File Size295KB,3 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Download Datasheet Parametric View All

35.135-ND Overview

T-1 SINGLE COLOR LED, YELLOW, 3 mm

35.135-ND Parametric

Parameter NameAttribute value
Maximum operating temperature85 Cel
Minimum operating temperature-25 Cel
Number of functions1
Number of terminals2
Viewing angle70 deg
stateACTIVE
structureSINGLE
Optoelectronic device typeSINGLE COLOR LED
colorYELLOW
Maximum continuous forward current45 mA
LED height11.5 mm
lead gap2.5 mm
light intensity13.15
Installation featuresRADIAL MOUNT
peak wavelength585
shapeROUND
size3 mm
T codeT-1
Indicators
https://www.schurter.com /PG10
SRL

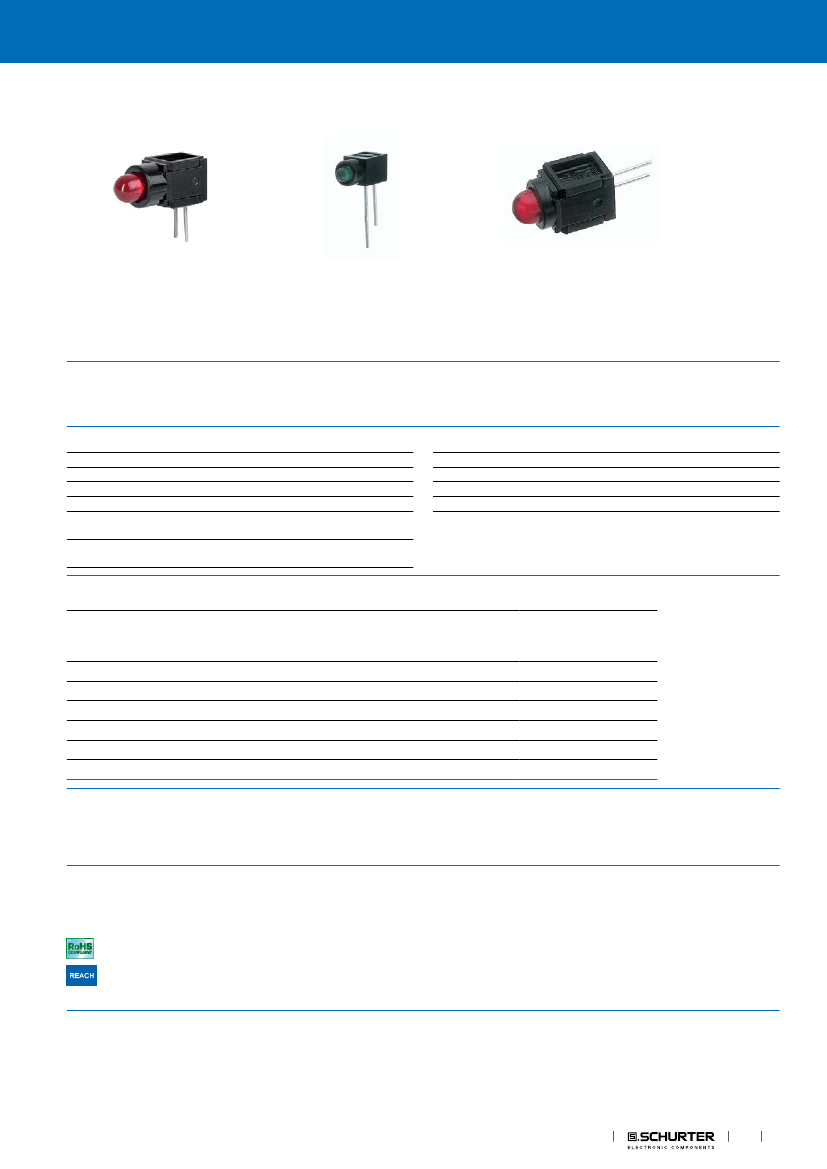

LED Holder straight or angled with 3 mm and 5 mm LED
See below:
Approvals and Compliances
Description
- Frontpanel and PCB Mounting
- Terminals angled or straight
- For 3 mm or 5 mm LED's
Weblinks

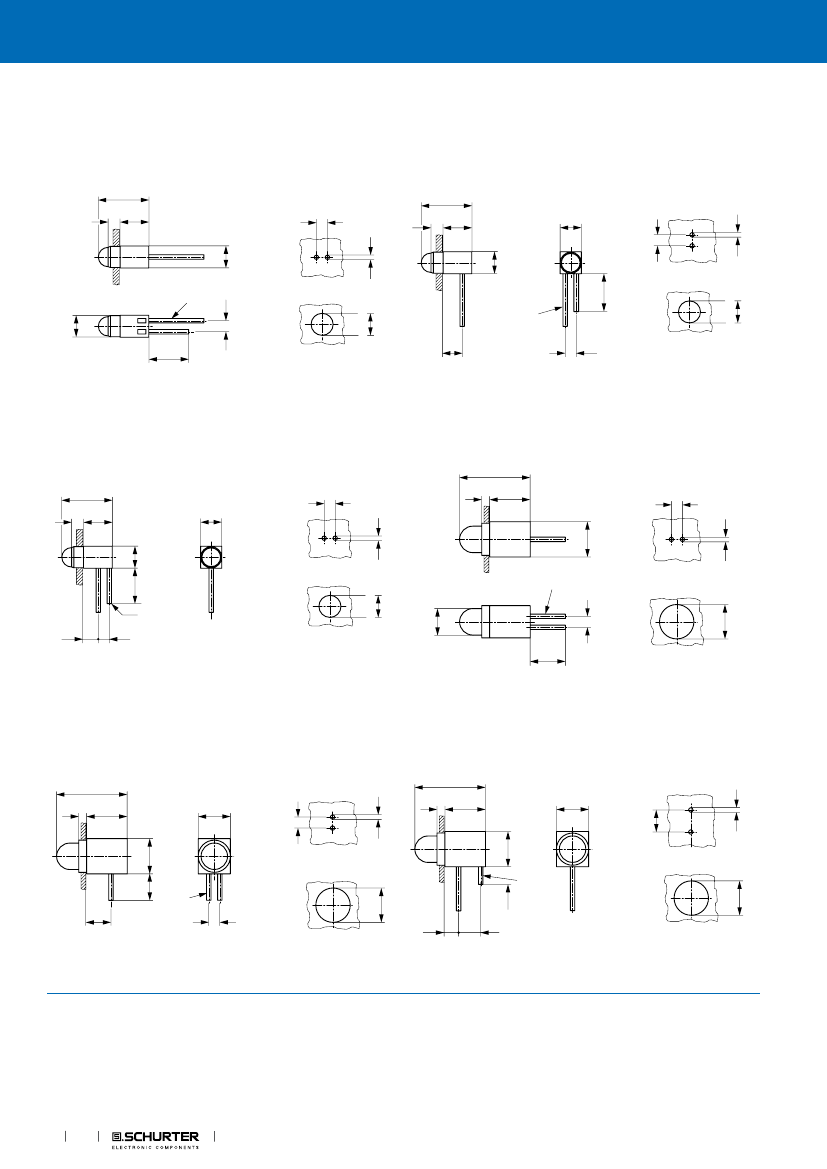

html-datasheet, CAD-Drawings, Detailed request for product
Technical Data
Climatical Data
Allowable Operation Temp.
Storage Temperature
Soldering Data
Solderability
Resistance to Soldering Heat
-25 to 85 °C
-55 to 100 °C
235 °C / 2 sec acc. to IEC 60068-2-
20 , Test Ta, method 1
260 °C / 5 sec acc. to IEC 60068-2-
20 , Test Tb, method 1A
Material
Socket
LED
LED
Thermoplastic
Technical data LED see separate table
Technical Data LED
LED red
Let-through courrent DC IF max.
Power Loss PV max.
Forward voltage
Luminous intensity
Viewing angle
Peak wave lenght
Reverse voltage
30 mA
100 mW
typ. 2.0 V; max. 3.0 V
min. 6.3 mcd; typ. 10 mcd
60°
typ. 635 nm
typ. 15 V
LED green
30 mA
100 mW
typ. 2.4 V; max. 3.0 V
min. 6.3 mcd; typ. 10 mcd
60°
typ. 565 nm
typ. 15 V
LED yellow
30 mA
100 mW
typ. 2.4 V; max. 3.0 V
min. 6.3 mcd; typ. 12 mcd
60°
typ. 585 nm
typ. 15 V
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Compliances
The product complies with following Guide Lines
Identification
Details
RoHS
REACH
Initiator
SCHURTER AG
SCHURTER AG
Description
EU Directive RoHS 2011/65/EU
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
