SSL0402T-2R2M-N datasheet, PDF

Datasheet> All Categories > Passive components> inductor> SSL0402T-2R2M-N

SSL0402T-2R2M-N: DescriptionGeneral Purpose Inductor, 2.2uH, 20%, 1 Element, SMD, 2618, CHIP, 2618, LEAD FREE; CategoryPassive components inductor; File Size648KB，9 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SSL0402T-2R2M-N Overview

General Purpose Inductor, 2.2uH, 20%, 1 Element, SMD, 2618, CHIP, 2618, LEAD FREE

SSL0402T-2R2M-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	2618
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	2618
structure	Shielded
DC Resistance	0.07 Ω
Nominal inductance(L)	2.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	2.92 mm
Package length	6.6 mm
Package form	SMT
Package width	4.45 mm
method of packing	TR, 13 Inch
Maximum rated current	2.4 A
self resonant frequency	90 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

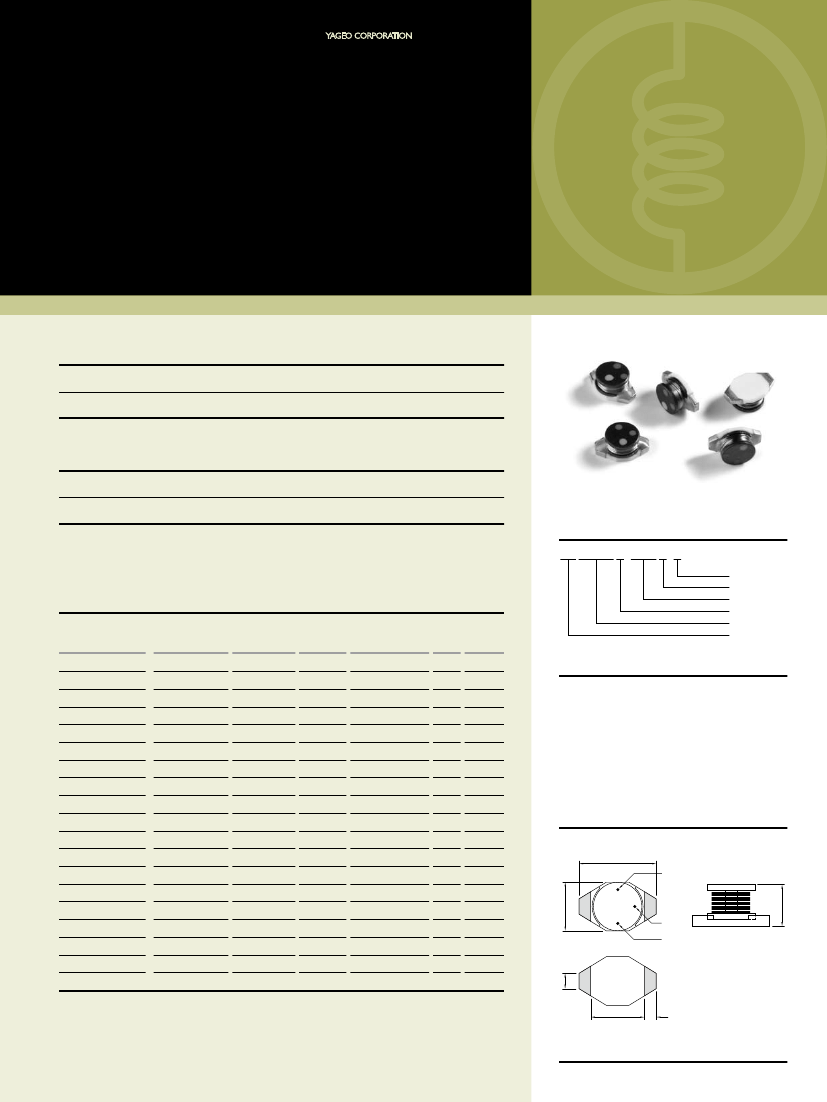

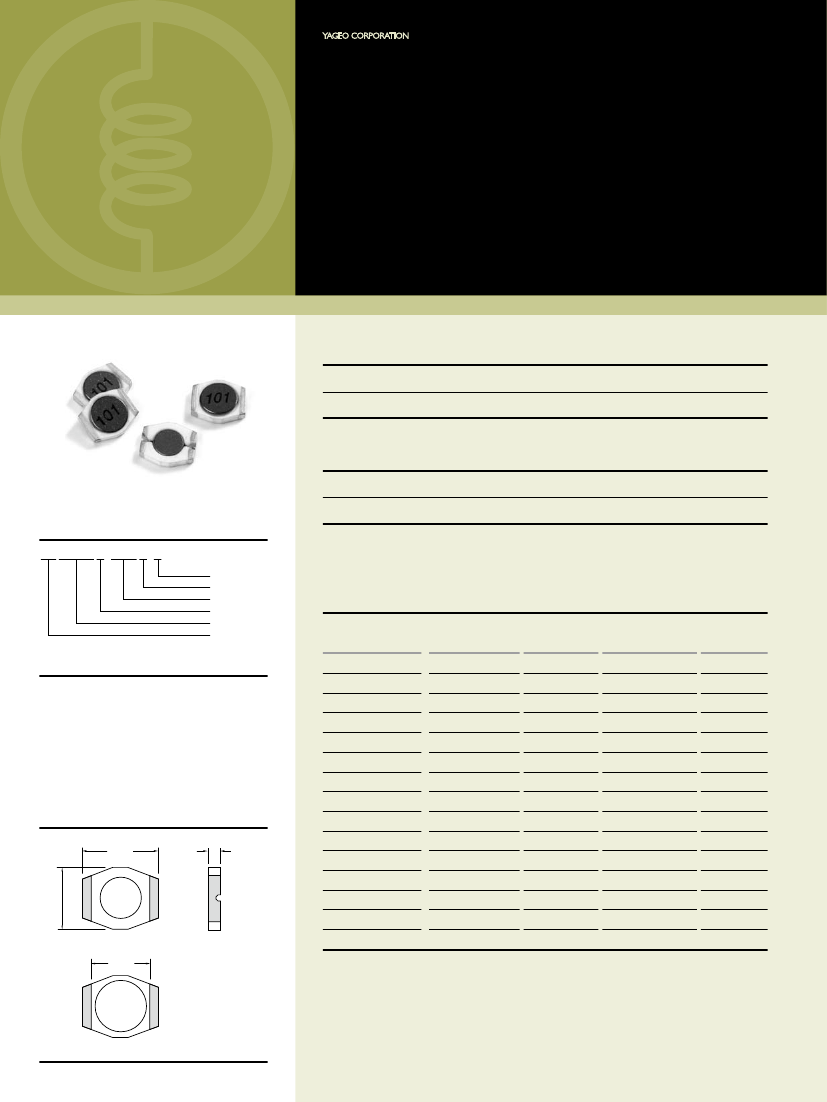

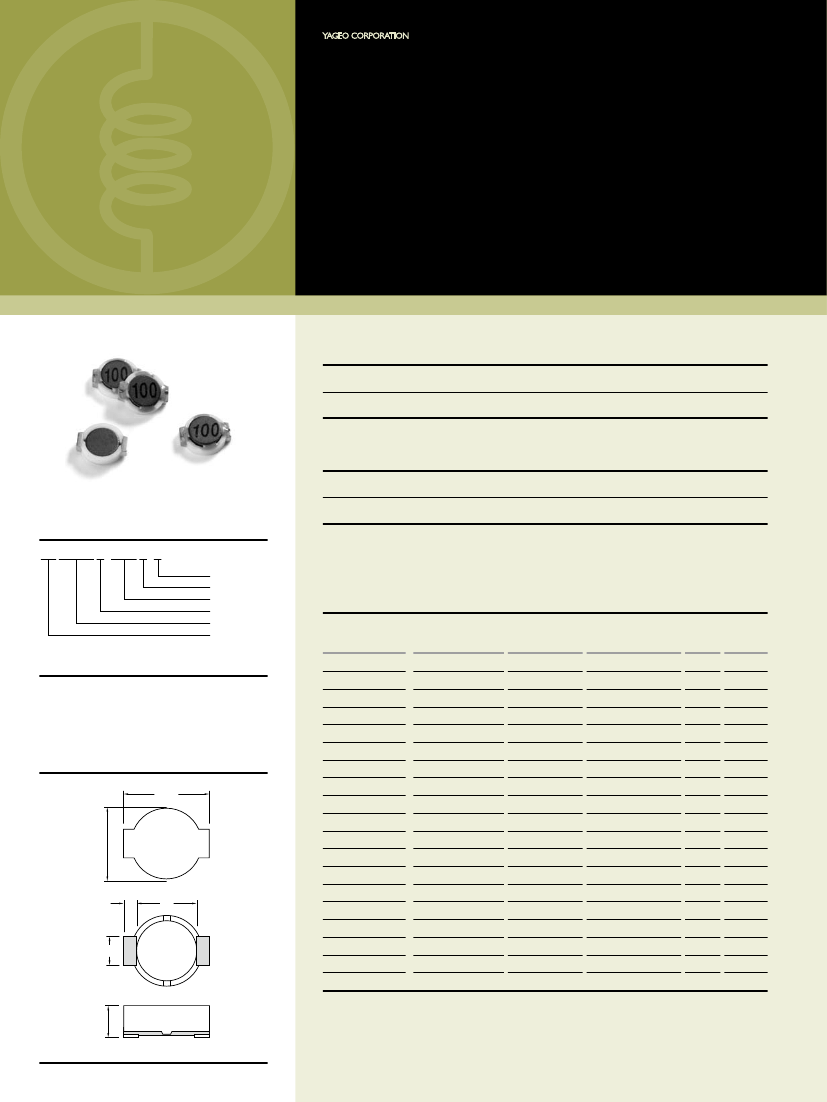

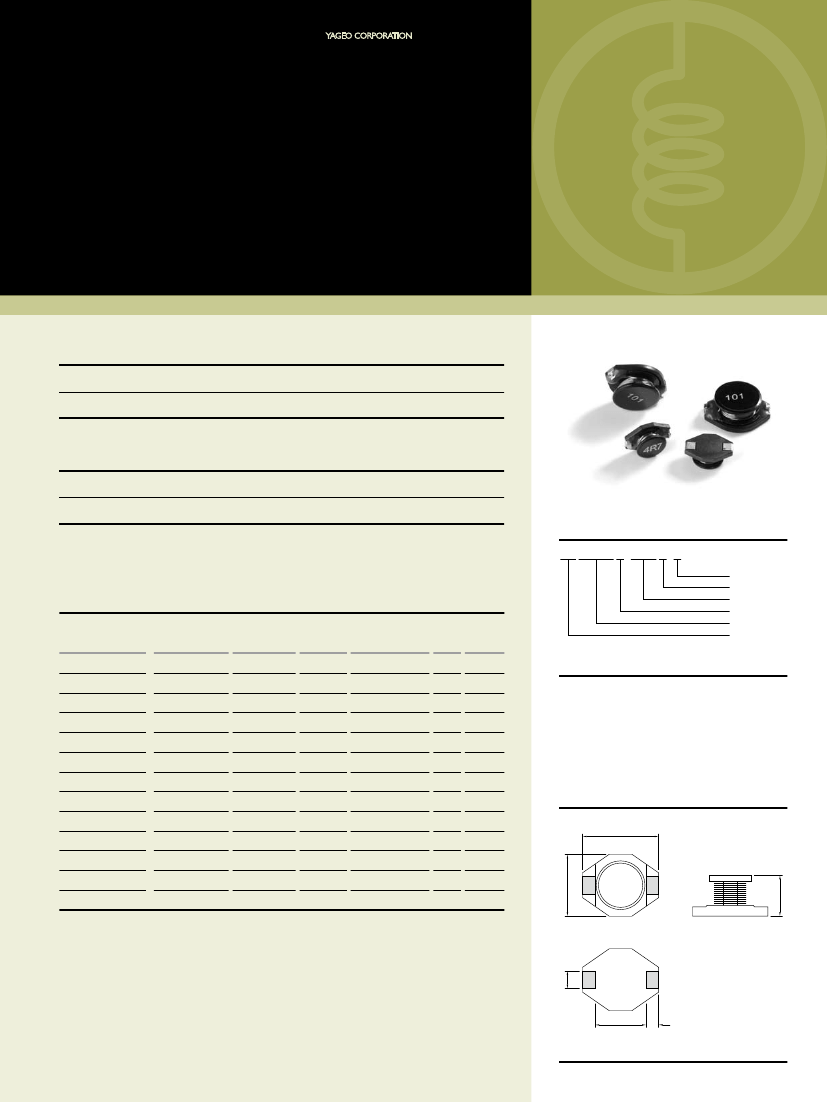

YAGeo CorPorATIoN

INDUCTORS / BEADS

SSL04LP Series

APPLICATIONS

Notebook Computers, Step-up and Step-down Converters

Flash Memory Programmers, etc.

SMD Power Inductors

FEATURES

High energy Storage and Very Low resistance

Smallest Size and High Performance

PRODUCT IDENTIFICATION

SSL

☐☐☐☐☐

☐☐☐☐

☐

ELECTRICAL CHARACTERISTICS

PART NO.

SSL04LP-1r2M-N

SSL04PL-1r5M-N

SSL04LP-2r2M-N

SSL04LP-3r3M-N

SSL04LP-4r7M-N

SSL04LP-6r8M-N

SSL04LP-100M-N

SSL04LP-150M-N

SSL04LP-220M-N

SSL04LP-330M-N

SSL04LP-470M-N

SSL04LP-680M-N

SSL04LP-101M-N

SSL04LP-151M-N

SSL04LP-221M-N

SSL04LP-331M-N

INDUCTANCE * TOLERANCE DC RESISTANCE Isat ** Irms ***

(µH)

(±%)

(Ω) Max.

(A)

1.2

1.5

2.2

3.3

4.7

6.8

100

150

220

330

0.08

0.10

0.12

0.16

0.20

0.32

0.41

0.55

0.85

1.30

1.80

2.50

3.50

5.00

7.00

15.0

2.10

1.90

1.60

1.30

1.10

0.90

0.80

0.65

0.50

0.40

0.35

0.30

0.25

0.18

0.16

0.13

3.60

2.80

2.40

2.00

1.70

1.20

1.10

0.90

0.83

0.62

0.52

0.35

0.27

0.24

0.23

0.13

2.00

0.8

4.8

5.60

6.50

Internal No.

Tolerance

Inductance

Packaging Style

Dimensions

Product Symbol

■

Packaging: T = Tape and reel, B = Bulk

■

Internal No.: N = Lead-Free

SHAPES AND DIMENSIONS

1.0±0.2

Note:

*Inductance Tested at 100 KHz, 0.1 Vrms.

***ΔT = 40 °C Rise Typ at Irms.

**Inductance Drop = 10% Typ. at Isat.

Operating Temperature Range: -40 °C to +85 °C

Dimensions: mm
