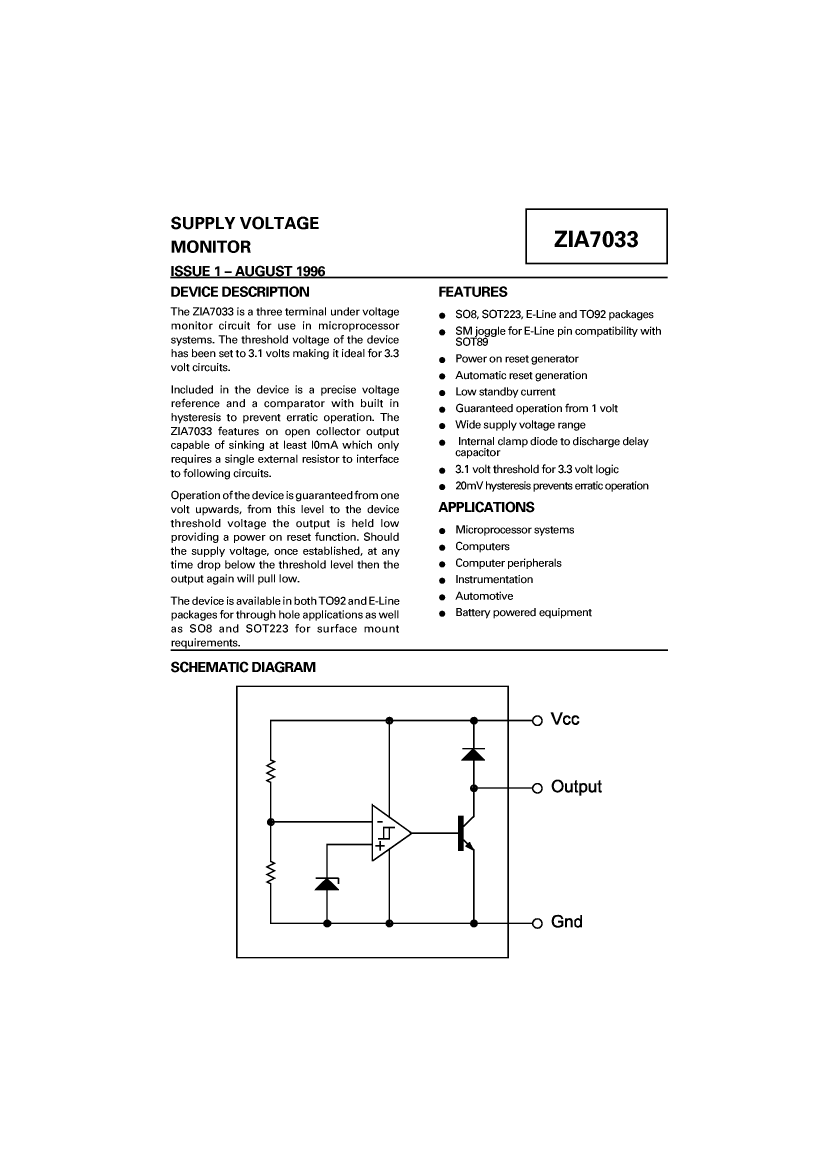

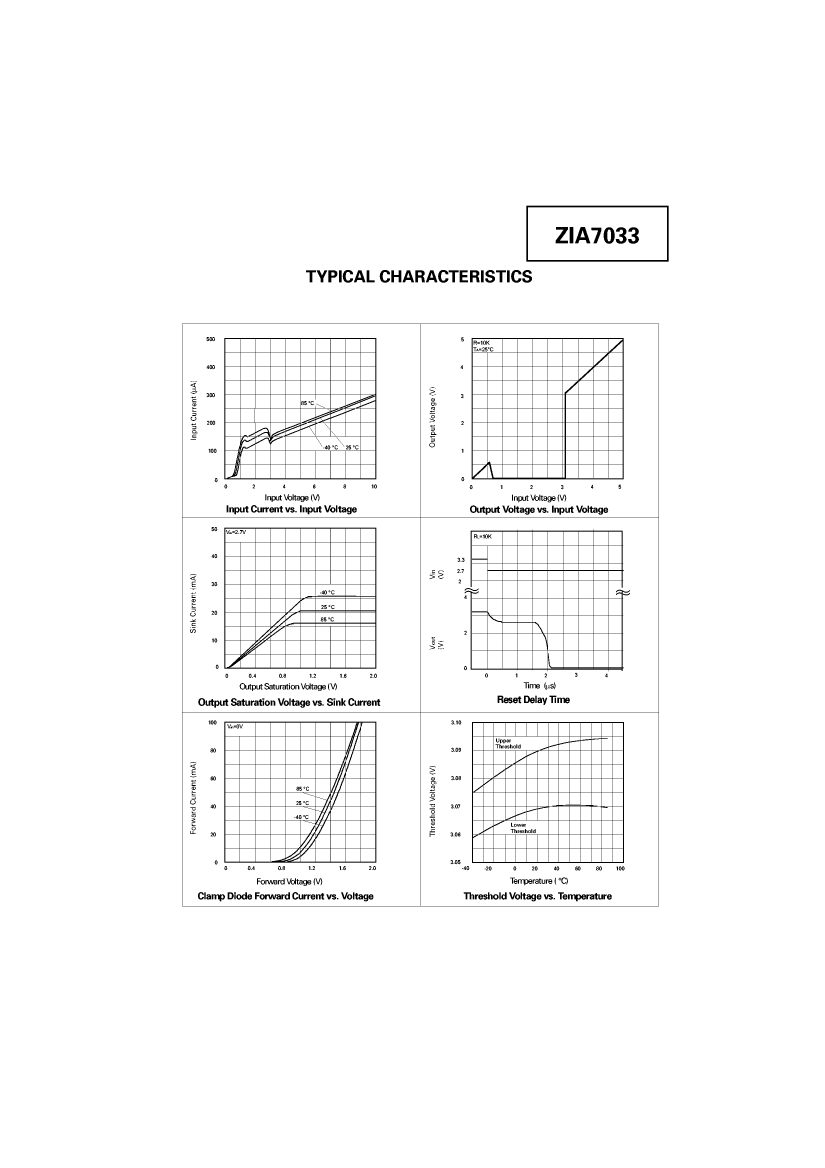

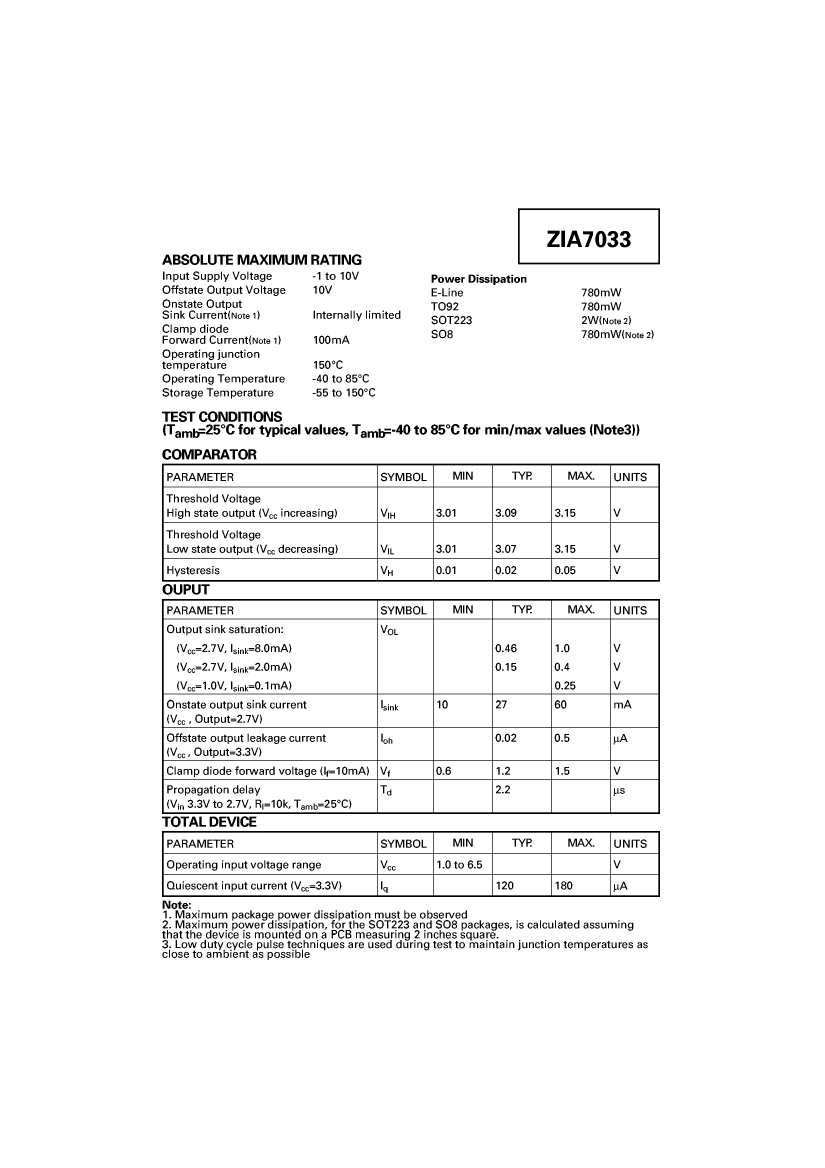

ZIA7033N8: DescriptionPower Supply Support Circuit, Fixed, 1 Channel, +3.1VV, BIPolar, PDSO8, SO-8; CategoryPower/power management The power supply circuit; File Size103KB，5 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/

Download Datasheet Parametric Compare View All

ZIA7033N8 Overview

Power Supply Support Circuit, Fixed, 1 Channel, +3.1VV, BIPolar, PDSO8, SO-8

ZIA7033N8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zetex Semiconductors
package instruction	SOP, SOP8,.25
Reach Compliance Code	unknow
ECCN code	EAR99
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Humidity sensitivity level	1
Number of channels	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
power supply	1/6.5 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply current (Isup)	0.18 mA
Maximum supply voltage (Vsup)	6.5 V
Minimum supply voltage (Vsup)	1 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Threshold voltage nominal	+3.1V
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm

Preview

Download Datasheet

View All

ZIA7033N8 Related Products

	ZIA7033N8	ZIA7033C	ZIA7033G
Description	Power Supply Support Circuit, Fixed, 1 Channel, +3.1VV, BIPolar, PDSO8, SO-8	Power Supply Support Circuit, Fixed, 1 Channel, +3.1VV, BIPolar, PBCY3, TO-92, 3 PIN	Power Supply Support Circuit, Fixed, 1 Channel, +3.1VV, BIPolar, PDSO4, SOT-223, 4 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
package instruction	SOP, SOP8,.25	TO-92, SIP3,.1,50	SOP, SOT-223
Reach Compliance Code	unknow	unknown	unknow
ECCN code	EAR99	EAR99	EAR99
Adjustable threshold	NO	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G8	O-PBCY-T3	R-PDSO-G4
JESD-609 code	e0	e0	e0
Number of channels	1	1	1
Number of functions	1	1	1
Number of terminals	8	3	4
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TO-92	SOP
Encapsulate equivalent code	SOP8,.25	SIP3,.1,50	SOT-223
Package shape	RECTANGULAR	ROUND	RECTANGULAR
Package form	SMALL OUTLINE	CYLINDRICAL	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235	235	235
power supply	1/6.5 V	1/6.5 V	1/6.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.18 mA	0.18 mA	0.18 mA
Maximum supply voltage (Vsup)	6.5 V	6.5 V	6.5 V
Minimum supply voltage (Vsup)	1 V	1 V	1 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V
surface mount	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.3 mm
Terminal location	DUAL	BOTTOM	DUAL
Threshold voltage nominal	+3.1V	+3.1V	+3.1V
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
length	4.9 mm	-	6.5 mm
Humidity sensitivity level	1	-	1
Maximum seat height	1.75 mm	-	1.8 mm
width	3.9 mm	-	3.5 mm
