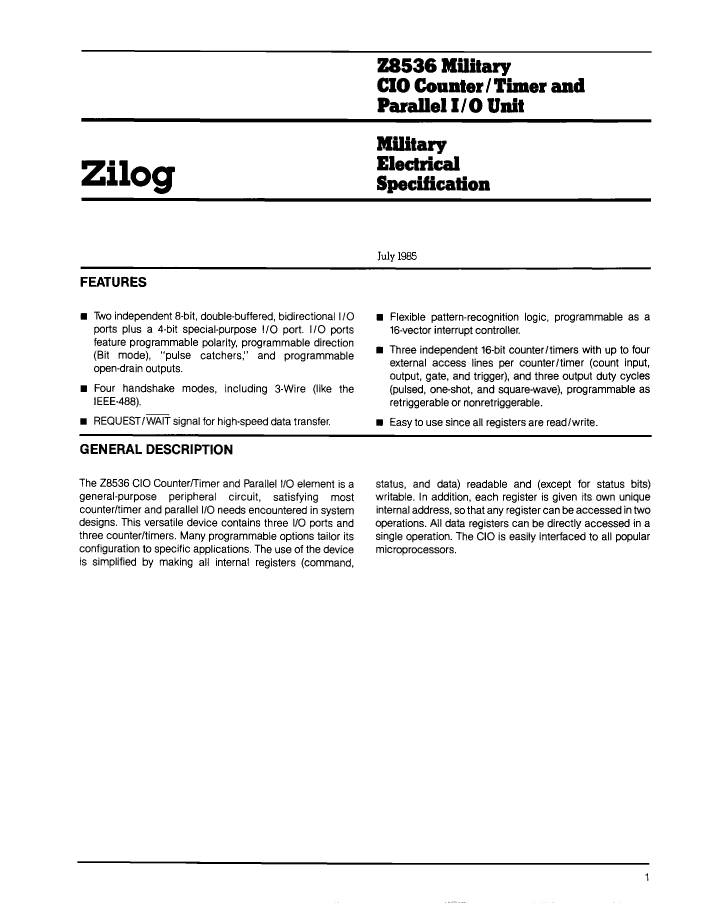

Parallel I/O Port, 20 I/O, MOS, CQCC44, CERAMIC, LCC-44

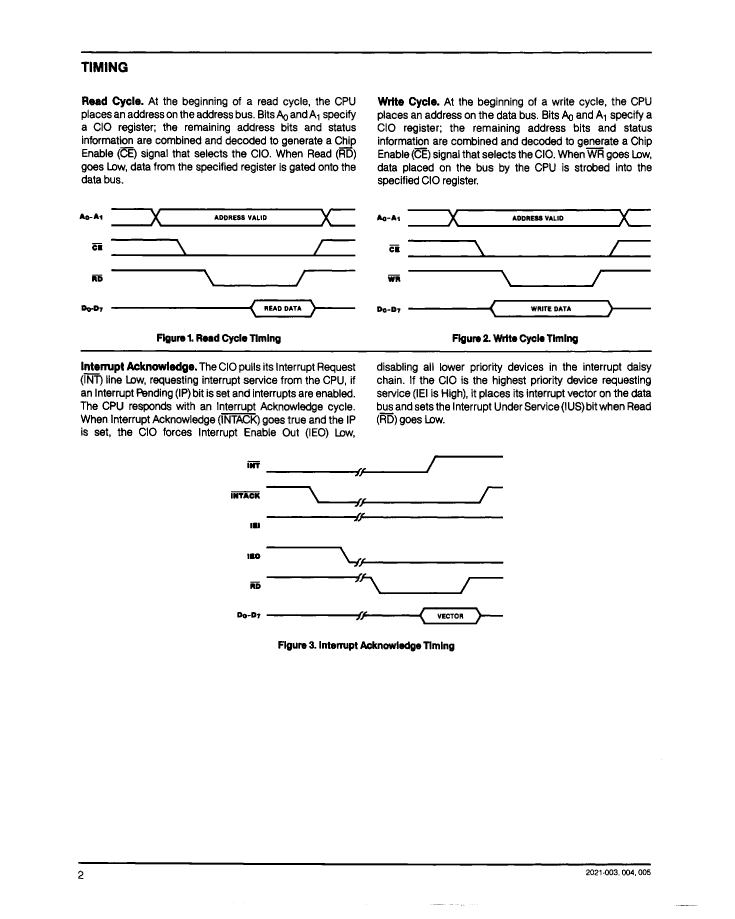

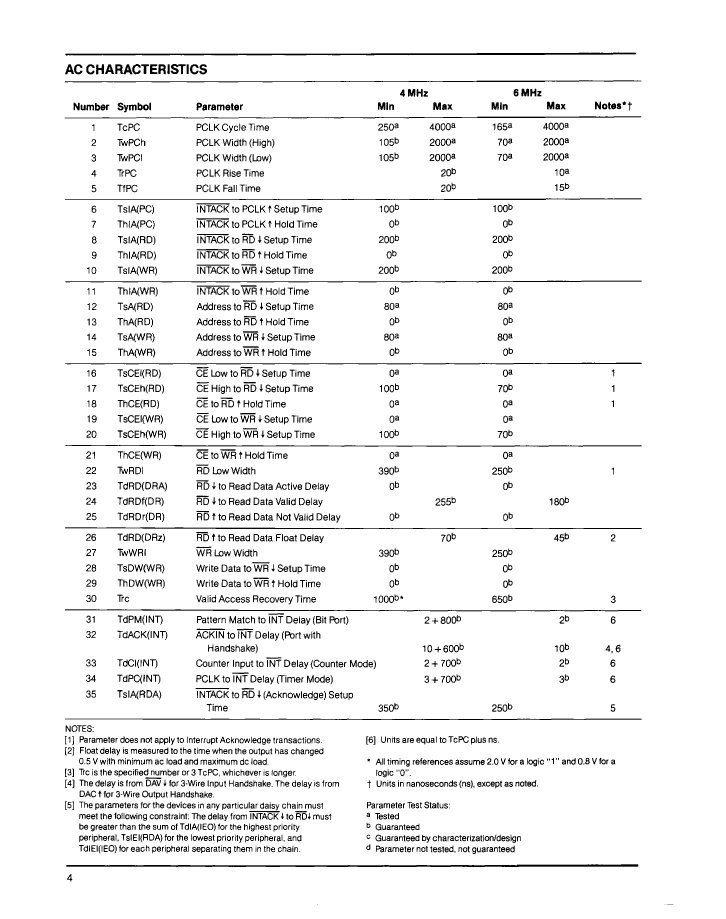

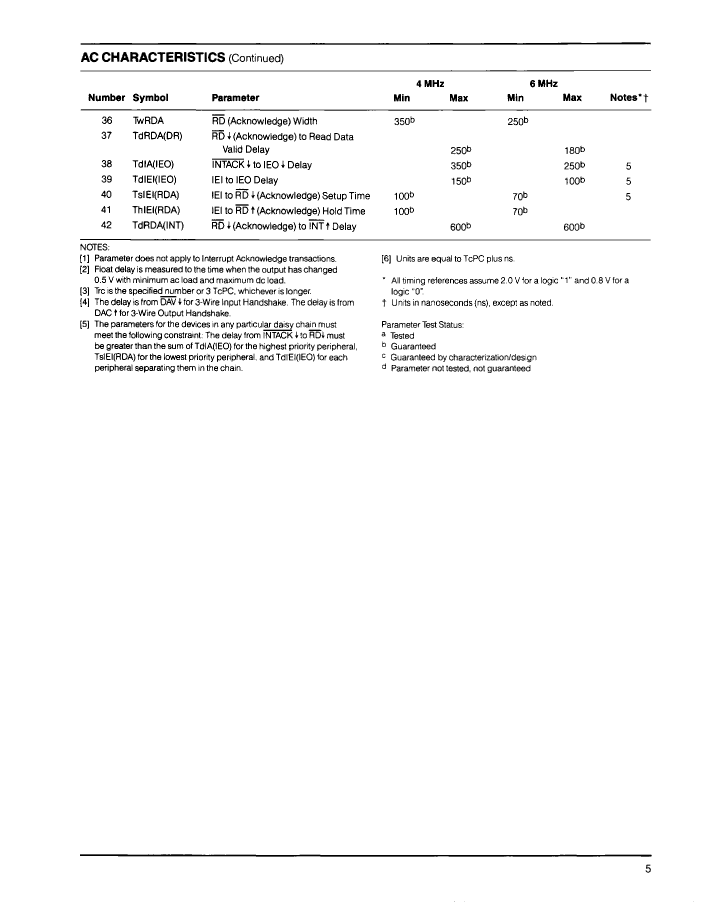

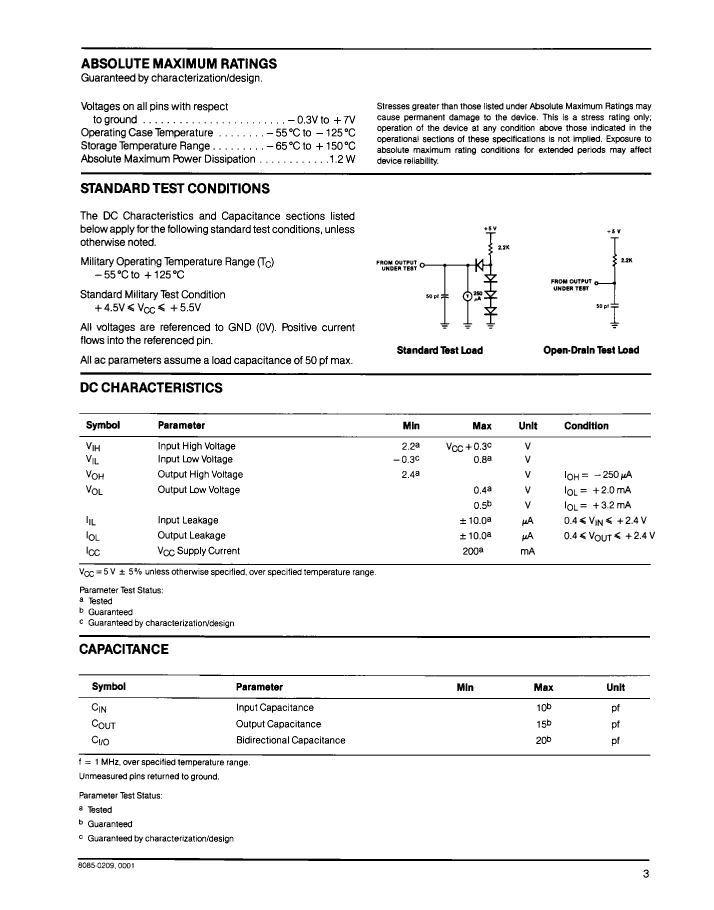

| Parameter Name | Attribute value |
| Maker | Zilog, Inc. |
| Parts packaging code | LCC |
| package instruction | CERAMIC, LCC-44 |
| Contacts | 44 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| maximum clock frequency | 4 MHz |
| External data bus width | 8 |
| JESD-30 code | S-CQCC-N44 |
| length | 16.51 mm |
| Number of I/O lines | 20 |
| Number of ports | 3 |
| Number of terminals | 44 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Certification status | Not Qualified |
| Maximum seat height | 2.286 mm |
| Maximum slew rate | 200 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | MOS |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| width | 16.51 mm |
| uPs/uCs/peripheral integrated circuit type | PARALLEL IO PORT, GENERAL PURPOSE |
| Z8536LMBC | Z8536ALMBC | Z8536ACMBC | Z8536ALM | Z8536LM | Z8536CMBC | |
|---|---|---|---|---|---|---|
| Description | Parallel I/O Port, 20 I/O, MOS, CQCC44, CERAMIC, LCC-44 | Parallel I/O Port, 20 I/O, MOS, CQCC44, CERAMIC, LCC-44 | Parallel I/O Port, 20 I/O, MOS, CDIP40, CERAMIC, DIP-40 | Parallel I/O Port, 20 I/O, MOS, CQCC44, CERAMIC, LCC-44 | Parallel I/O Port, 20 I/O, MOS, CQCC44, CERAMIC, LCC-44 | Parallel I/O Port, 20 I/O, MOS, CDIP40, CERAMIC, DIP-40 |
| Parts packaging code | LCC | LCC | DIP | LCC | LCC | DIP |
| package instruction | CERAMIC, LCC-44 | CERAMIC, LCC-44 | CERAMIC, DIP-40 | CERAMIC, LCC-44 | CERAMIC, LCC-44 | CERAMIC, DIP-40 |
| Contacts | 44 | 44 | 40 | 44 | 44 | 40 |
| Reach Compliance Code | unknow | unknown | unknown | unknown | unknown | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| maximum clock frequency | 4 MHz | 6.06 MHz | 6.06 MHz | 6.06 MHz | 4 MHz | 4 MHz |
| External data bus width | 8 | 8 | 8 | 8 | 8 | 8 |
| JESD-30 code | S-CQCC-N44 | S-CQCC-N44 | R-CDIP-T40 | S-CQCC-N44 | S-CQCC-N44 | R-CDIP-T40 |
| Number of I/O lines | 20 | 20 | 20 | 20 | 20 | 20 |
| Number of ports | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of terminals | 44 | 44 | 40 | 44 | 44 | 40 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN | QCCN | DIP | QCCN | QCCN | DIP |
| Package shape | SQUARE | SQUARE | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR |
| Package form | CHIP CARRIER | CHIP CARRIER | IN-LINE | CHIP CARRIER | CHIP CARRIER | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2.286 mm | 2.286 mm | 4.699 mm | 2.286 mm | 2.286 mm | 4.699 mm |
| Maximum slew rate | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA | 200 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES | YES | NO |
| technology | MOS | MOS | MOS | MOS | MOS | MOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | NO LEAD | THROUGH-HOLE | NO LEAD | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | QUAD | QUAD | DUAL | QUAD | QUAD | DUAL |
| width | 16.51 mm | 16.51 mm | 15.24 mm | 16.51 mm | 16.51 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE | PARALLEL IO PORT, GENERAL PURPOSE |
| length | 16.51 mm | 16.51 mm | - | 16.51 mm | 16.51 mm | - |
