Z86C6120PEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C6120PEC

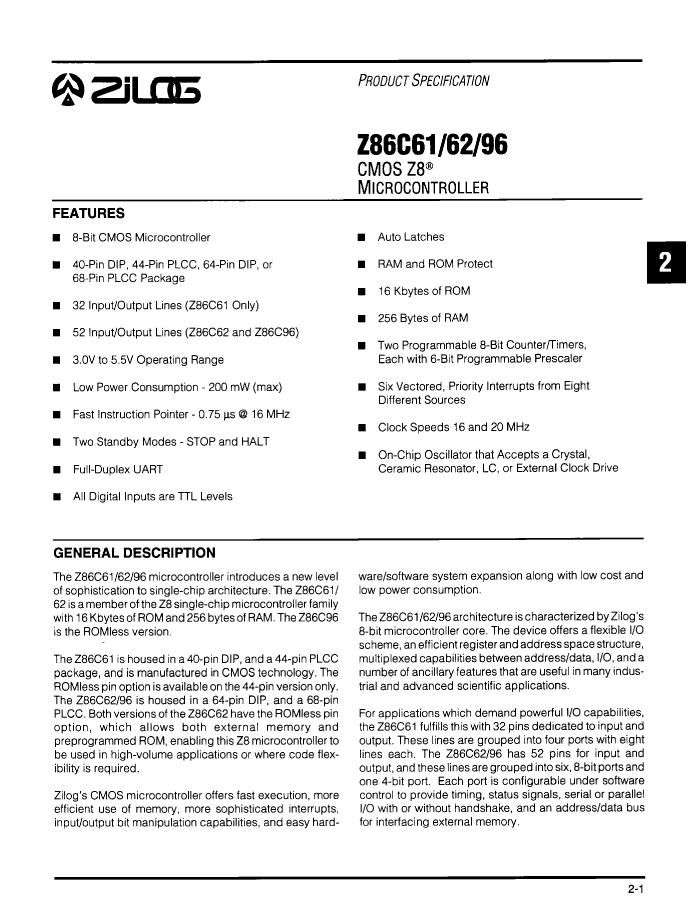

Z86C6120PEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，46 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z86C6120PEC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40

Z86C6120PEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	unknow
Has ADC	NO
Other features	RAM/ROM PROTECT
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	40
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	236
RAM (number of words)	256
rom(word)	16384
ROM programmability	MROM
speed	20 MHz
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

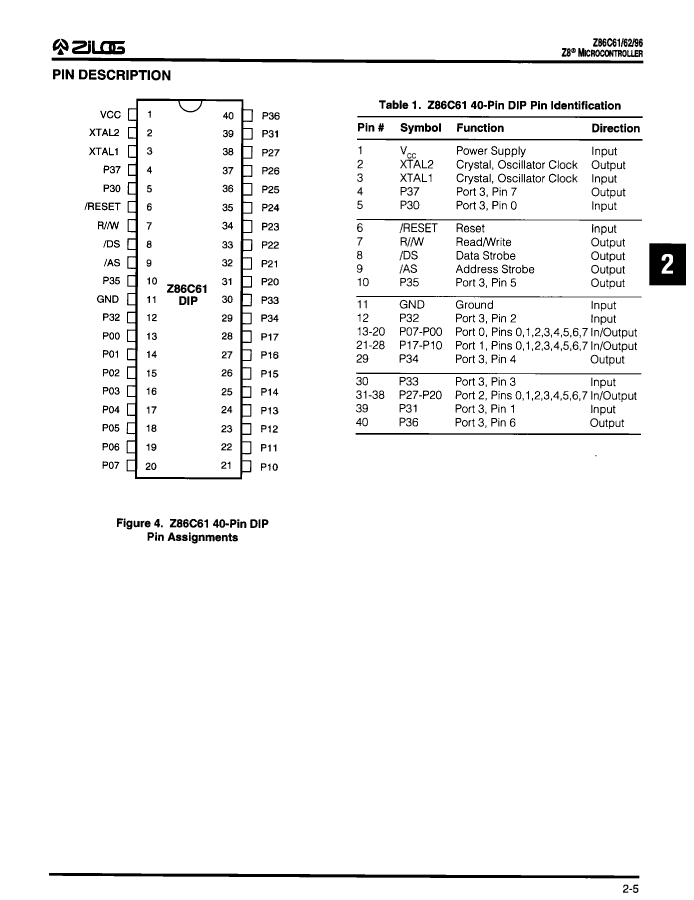

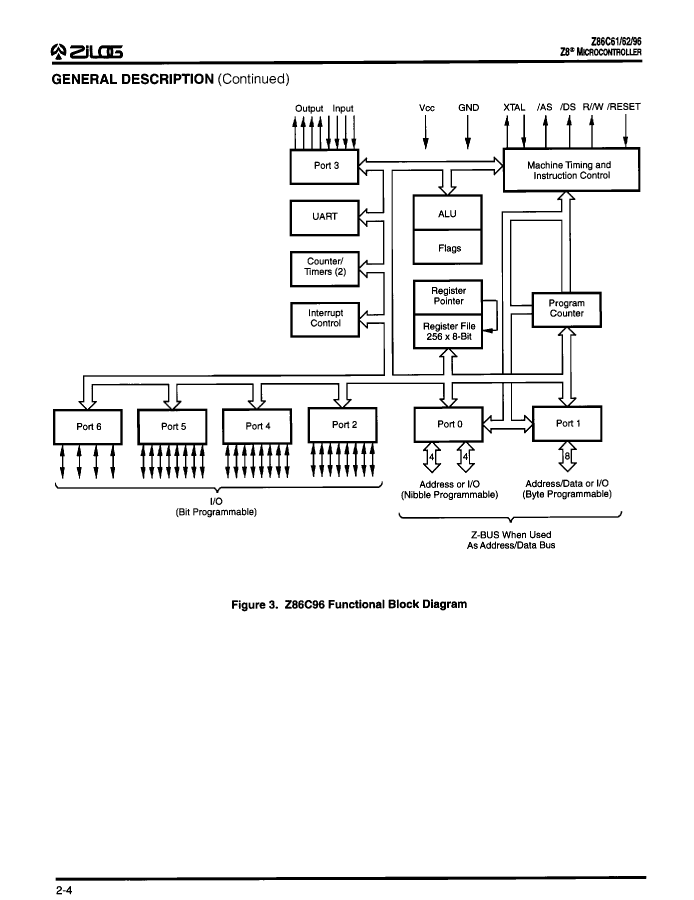

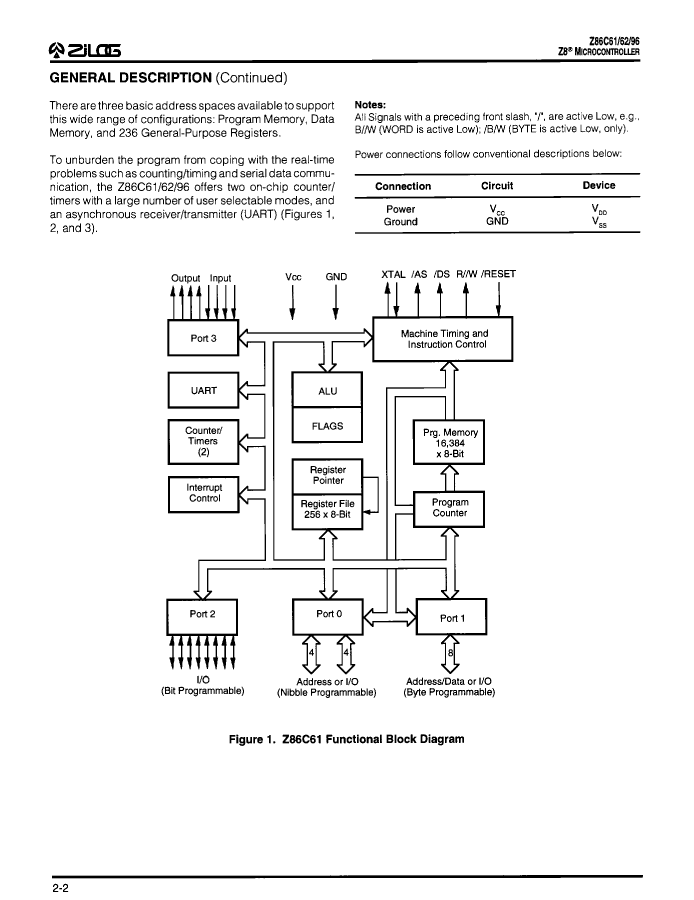

Preview

Download Datasheet

View All

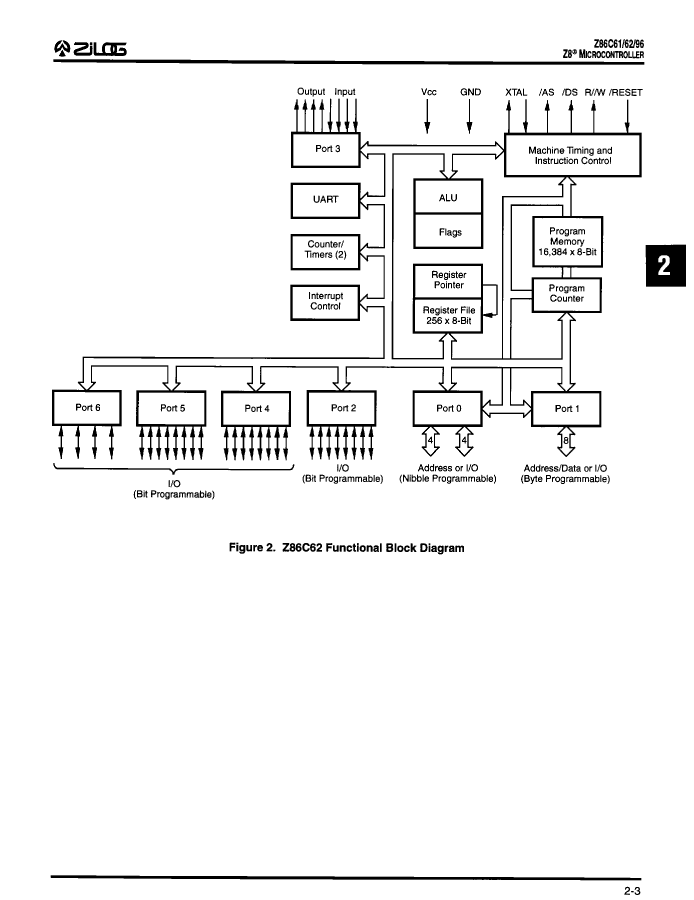

Z86C6120PEC Related Products

	Z86C6120PEC	Z86C6120VEC	Z86C6220PSC	Z86C6220PEC	Z86C6220VEC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, Z8 CPU, 20MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, Z8 CPU, 20MHz, CMOS, PDIP64, PLASTIC, DIP-64	Microcontroller, 8-Bit, MROM, Z8 CPU, 20MHz, CMOS, PDIP64, PLASTIC, DIP-64	Microcontroller, 8-Bit, MROM, Z8 CPU, 20MHz, CMOS, PQCC68, PLASTIC, LCC-68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	LCC	DIP	DIP	LCC
package instruction	PLASTIC, DIP-40	PLASTIC, LCC-44	PLASTIC, DIP-64	PLASTIC, DIP-64	PLASTIC, LCC-68
Contacts	40	44	64	64	68
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow
Has ADC	NO	NO	NO	NO	NO
Other features	RAM/ROM PROTECT	RAM/ROM PROTECT	RAM/ROM PROTECT	RAM/ROM PROTECT	RAM/ROM PROTECT
Address bus width	16	16	16	16	16
bit size	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO
CPU series	Z8	Z8	Z8	Z8	Z8
maximum clock frequency	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T40	S-PQCC-J44	R-PDIP-T64	R-PDIP-T64	S-PQCC-J68
JESD-609 code	e0	e0	e0	e0	e0
low power mode	YES	YES	YES	YES	YES
Number of external interrupt devices	4	4	4	4	4
Number of I/O lines	32	32	52	52	52
Number of serial I/Os	1	1	1	1	1
Number of terminals	40	44	64	64	68
Number of timers	2	2	2	2	2
On-chip data RAM width	8	8	8	8	8
On-chip program ROM width	8	8	8	8	8
Maximum operating temperature	105 °C	105 °C	70 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C
PWM channel	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	DIP	DIP	QCCJ
Encapsulate equivalent code	DIP40,.6	LDCC44,.7SQ	SDIP64,.75	SDIP64,.75	LDCC68,1.0SQ
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240	240	240	240	240
power supply	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	236	236	236	236	236
RAM (number of words)	256	256	256	256	256
rom(word)	16384	16384	16384	16384	16384
ROM programmability	MROM	MROM	MROM	MROM	MROM
speed	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Maximum slew rate	40 mA	40 mA	40 mA	40 mA	40 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm	1.78 mm	1.78 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Zilog, Inc.	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
