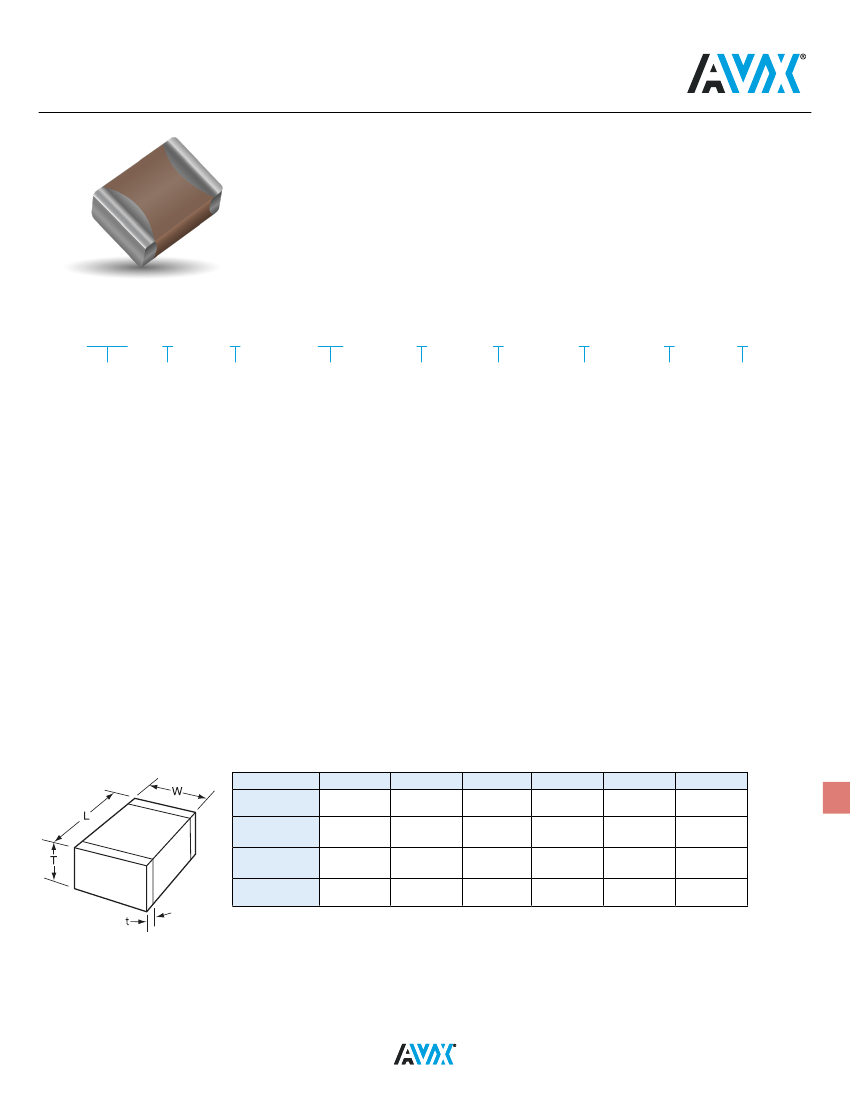

High Temperature MLCCs
AT Series – 200ºC & 250°C Rated
Present military specifications, as well as a majority of commercial applications, require a maximum
operating temperature of 125°C. However, the emerging market for high temperature electronics
demands capacitors operating reliably at temperatures beyond 125°C. AVX’s high temperature chip
capacitor product line, has been extended with the BME C0G chip. All AT chips have verified capabilities
of long term operation up to 250°C for applications in both military and commercial businesses. These
capacitors demonstrate high volumetric efficiency, high insulation resistance and low ESR/ESL for the
most demanding applications, such as “down-hole” oil exploration and aerospace programs.
HOW TO ORDER
AT10
3
T
Temperature
Coefficient
PME
C0G 250°C = A
C0G 200°C = 2
VHT 250°C = T
VHT 200°C = 4
BME
C0G 250°C = 5
C0G 200°C = 3
104
Capacitance Code
(2 significant digits
+ no. of zeros)
101 = 100pF
102 = 1nF
103 = 10nF
104 = 100nF
105 = 1μF
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
A
T
2
Packaging
2 = 7" Reel
4 = 13" Reel
9 = Bulk
A
Special
Code
A = Standard
AVX
Voltage
Style
Code
AT03 = 0603 16V = Y
AT05 = 0805 25V = 3
AT06 = 1206 50V = 5
AT10 = 1210
AT12 = 1812
AT14 = 2225
Test Level
Termination
A = Standard 1 = Pd/Ag
T = 100% Sn Plated
(RoHS Compliant)
7 = Ni/Au Plated
(For 250°C BME
C0G Only)
ELECTRICAL SPECIFICATIONS
Temperature Coefficient
PME C0G 0±30ppm/°C, -55C to 250°C
BME C0G 0±30ppm/°C, -55C to 200°C
See TCC Plot for +250°C
VHT: T
±15%, -55°C to +150°C
See TCC Plot for +250°C
Insulation Resistance 25°C
(MIL-STD-202, Method 302)
100GΩ or 1000MΩ-μF (whichever is less)
Insulation Resistance 125°C
(MIL-STD-202, Method 302)
10GΩ or 100MΩ-μF (whichever is less)
Insulation Resistance 200°C
(MIL-STD-202, Method 302)
1GΩ or 10MΩ-μF (whichever is less)
Insulation Resistance 250°C
(MIL-STD-202, Method 302)
100MΩ or 1MΩ-μF (whichever is less)
Direct Withstanding Voltage 25°C
(Flash Test)
250% rated voltage for 5 seconds with 50mA max charging current
Capacitance Test
(MIL-STD-202, Method 305)
25°C, 1.0 ± 0.2 Vrms (open circuit voltage) @ 1kHz
Dissipation factor 25°C
C0G: 0.15% Max at 1.0 ± 0.2 Vrms (open circuit voltage) @ 1kHz
VHT: 2.5% Max at 1.0 ± 0.2 Vrms (open circuit voltage) @ 1kHz
DIMENSIONS
Size
(L) Length
(W) Width
(T) Thickness Max.
(t)
terminal
min.
max.
AT03 = 0603
1.60 ± 0.15
(0.063 ± 0.006)
0.81 ± 0.15
(0.032 ± 0.006)
1.02
(0.040)
0.25 (0.010)
0.75 (0.030)
AT05= 0805
2.01 ± 0.20
(0.079 ± 0.008)
1.25 ± 0.20
(0.049 ± 0.008)
1.30
(0.051)
0.25 (0.010)
0.75 (0.030)
MILLIMETERS (INCHES)
AT06=1206
3.20 ± 0.20
(0.126 ± 0.008)
1.60 ± 0.20
(0.063 ± 0.008)
1.52
(0.060)
0.25 (0.010)
0.75 (0.030)
AT10=1210
3.20 ± 0.20
(0.126 ± 0.008)
2.50 ± 0.20
(0.098 ± 0.008)
1.70
(0.067)
0.25 (0.010)
0.75 (0.030)
AT12=1812
AT14=2225
4.50 ± 0.30
5.72 ± 0.25
(0.177 ± 0.012) (0.225 ± 0.010)
3.20 ± 0.20
6.35 ± 0.25
(0.126 ± 0.008) (0.250 ± 0.010)
2.54
(0.100)
0.25 (0.010)
1.02 (0.040)
2.54
(0.100)
0.25 (0.010)
1.02 (0.040)
87
080416
High Temperature MLCC
AT Series – 200ºC & 250°C Rated

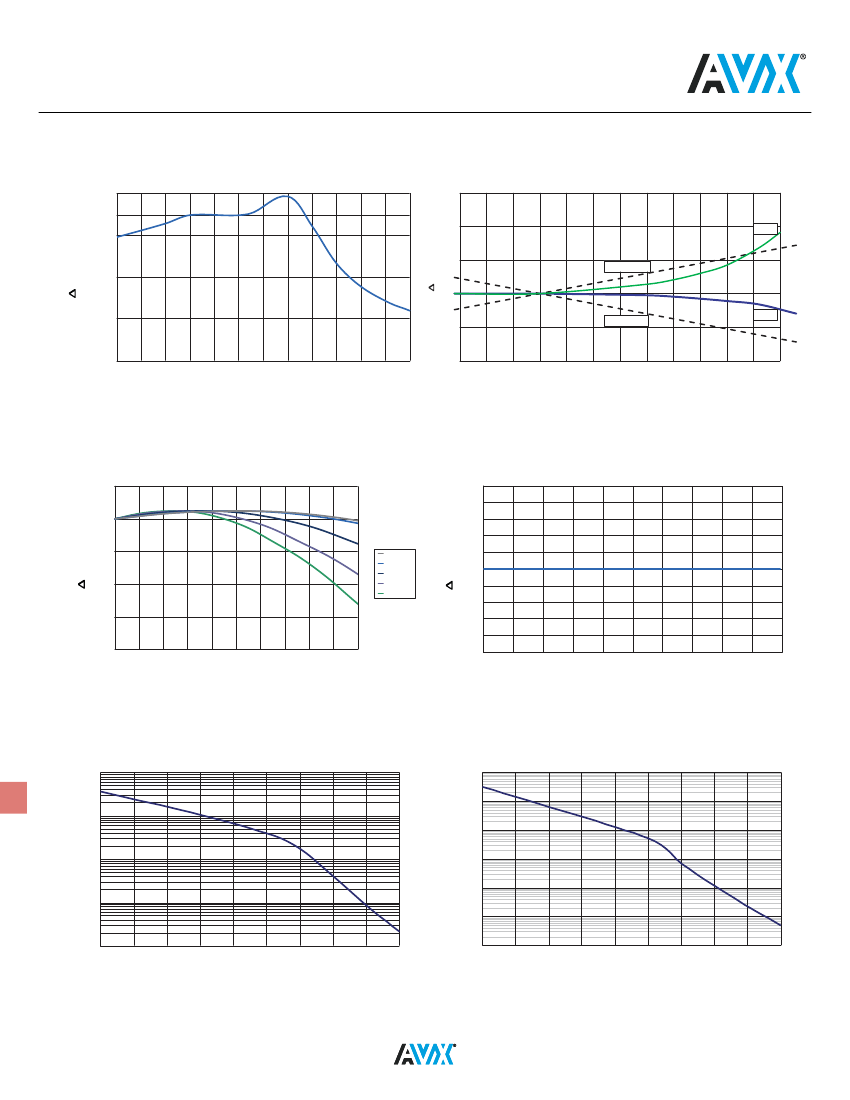

PERFORMANCE CHARACTERISTICS
Typical Temperature Coef cient of Capacitance (VHT Dielectric)
15
Typical Temperature Coef cient of Capacitance (C0G Dielectric)
1.5
1
-13.75
C (%)
C (%)
0.5
+30ppm/
°C
BME
-42.5
0
-71.25
-0.5
-30 ppm/
°C
PME
-100
-1
-50
-25
0
25
50
75
100
125
150
175
200
225
250
-50
-25
0
25
50
75
100
125
150
175
200
225
250
Temperature (°C)
Temperature (°C)
Typical Voltage Coef cient of Capacitance (VHT Dielectric)
5
0
C (%)
Legend:
Capacitor’s Rated
Voltage
16VDC
25VDC
50VDC
100VDC
200VDC
Typical Voltage Coef cient of Capacitance (C0G Dielectric)
1
0.8
0.6
0.4
C (%)
-5
-10
-15
-20
0.2
0
-0.2
-0.4
-0.6
-0.8
-1
0
10
20
30
40
50
60
70
80
90
100
0
10
20
30
40
50
60
70
80
90
100
Percentage of Rated Voltage
Percentage of Rated Voltage
Typical RC vs Temperature (VHT Dielectric)
10000
1000000
Typical RC vs Temperature (C0G Dielectric)
100000
1000
10000
RC (Ω*F)
100
RC (Ω*F)
1000
100
10
10
1
25
50
75
100
125
150
175
200
225
250
1
25
50
75
100
125
150
175
200
225
250
Temperature (°C)
Temperature (°C)
88
080416
High Temperature MLCC
AT Series – 200ºC & 250°C Rated
RELIABILITY
250°C Life Test @ 2x Rated Voltage (VHT Dielectric)
1.1
AT05YT104
AT103T104
AT123T334
AT143T105
250°C Life Test @ 2x Rated Voltage (C0G Dielectric)
48000
Capacitance ( F)
0.825
Capacitance (pF)
36000
AT143A473
AT123A123
0.55
24000
0.275
12000
0
0
250
500
750
1000
0
0
250
500
750
1000
Time (hrs)
VHT - Failure Rate @ 90% Confidence Level (%/1000 hours)
Temperature (°C)
50% Rated Voltage
100% Rated Voltage
200
0.002
0.017
250
0.026
0.210
*Typical 1210, 1812, 2225 Failure Rate Analysis based on 250°C testing and
voltage ratings specified on the following page.
Time (hrs)
C0G - Failure Rate @ 90% Confidence Level (%/1000 hours)
Temperature (°C)
50% Rated Voltage
100% Rated Voltage
200
0.006
0.047
250
0.074
0.590
*Typical 1812 and 2225 Failure Rate Analysis based on 250°C testing and
voltage ratings specified on the following page.

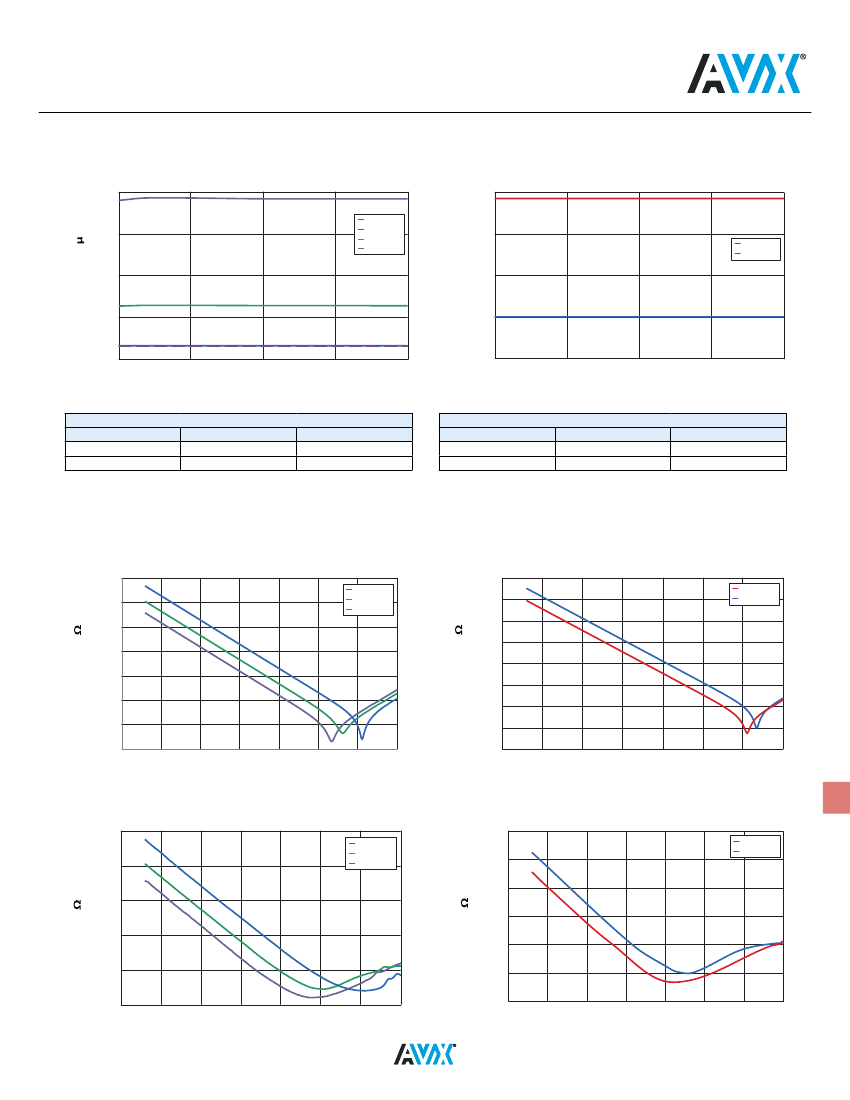

FREQUENCY RESPONSE
