BH054I0333KDA: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 400V, 0.033uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size55KB，4 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

BH054I0333KDA Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 400V, 0.033uF, THROUGH HOLE MOUNT, RADIAL LEADED

BH054I0333KDA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 3024
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: CECC30000; RATED AC VOLTAGE(V): 200
capacitance	0.033 µF
Capacitor type	FILM CAPACITOR
Custom functions	Other Tol. Values Available on Reques
dielectric materials	POLYESTER
high	12 mm
JESD-609 code	e3
length	7.5 mm
Manufacturer's serial number	BH05
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	AMMO PACK
positive tolerance	10%
Rated (AC) voltage (URac)	200 V
Rated (DC) voltage (URdc)	400 V
series	BH05(400 VOLT)
size code	3024
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal pitch	5.08 mm
Terminal shape	WIRE
width	6 mm

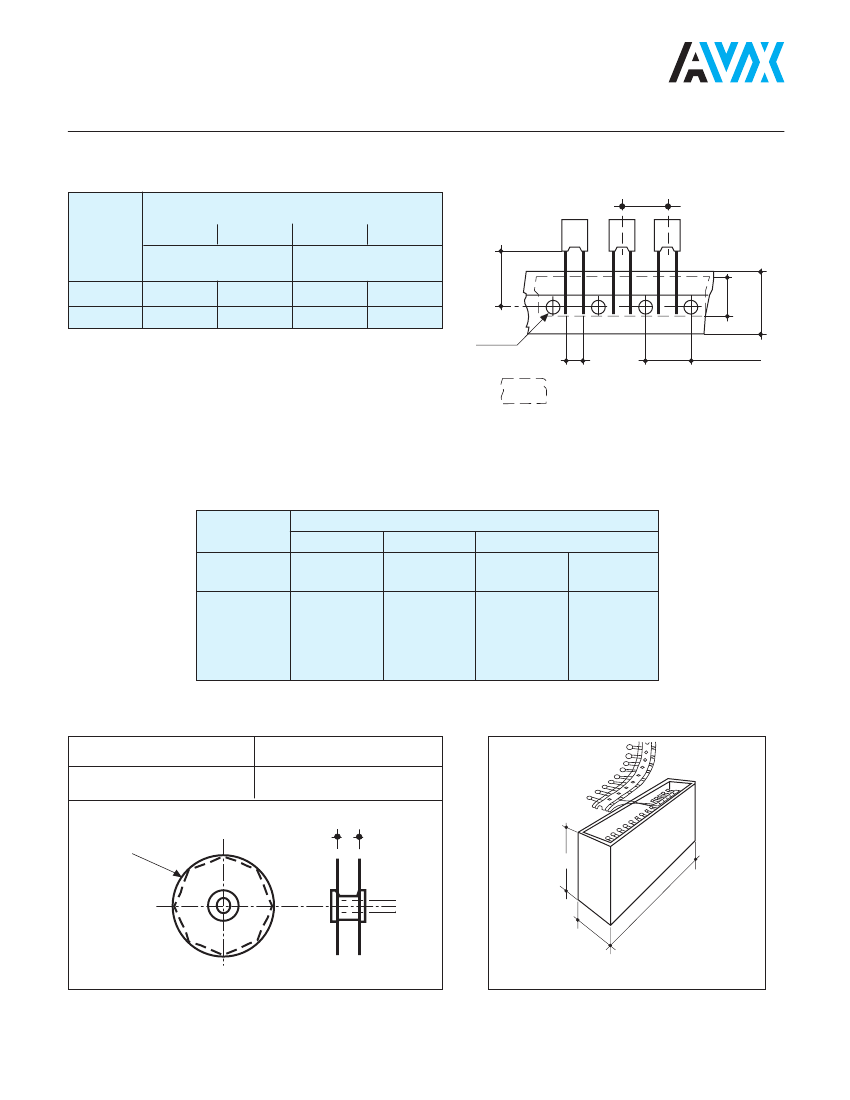

Preview

Download Datasheet

View All

BH 01/02/05/06/07

CPM-N — 5.08 Radial Leads 63/100/250/400 V-

APPLICATIONS

Non-inductive, self-healing, metallized polyester film capacitor.

Insulated* thermoplastic casing, epoxy resin sealed with

stand-offs*. Radial connections with a lead spacing of 5.08

mm.

* Flame retardant case according to UL 94 VO.

Schematic Cross Section

Schoop

Metallized film

0.4 (0.016) min

Some examples of use:

Supply decoupling, filter, integrators, treatment of analog

signals, rejection of line perturbations, etc… Specifically

designed for working in severe environmental conditions

such as automotive applications: engine control, multiplexing

system, etc.

STANDARDIZATION

Generic specifications:

CEI 384-1/CECC 30000/UTE 83100

Sectional specifications:

CEI 384-2/CECC 30400/UTE 83151

On the LNZ list:

Complies with type CPM-N

RAQ2 production, equivalent AQAP-4 of NATO

5.08 (0.020)

+0.6 (0.024)

-0.1 (0.004)

DIMENSIONS:

Case L max.

millimeters (inches)

e max. ø ± 0.02 Observations

1nF

≤

220nF

H max.

7.5 (0.295) 6.5 (0.256) 2.5 (0.098) 0.5 (0.020)

7.5 (0.295) 8.0 (0.315) 3.2 (0.126) 0.5 (0.020) 5.6nF

≤

330nF

7.5 (0.295) 12.0 (0.472) 6.0 (0.236) 0.5 (0.020) 39nF

≤

2.2µF

7.5 (0.295) 9.6 (0.378) 6.0 (0.236) 0.5 (0.020) 18nF

≤

100nF

7.5 (0.295) 8.0 (0.315) 5.0 (0.197) 0.5 (0.020) 8.2nF

≤

1µF

HOW TO ORDER

BH 01

0104

––

Type

Class

Voltage

Capacitance Value

Tolerance

4.1 (0.161)

0.5 (0.020)

Suffix

PERFORMANCE CHARACTERISTICS

55/125/56 - Performance Class 2

1 nF to 2.2 µF (E12)

±5%, ±10%

(other values on request)

Nominal voltages:

R–

63/100/250/400 V

40/63/160/200 V

Category voltage:

= 0.8 V

R-

at 100°C/0.5 V

R-

at 125°C

Test voltage:

= 1.6 V

R-

/2 s at 25°C

Tangent of loss angle: D.F. (see page 4)

Insulation resistance: IR (see page 5)

Max. voltage gradient: (dv/dt)

(see page 5)

Life test:

∆C/C ≤

5% after 125°C/1000

h/0.5 V

R-

Thermal shock:

-55/+125°C/time cycle 1hr/500

cycles

∆C/C ≤

10%, D.F. 1kHz

≤

Humidity test:

85°C/85% R.H./1000 h

∆C/C ≤

10%

Climatic category:

Capacitance range:

Tolerances on C

MARKING

D 104 K E 49

DC nominal voltage

Nominal capacitance (EIA code)

Tolerance (EIA code)

Logo

Lot number

Example above: 63 V

, 100nF, ±10%

R-

(dv/dt)

max

100

250

110

400

270

TPC
