M123A18BRC274KC datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> M123A18BRC274KC

M123A18BRC274KC: DescriptionCeramic Capacitor, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.27uF, 2609,; CategoryPassive components capacitor; File Size196KB，6 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

M123A18BRC274KC Overview

Ceramic Capacitor, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.27uF, 2609,

M123A18BRC274KC Parametric

Parameter Name	Attribute value
Maker	AVX
package instruction	, 2609
Reach Compliance Code	compli
capacitance	0.27 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	7.19 mm
length	6.6 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Axial
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
Guideline	MIL-C-123
series	M123A18 (CKS24)
size code	2609
Temperature characteristic code	X7R
Temperature Coefficient	-/+15ppm/Cel ppm/°C
Terminal pitch	8.3 mm
width	2.3 mm

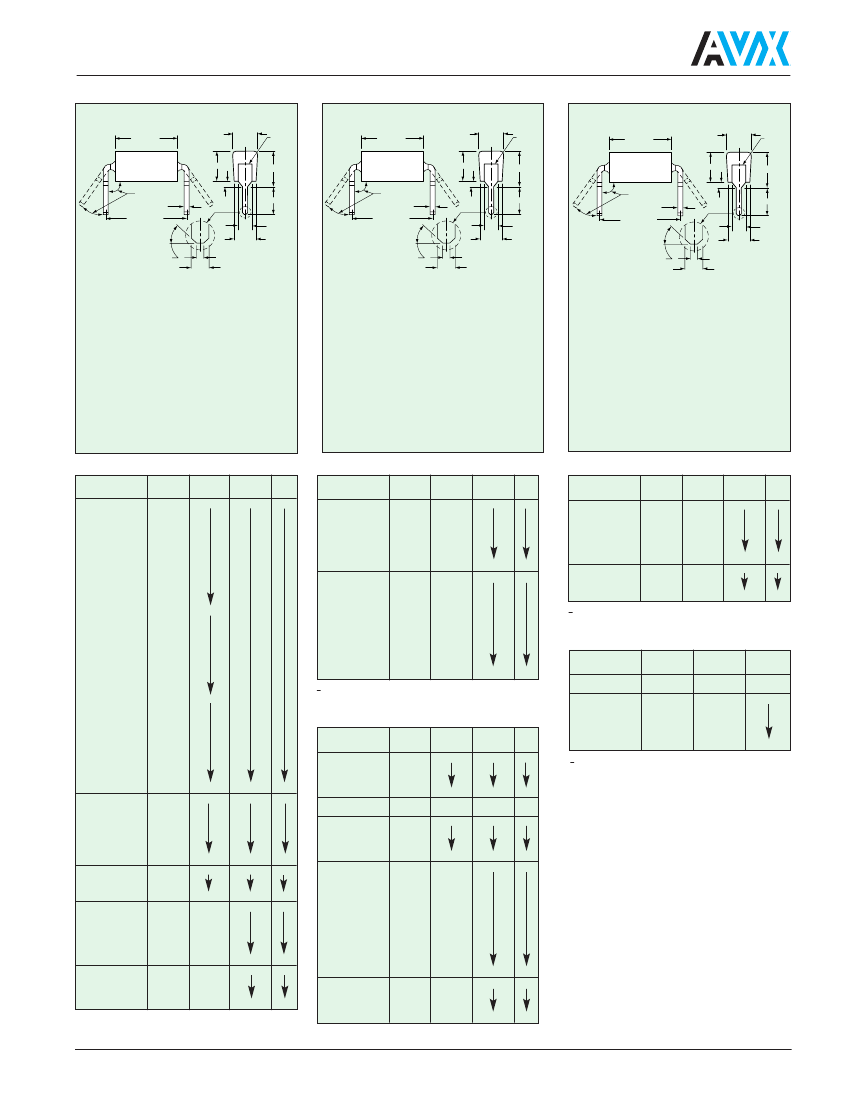

Preview

Download Datasheet

View All

MIL-C-123

HOW TO ORDER

Military Type Designation: Capacitors, Fixed, Ceramic

Dielectric, (Temperature Stable and General Purpose),

High Reliability

Part Number Example

M123

Mil-Spec Number

Modification Spec.

Slash Sheet Number

Characteristic Temperature

Voltage

Capacitance Code

Capacitance Tolerance

Termination

103

Part Number Codes

Voltage-Temperature Limits:

Capacitance change with reference to 25°C

over temperature range -55°C to +125°C

Symbol

Rated Voltage:

Symbol

Capacitance Tolerance:

Symbol

Rated Voltage

Volts, DC

100

Cap. Tolerance

0.25pF

0.5 pF

10%

Without Voltage

0 ± 30 ppm/°C

+15, -15 percent

With Rated DC Voltage

0 ± 30 ppm/°C

+15, -25 percent

Termination:

Lead Capacitors

Symbol

Termination Style

Copper, solder coated (type C-4 or C-5 of MIL-STD-1276)

Copper clad steel, solder coated, 60 micro inches minimum.

CROSS REFERENCE MIL-SPEC TEST REQUIREMENTS

TEST DESCRIPTION

NDT

(Non-Destructive Test)

Pre-Cap Visual

(Pre-Encapsulation

Visual Examination)

D.P.A.

(Destructive Physical Analysis)

Pre-Cap

Terminal Strength

(Pre-Encapsulation Pull Test)

Life Test

(Lot by Lot)

Low Voltage

Humidity

Thermal Shock

100 Cycles

MIL-C-123

100% Ultrasonic Scan or

Neutron-Radiography

100%

Lot by Lot—Pre-Termination

Lot by Lot—Finished Product

Lot by Lot

Lot by Lot—1000 Hours

Lot by Lot

MIL-C-39014

MIL-C-20

MIL-C-55681

M123A18BRC274KC Related Products

	M123A18BRC274KC	M123A17BXC222JC	M123A07BPB683KW
Description	Ceramic Capacitor, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.27uF, 2609,	Ceramic Capacitor, Ceramic, 100V, 5% +Tol, 5% -Tol, BX, -/+15ppm/Cel TC, 0.0022uF, 2609,	Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, BP, -/+30ppm/Cel TC, 0.068uF,
Maker	AVX	AVX	AVX
package instruction	, 2609	, 2609	,
Reach Compliance Code	compli	compli	compliant
capacitance	0.27 µF	0.0022 µF	0.068 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC
length	6.6 mm	6.6 mm	12.7 mm
negative tolerance	10%	5%	10%
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package form	Axial	Axial	Axial
positive tolerance	10%	5%	10%
Rated (DC) voltage (URdc)	100 V	100 V	50 V
Guideline	MIL-C-123	MIL-C-123	MIL-C-123
series	M123A18 (CKS24)	M123A17 (CKS23)	M123A07 (CKS15)
Temperature characteristic code	X7R	BX	BP
Temperature Coefficient	-/+15ppm/Cel ppm/°C	-/+15ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C
high	7.19 mm	3.94 mm	-
size code	2609	2609	-
Terminal pitch	8.3 mm	8.3 mm	-
width	2.3 mm	2.3 mm	-
