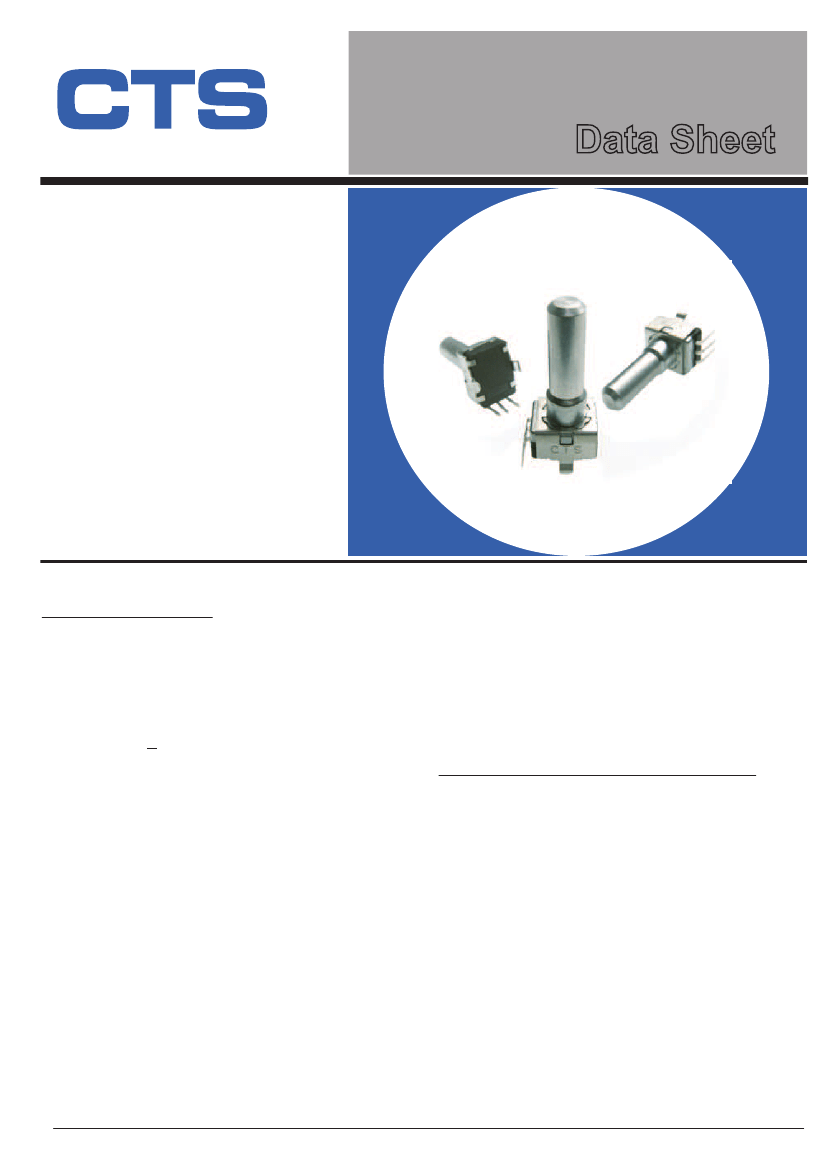

Series 290 Encoder

Technical

Data Sheet

Commercial

Miniature 9mm

Encoders

Features

• Miniature 9mm style

• 2 bit quadrature (Graycode)

• Optional momentary switch

• Continuous rotation

• Durable metal shaft

• Available with 16 or 20 detents

• RoHS compliant

Electrical and Mechanical Specifications

Encoder Ratings :

Contact Resistance

1Ω maximum

Voltage Rating (each channel)

12 VDC @ 10 mA maximum.

5 VDC @ 1 mA minimum.

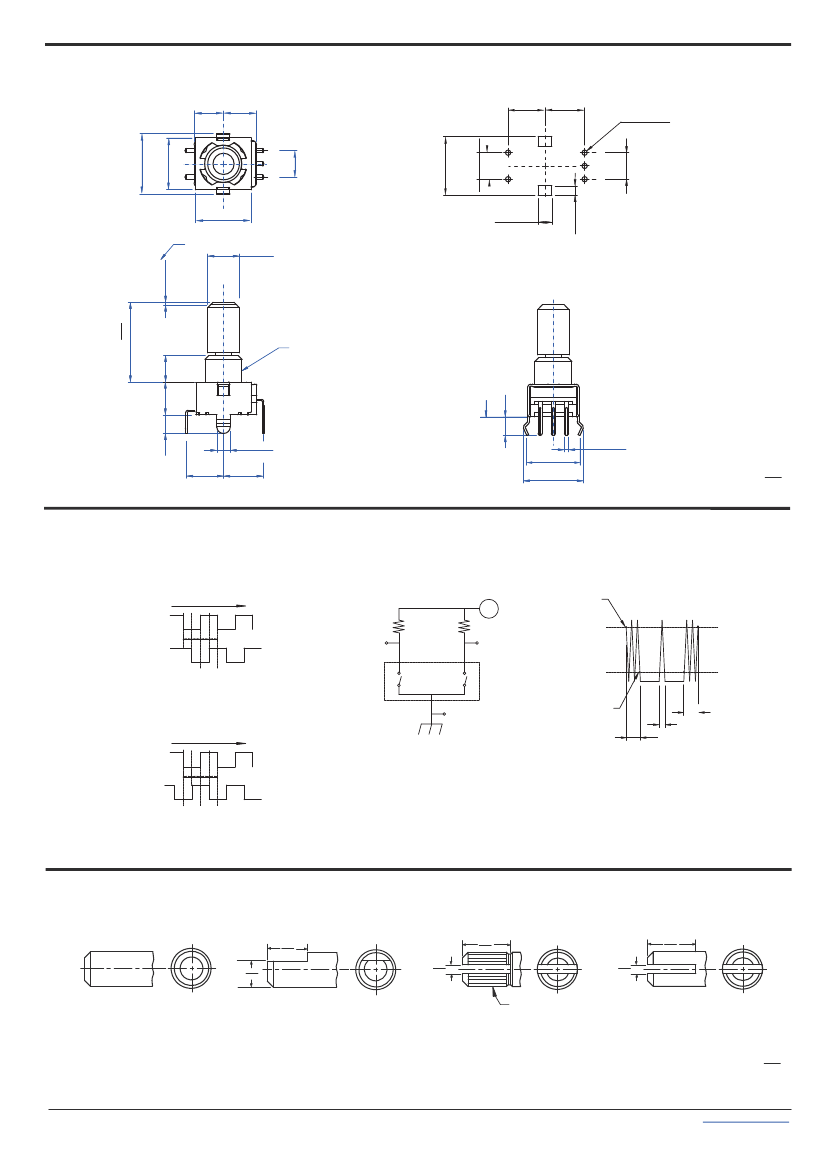

Phase Difference (FIG.1)

T1,T2,T3,T4 2 milliseconds min for 20 pulse encoder.

- 8 milliseconds min for 8 pulse encoder.

Contact Bounce / Chatter (FIG.3)

t1, t2, t3 - 3 milliseconds max.

Detent Points

16 or 20 detents available

Rotational Life

50,000 cycles

Resolution

8 or 20 pulses in 360°

Insulation Resistance

100 megohms between all terminals &

bushing at 250 VDC

Temperature Ratings

Operation: - 30°C to +70°C

Solderability

Flux for 5 - 10 sec., then dip into a

solder bath at 260 ±5°C for 3 sec.

Pull and Thrust on Shaft

Withstand a pushing or pulling force of

10 kg-f static load applied in axial direction

for 10 ±1 sec. without physical damage or

electrical degradation.

Momentary SPST Switch Ratings :

Switch Contact Resistance

100 mΩ maximum initial, 200mΩ after life cycles

Switch Rating

16 VDC @ 10mA min. to 0.5A max.

Switch Bounce

5 milliseconds maximum

Switch Operating Force

600 ±300 grams (21 ±11oz) for 0.5mm (.020") travel

Switch Life

100,000 operations for 0.5mm (.020") travel

Switch Travel

0.5mm (.020")

1-3

CTS Electronic Components

01/07/15

www.ctscorp.com
