Optimized Design for Low Plating Capacitance and ESR
Improves Start-Up and Power Savings for Low Energy Applications
Hermetic Ceramic Surface Mount Package
Fundamental Crystal Design

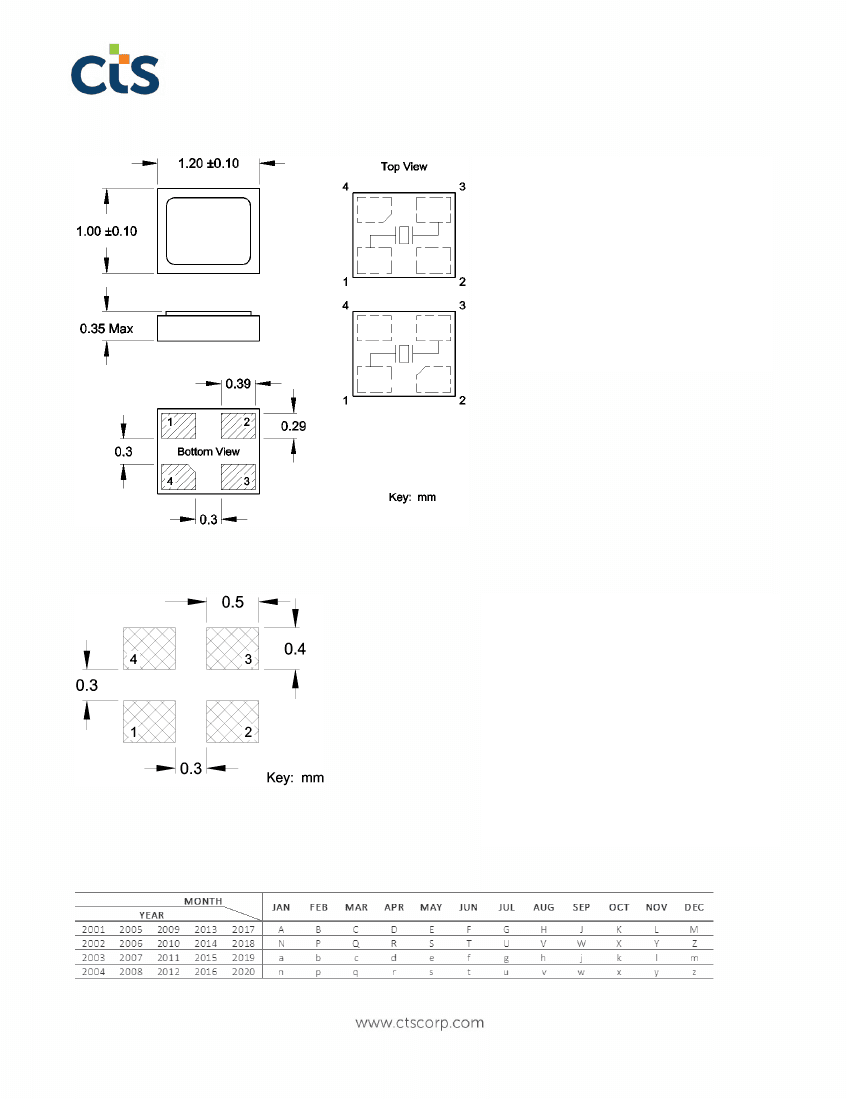

Part Dimensions:
1.2 × 1.0 × 0.35mm • 1.530222mg
Frequency Range 32 – 80MHz
Operating Temperature Range to -40°C to +125°C
Standard Frequencies – see Page 5 for developed frequencies.
* Check with factory for availability of frequencies not listed.

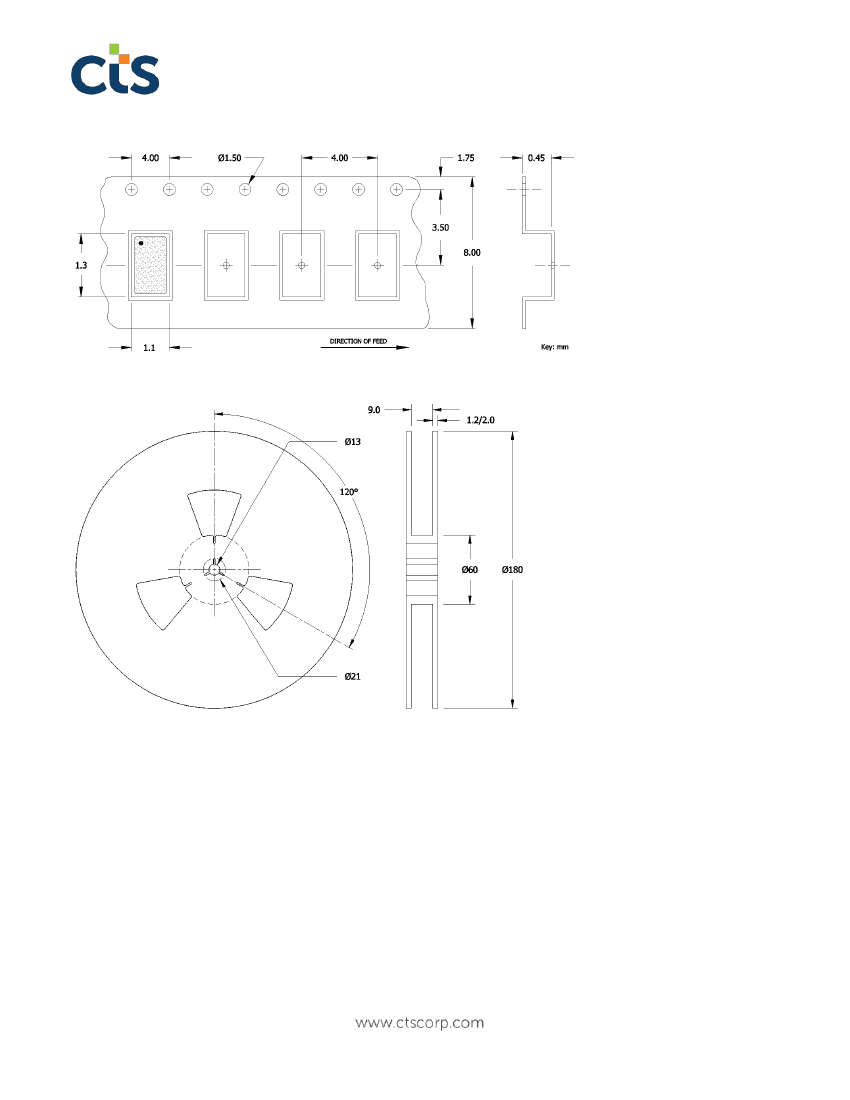

Tape and Reel Packaging, EIA-418
WiFi, ZigBee, ZigBee RF4CE, Z-Wave
Bluetooth, Bluetooth Low Energy
LoRa, LPWAN, 6LowPan, WLAN
Near Field Communication
Low Drive Chipsets
ISM Band Applications
Model 412W
Applications
Wireless Communications
Low Power MCUs, SoCs, RF ICs
M2M Communications
Description
CTS Model 412W incorporates a high Q quartz resonator and has optimized design parameters for Low ESR and
Load Capacitance [C
L
]. M412W is ideal for supporting commercial and industrial IoT applications using low power
MCUs, portable RF communication ICs and low drive chipsets.
Ordering Information
Model
412W
Mode of
Oscillation
F
Frequency Code
[MHz]
XXX
Tolerance
@ +25°C
3
Temperature
Stability
5
Temperature
Range
C
Load
Capacitance
D
Packaging
R
Mode
Code
Fundamental
F
Code
T
1
X
2
Y
3
Tolerance
±7ppm
±10ppm
±15ppm
±20ppm
±25ppm
±30ppm
Temp. Range
Code
C
-20°C to +70°C
2
D
-30°C to +85°C
2
I
-40°C to +85°C
3
G
-40°C to +105°C
4
H
-40°C to +125°C
5
Code
R
Packing
3k pcs./reel
Code
Frequency
Product Frequency Code
1
Code
1
X
2
Y
Stability
±10ppm
±15ppm
±20ppm
±25ppm
Code
3
5
6
Stability
±30ppm
±50ppm
±100ppm
Code
M
W
T
V
Capacitance
4pF
5pF
6pF
7pF
Code
K
J
A
Capacitance
8pF
9pF
10pF
Notes:
1]
2]
3]
4]
5]
Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz.
Available with all stability codes.
Available with stability codes X, 2, Y, 3, 5 and 6.
Available with stability codes 3, 5 and 6.
Available with stability codes 5 and 6. Contact factory for availability.
Not all performance combinations and frequencies may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this
product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
