Frequency Stability, Overall ±4.6ppm [-40°C to +85°C]
Operating Temperature Range to -40°C to +105°C
Voltage Control Option for Frequency Tuning [VCTCXO]
Enable Function Option Available
Tape and Reel Packaging, EIA-418
5G, 4G, LTE
Femtocells, RRU, BBU
Military Radio [Manpack]
Inflight Entertainment

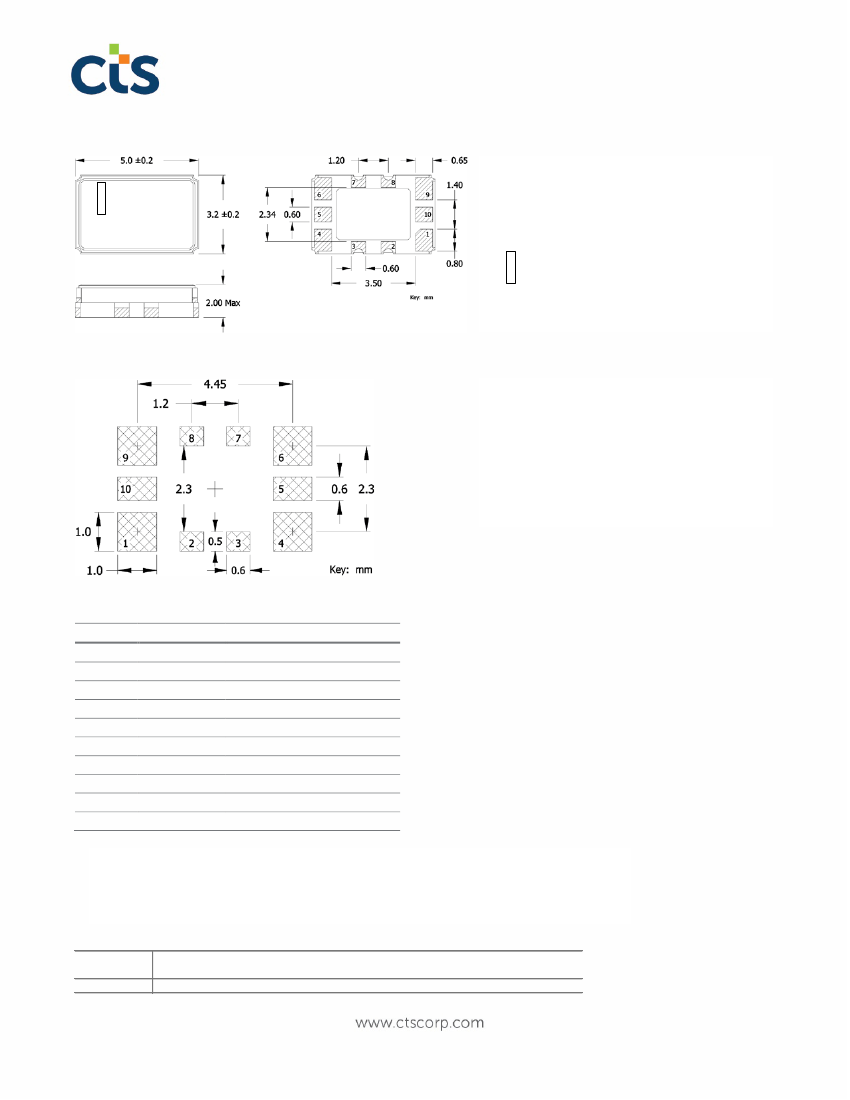

Part Dimensions:
5.0 × 3.2 × 2.0mm
Standard Frequencies – see Page 7 for common frequencies.
* Check with factory for availability of frequencies not listed.
Applications
Autonomous Technologies
Synchronous Ethernet
IP Networking
Medical Imaging
Stratum 3
IEEE 1588 Timing
Wireless Communication
Test and Measurement
Description
CTS Model 535 is a high performance Temperature Compensated Crystal Oscillator [TCXO] suitable for
applications requiring tight stability, Stratum 3 performance and more. Employing IC technology with Clipped
Sine output and analog temperature compensation engine; coupled with a fundamental quartz crystal M535 has

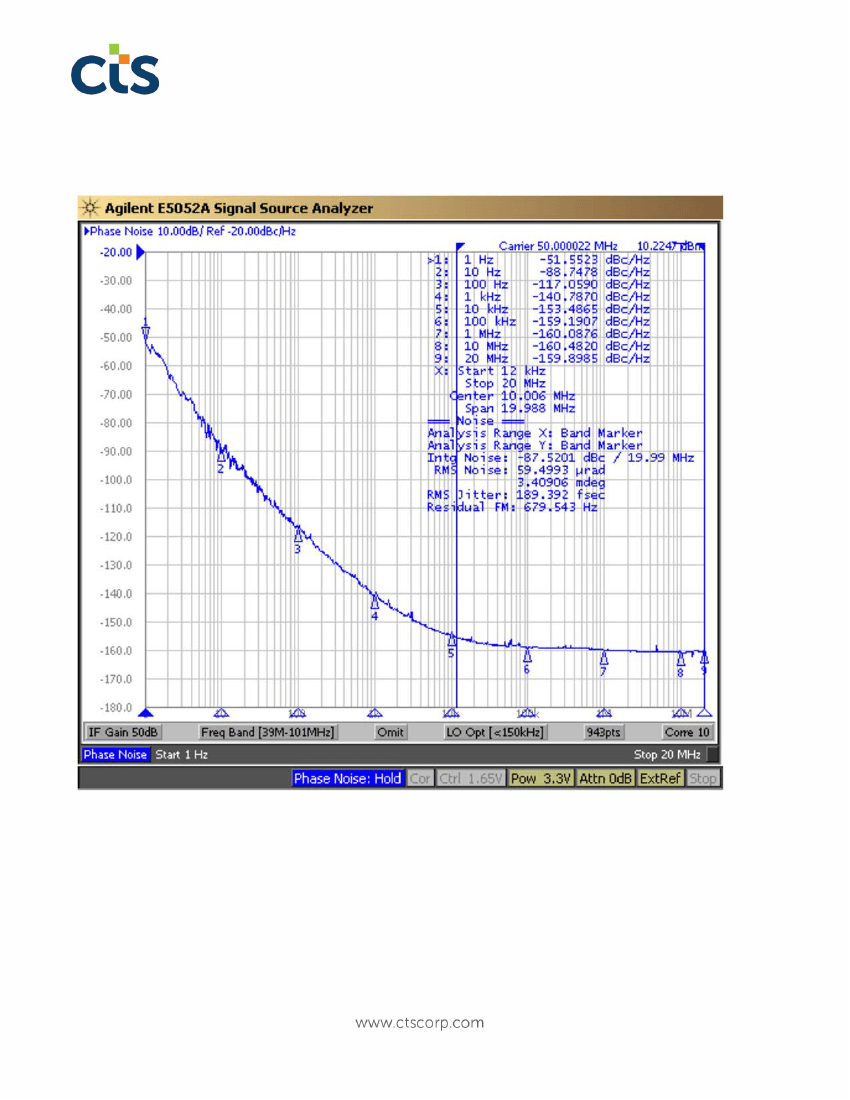

excellent stability and low jitter/phase noise performance.
Ordering Information
Model
535
Output
Enable
Supply
Voltage
L
Frequency Code
[MHz]
Frequency
Stability
X2
2
XXX
Temperature
Range
I
Frequency Tuning
T
Packaging
5
Code Function
Blank No Enable
E Enable, Pin 3
Code
Frequency
Product Frequency Code
1
Temp. Range
Code
-10°C to +70°C
C
-40°C to +85°C
I
G
-40°C to +105°C
3
Code
01
X2
05
Stability
±0.10ppm
±0.28ppm
±0.50ppm
Frequency Deviation
Code
T
TCXO
[No Voltage Control]
A ±5ppm - ±10ppm [
VCTCXO
]
Packing
Code
5 500 pcs./reel
Code
L
Voltage
+3.3Vdc

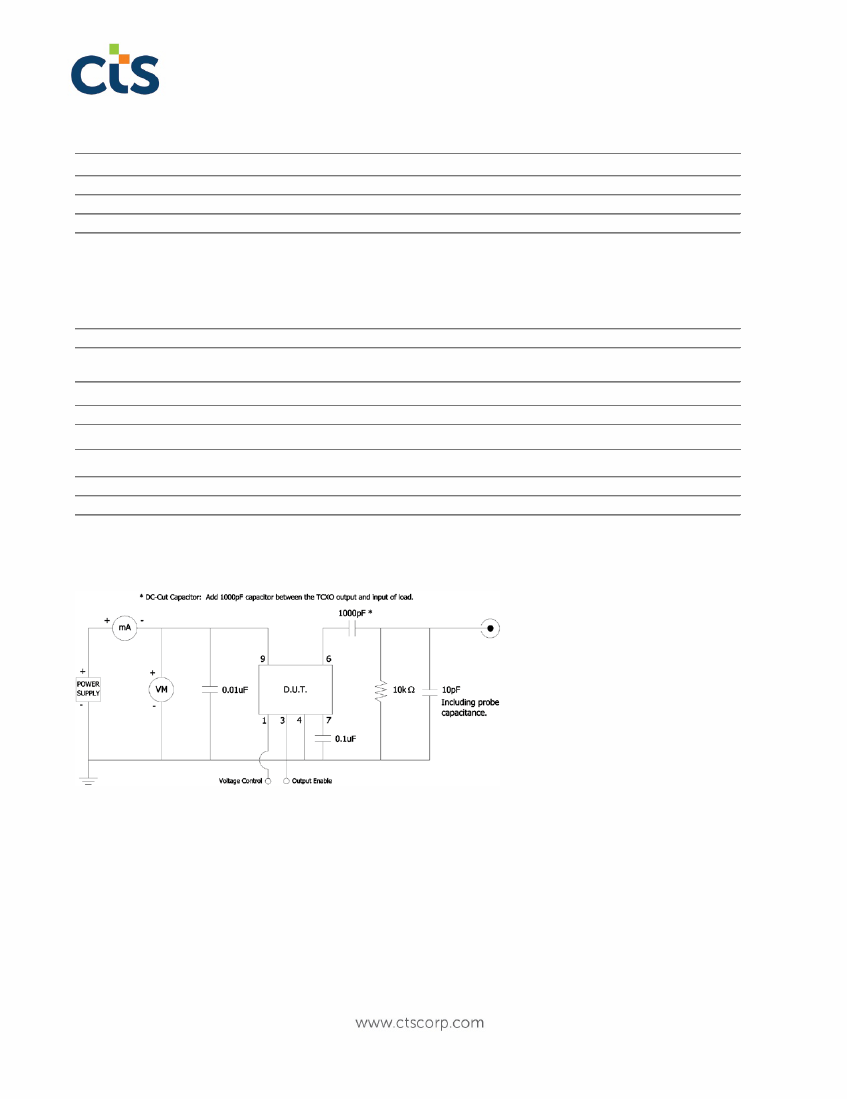

Notes:
1] Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz, 4-digits for frequencies 100MHz or greater.
2] Frequency vs. Temperature only.
3] Available with stability code X2 and 05 only.
Not all performance combinations and frequencies may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this
product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.
