536L25005CT5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 536L25005CT5

536L25005CT5: DescriptionHCMOS Output Clock Oscillator, 25MHz Nom,; CategoryPassive components oscillator; File Size444KB，7 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric Compare View All

536L25005CT5 Overview

HCMOS Output Clock Oscillator, 25MHz Nom,

536L25005CT5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CTS
package instruction	LCC10,.12X.2,50/40
Reach Compliance Code	unknow
Ageing	1 PPM/FIRST YEAR
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	0.5%
Installation features	SURFACE MOUNT
Number of terminals	10
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
Encapsulate equivalent code	LCC10,.12X.2,50/40
physical size	5mm x 3.2mm x 2mm
longest rise time	8 ns
Maximum slew rate	10 mA
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

Model 536

Features



High Stability HCMOS TCXO

Fundamental Crystal Design

Frequency Range 10 – 54MHz *

Operating Voltage +3.3V

Frequency Stability, Overall ±4.6ppm [-40°C to +85°C]

Operating Temperature Range to -40°C to +105°C

Voltage Control Option for Frequency Tuning [VCTCXO]

Enable Function Option Available

Tape and Reel Packaging, EIA-418

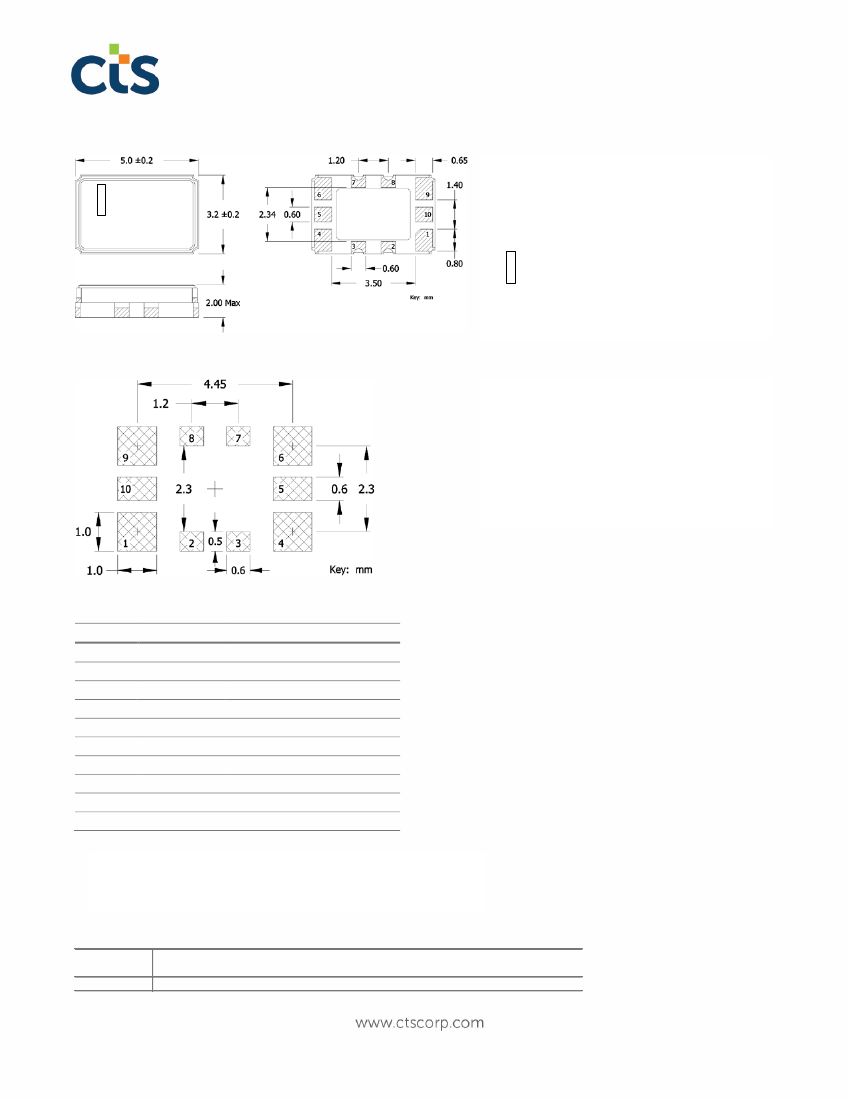

Part Dimensions:

5.0 × 3.2 × 2.0mm

Standard Frequencies – see Page 7 for developed frequencies.

* Check with factory for availability of frequencies not listed.

Applications



5G, 4G, LTE

Femtocells, RRU, BBU

Military Radio [Manpack]

Inflight Entertainment



Autonomous Technologies

Synchronous Ethernet

IP Networking

Medical Imaging



Stratum 3

IEEE 1588 Timing

Wireless Communication

Test and Measurement

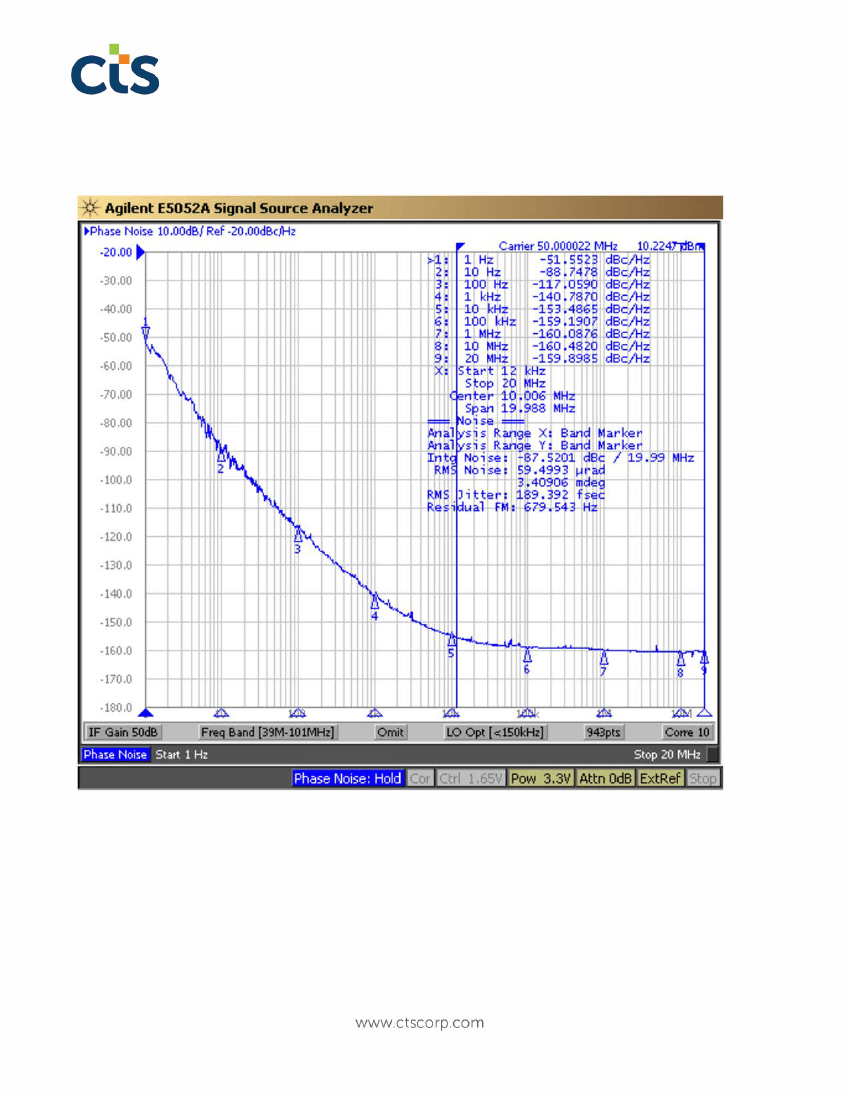

Description

CTS Model 536 is a high performance Temperature Compensated Crystal Oscillator [TCXO] suitable for

applications requiring tight stability, Stratum 3 performance and more. Employing IC technology with HCMOS

output and analog temperature compensation engine; coupled with a fundamental quartz crystal M536 has

excellent stability and low jitter/phase noise performance.

Ordering Information

Model

536

Output

Enable

Supply

Voltage

Frequency Code

[MHz]

Frequency

Stability

XXX

Temperature

Range

Frequency Tuning

Packaging

Code Function

Blank No Enable

E Enable, Pin 3

Code

Frequency

Product Frequency Code

Temp. Range

Code

-10°C to +70°C

-40°C to +85°C

-40°C to +105°C

Code

Stability

±0.10ppm

±0.28ppm

±0.50ppm

Frequency Deviation

Code

TCXO

[No Voltage Control]

A ±5ppm - ±10ppm [

VCTCXO

]

Packing

Code

5 500 pcs./reel

Code

Voltage

+3.3Vdc

Notes:

1] Refer to document 016-1454-0, Frequency Code Tables. 3-digits for frequencies <100MHz, 4-digits for frequencies 100MHz or greater.

2] Frequency vs. Temperature only.

3] Available with stability code X2 and 05 only.

Not all performance combinations and frequencies may be available.

Contact your local CTS Representative or CTS Customer Service for availability.

This product is specified for use only in standard commercial applications. Supplier disclaims all express and implied warranties and liability in connection with any use of this

product in any non-commercial applications or in any application that may expose the product to conditions that are outside of the tolerances provided in its specification.

DOC# 008-0587-1 Rev. E

Page 1 of 7

equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.

536L25005CT5 Related Products

	536L25005CT5	536EL20005CT5	536EL25005CA5	536EL25005CT5	536L20005CA5	536L20005CT5	536EL200X2CA5
Description	HCMOS Output Clock Oscillator, 25MHz Nom,	HCMOS Output Clock Oscillator, 20MHz Nom,	HCMOS Output Clock Oscillator, 25MHz Nom,	HCMOS Output Clock Oscillator, 25MHz Nom,	HCMOS Output Clock Oscillator, 20MHz Nom,	HCMOS Output Clock Oscillator, 20MHz Nom,	HCMOS Output Clock Oscillator, 20MHz Nom,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown
Ageing	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR	1 PPM/FIRST YEAR
maximum descent time	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO
frequency stability	0.5%	0.5%	0.5%	0.5%	0.5%	0.5%	0.28%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	10	10	10	10	10	10	10
Nominal operating frequency	25 MHz	20 MHz	25 MHz	25 MHz	20 MHz	20 MHz	20 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Oscillator type	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
Encapsulate equivalent code	LCC10,.12X.2,50/40	LCC10,.12X.2,50/40	LCC10,.12X.2,50/40	LCC10,.12X.2,50/40	LCC10,.12X.2,50/40	LCC10,.12X.2,50/40	LCC10,.12X.2,50/40
physical size	5mm x 3.2mm x 2mm	5mm x 3.2mm x 2mm	5mm x 3.2mm x 2mm	5mm x 3.2mm x 2mm	5mm x 3.2mm x 2mm	5mm x 3.2mm x 2mm	5mm x 3.2mm x 2mm
longest rise time	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns	8 ns
Maximum slew rate	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA	10 mA
Maximum supply voltage	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V
Minimum supply voltage	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
Maker	CTS	CTS	CTS	CTS	CTS	CTS	-
package instruction	LCC10,.12X.2,50/40	LCC10,.12X.2,50/40	-	LCC10,.12X.2,50/40	-	LCC10,.12X.2,50/40	LCC10,.12X.2,50/40
Other features	-	ENABLE/DISABLE FUNCTION	ENABLE/DISABLE FUNCTION	ENABLE/DISABLE FUNCTION	-	-	ENABLE/DISABLE FUNCTION
