FEATURES AND SPECIFICATIONS
Molex’s CMC product family now includes the Hybrid PCB connector header
for the automotive market
The CMC Hybrid PCB Header has been developed to meet the Euro III emission
control requirements. Maximizing the efficiency of fuel management system
took priority during the design stage.
The CMC Hybrid PCB Connector has a mounting flange which allows it to be
firmly secured onto the application. The optional snap-in peg provides retention
of the connector to the PCB during soldering. Terminal used is right-angle-
twisted during stamping. This process enables strong terminal rigidity. Circuit
size options between 1 to 48 for single port and 1-96 for double port provide
design flexibility for application manufacturers.
A major application of this connector would be the engine controls.
2.54 mm(0.100”) / 3.50mm
(0.138”) Pitch PCB Header
36638

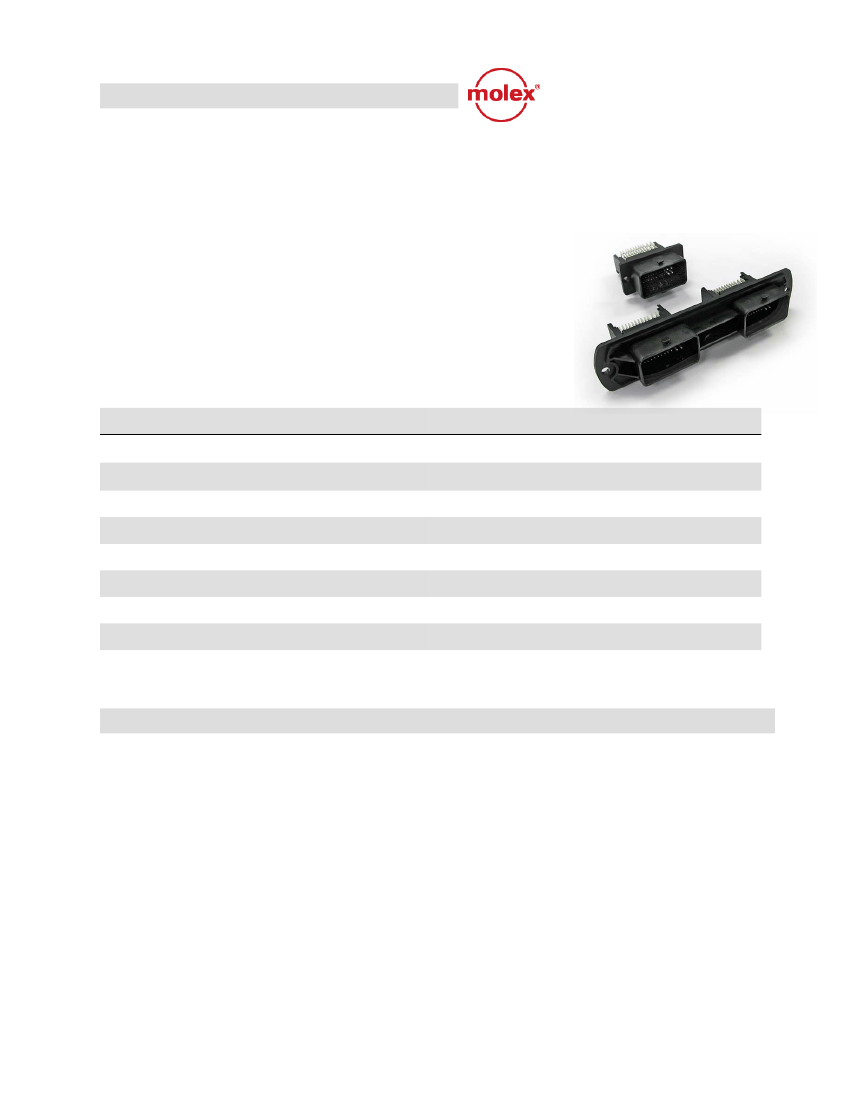

CMC Hybrid PCB Header
Features
•
Polarized geometry
•
Wire-to-board right angle header with mounting flanges
•
Extended power pin
•
Optional Snap-In peg
•
Options for different circuit sizes for single and double port
•
Wave and Manual solder compatible
•
Tapered lead-in on PC tails
•
Shrouded geometry
Benefits
•
To prevent mismatching the header and receptacle
•
Easy mounting of header assembly to the chassis.
•
Grounding due to First Mate /Last break
•
Retention of header to PCB
•
Circuit configurations flexibility
•
Solder process flexibility
•
Ease of insertion into the PCB board
•
Identifying of sealed and unsealed applications
SPECIFICATIONS
Reference Information
Packaging: Tray
UL File No.:
CSA File No.:
Black :
Left - 0989931311 Receptacle
Right - 0989933311 Receptacle
Brown :
Left - 0989931319 Receptacle
Right - 0989933319 Receptacle
Designed In: Millimeters
Electrical
Voltage: 250 V
Current: 5A / 15 A
Contact Resistance : 20 milliohms max
Dielectric Withstanding Voltage: 500V DC
Insulation Resistance: 100 Megohms min
Mechanical
Contact Insertion Force: 35.00N(7.86lb) min
Contact Retention to Housing: 35.00 N(7.86lb) min
Mating Force: 80.00N(17.98 lb)
Unmating Force: 80.00N(17.98 lb)
Physical
Housing: PBT Polyester, Black,
UL 94-HB Glass-filled
Contact: Brass (Cu Zn) Alloy
Plating:
Contact Area — 4.0µm (160µ") Tin (Sn)
Solder Tail Area — 4.0µm160µ")Tin(Sn)
Under plating — 1.3µm (50µ")Nickel(Ni)
PCB Thickness: Ref order table
Operating Temperature: -40°C to 100°C
Markets and Applications
2.54 mm(0.100”) / 3.50mm
(0.138”) Pitch PCB Header
36638
CMC Hybrid PCB Header
Automotive
ECU Applications
–
EMS(Engine Management System ) for 4 Wheeler
–
EGR(Emission Gas Release) system
–
Body control module
–
Solenoid valve
–
EMS(Engine Management System ) for two wheeler
CMC Connectors in Engine Application
Ordering Information
Pin Projection out
from PCB Solder
Surface
1.3mm/0.9mm
1.3mm
1.3mm/0.9mm
1.3mm
1.3mm/0.9mm
1.3mm
1.3mm/0.9mm
1.3mm
1.3mm/0.9mm
1.3mm
Description
CMC Header , 2 port
CMC Header, 48 way X 1,
T3 interface, Black
Order No.
36638-0001
36638-0002
36638-0004
36638-0003
36638-0005
36638-0006
36638-0008
36638-0007
36638-0009
36638-0010
PCB Thickness
1.6mm / 2mm
1.6mm
1.6mm / 2mm
1.6mm
1.6mm / 2mm
1.6mm
1.6mm / 2mm
1.6mm
1.6mm / 2mm
1.6mm
PCB
Locking
No
Yes
No
Pins
Loaded
72
Circuit
Size
96
48
CMC Header, 48 way X 1,
T3 interface, Brown
Yes
No
Yes
No
Yes
No
Yes
72
96
36
48
CMC Header, 48 way X 1,
Black
CMC Header, 48 way X 1,
Brown
CMC Header, 2 port
