752105221AGPTR13 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 752105221AGPTR13

752105221AGPTR13: DescriptionArray/Network Resistor, Terminator, 1.4W, 25V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 0856, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size209KB，6 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

752105221AGPTR13 Overview

Array/Network Resistor, Terminator, 1.4W, 25V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 0856, CHIP, ROHS COMPLIANT

752105221AGPTR13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DUAL TERMINATOR
Component power consumption	0.12 W
The first element resistor	330 Ω
JESD-609 code	e3
Manufacturer's serial number	752
Installation features	SURFACE MOUNT
Network Type	TERMINATOR
Number of components	2
Number of functions	8
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
Rated power dissipation(P)	1.4 W
Rated temperature	25 °C
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	680 Ω
size code	0856
surface mount	YES
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Tolerance	2%
Operating Voltage	25 V

Preview

Download Datasheet

View All

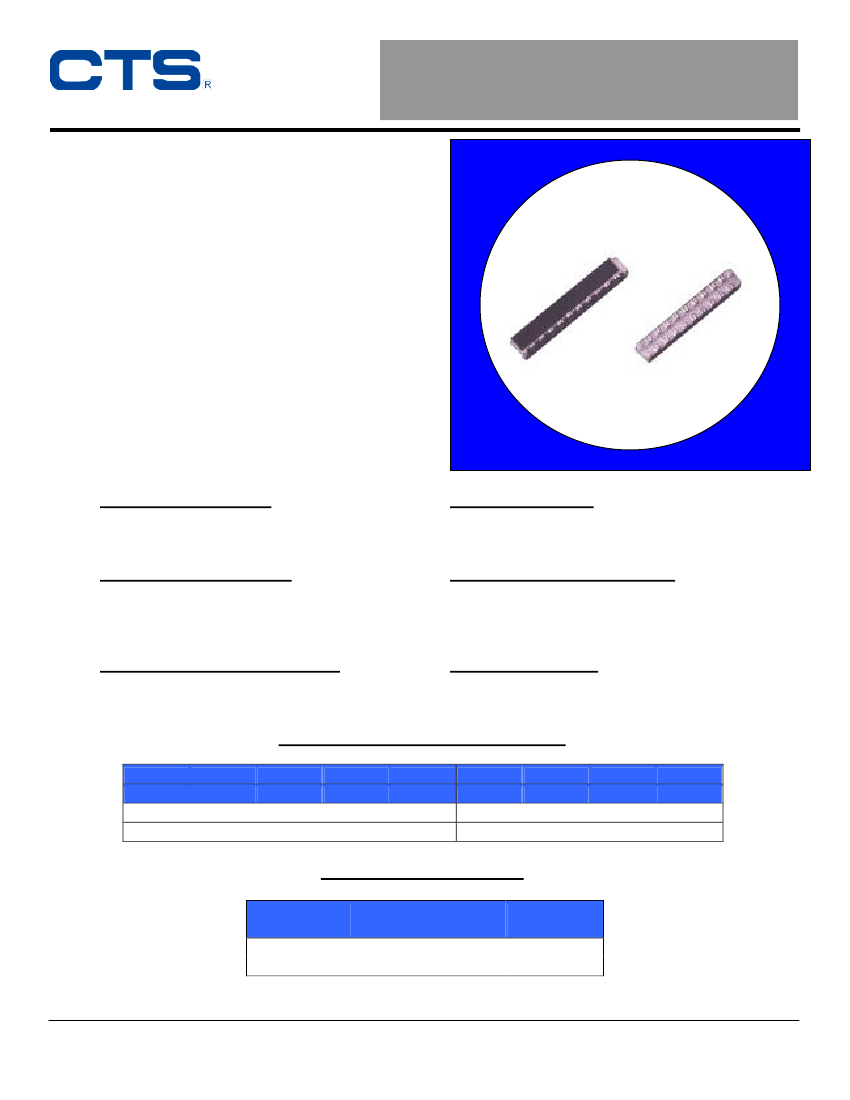

Leadless Surface Mount Series 752

Technical

Data

Features

•

High Density Packaging

Low profile

Inputs/Outputs Available:

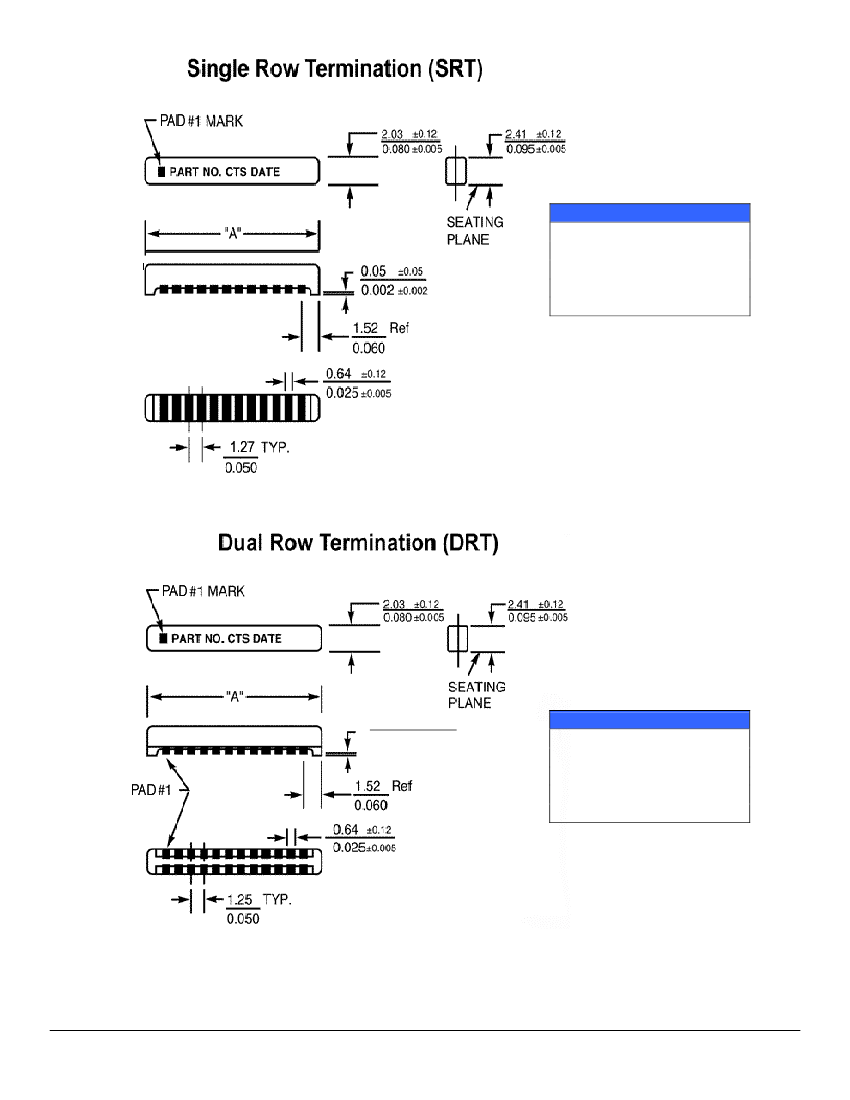

Single Row Terminations (SRT) – 8, 9, 10, 12

Dual Row Terminations (DRT) – 16, 18, 20, 24

Nickel Barrier Solder-Coated Pads

Designed For Visual Inspection of Solder Joints

Designed For Board Cleaning

Tape & Reel Packaging

Application Specific Circuits Are Available

Compatible With IR Reflow Solder Process

RoHS Compliant Version Available

Resistance Tolerance:

Standard: ±2% or 0.5Ω (whichever is greater)

Special: ±1% or 0.3Ω (whichever is greater)

Resistance Range:

Standard: 10Ω to 1 MegΩ

Temperature Coefficient:

Standard: ±200PPM/°C

Special: ±100PPM/°C

(33Ω to 1 MegΩ)

Maximum Operating Voltage:

25V not to exceed rated power

Operating Temperature Range:

-55°C to + 125°C

Dielectric Strength:

00 VAC

Power Rating (Total Network Power):

Number of inputs/outputs (watts)

SRT

DRT

@25°C

@70°C

1.2

0.8

1.3

0.85

1.4

0.9

1.7

1.1

1.4

0.9

1.5

0.95

1.6

1.3

Maximum Resistor Power:

(Not to Exceed Total Network Power)

Bussed & Dual

Terminator Schematic

0.12w

0.08w

Isolated

Schematic

0.24w

0.16w

July 2006

@25°C

@70°C

1 of 6

CTS Electronic Components

www.ctscorp.com
