36DY
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Large Can
FEATURES
•
The industry standard for large can aluminum capacitors
•
Ideal for high wattage power supplies and energy storage
applications
•
Capacitance values to 2.2 farads
•
Largest CV available
•
Highest voltage available
Fig. 1 Component Outlines.
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
ØD x L in mm
Operating temperature
Rated capacitance
range, C
R
Tolerance on C
R
Rated voltage range, U
R
Termination
Life validation test
at 85 °C
VALUE
1.375” x 1.625” [35.0 x 41.3]
to 3.00” x 8.675” [76.2 x 220.3]
- 40 °C to + 85 °C
100 µF to 2.2 µF
- 10% to 50 %
6.3 WVDC to 450 WVDC
screw thread
2000 hours:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.5 x initial
specified limit.
Δ
DCL
≤
initial specified
limit
500 hours:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.2 x initial
specified limit.
Δ
DCL
≤
2 x initial
specified limit
I = K CV
K = 4.0 at + 25 °C; 32.0 at + 85 °C.
I in µA, C in µF, V in Volts
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+ 85 °C
+ 75 °C
+ 65 °C
+ 55 °C and below
FREQUENCY (Hz)
RATED WVDC
0 - 50
51 - 100
150 - 300
301 - 450
120
1.0
1.0
1.0
1.0
400
1.05
1.10
1.15
1.20
1000 AND UP
1.10
1.15
1.25
1.30
MULTIPLIERS
1.0
1.4
1.7
2.0
Shelf life at 85 °C
DC leakage current
DIMENSIONS
in inches [millimeters]
CASE
CODE
AN
AY
AA
AM
AB
AL
AC
AD
AE
AF
NOMINAL
D
± 0.032 [0.8]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
L
± 0.063 [1.6]
1.625 [41.0]
1.875 [48.0]
2.125 [54.0]
2.625 [67.0]
3.125 [79.0]
3.625 [92.0]
4.125 [105.0]
4.625 [117.0]
5.125 [130.0]
5.625 [143.0]
LARGE CAN CAPACITORS
WITH INSULATING SLEEVE
D
(Max.)
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
L
(Max.)
1.750 [44.5]
2.000 [50.8]
2.250 [57.2]
2.750 [69.9]
3.250 [82.6]
3.750 [95.3]
4.250 [108.0]
4.750 [120.7]
5.250 [133.4]
5.750 [146.1]
P TERMINAL
H (Max.)
1.849 [47.0]
1.099 [53.3]
1.349 [59.7]
1.849 [72.4]
1.349 [85.1]
1.849 [97.8]
1.349 [110.5]
1.849 [123.2]
1.349 [125.9]
1.849 [148.6]
TERMINAL
SPACING
M ± 0.016 [0.4]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
TYPICAL
WEIGHT
(
Grams
)
43.0
54.0
63.0
82.0
105.0
122.0
129.0
162.0
179.0
201.0
www.vishay.com
237
Document Number: 42065
Revision: 25-Apr-05
For technical questions contact: aluminumcaps4@vishay.com
36DY
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Large Can
DIMENSIONS
in inches [millimeters]
CASE
CODE
EN
EY
EA
EM
EB
EL
EC
ED
EE
EF
BY
BA
BM
BB
BL
BC
BD
BE
BF
CB
CL
CC
CD
CE
CF
DB
DL
DG
DD
DE
DF
DJ
NOMINAL
D
± 0.032 [0.8]
1.750 [44.0]
1.750 [44.0]
1.750 [44.0]
1.750 [44.0]
1.750 [44.0]
1.750 [44.0]
1.750 [44.0]
1.750 [44.0]
1.750 [44.0]
1.750 [44.0]
2.000 [51.0]
2.000 [51.0]
2.000 [51.0]
2.000 [51.0]
2.000 [51.0]
2.000 [51.0]
2.000 [51.0]
2.000 [51.0]
2.000 [51.0]
2.500 [64.0]
2.500 [64.0]
2.500 [64.0]
2.500 [64.0]
2.500 [64.0]
2.500 [64.0]
3.000 [76.0]
3.000 [76.0]
3.000 [76.0]
3.000 [76.0]
3.000 [76.0]
3.000 [76.0]
3.000 [76.0]
L
± 0.063 [1.6]
1.625 [41.0]
1.875 [48.0]
2.125 [54.0]
2.625 [67.0]
3.125 [79.0]
3.625 [92.0]
4.125 [105.0]
4.625 [117.0]
5.125 [130.0]
5.625 [143.0]
1.875 [48.0]
2.125 [54.0]
2.625 [67.0]
3.125 [79.0]
3.625 [92.0]
4.125 [105.0]
4.625 [117.0]
5.125 [130.0]
5.625 [143.0]
3.125 [79.0]
3.625 [92.0]
4.125 [105.0]
4.625 [117.0]
5.125 [130.0]
5.625 [143.0]
3.125 [79.0]
3.625 [92.0]
4.125 [105.0]
4.625 [117.0]
5.125 [130.0]
5.625 [143.0]
8.625 [219.0]
LARGE CAN CAPACITORS
WITH INSULATING SLEEVE
D
(Max.)
1.828 [46.4]
1.828 [46.4]
1.828 [46.4]
1.828 [46.4]
1.828 [46.4]
1.828 [46.4]
1.828 [46.4]
1.828 [46.4]
1.828 [46.4]
1.828 [46.4]
2.078 [52.8]
2.078 [52.8]
2.078 [52.8]
2.078 [52.8]
2.078 [52.8]
2.078 [52.8]
2.078 [52.8]
2.078 [52.8]
2.078 [52.8]
2.578 [65.5]
2.578 [65.5]
2.578 [65.5]
2.578 [65.5]
2.578 [65.5]
2.578 [65.5]
3.078 [78.2]
3.078 [78.2]
3.078 [78.2]
3.078 [78.2]
3.078 [78.2]
3.078 [78.2]
3.078 [78.2]
L
(Max.)
1.750 [44.5]
2.000 [50.8]
2.250 [57.2]
2.750 [69.9]
3.250 [82.6]
3.750 [95.3]
4.250 [108.0]
4.750 [120.7]
5.250 [133.4]
5.750 [146.1]
2.000 [50.8]
2.250 [57.2]
2.750 [69.9]
3.250 [82.6]
3.750 [95.3]
4.250 [108.0]
4.750 [120.7]
5.250 [133.4]
5.750 [146.1]
3.250 [82.6]
3.750 [95.3]
4.250 [108.0]
4.750 [120.7]
5.250 [133.4]
5.750 [146.1]
3.250 [82.6]
3.750 [95.3]
4.250 [108.0]
4.750 [120.7]
5.250 [133.4]
5.750 [146.1]
8.750 [222.3]
P TERMINAL
H (Max.)
1.849 [47.0]
2.099 [53.3]
2.349 [59.7]
2.849 [72.4]
3.349 [85.1]
3.849 [97.8]
4.349 [110.5]
4.849 [123.2]
5.349 [135.9]
5.849 [148.6]
2.099 [53.3]
2.349 [59.7]
2.849 [72.4]
3.349 [85.1]
3.849 [97.8]
4.349 [110.5]
4.849 [123.2]
5.349 [135.9]
5.849 [148.6]
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
TERMINAL
SPACING
M ± 0.016 [0.4]
0.750 [19.1]
0.750 [19.1]
0.750 [19.1]
0.750 [19.1]
0.750 [19.1]
0.750 [19.1]
0.750 [19.1]
0.750 [19.1]
0.750 [19.1]
0.750 [19.1]
0.875 [22.2]
0.875 [22.2]
0.875 [22.2]
0.875 [22.2]
0.875 [22.2]
0.875 [22.2]
0.875 [22.2]
0.875 [22.2]
0.875 [22.2]
1.125 [28.6]
1.125 [28.6]
1.125 [28.6]
1.125 [28.6]
1.125 [28.6]
1.125 [28.6]
1.250 [31.8]
1.250 [31.8]
1.250 [31.8]
1.250 [31.8]
1.250 [31.8]
1.250 [31.8]
1.250 [31.8]
TYPICAL
WEIGHT
(
Grams
)
71.0
88.0
102.0
133.0
167.0
198.0
230.0
252.0
269.0
318.0
113.0
133.0
176.0
213.0
261.0
381.0
326.0
337.0
408.0
329.0
400.0
473.0
562.0
607.0
675.0
496.0
598.0
700.0
802.0
944.0
1004.0
1403.0
DIMENSIONS
in inches [millimeters]
BRACKETS
TYPE
2 Feet
3 Feet
3 Feet
3 Feet
TERMINAL
CODE
A
B
D
PART NUMBER
4586-97A
4586-48
4586-1
4586-2
A
B
C
FIGURE NUMBER
1
2
2
2
DIAMETER
T ± 0.010 [0.25]
0.438 [11.1]
0.438 [11.1]
-
1.375 [34.9]
1.781 [45.2]
2.218 [56.3]
2.000 [50.8]
2.500 [63.5]
2.875 [73.0]
2.500 [63.5]
3.000 [76.2]
3.375 [85.7]
3.000 [76.2]
3.500 [88.9]
3.875 [98.4]
SCREW INSERT TERMINAL DIMENSIONS
HEIGHT
DIAMETER
THREAD DEPTH
J ± 0.032 [0.8]
S ± 0.010 [0.25]
0.219 [5.6]
0.375 [9.5]
0.344 [8.7]
0.063 [1.6]
0.250 [6.4]
0.093 [2.4]
0.313 [8.0]
0.313 [8.0]
0.688 [17.5]
THREAD
10-32 NF-28
10-32 NF-28
1/4-28 NF-28
NOTES
All cases codes
All cases codes
C & D dia. codes only
www.vishay.com
238
For technical questions contact: aluminumcaps4@vishay.com
Document Number: 42065
Revision: 25-Apr-05
36DY
Aluminum Capacitors
+ 85 °C, Large Can

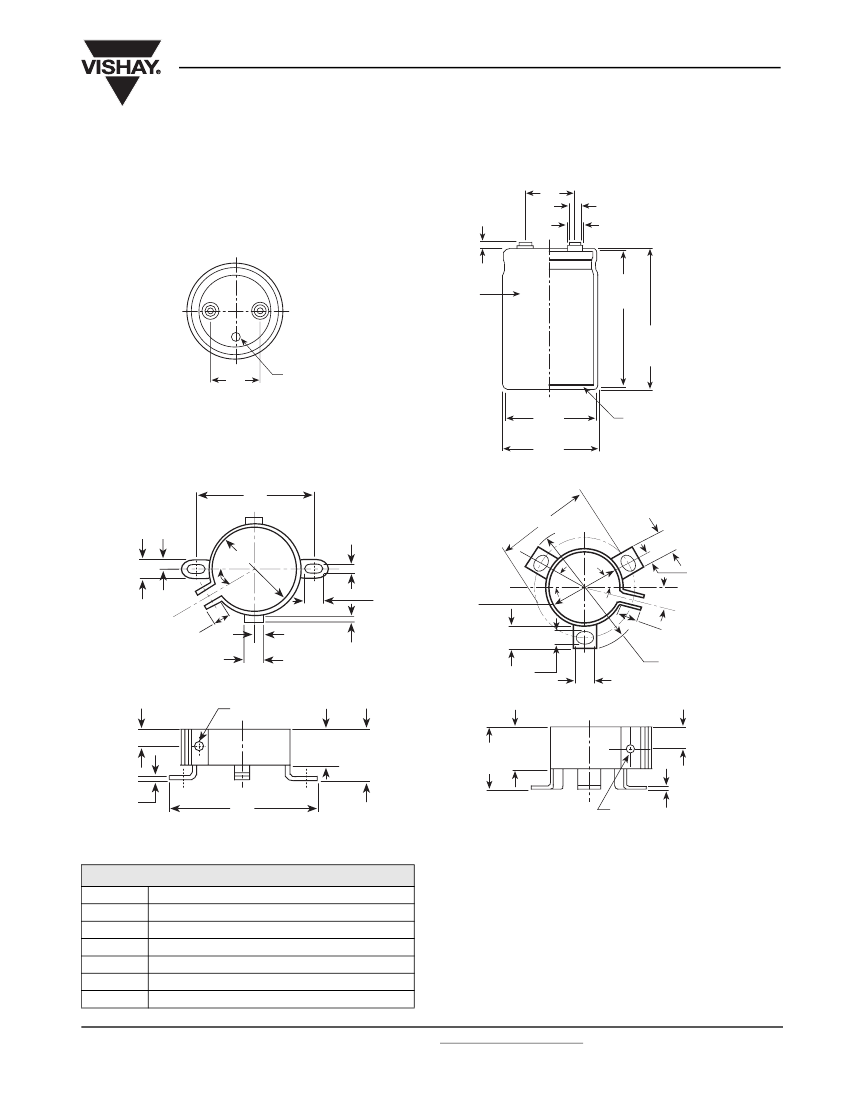

DIMENSIONS AND AVAILABLE FORMS
Screw Insert Terminals
M
S
T
J
Vishay Sprague
+
-
PVC Sleeve
L
Nom.
L
Max.
Vent
M
D
Nom.
D
Max.
Insulating Disc
Large Can Brackets
B
0.187
[4.8]
A
30
0.156
[4.0]
B
0.500
[12.7]
0.375 [9.5]
°
30 °
30 °
15 °
0.406
[10.3]
C
0.25 [6.3]
0.218
[5.5]
0.125
[3.2]
A
0.312
[7.9]
0.250 [6.3]
0.406 [10.3]
0.125
[3.2]
0.176
[4.5]
2 Holes
0.149 [3.8] Dia.
0.281
[7.1]
0.562
[14.3]
0.750
[19.1]
0.281 [7.1]
0.375 [9.5]
0.750
[19.1]
1.125
[28.6]
0.035
[0.9]
0.035
[0.9]
C
2 Holes
0.201 [5.1] Dia.
Figure 1
Figure 2
ELECTRICAL DATA
SYMBOL
µF
±%
DC
AN
2
A
DESCRIPTION
rated capacitance
F = - 10 % to + 50 %
voltage rating at 105° C
see dimensions in millimeters table
PVC insulating sleeve
low insert 10 - 32 screw thread
ORDERING EXAMPLE
Electrolytic capacitor 36 DY series
36DY 393 F 6R3 AN 2 A
Document Number: 42065
Revision: 25-Apr-05
For technical questions contact: aluminumcaps4@vishay.com
www.vishay.com
239
36DY
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Large Can
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(µF)
PART NUMBER
NOMINAL CASE SIZE
DxL
6.3 WVDC at + 85 °C, SURGE = 8 V
1.375 x 2.125 [35.0 x 54.0]
1.375 x 3.125 [35.0 x 79.0]
2.000 x 3.125 [51.0 x 79.0]
2.000 x 5.625 [51.0 x 143.0]
2.500 x 5.625 [64.0 x 143.0]
3.000 x 4.625 [76.0 x 117.0]
10 WVDC at + 85 °C, SURGE = 12 V
1.375 x 3.125 [35.0 x 79.0]
1.375 x 4.625 [35.0 x 117.0]
2.000 x 3.625 [51.0 x 92.0]
2.000 x 5.625 [51.0 x 143.0]
2.500 x 4.125 [64.0 x 105.0]
3.000 x 4.125 [76.0 x 105.0]
15 WVDC at + 85 °C, SURGE = 18 V
1.375 x 2.625 [35.0 x 67.0]
1.375 x 3.625 [35.0 x 92.0]
1.375 x 4.625 [35.0 x 117.0]
2.000 x 2.125 [51.0 x 54.0]
2.000 x 3.125 [51.0 x 79.0]
2.000 x 4.125 [51.0 x 105.0]
2.000 x 5.625 [51.0 x 143.0]
2.500 x 5.625 [64.0 x 143.0]
3.000 x 5.625 [76.0 x 143.0]
25 WVDC at + 85 °C, SURGE = 30 V
1.375 x 2.625 [35.0 x 67.0]
1.375 x 3.125 [35.0 x 79.0]
1.375 x 5.625 [35.0 x 143.0]
2.000 x 2.625 [51.0 x 67.0]
2.000 x 3.125 [51.0 x 79.0]
2.000 x 5.625 [51.0 x 143.0]
2.500 x 4.125 [64.0 x 105.0]
3.000 x 5.125 [76.0 x 130.0]
3.000 x 8.625 [76.0 x 219.0]
40 WVDC at + 85 °C, SURGE = 50 V
1.375 x 1.625 [35.0 x 41.0]
1.375 x 2.625 [35.0 x 67.0]
1.375 x 3.125 [35.0 x 79.0]
1.375 x 3.625 [35.0 x 92.0]
2.000 x 1.875 [51.0 x 48.0]
2.000 x 3.125 [51.0 x 79.0]
2.000 x 3.625 [51.0 x 92.0]
2.000 x 4.125 [51.0 x 105.0]
2.500 x 3.125 [64.0 x 79.0]
3.000 x 4.125 [76.0 x 105.0]
1.375 x 2.625 [35.0 x 67.0]
1.375 x 3.125 [35.0 x 79.0]
1.375 x 4.125 [35.0 x 105.0]
MAX. ESR at 25 °C
(mΩ)
120 H
Z
32.0
20.0
11.2
6.6
4.1
14.5
19.8
14.0
9.6
6.7
5.0
5.0
25.0
17.5
14.2
20.0
11.6
8.7
6.7
4.2
4.1
25.0
21.0
12.6
15.4
12.3
7.2
6.7
4.5
3.5
59.0
28.0
23.0
19.4
30.0
12.8
10.9
9.6
9.1
5.4
29.0
24.0
18.2
MAX. RIPPLE at + 85 °C
(A)
120 H
Z
5.92
8.70
14.4
23.8
34.4
34.0
8.65
12.2
16.5
23.7
27.6
30.9
7.19
9.79
12.1
9.40
14.2
18.3
23.6
34.0
38.4
7.12
8.42
14.0
11.5
13.8
22.8
23.8
35.3
49.5
3.89
6.84
8.10
9.30
7.40
13.5
15.5
17.4
18.4
29.7
6.66
7.79
10.1
68000.0
120000.0
220000.0
560000.0
820000.0
1.0F
82000.0
150000.0
220000.0
390000.0
470000.0
680000.0
47000.0
68000.0
100000.0
56000.0
100000.0
150000.0
220000.0
470000.0
680000.0
18000.0
22000.0
47000.0
33000.0
47000.0
100000.0*
120000.0
220000.0
390000.0
36DY683F6R3AA2A
36DY124F6R3AB2A
36DY224F6R3BB2A
36DY564F6R3BF2A
36DY824F6R3CF2A
36DY105F6R3DD2A
36DY823F010AB2A
36DY154F010AD2A
36DY224F010BL2A
36DY394F010BF2A
36DY474F010CC2A
36DY684F010DC2A
36DY473F015AM2A
36DY683F015AL2A
36DY104F015AD2A
36DY563F015BA2A
36DY104F015BB2A
36DY154F015BC2A
36DY224F015BF2A
36DY474F015CF2A
36DY684F015DF2A
36DY183F025AM2A
36DY223F025AB2A
36DY473F025AF2A
36DY333F025BM2A
36DY473F025BB2A
36DY104F025BF2A
36DY124F025CC2A
36DY224F025DE2A
36DY394F025DJ2A
4700.0
36DY472F040AN2A
10000.0
36DY103F040AM2A
12000.0
36DY123F040AB2A
15000.0
36DY153F040AL2A
10000.0
36DY103F040BY2A
27000.0
36DY273F040BB2A
33000.0
36DY333F040BL2A
39000.0
36DY393F040BC2A
47000.0
36DY473F040CB2A
100000.0
36DY104F040DC2A
8200.0
36DY822F040AM2A
10000.0
36DY103F040AB2A
15000.0
36DY153F040AC2A
* These ratings are normally stocked.
www.vishay.com
240
For technical questions contact: aluminumcaps4@vishay.com
Document Number: 42065
Revision: 25-Apr-05
36DY
Aluminum Capacitors
+ 85 °C, Large Can
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(µF)
PART NUMBER
NOMINAL CASE SIZE
DxL
MAX. ESR at 25 °C
(mΩ)
120 H
Z
40.0
29.0
24.0
7.7
4.8
3.6
69.0
42.0
25.0
22.0
13.9
11.7
6.6
4.5
104.0
62.0
36.0
30.0
24.0
18.8
13.7
6.7
8.9
5.0
56.0
32.0
30.0
16.3
14.8
11.2
7.9
35.0
57.0
22.0
12.0
17.0
84.0
72.0
49.0
40.0
32.0
22.0
14.0
MAX. RIPPLE at + 85 °C
(A)
120 H
Z
5.25
6.66
8.60
22.1
34.2
48.8
3.62
5.10
7.72
8.75
13.0
15.0
25.1
36.7
2.95
4.19
6.45
7.50
9.26
11.1
14.5
26.9
23.2
41.5
4.82
7.68
8.29
13.3
14.5
19.7
26.7
6.84
5.22
10.66
16.43
13.68
3.43
4.36
5.97
6.95
8.03
10.73
16.36
Vishay Sprague
5600.0
8200.0
10000.0*
47000.0
100000.0
180000.0
2700.0
4700.0
8200.0
10000.0
15000.0
22000.0
47000.0
100000.0
1800.0
3300.0
5600.0
6800.0
10000.0
12000.0
18000.0
47000.0
47000.0
120000.0
1800.0
4700.0
4700.0
10000.0
10000.0
18000.0
33000.0
2700.0
2200.0
5600.0
10000.0
10000.0
36DY562F050AA2A
36DY822F050AM2A
36DY103F050AB2A
36DY473F050BF2A
36DY104F050DE2A
36DY184F050DJ2A
36DY272F060AN2A
36DY472F060AA2A
36DY822F060AB2A
36DY103F060AL2A
36DY153F060BB2A
36DY223F060BL2A
36DY473F060CD2A
36DY104F060DF2A
36DY182F075AN2A
36DY332F075AA2A
36DY562F075AB2A
36DY682F075AL2A
36DY103F075AD2A
36DY123F075BB2A
36DY183F075BC2A
36DY473F075CF2A
36DY473F075DC2A
36DY124F075DJ2A
36DY182F100AM2A
36DY472F100AC2A
36DY472F100BM2A
36DY103F100BC2A
36DY103F100CB2A
36DY183F100DL2A
36DY333F100DE2A
36DY272F150AF2A
36DY222F150BB2A
36DY562F150BF2A
36DY103F150CF2A
36DY103F150DC2A
1000.0
36DY102F200AB2A
1500.0
36DY152F200BM2A
2200.0
36DY222F200BL2A
2700.0
36DY272F200BC2A
3300.0
36DY332F200CB2A
4700.0
36DY472F200CC2A
10000.0
36DY103F200DE2A
* These ratings are normally stocked.
Document Number: 42065
Revision: 25-Apr-05
50 WVDC at + 85 °C, SURGE = 65 V
1.375 x 2.125 [35.0 x 54.0]
1.375 x 2.625 [35.0 x 67.0]
1.375 x 3.125 [35.0 x 79.0]
2.000 x 5.625 [51.0 x 143.0]
3.000 x 5.125 [76.0 x 130.0]
3.000 x 8.625 [76.0 x 219.0]
60 WVDC at + 85 °C, SURGE = 75 V
1.375 x 1.625 [35.0 x 41.0]
1.375 x 2.125 [35.0 x 54.0]
1.375 x 3.125 [35.0 x 79.0]
1.375 x 3.625 [35.0 x 92.0]
2.000 x 3.125 [51.0 x 79.0]
2.000 x 3.625 [51.0 x 92.0]
2.500 x 4.625 [64.0 x 117.0]
3.000 x 5.625 [76.0 x 143.0]
75 WVDC at + 85 °C, SURGE = 95 V
1.375 x 1.625 [35.0 x 41.0]
1.375 x 2.125 [35.0 x 54.0]
1.375 x 3.125 [35.0 x 79.0]
1.375 x 3.625 [35.0 x 92.0]
1.375 x 4.625 [35.0 x 117.0]
2.000 x 3.125 [51.0 x 79.0]
2.000 x 4.125 [51.0 x 105.0]
2.500 x 5.625 [64.0 x 143.0]
3.000 x 4.125 [76.0 x 105.0]
3.000 x 8.625 [76.0 x 219.0]
100 WVDC at + 85 °C, SURGE = 125 V
1.375 x 2.625 [35.0 x 67.0]
1.375 x 4.125 [35.0 x 105.0]
2.000 x 2.625 [51.0 x 67.0]
2.000 x 4.125 [51.0 x 105.0]
2.500 x 3.125 [64.0 x 79.0]
3.000 x 3.625 [76.0 x 92.0]
3.000 x 5.125 [76.0 x 130.0]
150 WVDC at + 85 °C, SURGE = 175 V
1.375 x 1.625 [35.0 x 41.0]
2.000 x 3.125 [51.0 x 79.0]
2.000 x 5.625 [51.0 x 143.0]
2.500 x 5.625 [64.0 x 143.0]
3.000 x 4.125 [76.0 x 105.0]
200 WVDC at + 85 °C, SURGE = 250 V
1.375 x 1.625 [35.0 x 41.0]
2.000 x 2.625 [51.0 x 67.0]
2.000 x 3.625 [51.0 x 92.0]
2.000 x 4.125 [51.0 x 105.0]
2.500 x 3.125 [64.0 x 79.0]
2.500 x 4.125 [64.0 x 105.0]
3.000 x 5.125 [76.0 x 130.0]
For technical questions contact: aluminumcaps4@vishay.com
www.vishay.com
241
京公网安备 11010802033920号
EEWORLD
