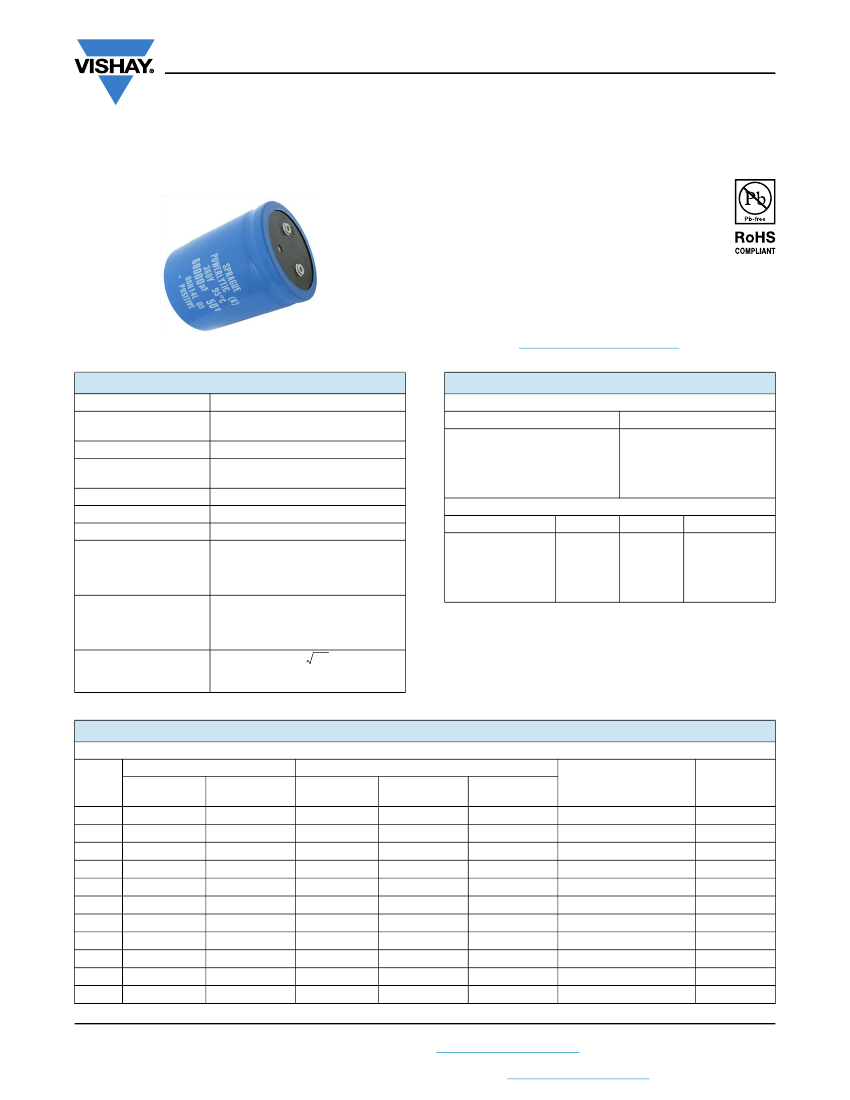

36DY
www.vishay.com
Vishay Sprague
Aluminum Capacitors
+85 °C, Large Can
FEATURES
• Useful life: 2000 h at +85 °C
• The industry standard for large can aluminum
capacitors
• Ideal for high wattage power supplies and
energy storage applications
• Capacitance values to 2.2 F
• Largest CV available
• Highest voltage available
• Screw terminal
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
Ø D x L in inches (mm)
Operating temperature
Rated capacitance
range, C
R
Tolerance on C
R
Rated voltage range, U
R
Termination
Life validation test
at 85 °C
VALUE
1.375 x 1.625 (35.0 x 41.3)
to 3.00 x 8.675 (76.2 x 220.3)
-40 °C to +85 °C
100 μF to 2.2 F
-10 % to 50 %
6.3 WV
DC
to 450 WV
DC
Screw thread
2000 h:
CAP
15 % from initial
measurement.
ESR
1.5 x initial specified limit
DCL
initial specified limit
500 h:
CAP
15 % from initial
measurement.
ESR
1.2 x initial specified limit.
DCL
2 x initial specified limit.
I = k
CV
k = 4.0 at +25 °C; k = 32.0 at +85 °C
I in μA, C in μF, V in Volts
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+85 °C
+75 °C
+65 °C
+55 °C and below
FREQUENCY (Hz)
RATED WV
DC
0 to 50
51 to 100
150 to 300
301 to 450
120
1.0
1.0
1.0
1.0
400
1.05
1.10
1.15
1.20
1000 AND UP
1.10
1.15
1.25
1.30
MULTIPLIERS
1.0
1.4
1.7
2.0
Shelf life at 85 °C
DC leakage current
DIMENSIONS
in inches (millimeters)
LARGE CAN CAPACITORS
CASE
CODE
AN
AY
AA
AM
AB
AL
AC
AD
AE
AF
EN
NOMINAL
D
± 0.032 (0.8)
1.375 (35.0)
1.375 (35.0)
1.375 (35.0)
1.375 (35.0)
1.375 (35.0)
1.375 (35.0)
1.375 (35.0)
1.375 (35.0)
1.375 (35.0)
1.375 (35.0)
1.750 (44.0)
L
± 0.063 (1.6)
1.625 (41.0)
1.875 (48.0)
2.125 (54.0)
2.625 (67.0)
3.125 (79.0)
3.625 (92.0)
4.125 (105.0)
4.625 (117.0)
5.125 (130.0)
5.625 (143.0)
1.625 (41.0)
D
(Max.)
1.453 (36.9)
1.453 (36.9)
1.453 (36.9)
1.453 (36.9)
1.453 (36.9)
1.453 (36.9)
1.453 (36.9)
1.453 (36.9)
1.453 (36.9)
1.453 (36.9)
1.828 (46.4)
WITH INSULATION SLEEVE
L
(Max.)
1.750 (44.5)
2.000 (50.8)
2.250 (57.2)
2.750 (69.9)
3.250 (82.6)
3.750 (95.3)
4.250 (108.0)
4.750 (120.7)
5.250 (133.4)
5.750 (146.1)
1.750 (44.5)
P TERMINAL
H (Max.)
1.849 (47.0)
1.099 (53.3)
1.349 (59.7)
1.849 (72.4)
1.349 (85.1)
1.849 (97.8)
1.349 (110.5)
1.849 (123.2)
1.349 (125.9)
1.849 (148.6)
1.849 (47.0)
TERMINAL SPACING
M ± 0.016 (0.4)
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.750 (19.1)
TYPICAL
WEIGHT
(g)
43.0
54.0
63.0
82.0
105.0
122.0
129.0
162.0
179.0
201.0
71.0
Revision: 20-Jul-16
Document Number: 42065
1
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
36DY
www.vishay.com
Vishay Sprague
LARGE CAN CAPACITORS
DIMENSIONS
in inches (millimeters)
CASE
CODE
EY
EA
EM
EB
EL
EC
ED
EE
EF
BY
BA
BM
BB
BL
BC
BD
BE
BF
CB
CL
CC
CD
CE
CF
DB
DL
DC
DD
DE
DF
DJ
NOMINAL
D
± 0.032 (0.8)
1.750 (44.0)
1.750 (44.0)
1.750 (44.0)
1.750 (44.0)
1.750 (44.0)
1.750 (44.0)
1.750 (44.0)
1.750 (44.0)
1.750 (44.0)
2.000 (51.0)
2.000 (51.0)
2.000 (51.0)
2.000 (51.0)
2.000 (51.0)
2.000 (51.0)
2.000 (51.0)
2.000 (51.0)
2.000 (51.0)
2.500 (64.0)
2.500 (64.0)
2.500 (64.0)
2.500 (64.0)
2.500 (64.0)
2.500 (64.0)
3.000 (76.0)
3.000 (76.0)
3.000 (76.0)
3.000 (76.0)
3.000 (76.0)
3.000 (76.0)
3.000 (76.0)
L
± 0.063 (1.6)
1.875 (48.0)
2.125 (54.0)
2.625 (67.0)
3.125 (79.0)
3.625 (92.0)
4.125 (105.0)
4.625 (117.0)
5.125 (130.0)
5.625 (143.0)
1.875 (48.0)
2.125 (54.0)
2.625 (67.0)
3.125 (79.0)
3.625 (92.0)
4.125 (105.0)
4.625 (117.0)
5.125 (130.0)
5.625 (143.0)
3.125 (79.0)
3.625 (92.0)
4.125 (105.0)
4.625 (117.0)
5.125 (130.0)
5.625 (143.0)
3.125 (79.0)
3.625 (92.0)
4.125 (105.0)
4.625 (117.0)
5.125 (130.0)
5.625 (143.0)
8.625 (219.0)
D
(Max.)
1.828 (46.4)
1.828 (46.4)
1.828 (46.4)
1.828 (46.4)
1.828 (46.4)
1.828 (46.4)
1.828 (46.4)
1.828 (46.4)
1.828 (46.4)
2.078 (52.8)
2.078 (52.8)
2.078 (52.8)
2.078 (52.8)
2.078 (52.8)
2.078 (52.8)
2.078 (52.8)
2.078 (52.8)
2.078 (52.8)
2.578 (65.5)
2.578 (65.5)
2.578 (65.5)
2.578 (65.5)
2.578 (65.5)
2.578 (65.5)
3.078 (78.2)
3.078 (78.2)
3.078 (78.2)
3.078 (78.2)
3.078 (78.2)
3.078 (78.2)
3.078 (78.2)
WITH INSULATION SLEEVE
L
(Max.)
2.000 (50.8)
2.250 (57.2)
2.750 (69.9)
3.250 (82.6)
3.750 (95.3)
4.250 (108.0)
4.750 (120.7)
5.250 (133.4)
5.750 (146.1)
2.000 (50.8)
2.250 (57.2)
2.750 (69.9)
3.250 (82.6)
3.750 (95.3)
4.250 (108.0)
4.750 (120.7)
5.250 (133.4)
5.750 (146.1)
3.250 (82.6)
3.750 (95.3)
4.250 (108.0)
4.750 (120.7)
5.250 (133.4)
5.750 (146.1)
3.250 (82.6)
3.750 (95.3)
4.250 (108.0)
4.750 (120.7)
5.250 (133.4)
5.750 (146.1)
8.750 (222.3)
P TERMINAL
H (Max.)
2.099 (53.3)
2.349 (59.7)
2.849 (72.4)
3.349 (85.1)
3.849 (97.8)
4.349 (110.5)
4.849 (123.2)
5.349 (135.9)
5.849 (148.6)
2.099 (53.3)
2.349 (59.7)
2.849 (72.4)
3.349 (85.1)
3.849 (97.8)
4.349 (110.5)
4.849 (123.2)
5.349 (135.9)
5.849 (148.6)
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
TERMINAL SPACING
M ± 0.016 (0.4)
0.750 (19.1)
0.750 (19.1)
0.750 (19.1)
0.750 (19.1)
0.750 (19.1)
0.750 (19.1)
0.750 (19.1)
0.750 (19.1)
0.750 (19.1)
0.875 (22.2)
0.875 (22.2)
0.875 (22.2)
0.875 (22.2)
0.875 (22.2)
0.875 (22.2)
0.875 (22.2)
0.875 (22.2)
0.875 (22.2)
1.125 (28.6)
1.125 (28.6)
1.125 (28.6)
1.125 (28.6)
1.125 (28.6)
1.125 (28.6)
1.250 (31.8)
1.250 (31.8)
1.250 (31.8)
1.250 (31.8)
1.250 (31.8)
1.250 (31.8)
1.250 (31.8)
TYPICAL
WEIGHT
(g)
88.0
102.0
133.0
167.0
198.0
230.0
252.0
269.0
318.0
113.0
133.0
176.0
213.0
261.0
381.0
326.0
337.0
408.0
329.0
400.0
473.0
562.0
607.0
675.0
496.0
598.0
700.0
802.0
944.0
1004.0
1403.0
DIMENSIONS
in inches (millimeters)
BRACKETS (RoHS COMPLIANT)
TYPE
2 feet
3 feet
3 feet
3 feet
PART NUMBER
1245860035A
1245860036A
1245860037A
1245860038A
A
1.375 (34.9)
2.000 (50.8)
2.500 (63.5)
3.000 (76.2)
B
1.781 (45.2)
2.500 (63.5)
3.000 (76.2)
3.500 (88.9)
HEIGHT
J ± 0.032 (0.8)
0.063 (1.6)
0.250 (6.4)
0.093 (2.4)
C
2.218 (56.3)
2.875 (73.0)
3.375 (85.7)
3.875 (98.4)
DIAMETER
S ± 0.010 (0.25)
0.313 (8.0)
0.313 (8.0)
0.688 (17.5)
DIAMETER
T ± 0.010 (0.25)
0.438 (11.1)
0.438 (11.1)
-
FIGURE NUMBER
1
2
2
2
SCREW INSERT TERMINAL DIMENSIONS
TERMINAL CODE
A
B
D
THREAD
10-32 NF-28
10-32 NF-28
1/4-28 NF-28
THREAD DEPTH
0.219 (5.6)
0.375 (9.5)
0.344 (8.7)
NOTES
All cases codes
All cases codes
C and D dia. codes only
Revision: 20-Jul-16
Document Number: 42065
2
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
36DY
www.vishay.com

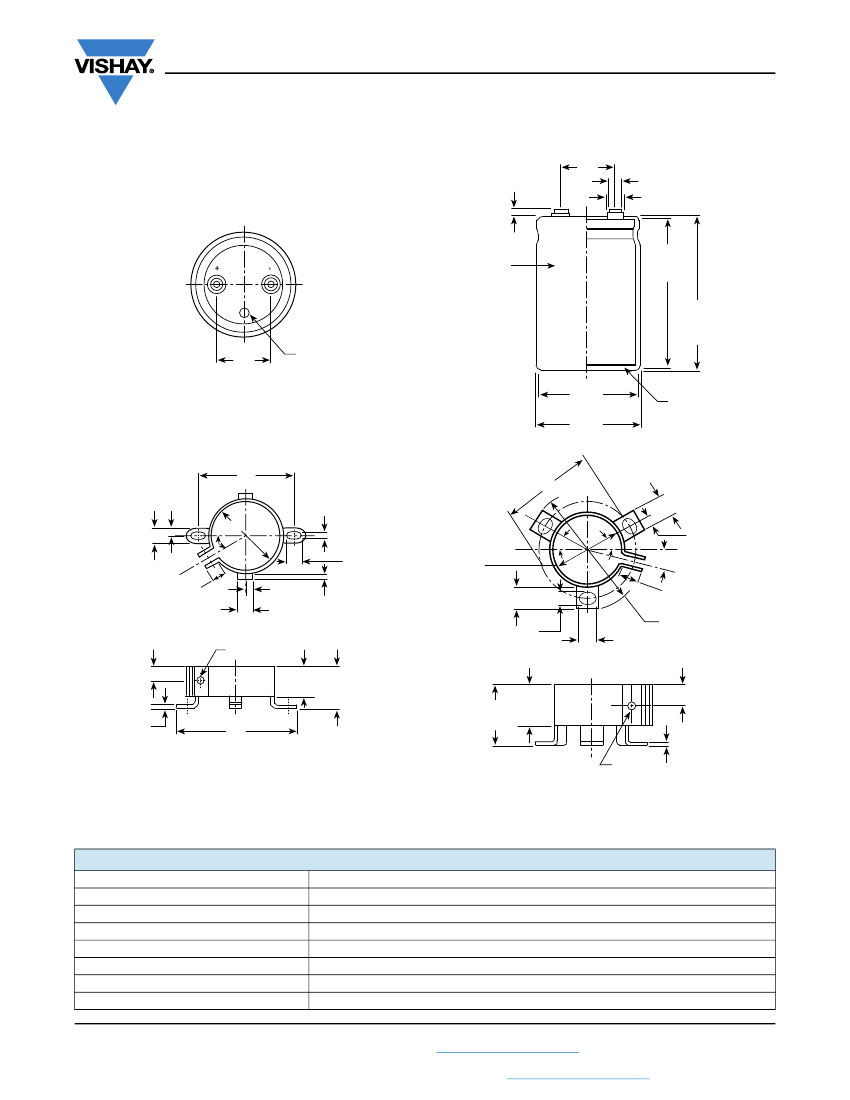

DIMENSIONS AND AVAILABLE FORMS
Screw Insert Terminals
M
S
T
J
Vishay Sprague
PVC
sleeve
L
nom.
L
max.
M
Vent
D
nom.
D
max.
Insulating disc
B
0.187
[4.8]
A
0.375 [9.5]
30°
0.218
[5.5]
0.125
[3.2]
0.250 [6.3]
2 holes
0.149 [3.8] dia.
0.281
[7.1]
0.562
[14.3]
0.750
[19.1]
1.125
[28.6]
C
2 holes
0.201 [5.1] dia.
0.125
[3.2]
A
0.406 [10.3]
30°
30°
15°
0.406
[10.3]
C
0.176
[4.5]
0.281 [7.1]
0.25 [6.3]
B
0.156
[4.0]
0.500
[12.7]
0.312
[7.9]
0.750
[19.1]
0.375 [9.5]
0.035
[0.9]
0.035
[0.9]
ORDERING EXAMPLE
Electrolytic capacitor 36DY series: 36DY 683 F 6R3 AA 2 A
DESCRIPTION
CODE
36DY
683
F
6R3
AA
2
A
Revision: 20-Jul-16
EXPLANATION
Product type
Capacitance value (68 000 μF)
Tolerance (G = -10 % / +75 %; F = -10 % / +50 %)
Voltage rating at 85 °C (6.3 V)
Can size (see Dimensions table)
PVC insulating sleeve
Terminal code (low insert 10-32 screw thread)
Document Number: 42065
3
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
36DY
www.vishay.com
Vishay Sprague
MAX. ESR AT 25 °C
(m)
120 Hz
32.0
20.0
11.2
6.6
4.1
14.5
19.8
14.0
9.6
6.7
5.0
5.0
25.0
17.5
14.2
20.0
11.6
8.7
6.7
4.2
4.1
25.0
21.0
12.6
15.4
12.3
7.2
6.7
4.5
3.5
59.0
28.0
23.0
19.4
30.0
12.8
10.9
9.6
9.1
5.4
29.0
24.0
18.2
MAX. RIPPLE AT +85 °C
(A)
120 Hz
5.92
8.70
14.4
23.8
34.4
34.0
8.65
12.2
16.5
23.7
27.6
30.9
7.19
9.79
12.1
9.40
14.2
18.3
23.6
34.0
38.4
7.12
8.42
14.0
11.5
13.8
22.8
23.8
35.3
49.5
3.89
6.84
8.10
9.30
7.40
13.5
15.5
17.4
18.4
29.7
6.66
7.79
10.1
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(μF)
PART NUMBER
NOMINAL CASE SIZE
DxL
6.3 WV
DC
AT +85 °C, SURGE = 8 V
68 000.0
120 000.0
220 000.0
560 000.0
820 000.0
1 000 000.0
82 000.0
150 000.0
220 000.0
390 000.0
470 000.0
680 000.0
47 000.0
68 000.0
100 000.0
56 000.0
100 000.0
150 000.0
220 000.0
470 000.0
680 000.0
18 000.0
22 000.0
47 000.0
33 000.0
47 000.0
100 000.0
120 000.0
220 000.0
390 000.0
4700.0
10 000.0
12 000.0
15 000.0
10 000.0
27 000.0
33 000.0
39 000.0
47 000.0
100 000.0
8200.0
10 000.0
15 000.0
Revision: 20-Jul-16
36DY683F6R3AA2A
36DY124F6R3AB2A
36DY224F6R3BB2A
36DY564F6R3BF2A
36DY824F6R3CF2A
36DY105F6R3DD2A
36DY823F010AB2A
36DY154F010AD2A
36DY224F010BL2A
36DY394F010BF2A
36DY474F010CC2A
36DY684F010DC2A
36DY473F015AM2A
36DY683F015AL2A
36DY104F015AD2A
36DY563F015BA2A
36DY104F015BB2A
36DY154F015BC2A
36DY224F015BF2A
36DY474F015CF2A
36DY684F015DF2A
36DY183F025AM2A
36DY223F025AB2A
36DY473F025AF2A
36DY333F025BM2A
36DY473F025BB2A
36DY104F025BF2A
36DY124F025CC2A
36DY224F025DE2A
36DY394F025DJ2A
36DY472F040AN2A
36DY103F040AM2A
36DY123F040AB2A
36DY153F040AL2A
36DY103F040BY2A
36DY273F040BB2A
36DY333F040BL2A
36DY393F040BC2A
36DY473F040CB2A
36DY104F040DC2A
36DY822F040AM2A
36DY103F040AB2A
36DY153F040AC2A
1.375 x 2.125 (35.0 x 54.0)
1.375 x 3.125 (35.0 x 79.0)
2.000 x 3.125 (51.0 x 79.0)
2.000 x 5.625 (51.0 x 143.0)
2.500 x 5.625 (64.0 x 143.0)
3.000 x 4.625 (76.0 x 117.0)
10 WV
DC
AT +85 °C, SURGE = 12 V
1.375 x 3.125 (35.0 x 79.0)
1.375 x 4.625 (35.0 x 117.0)
2.000 x 3.625 (51.0 x 92.0)
2.000 x 5.625 (51.0 x 143.0)
2.500 x 4.125 (64.0 x 105.0)
3.000 x 4.125 (76.0 x 105.0)
15 WV
DC
AT +85 °C, SURGE = 18 V
1.375 x 2.625 (35.0 x 67.0)
1.375 x 3.625 (35.0 x 92.0)
1.375 x 4.625 (35.0 x 117.0)
2.000 x 2.125 (51.0 x 54.0)
2.000 x 3.125 (51.0 x 79.0)
2.000 x 4.125 (51.0 x 105.0)
2.000 x 5.625 (51.0 x 143.0)
2.500 x 5.625 (64.0 x 143.0)
3.000 x 5.625 (76.0 x 143.0)
25 WV
DC
AT +85 °C, SURGE = 30 V
1.375 x 2.625 (35.0 x 67.0)
1.375 x 3.125 (35.0 x 79.0)
1.375 x 5.625 (35.0 x 143.0)
2.000 x 2.625 (51.0 x 67.0)
2.000 x 3.125 (51.0 x 79.0)
2.000 x 5.625 (51.0 x 143.0)
2.500 x 4.125 (64.0 x 105.0)
3.000 x 5.125 (76.0 x 130.0)
3.000 x 8.625 (76.0 x 219.0)
40 WV
DC
AT +85 °C, SURGE = 50 V
1.375 x 1.625 (35.0 x 41.0)
1.375 x 2.625 (35.0 x 67.0)
1.375 x 3.125 (35.0 x 79.0)
1.375 x 3.625 (35.0 x 92.0)
2.000 x 1.875 (51.0 x 48.0)
2.000 x 3.125 (51.0 x 79.0)
2.000 x 3.625 (51.0 x 92.0)
2.000 x 4.125 (51.0 x 105.0)
2.500 x 3.125 (64.0 x 79.0)
3.000 x 4.125 (76.0 x 105.0)
1.375 x 2.625 (35.0 x 67.0)
1.375 x 3.125 (35.0 x 79.0)
1.375 x 4.125 (35.0 x 105.0)
Document Number: 42065
4
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
36DY
www.vishay.com
Vishay Sprague
MAX. ESR AT 25 °C
(m)
120 Hz
40.0
29.0
24.0
7.7
4.8
3.6
69.0
42.0
25.0
22.0
13.9
11.7
6.6
4.5
104.0
62.0
36.0
30.0
24.0
18.8
13.7
6.7
8.9
5.0
56.0
32.0
30.0
16.3
14.8
11.2
7.9
35.0
57.0
22.0
12.0
17.0
84.0
72.0
49.0
40.0
32.0
22.0
14.0
MAX. RIPPLE AT +85 °C
(A)
120 Hz
5.25
6.66
8.60
22.1
34.2
48.8
3.62
5.10
7.72
8.75
13.0
15.0
25.1
36.7
2.95
4.19
6.45
7.50
9.26
11.1
14.5
26.9
23.2
41.5
4.82
7.68
8.29
13.3
14.5
19.7
26.7
6.84
5.22
10.66
16.43
13.68
1.5
4.36
5.97
6.95
8.03
10.73
16.36
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(μF)
PART NUMBER
NOMINAL CASE SIZE
DxL
50 WV
DC
AT +85 °C, SURGE = 65 V
5600.0
8200.0
10 000.0
47 000.0
100 000.0
180 000.0
2700.0
4700.0
8200.0
10 000.0
15 000.0
22 000.0
47 000.0
100 000.0
1800.0
3300.0
5600.0
6800.0
10 000.0
12 000.0
18 000.0
47 000.0
47 000.0
120 000.0
1800.0
4700.0
4700.0
10 000.0
10 000.0
18 000.0
33 000.0
2700.0
2200.0
5600.0
10 000.0
10 000.0
1000.0
1500.0
2200.0
2700.0
3300.0
4700.0
10 000.0
Revision: 20-Jul-16
36DY562F050AA2A
36DY822F050AM2A
36DY103F050AB2A
36DY473F050BF2A
36DY104F050DE2A
36DY184F050DJ2A
36DY272F060AN2A
36DY472F060AA2A
36DY822F060AB2A
36DY103F060AL2A
36DY153F060BB2A
36DY223F060BL2A
36DY473F060CD2A
36DY104F060DF2A
36DY182F075AN2A
36DY332F075AA2A
36DY562F075AB2A
36DY682F075AL2A
36DY103F075AD2A
36DY123F075BB2A
36DY183F075BC2A
36DY473F075CF2A
36DY473F075DC2A
36DY124F075DJ2A
36DY182F100AM2A
36DY472F100AC2A
36DY472F100BM2A
36DY103F100BC2A
36DY103F100CB2A
36DY183F100DL2A
36DY333F100DE2A
36DY272F150AF2A
36DY222F150BB2A
36DY562F150BF2A
36DY103F150CF2A
36DY103F150DC2A
36DY102F200AB2A
36DY152F200BM2A
36DY222F200BL2A
36DY272F200BC2A
36DY332F200CB2A
36DY472F200CC2A
36DY103F200DE2A
1.375 x 2.125 (35.0 x 54.0)
1.375 x 2.625 (35.0 x 67.0)
1.375 x 3.125 (35.0 x 79.0)
2.000 x 5.625 (51.0 x 143.0)
3.000 x 5.125 (76.0 x 130.0)
3.000 x 8.625 (76.0 x 219.0)
60 WV
DC
AT +85 °C, SURGE = 75 V
1.375 x 1.625 (35.0 x 41.0)
1.375 x 2.125 (35.0 x 54.0)
1.375 x 3.125 (35.0 x 79.0)
1.375 x 3.625 (35.0 x 92.0)
2.000 x 3.125 (51.0 x 79.0)
2.000 x 3.625 (51.0 x 92.0)
2.500 x 4.625 (64.0 x 117.0)
3.000 x 5.625 (76.0 x 143.0)
75 WV
DC
AT +85 °C, SURGE = 95 V
1.375 x 1.625 (35.0 x 41.0)
1.375 x 2.125 (35.0 x 54.0)
1.375 x 3.125 (35.0 x 79.0)
1.375 x 3.625 (35.0 x 92.0)
1.375 x 4.625 (35.0 x 117.0)
2.000 x 3.125 (51.0 x 79.0)
2.000 x 4.125 (51.0 x 105.0)
2.500 x 5.625 (64.0 x 143.0)
3.000 x 4.125 (76.0 x 105.0)
3.000 x 8.625 (76.0 x 219.0)
100 WV
DC
AT +85 °C, SURGE = 125 V
1.375 x 2.625 (35.0 x 67.0)
1.375 x 4.125 (35.0 x 105.0)
2.000 x 2.625 (51.0 x 67.0)
2.000 x 4.125 (51.0 x 105.0)
2.500 x 3.125 (64.0 x 79.0)
3.000 x 3.625 (76.0 x 92.0)
3.000 x 5.125 (76.0 x 130.0)
150 WV
DC
AT +85 °C, SURGE = 175 V
1.375 x 5.625 (35.0 x 143.0)
2.000 x 3.125 (51.0 x 79.0)
2.000 x 5.625 (51.0 x 143.0)
2.500 x 5.625 (64.0 x 143.0)
3.000 x 4.125 (76.0 x 105.0)
200 WV
DC
AT +85 °C, SURGE = 250 V
1.375 x 3.125 (35.0 x 79.0)
2.000 x 2.625 (51.0 x 67.0)
2.000 x 3.625 (51.0 x 92.0)
2.000 x 4.125 (51.0 x 105.0)
2.500 x 3.125 (64.0 x 79.0)
2.500 x 4.125 (64.0 x 105.0)
3.000 x 5.125 (76.0 x 130.0)
Document Number: 42065
5
For technical questions, contact:
aluminumcaps4@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
