0402HM-8N7EGTS datasheet, PDF - EEWORLD Datasheet

0402HM-8N7EGTS: DescriptionGeneral Purpose Inductor, 0.0087uH, 2%, 1 Element, SMD, CHIP, 0402; CategoryPassive components inductor; File Size246KB，4 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric View All

0402HM-8N7EGTS Overview

General Purpose Inductor, 0.0087uH, 2%, 1 Element, SMD, CHIP, 0402

Parameter Name	Attribute value
Maker	Delta Electronics
package instruction	CHIP, 0402
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.14 Ω
Nominal inductance(L)	0.0087 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	0402HM
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	25
Maximum rated current	0.54 A
self resonant frequency	5500 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 250MHZ
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	2%

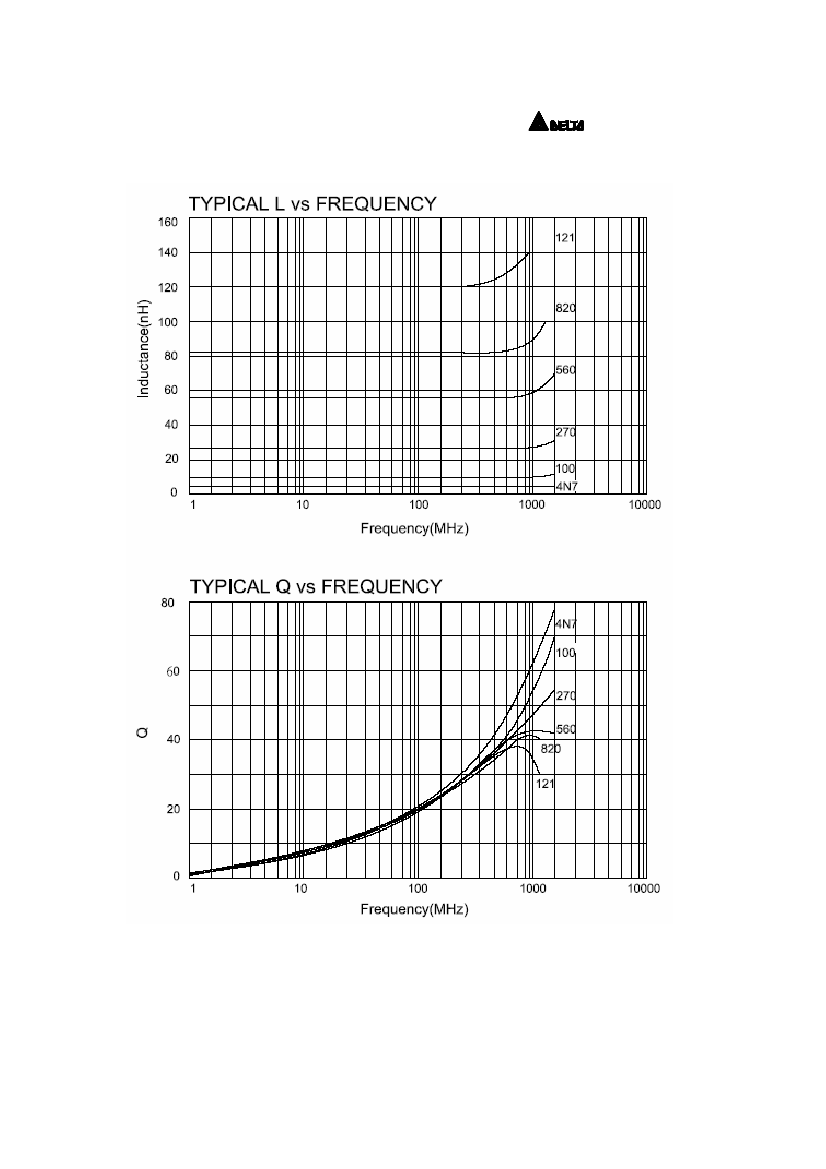

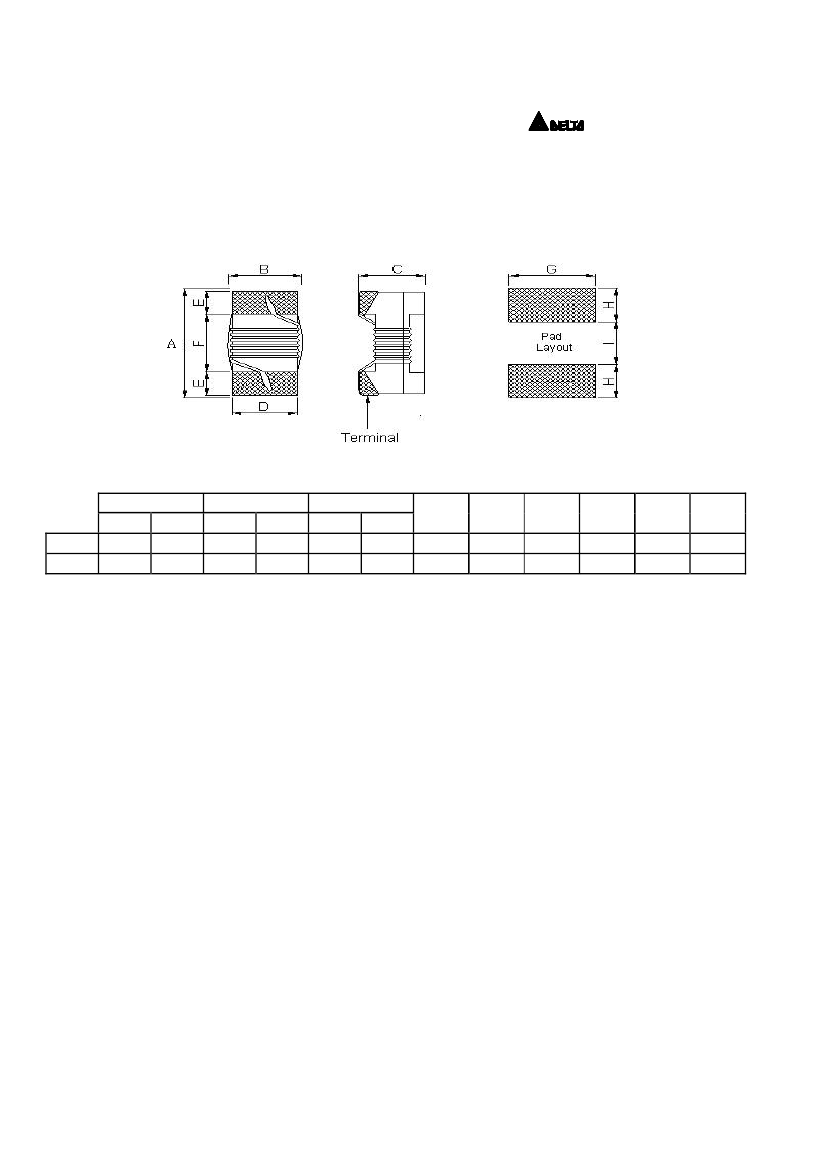

WIRE-WOUND CHIP INDUCTOR

1. Part Description

1.1 Part Numbering (Example)

( Ex. )

0402

120

SIZE.

0402

1.0 * 0.5 mm

PACK.

Product ID

S=EIA RS481 CLEAR TAPE & REEL

TERMINALTYPE/MATERIAL.

A/T = Terminal

F = Ferrite Core (Substrate)

INDUCTANCE TOLERANCE.

INDUCTANCE.

1ST , 2ND , 3RD MULTIPLIER

8N2=8.2n H , 100=10n H , 101=100n H

G = ±2% , H = ±3% ,J = ±5% , K = ±10%

B=± 0.1n H , C=± 0.2n H , D=± 0.5 n H

SHAPE.

E = FLAT TOP
