BC848BW

Description
Transistor
CategoryDiscrete semiconductor    The transistor
File Size184KB,5 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric Compare View All

BC848BW Online Shopping

Suppliers Part Number Price MOQ In stock
BC848BW - - View Buy Now

BC848BW Overview

Transistor

BC848BW Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDiodes Incorporated
package instruction,
Reach Compliance Codeunknow
Maximum collector current (IC)0.1 A
ConfigurationSingle
Minimum DC current gain (hFE)200
JESD-609 codee0
Maximum operating temperature150 °C
Polarity/channel typeNPN
Maximum power dissipation(Abs)0.2 W
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Nominal transition frequency (fT)100 MHz

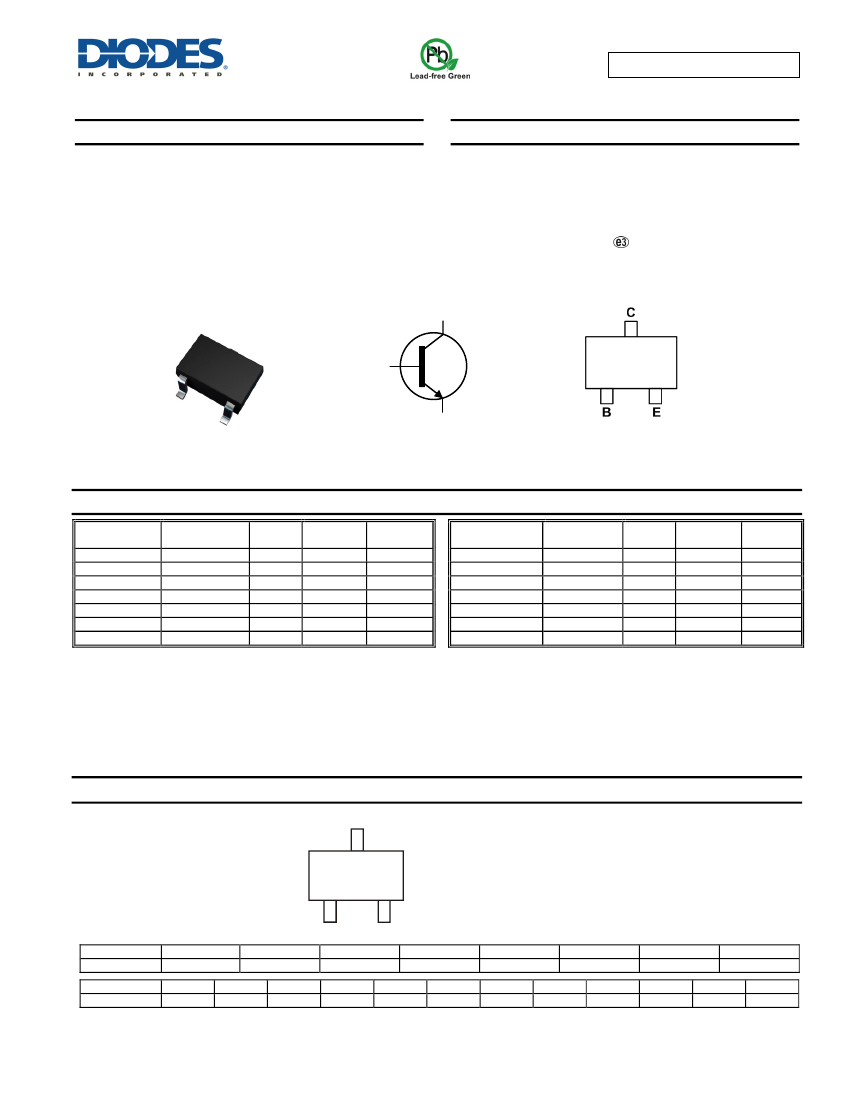

BC846AW-BC848CW
NPN SMALL SIGNAL TRANSISTOR IN SOT323
Features
Ideally Suited for Automatic Insertion
Complementary PNP Types Available (BC856W – BC858W)
For Switching and AF Amplifier Applications
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. "Green" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
Case: SOT323
Case material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.006 grams (Approximate)
SOT323
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Notes 4 & 5)
Product
BC846AW-7-F
BC846BW-7-F
BC846BWQ-7-F
BC846BW-13-F
BC847AW-7-F
BC847BW-7-F
BC847BW-13-F
Notes:
Compliance
AEC-Q101
AEC-Q101
Automotive
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
Marking
K1Q
K1R
K1R
K1R
K1Q
K1R
K1R
Reel Size
(inches)
7
7
7
13
7
7
13
Quantity
per Reel
3,000
3,000
3,000
10,000
3,000
3,000
10,000
Product
BC847BWQ-7-F
BC847CW-7-F
BC847CW-13-F
BC847CWQ-7-F
BC848AW-7-F
BC848BW-7-F
BC848CW-7-F
Compliance
Automotive
AEC-Q101
AEC-Q101
Automotive
AEC-Q101
AEC-Q101
AEC-Q101
Marking
K1R
K1M
K1M
K1M
K1Q
K1R
K1M
Reel Size
(inches)
7
7
13
7
7
7
7
Quantity
per Reel
3,000
3,000
10,000
3,000
3,000
3,000
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. Tape width is 8mm. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
xxx
xxx = Product Type Marking Code
(Please see Ordering Information)
YM = Date Code Marking
Y = Year ex: X = 2010
M = Month ex: 9 = September
Date Code Key
Year
Code
Month
Code
2010
X
Jan
1
Feb
2
2011
Y
Mar
3
2012
Z
Apr
4
May
5
YM
2013
A
Jun
6
2014
B
Jul
7
Aug
8
2015
C
Sep
9
2016
D
Oct
O
Nov
N
2017
E
Dec
D
BC846AW – BC848CW
Document Number: DS30250 Rev. 11 - 2
1 of 5
www.diodes.com
November 2013
© Diodes Incorporated

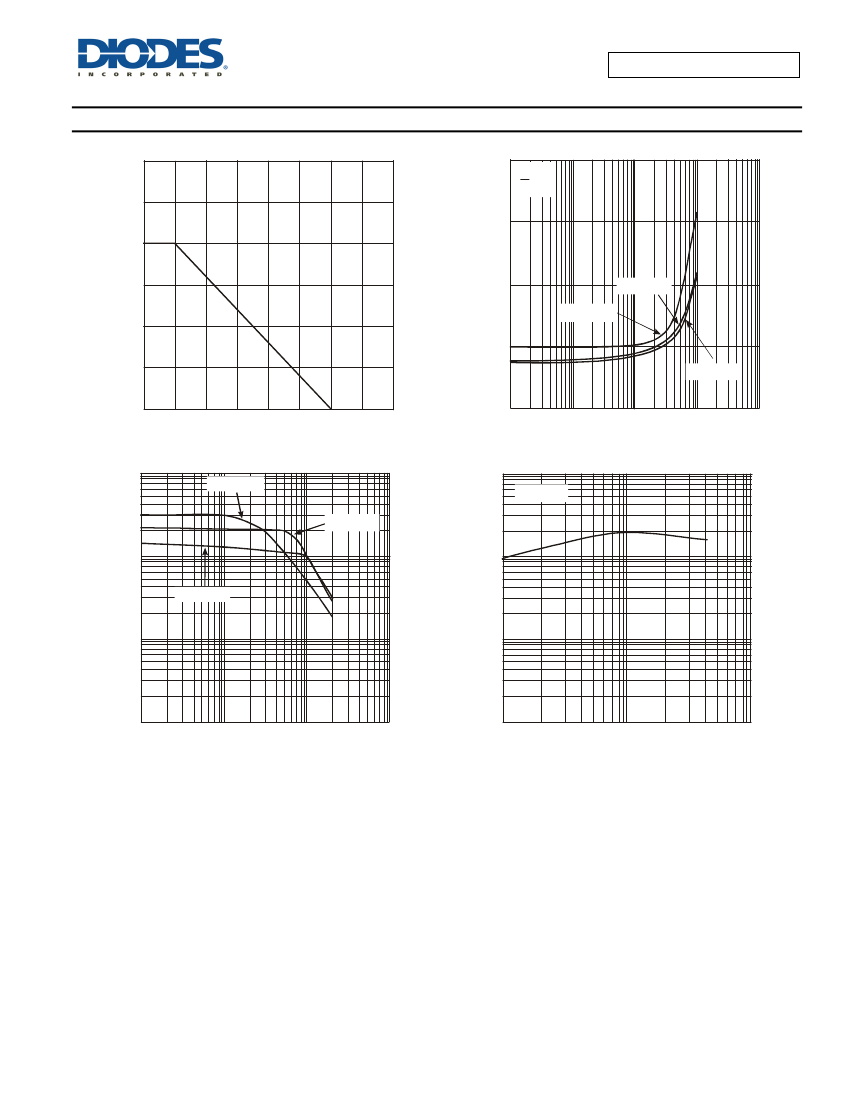

BC848BW Related Products

BC848BW BC847BW
Description Transistor Transistor
Is it Rohs certified? incompatible incompatible
Maker Diodes Incorporated Diodes Incorporated
Reach Compliance Code unknow unknow
Maximum collector current (IC) 0.1 A 0.1 A
Configuration Single Single
Minimum DC current gain (hFE) 200 200
JESD-609 code e0 e0
Maximum operating temperature 150 °C 150 °C
Polarity/channel type NPN NPN
Maximum power dissipation(Abs) 0.2 W 0.2 W
surface mount YES YES
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Nominal transition frequency (fT) 100 MHz 100 MHz
